Old 10-20-2014, 04:51 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by psyber_0ptix View Post
Yea the pressure sender port is bspt but since the hardline attaches to the block, the vvt motor will have a straight thread into the oil galley.

Mystery continues.
huh?
there is no physical difference at all between the oil pressure port on the regular blocks vs vvt.

check it, son:


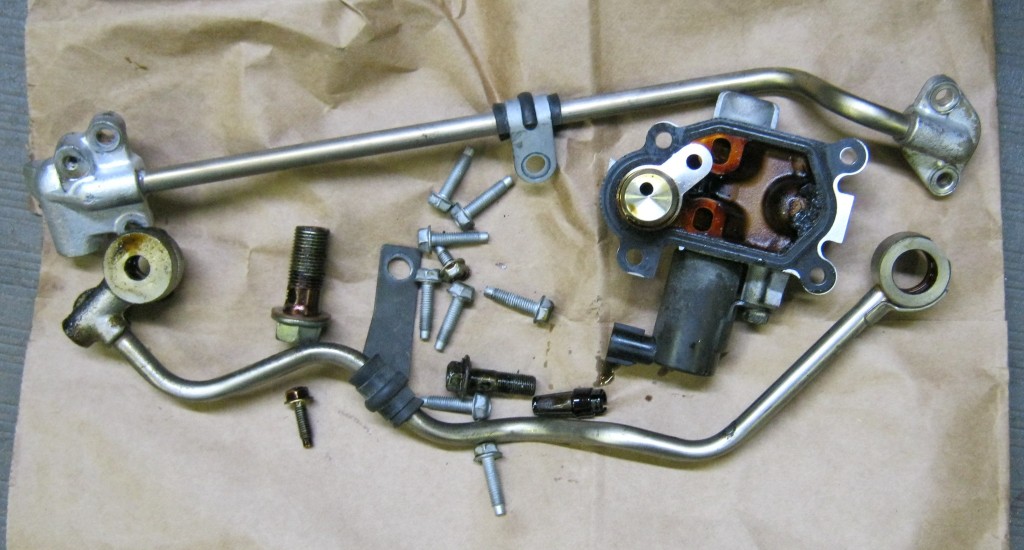

it uses a banjo bolt into the same port as the regular blocks have the pressure sensor
18psi is offline   Reply With Quote
Old 10-20-2014, 05:15 PM   #22
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

You mean to tell me that the little banjo bolt that passes into the block, through the hardline, is a BSPT thread? I was in agreement thats where it attaches, but I don't know if they'd use a tapered bolt on something that was to be sealed with two crush washers. The hardline itself has a bspt port for the pressure sender.

Attached Thumbnails
Tapping Oil/Water Ports on VVT Block-mind-blown.jpg
psyber_0ptix is offline   Reply With Quote
Old 10-20-2014, 05:19 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

same port, same thread, from my very own built engine:


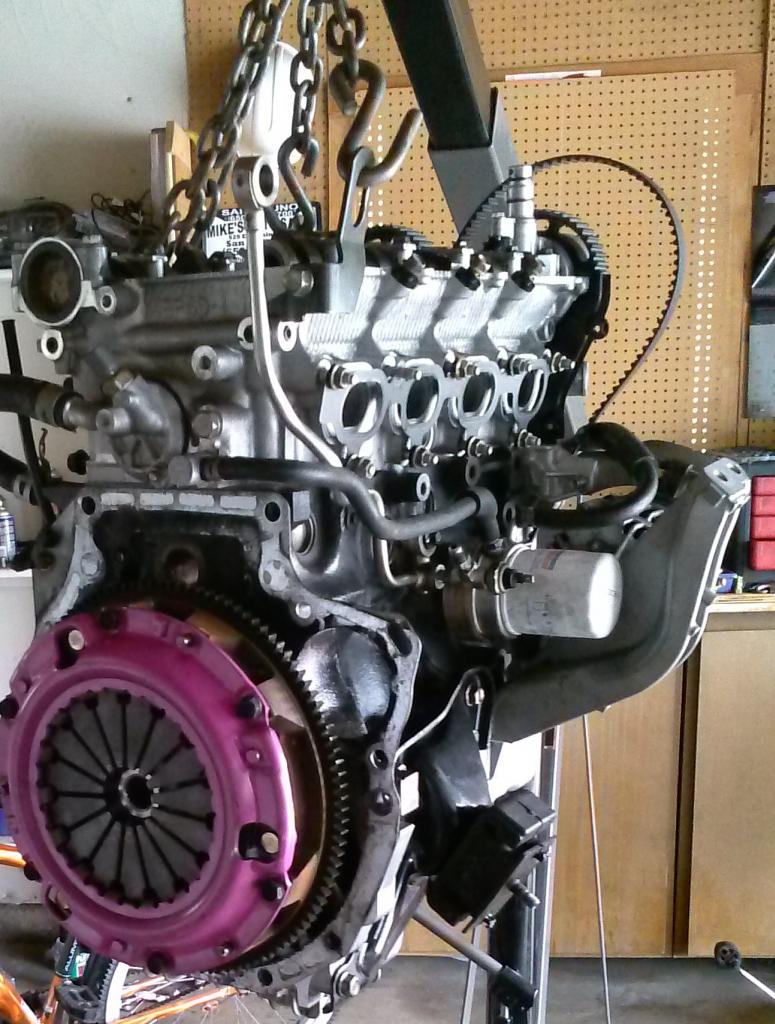

that bolt doesn't use crush washers either. it bolts through the sandwich without them.
18psi is offline   Reply With Quote
Old 10-20-2014, 05:43 PM   #24
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I suspect the 01+ blocks are a BSPP (british pipe parallel) thread, while the 90-00 blocks are BSPT (british pipe tapered).
Savington is offline   Reply With Quote
Old 10-20-2014, 06:57 PM   #25
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by shuiend View Post
I sort of laughed at keeping a dead dog in your freezer, then I realized my uncle keeps a dead alligator head frozen in his freezer. He has had it for several years and he uses it as a gag for when new people come over to the house.
How do you think I found out that the dog hadn't been buried yet when I was home for Christmas last year? I went into the freezer to get a popsicle for my niece, and found Lexi in a ziploc bag instead.

She was such a fun dog... Brainless and emotionally shallow, but fun.
Joe Perez is offline   Reply With Quote
Old 10-20-2014, 07:29 PM   #26
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Quote:
Originally Posted by 18psi View Post

that bolt doesn't use crush washers either. it bolts through the sandwich without them.

Quote:
Originally Posted by Savington View Post

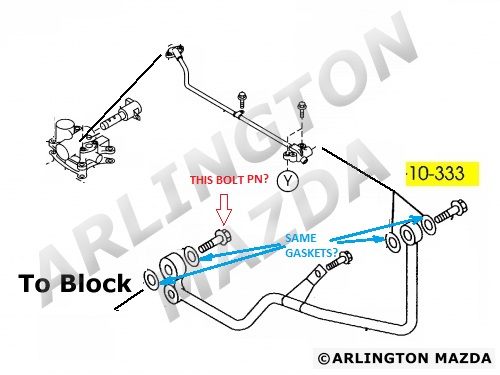

Block banjo bolt (small): 9YA3-51-001C
Block banjo bolt washers x2: 9956-21-000

Upper banjo bolt (big): 9YA3-41-601
Upper banjo bolt washers x2: ZL09-10-333


psyber_0ptix is offline   Reply With Quote
Old 11-08-2014, 10:50 PM   #27
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

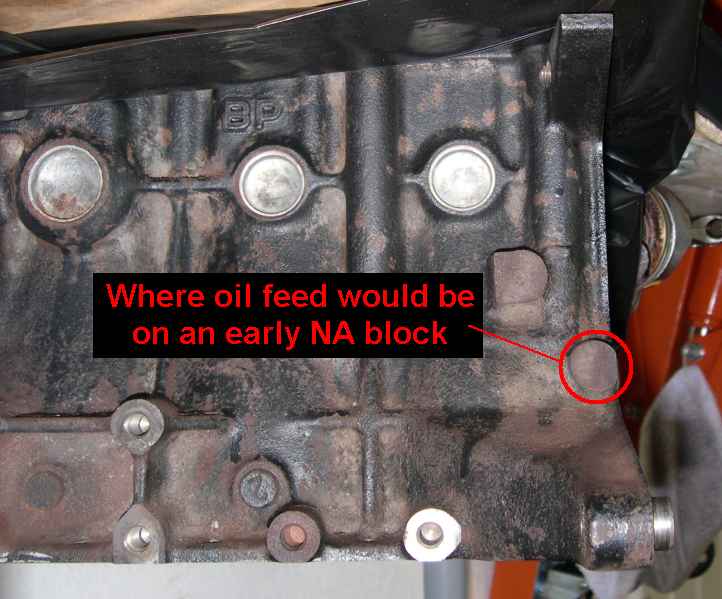

Found the originals.






So, yeah. Pretty much impossible with the tools we mortals have access to.


The dog's still in the freezer, incidentally.
Attached Thumbnails
Tapping Oil/Water Ports on VVT Block-eybht6lwm_bf36560.png   Tapping Oil/Water Ports on VVT Block-eybhry82m_7793951.png
Joe Perez is offline   Reply With Quote
Old 11-09-2014, 02:45 AM   #28
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Joe Perez View Post
Found the originals.

So, yeah. Pretty much impossible with the tools we mortals have access to.
The local TechShop locations have mills, CNC and otherwise. Doesn't seem like it'd worth the effort, though.

Also, the nearest TechShop location to NYC appears to be... Pittsburgh. So that'd be a bit of a hike. We've got three within 50 miles of my house though.

--Ian
codrus is online now   Reply With Quote
Old 11-09-2014, 06:33 PM   #29
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,511
Total Cats: 142
Default

Quote:
Originally Posted by psyber_0ptix View Post





Agreed. IDK how the heck 18psi ever got his to seal properly without those crush washers. Seems like the thread type into the block is completely irrelevant to whether or not the banjo body seals to the block and the underside of the bolt head (flange).
good2go is offline   Reply With Quote
Old 11-09-2014, 06:35 PM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I guess I am completely wrong and both use washers. its been a while since I was down there. my bad
18psi is offline   Reply With Quote
Old 11-09-2014, 08:46 PM   #31
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I've had to drill holes like that in cast iron and cast steel in the past, but it was in a full on milling machine. Its possible, but its peck-peck-peck-peck-peck-peck ad infinitum. Clearing a chip out of a hole that deep and that small a diameter with a bit that long is just asking for trouble. Not to mention trying to get chips out and coolant in at the same time. No thank you.

Now that coolant port... that may have some merit.
EO2K is offline   Reply With Quote
