Old 07-20-2011, 10:36 AM   #21
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
I forsee boost control issues.
Why? Because of the IWG-esque design?
Faeflora is offline   Reply With Quote
Old 07-20-2011, 02:25 PM   #22
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

i predict magic

oh yeah, I'm trying to pickup this same turbo for my car. Jefe I don't see you having a hard time spooling it by 4k
theshdwconspracy is offline   Reply With Quote
Old 07-20-2011, 02:32 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Faeflora View Post
Why? Because of the IWG-esque design?

yeah, you have the same problem of getting exhaust to divert into the wastegate section; regardless of what device controls the leak.
Braineack is offline   Reply With Quote
Old 07-20-2011, 03:03 PM   #24
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Will work great!

Shouldnt be any boost issues. EVO guys make a ton of power and flow massive CFM through without any problems so a miata wont be any different.
shlammed is offline   Reply With Quote
Old 07-20-2011, 03:54 PM   #25
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Brain, this is a common way to run an EWG on this set up. The Honeywell engineer didnt see any issues with this set up.

I wish I had a better pic to show you how the WG tube is welded into teh exh housing. Let me see if I do.
TURNS101 is offline   Reply With Quote
Old 07-20-2011, 03:57 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I'm more interested in how the turbine inlet looks like looking into the turbo.
Braineack is offline   Reply With Quote
Old 07-20-2011, 04:06 PM   #27
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

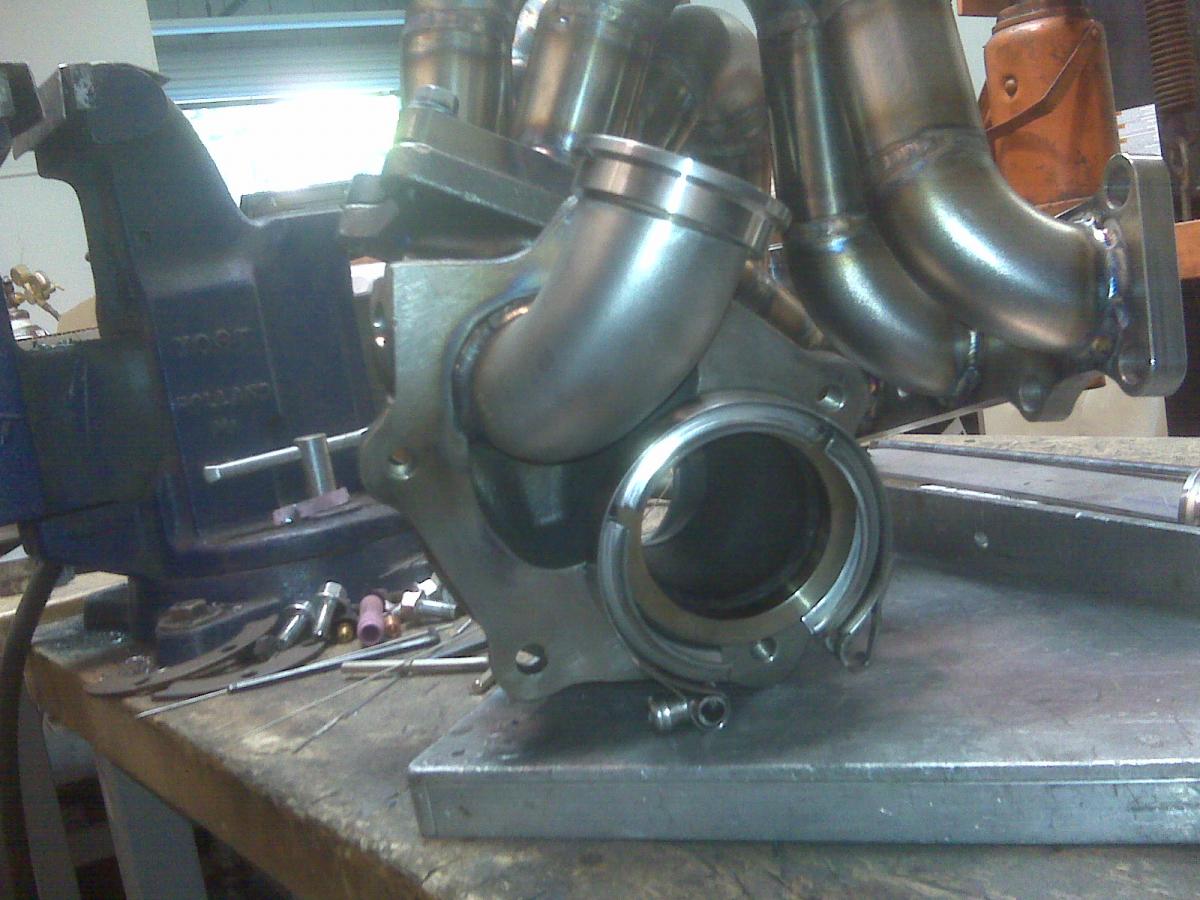

That help??
Attached Thumbnails
Teaser pic from new set up-forbrain.jpg
TURNS101 is offline   Reply With Quote
Old 07-20-2011, 04:09 PM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by shlammed View Post
EVO guys make a ton of power and flow massive CFM through without any problems .
Correcto-mundo. Most of them with anything smaller than 35r are internally gated.
18psi is offline   Reply With Quote
Old 07-20-2011, 05:02 PM   #29
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



No, brain means looking into the turbine inlet, not the turbine outlet.

30psi in 4th gear (6speed tranny) by 4000rpm should be do-able especially with extra timing in low boost rows with WI. My only concern would be more backpressure at high boost meaning less timing up top.

If I were you I might also look into putting an additional WI nozzle at the turbo compressor inlet.
Faeflora is offline   Reply With Quote
Old 07-20-2011, 05:13 PM   #30
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Ahhh, I dont know if I have a good pic of the inlet into the turbine housing. If I do, its a dumpy pic and was used just to get the correct twinscroll flange.

Let me look though.

This housing is typically used for a 3076 on an evo.

I dont think I will run into any back pressure issues either.

Evos run 35psi all day with this housing and a 3076.
TURNS101 is offline   Reply With Quote
Old 07-20-2011, 07:05 PM   #31
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

So when is the next event you plan to attend? I was hopping to see you make it out to a couple of the FD events over on the east coast. I'm sure it's just not in the budget. I'm defiantly a fan!
Sokool is offline   Reply With Quote
Old 07-20-2011, 07:46 PM   #32
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

^^ Thanks man! Yeah, the east isnt in the budget. Plus its tough on the family too. Maybe next year.
My next event is in late August in Vegas. Round 6.. Nice and hot..
TURNS101 is offline   Reply With Quote
Old 07-21-2011, 01:27 PM   #33
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

get some sweet onboard footage...

or even if you have a practice event, get some footage showing how fast this turbo picks up.


Is there a reason to do the evo turbine as opposed to say a twin scroll in the t3 or t4 variant housings?
shlammed is offline   Reply With Quote
Old 07-21-2011, 01:44 PM   #34
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

HOLY A ******* hell!!!! Where's the boost!!! RESULTS RESULTS RESULTS
Faeflora is offline   Reply With Quote
Old 07-21-2011, 03:45 PM   #35
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Sorry, it was delayed a bit.... Still hoping it will get tuned next week.

I have a go pro now. I should have some solid footage of this thing on the dyno and on the track. If the dyno plot sucks, It wont even hit the track it will come right off and be for sale here ..

As for the Evo X housing, with Turbo by Garrett providing the product, this is what they felt would meet my goals.

If its close, but not close enough, I may look into a twin scroll .64 housing and see how that rocks. If it sway off, smaller turbo time again, but a much more efficient manifold..

I am really hoping this thing just rocks for me though..
TURNS101 is offline   Reply With Quote
Old 07-21-2011, 04:25 PM   #36
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

As one of the last 4 cylinder holdouts in Formula Drift, I still don't know why you've never run a well controlled n2o setup just on the low end to help spool. As I understand it, it has been and still is common in japan, where they are still running relatively smallish displacement motors.
BenR is offline   Reply With Quote
Old 07-21-2011, 04:44 PM   #37
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Ahh Ben. Its just another effing thing to worry about ha ha, BUT you have a good point and maybe I will look into it. I dont know if n20 is still allwoed in FD. I have to look..
TURNS101 is offline   Reply With Quote
Old 07-21-2011, 05:06 PM   #38
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Run pure meth in your WI tank!!!! below-ambient temps FTW!!!!
Faeflora is offline   Reply With Quote
Old 07-21-2011, 05:11 PM   #39
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

I think the only reason why it didn't pickup in the US is how easy and cheap a ls swap is on most cars. I believe power adders and fuel are still wide open in FD. I've got the rulebook right here.

That said, if it was me, I'd just switch to a mustang if I wanted to be competitive in FD on a "budget".



John did a great job on those hot bits.
BenR is offline   Reply With Quote
Old 07-21-2011, 05:21 PM   #40
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Faeflora View Post
Run pure meth in your WI tank!!!! below-ambient temps FTW!!!!
Full_Tilt_Boogie is offline   Reply With Quote
