Old 01-22-2016, 10:06 AM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by borka View Post
from what i understand its an old BEGI knockoff, so it must have worked back in the day, i wonder what turbo it was originally made for? SR20?

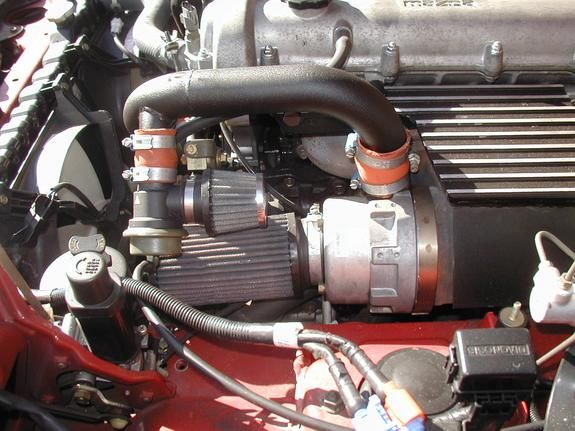

aerodyne.








Attached Thumbnails
Thoughts on this cheap cast mani?-80-7587060003_large_74c77818063e653504dfa476b96a6ccfdf5be24b.jpg   Thoughts on this cheap cast mani?-80-mazda_miata_822023e45cfac10ed282762f1591b08607c3730b.jpg   Thoughts on this cheap cast mani?-80-img_0130_bfe48df29e89d27b76afb99b47aebec84ca857ce.jpg
Braineack is offline   Reply With Quote
Old 01-22-2016, 10:09 AM   #42
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Joe Perez View Post
Not hit block?
None of the turbos hit block. Not sure if they would hit the side frame, as I already had my beaten back a good amount from my old cast Begi manifold.

Quote:
Originally Posted by deezums View Post
Hit shelf, not block?

T3 with flappy paddle v-band, at least?

EFR tacotaco, lel
Flappy paddle v-band? I am honestly not sure if there would be enough room if you cut the rear shelving or not, would probably have to cut more then just the lip.

EFR tactic would have real trouble with fitting a downpipe.

Quote:
Originally Posted by borka View Post
Thank you so much for the pics.

so it doesnt look like the T3 with vband can fit a downpipe. not good.

but it does look like a T2 T25 sr20 turbo should fit.

from what i understand its an old BEGI knockoff, so it must have worked back in the day, i wonder what turbo it was originally made for? SR20?
I don't think the t3 will work without heavy modding of the back shelf. The T25 should be doable. Brain covered what turbo they used.
shuiend is offline   Reply With Quote
Old 01-22-2016, 10:54 AM   #43
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by Braineack View Post
aerodyne.








Thanks so much!

yeah, not interested in getting this turbo.

Quote:
Originally Posted by shuiend View Post
None of the turbos hit block. Not sure if they would hit the side frame, as I already had my beaten back a good amount from my old cast Begi manifold.



Flappy paddle v-band? I am honestly not sure if there would be enough room if you cut the rear shelving or not, would probably have to cut more then just the lip.

EFR tactic would have real trouble with fitting a downpipe.



I don't think the t3 will work without heavy modding of the back shelf. The T25 should be doable. Brain covered what turbo they used.
Thank you for letting me know, today the T3 manifold and other stuff are scheduled to arrive, and now i can refuse delivery for a refund.

it seems i now have two options.

Option A: return T3 turbo and get a China GT2560R for ~$300-400 or a rebuilt garett for $700 + T2 tacotaco manifold + FM elbow and DP $500. + i will still need an exhaust made ~$500

Option B: Keep T3 turbo and get MK kit minus turbo.

I like option B much better.

Lars: Can you take an order from me for full kit minus turbo? or you prefer i return the turbo and get everything from you?

How long will it take to make the kit?

again thanks for all your help. this is my first ever turbo build and i admit that i am a
borka is offline   Reply With Quote
Old 01-22-2016, 10:59 AM   #44
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by shuiend View Post
EFR tactic would have real trouble with fitting a downpipe.
Up through the hood
aidandj is offline   Reply With Quote
Old 01-22-2016, 11:17 AM   #45
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by borka View Post
Thank you for letting me know, today the T3 manifold and other stuff are scheduled to arrive, and now i can refuse delivery for a refund.

it seems i now have two options.

Option A: return T3 turbo and get a China GT2560R for ~$300-400 or a rebuilt garett for $700 + T2 tacotaco manifold + FM elbow and DP $500. + i will still need an exhaust made ~$500

Option B: Keep T3 turbo and get MK kit minus turbo.

I like option B much better.

Lars: Can you take an order from me for full kit minus turbo? or you prefer i return the turbo and get everything from you?

How long will it take to make the kit?

again thanks for all your help. this is my first ever turbo build and i admit that i am a
I don't suggest any of the China T25's. I have not seen one that I like spool wise. You can find SR20 T25's for $100-200 if you want to go the t25 route.

As for my setups if you already have the turbo I can take that out. Right now not taking more orders until I am done with my GB orders. I expect that to hopefully be around the end of March or April. Shoot me an email if you are seriously interested.


Quote:
Originally Posted by aidandj View Post
Up through the hood
Do I need to make a madtyte EFR tacotaco Ddrift missile?

Who here can do car wraps and know how to plastidip rims?
shuiend is offline   Reply With Quote
Old 01-22-2016, 01:23 PM   #46
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by shuiend View Post
I don't suggest any of the China T25's. I have not seen one that I like spool wise. You can find SR20 T25's for $100-200 if you want to go the t25 route.

As for my setups if you already have the turbo I can take that out. Right now not taking more orders until I am done with my GB orders. I expect that to hopefully be around the end of March or April. Shoot me an email if you are seriously interested.
ok lets do it. i will email you later today to setup up an order.

to confirm, this is the correct turbo?
T3 48AR 2 5" V Band Exhaust Flange 42AR Comp Internal Wastegate Turbo Charger | eBay
borka is offline   Reply With Quote
Old 01-22-2016, 01:41 PM   #47
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by borka View Post
ok lets do it. i will email you later today to setup up an order.

to confirm, this is the correct turbo?
T3 48AR 2 5" V Band Exhaust Flange 42AR Comp Internal Wastegate Turbo Charger | eBay
Looks like it. You should be able to offer $200 for it.
shuiend is offline   Reply With Quote
Old 01-22-2016, 02:24 PM   #48
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by shuiend View Post
Looks like it. You should be able to offer $200 for it.
I already offered $190 and he accepted it a few days ago. turbo should be arriving to me Monday.
borka is offline   Reply With Quote
Old 01-22-2016, 02:27 PM   #49
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by borka View Post
I already offered $190 and he accepted it a few days ago. turbo should be arriving to me Monday.
Sweet, then they have gotten lower then last time when I ordered a ton.
shuiend is offline   Reply With Quote
Old 01-22-2016, 03:23 PM   #50
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

mine was $175. but i was like first ever to get it. then my influence of in the force caused demand to go up.
Braineack is offline   Reply With Quote
Old 01-22-2016, 03:29 PM   #51
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
mine was $175. but i was like first ever to get it. then my influence of in the force caused demand to go up.
Your also did not have the v-band outlet, and was purchased 8-9 years ago or some ****. Chinese child labor prices have gone up a tiny bit since then.
shuiend is offline   Reply With Quote
Old 01-22-2016, 03:32 PM   #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

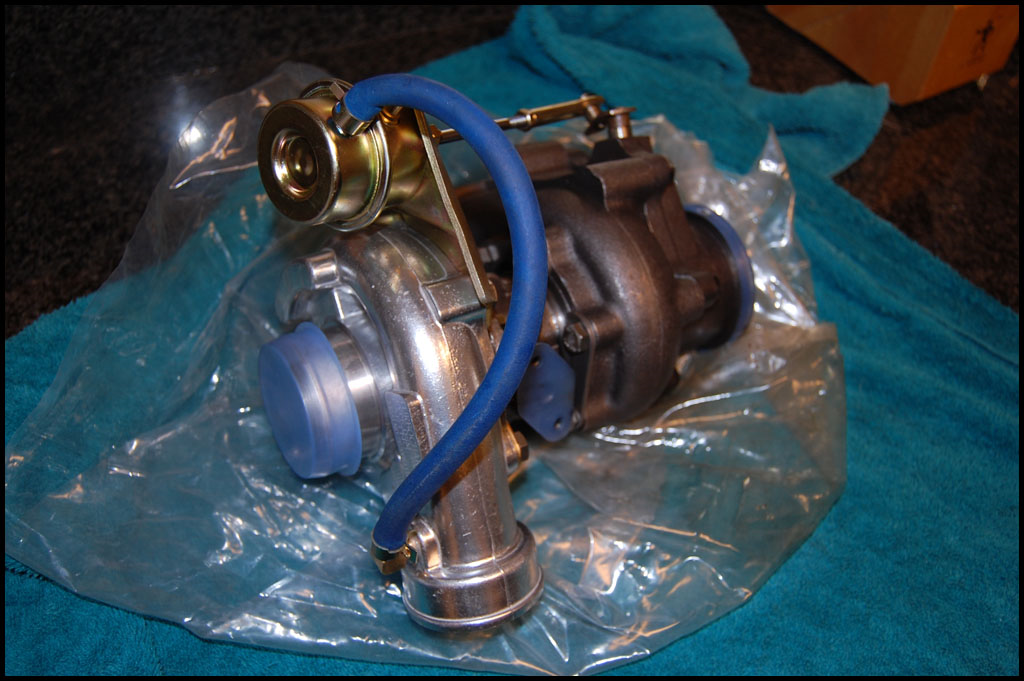

yeah it did. i just sold it off cause i already had a DP for the 3 bolt outlet.





Attached Thumbnails
Thoughts on this cheap cast mani?-80-undefined_0a0127daa3b441894ed7417c4e6df53ff5b13b89.png   Thoughts on this cheap cast mani?-80-undefined_842086e9a4c9f8bd885d258c4ec463d2b1db27ce.png
Braineack is offline   Reply With Quote
Old 01-23-2016, 11:25 AM   #53
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

If anyone happens to have a FM or Begi downpipe I could borrow to test fit with the t2 tacotaco manifold it would be greatly appreciated.
shuiend is offline   Reply With Quote
Old 01-24-2016, 12:05 AM   #54
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by shuiend View Post
If anyone happens to have a FM or Begi downpipe I could borrow to test fit with the t2 tacotaco manifold it would be greatly appreciated.
I do but I'm in CA. I have FM/Begi 1.8 and 1.6 t2 DPs.
kenzo42 is offline   Reply With Quote
Old 01-27-2016, 04:14 PM   #55
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

I should have a FM cast elbow coming to me shortly to test fitment with. I will post up pictures once I get it in.
shuiend is offline   Reply With Quote
Old 02-02-2016, 10:49 PM   #56
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

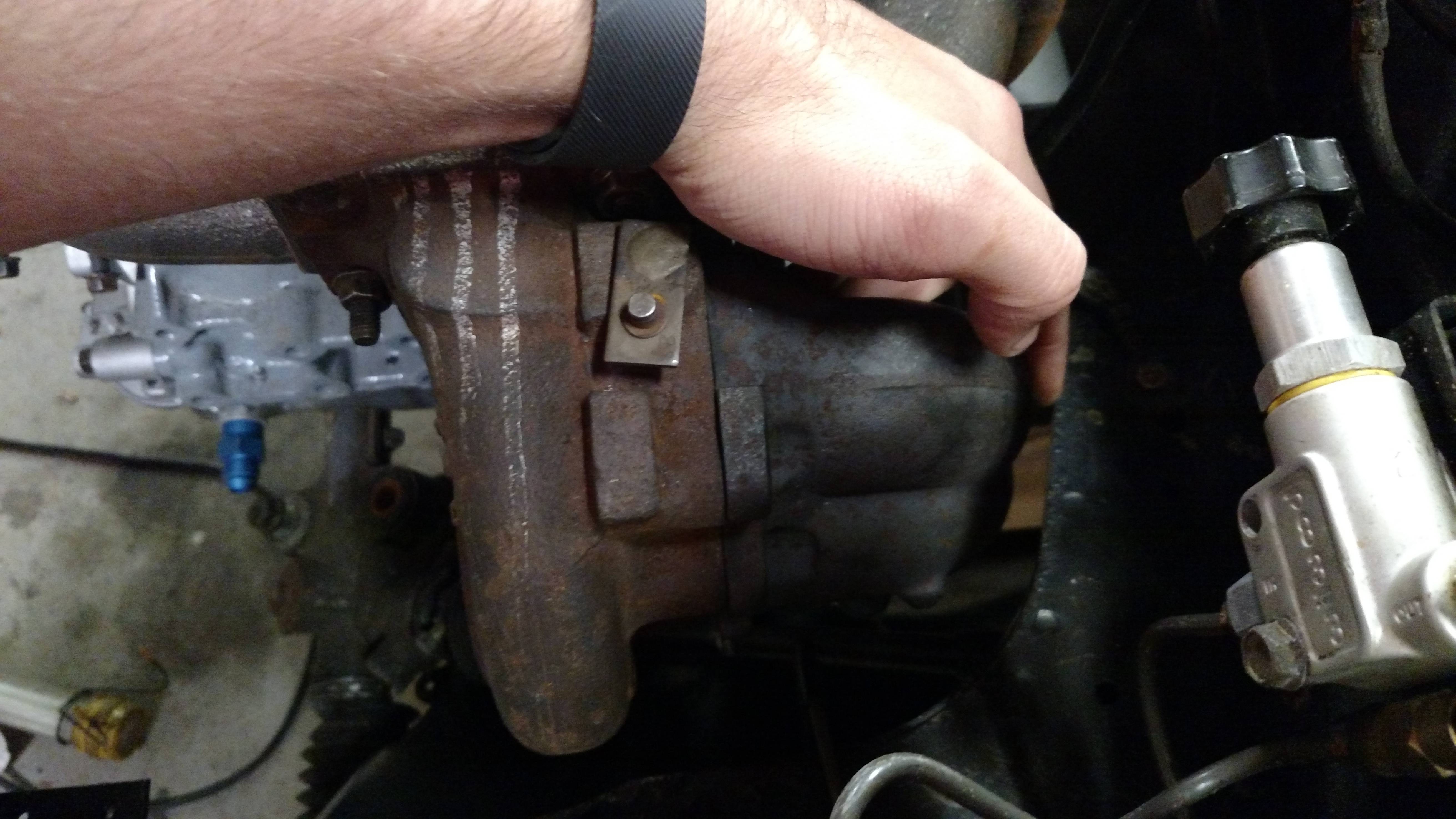

I got some goodies in the mail today.

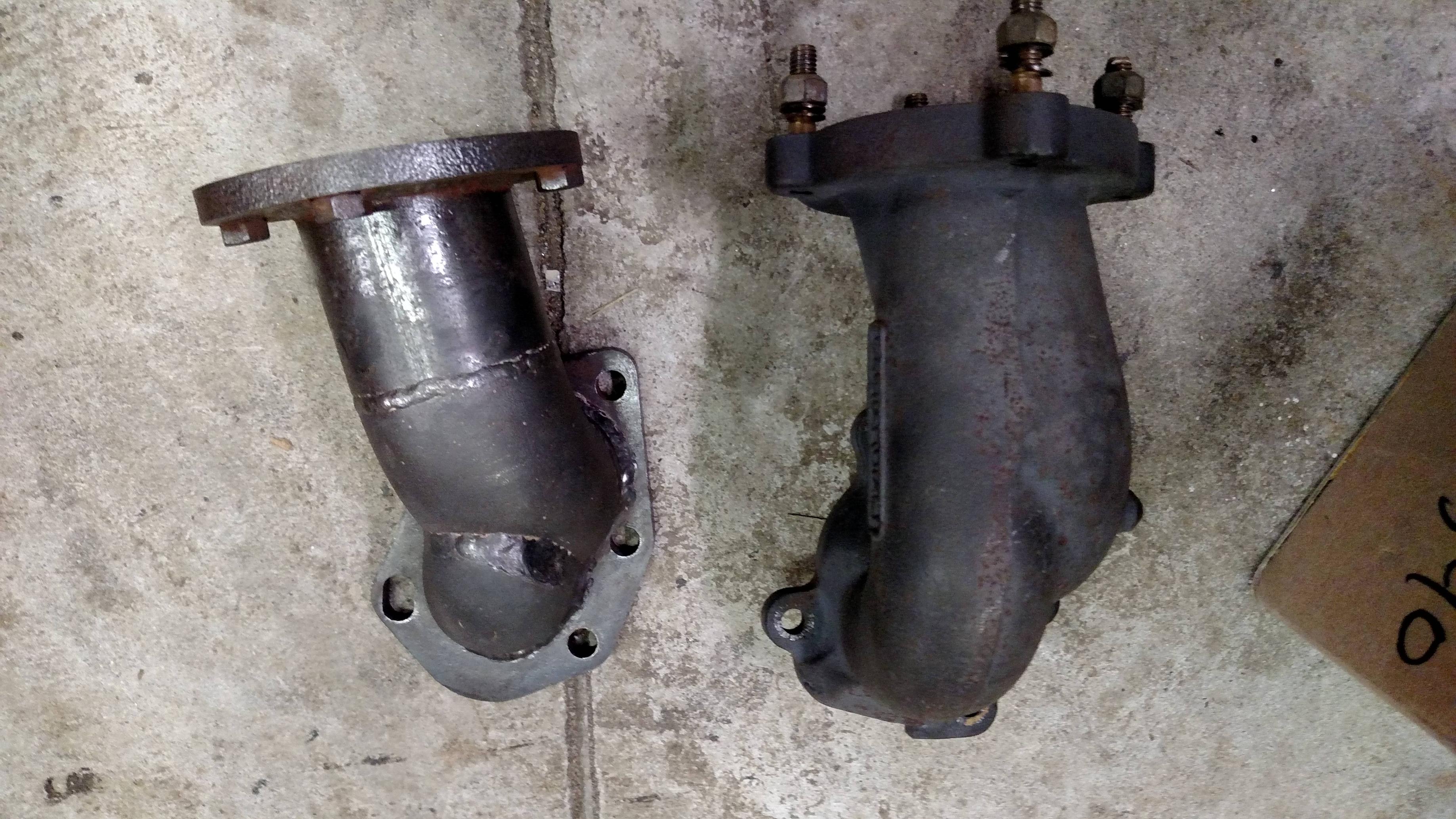

Old style and new style FM upper downpipe.

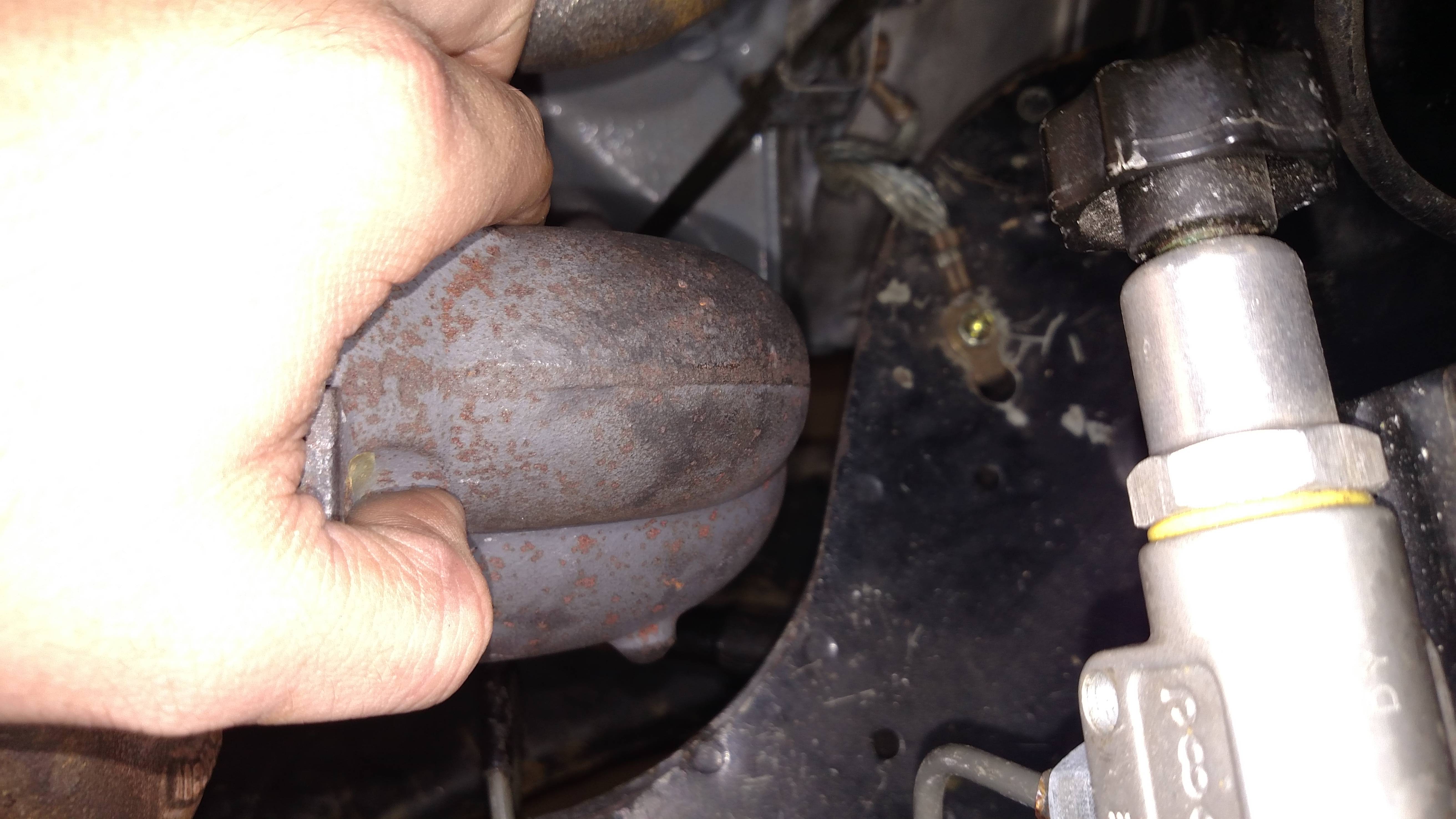

The new style loosely attached to a 1.8 tacotaco and SR20 t25 exhaust housing.

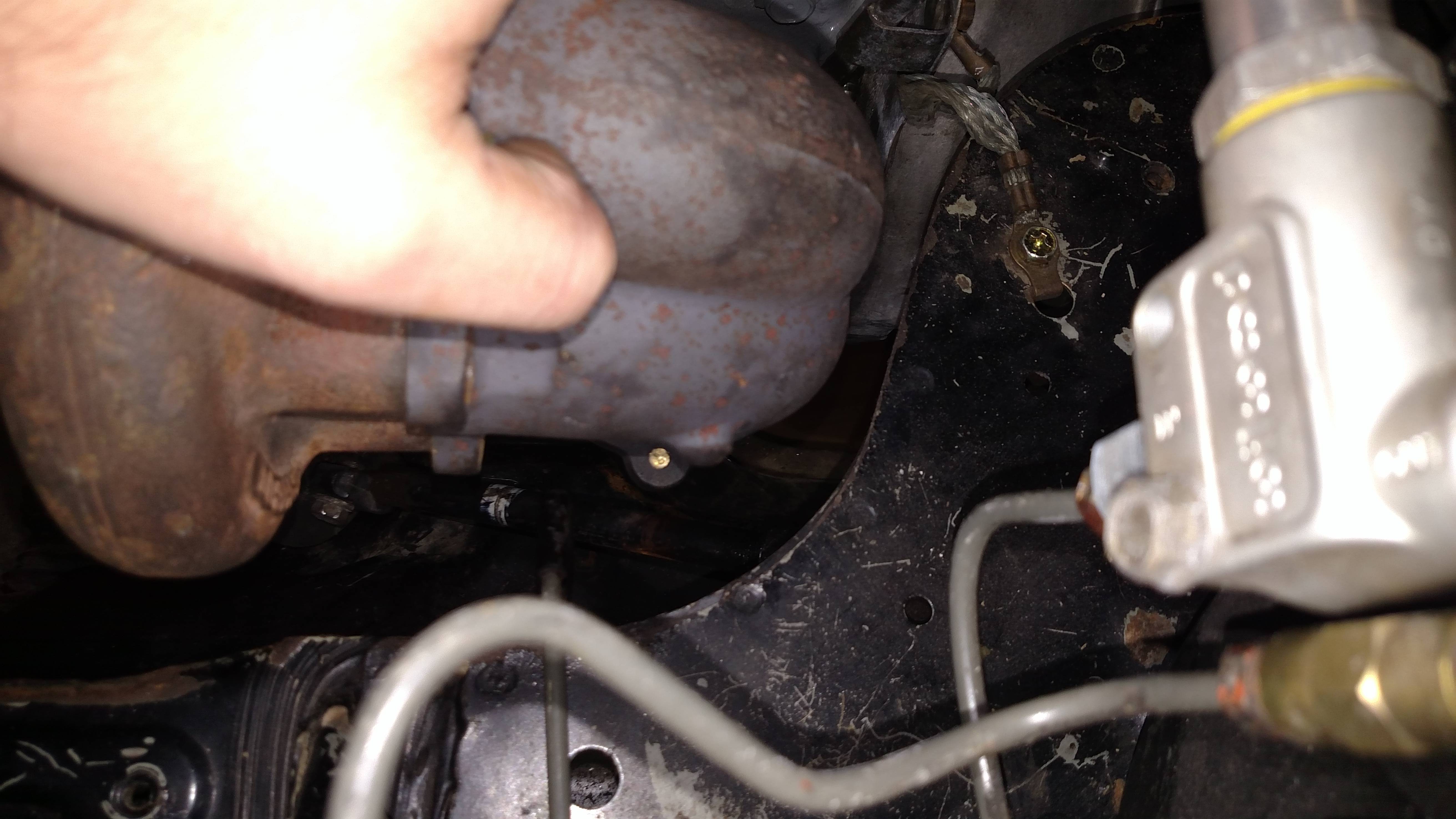

The only possible issue I see is hitting the steering rack below. I will know later this weekend when I get a chance to install the full fm downpipe and a stock exhaust.
Attached Thumbnails
Thoughts on this cheap cast mani?-lhejrp2.jpg   Thoughts on this cheap cast mani?-g0ioy69.jpg   Thoughts on this cheap cast mani?-g0dd89v.jpg   Thoughts on this cheap cast mani?-4zmpslm.jpg   Thoughts on this cheap cast mani?-fi01cmx.jpg

shuiend is offline   Reply With Quote
Old 02-19-2016, 10:35 PM   #57
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Any updates on the full FM DP fitment?
boileralum is offline   Reply With Quote
Old 02-20-2016, 02:49 AM   #58
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by NicDrilling View Post
I assume for the price its garbage. Am I wrong?
I'm making 415whp on VD with this manifold. It works great so far, but very limited amount of time it's been on the car.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 08:14 AM   #59
Autobot Miata
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Has anyone managed to heat wrap one of these manifolds yet? Any tips?
viriiguy is offline   Reply With Quote
Old 02-29-2016, 11:34 AM   #60
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
I'm making 415whp on VD with this manifold. It works great so far, but very limited amount of time it's been on the car.
Now 492whp, and ran 7.3's int he 1/8th at over 100mph on this manifold (not running full boost on this pass, like 400whp maybe)

Quote:
Originally Posted by viriiguy View Post
Has anyone managed to heat wrap one of these manifolds yet? Any tips?
I wouldn't do that personally. I think that would increase the chance of any cast manifold cracking.
patsmx5 is offline   Reply With Quote
