Default Turbo backpressure? What turbo backpressure?

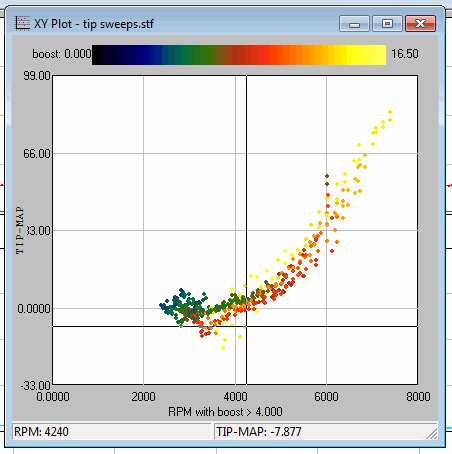

I logged turbine inlet pressure and generated the plot below.

X axis is RPM
Y axis is TIP-MAP (kPa)
color is boost

The darn GT2560 operates in crossover (MAP > TIP) in most conditions below 4200 RPM, by over 1 psi. The sucker makes 5 psi of boost by like 2200 RPM BTW.

At 15 psi of boost, TIP-MAP is 5 psi at 5700 RPM and 10 psi at 6800, 12.5 psi at 7400.

BTW at 15 psi of boost, my intercooler has 1 psi of pressure drop at 5000 RPM and 2 psi at 7400.

My exhaust has 4.5 psi backpressure at peak power and probably 2 psi in the midrange (I will log this next)

Attached Thumbnails
Turbo backpressure?  What turbo backpressure?-tip-sweeps.gif
JasonC SBB is offline   Reply With Quote
Old 04-22-2012, 05:31 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

lol is there anything you haven't logged on your car yet?
18psi is offline   Reply With Quote
Old 04-22-2012, 11:37 AM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

what are your EGTs that correlate to that scatter plot?

Enthalpy drives the turbo and includes heat, pressure, and dynamic energy effects. with a hot, high volume flow rate exhaust, you'll spin that turbine.

I'm sure with VVT and some spark retard you can get more time in crossover.
y8s is offline   Reply With Quote
Old 04-22-2012, 12:52 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Bauce.
hustler is offline   Reply With Quote
Old 04-22-2012, 01:20 PM   #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Very interesting.
Ive always heard that with a good turbo setup with a free flowing exhaust, that the pressure in the IM should be a bit higher than in the turbo manifold, I just never knew by how much.

Any idea what typical NA backpressure values would be?
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-22-2012, 02:52 PM   #6
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Typical NA backpressure will be 4-5 psi at peak power.

My turbo shows TIP-MAP < 5 psi to about 6000 RPM.

Food for thought.
_______________

Last edited by JasonC SBB; 04-22-2012 at 05:09 PM.
JasonC SBB is offline   Reply With Quote
Old 04-22-2012, 02:56 PM   #7
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by y8s View Post
what are your EGTs that correlate to that scatter plot?
EGT sensors have a very slow response time. The data will be worthless without sustained loading like on a dyno or very high speeds.
JasonC SBB is offline   Reply With Quote
Old 04-22-2012, 03:23 PM   #8
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

which EGT sensors are you talking about, they very on what type of thermocouple you use, like shielded vs unshielded.
Techsalvager is offline   Reply With Quote
Old 04-22-2012, 05:02 PM   #9
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

JasonC SBB is offline   Reply With Quote
Old 04-22-2012, 05:22 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Jason what exhaust mani are you running?
(sorry for off topic)
18psi is offline   Reply With Quote
Old 04-22-2012, 05:56 PM   #11
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

looks like a shielded thermocouple.
http://www.omega.com/pptst/JTIN.html
exposed junction, k type, innconel
Techsalvager is offline   Reply With Quote
Old 04-22-2012, 09:46 PM   #12
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

The graph looks vaguely like a *****.
2ndGearRubber is offline   Reply With Quote
Old 04-22-2012, 11:00 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

U know how I know you're gay?
18psi is offline   Reply With Quote
Old 04-22-2012, 11:45 PM   #14
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Jacopb inwanna measure my studf too.

What sensor u use?
Faeflora is offline   Reply With Quote
Old 04-22-2012, 11:46 PM   #15
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 2ndGearRubber View Post
The graph looks vaguely like a *****.
No it do not. Let me show u what one llook like.
Faeflora is offline   Reply With Quote
Old 04-22-2012, 11:52 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Attached Thumbnails
Turbo backpressure?  What turbo backpressure?-graph-fail-performance-evaluation-penis-jizz.jpg
18psi is offline   Reply With Quote
