Default Turbo close to PS line & coolant hose

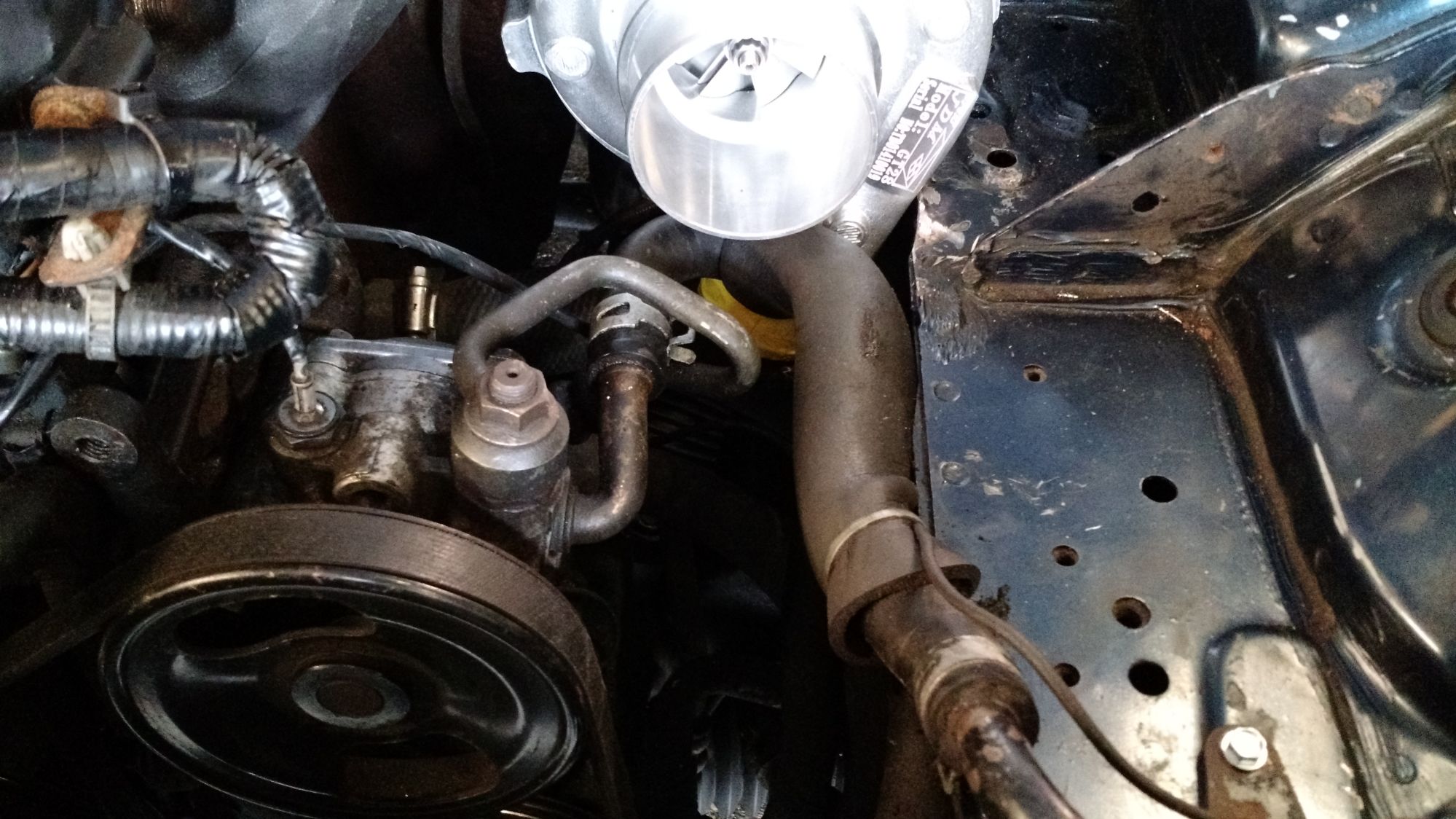

First off, NO I'M NOT DELETING THE POWERSTEERING. As you can see in the pic, the outlet of the turbo (the yellow tape) is hitting the PS hose. It's also right above a coolant hose as well. Any suggestions on how I should re-located/move/possibly shorten that PS hose? Should I keep it as far from the outlet as possible? Same goes for the coolant hose. You can't see in the pic, but it's about 2 inches from the outlet of the turbo. I figured once the piping gets attached to the outlet, I could heat wrap that coolant hose or just make some heat shield to protect it.
Attached Thumbnails
Turbo close to PS line & coolant hose-80-bhrahdj_a47e243cfdbcc0b14f64c19cd05230e03523b03c.jpg
emericareaper2 is offline   Reply With Quote
Old 06-09-2015, 12:18 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

shorten the ps hose to sit closer to pump
get a fm lower rad hose

done
18psi is offline   Reply With Quote
Old 06-09-2015, 12:21 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

The outlet of the compressor won't be much hotter than engine bay temps. The real heat is further back in the turbine. So, give yourself enough clearance to avoid rubbing and call it a day.
hornetball is offline   Reply With Quote
Old 06-09-2015, 12:46 PM   #4
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Thanks guys. I didn't know if that outlet would get crazy hot or not. I have some left over heat wrap that I may just use to be safe. My Dad agreed on shortening that hose so I'll have a go at it today. And I'll also purchase the FM hose. Had no idea those existed!
emericareaper2 is offline   Reply With Quote
Old 06-09-2015, 01:04 PM   #5
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

I would also clock the turbo 5-10 degrees anti-clockwise, possibly clearancing the "shelf" a bit more if necessary.

--Ian
codrus is offline   Reply With Quote
Old 06-09-2015, 02:19 PM   #6
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I lengthened mine and went behind the compressor outlet.
Schuyler is offline   Reply With Quote
Old 06-09-2015, 02:38 PM   #7
Junior Member

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

You can also twist that metal pipe a little bit, it will rotate some. I twisted mine down a bit so the hose doesn't rub on anything.
Mech5700 is offline   Reply With Quote
Old 06-10-2015, 12:56 AM   #8
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Shorten the fitting on the pws pump. Hack saw and debur.

Try a 21 inch 1.25 ID flex hose from NAPA for easy water hook up.

corky
Corky Bell is offline   Reply With Quote
Old 06-11-2015, 04:31 PM   #9
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

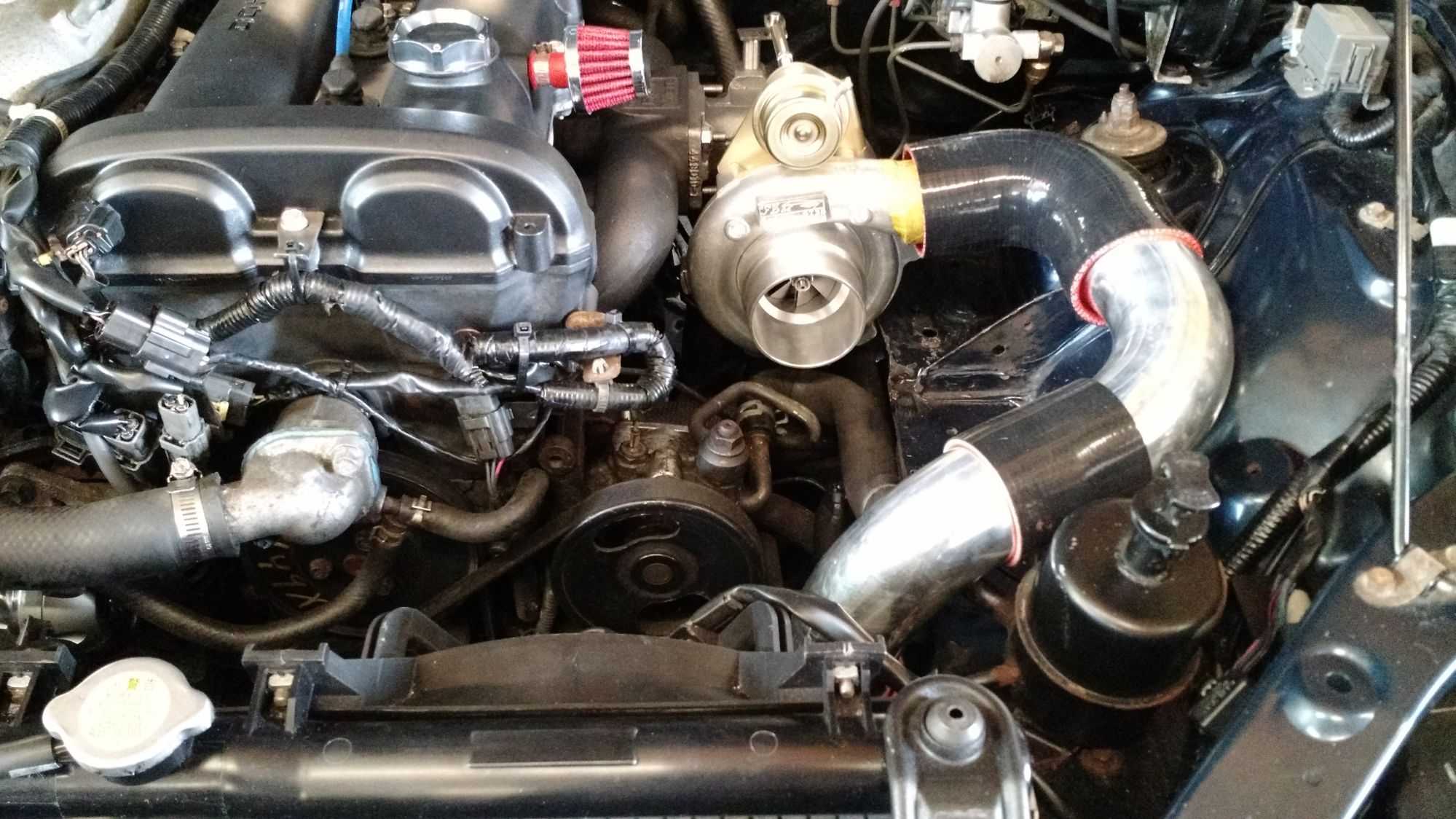

I made it easy. I just clocked it. I thought clocking was a crazy hard task but it turns out it's really easy. 4 bolts & the snap ring. This is a mock-up now. No clearance issues at all!
Attached Thumbnails
Turbo close to PS line & coolant hose-80-ucf8jll_5e061d7ffeda0acbe0c1d9b585b31935380ebcdf.jpg
emericareaper2 is offline   Reply With Quote
Old 06-11-2015, 04:44 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

with that routing you could just run 01+ headlights and copy my "over the top" routing behind the headlight.

but either way works
18psi is offline   Reply With Quote
Old 06-11-2015, 05:03 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
with that routing you could just run 01+ headlights and copy my "over the top" routing behind the headlight.

but either way works
I need to go find those pictures and see how you did it. I have a set of NB2 headlights to swap into my 99.
