Default turbo flange questions

Ok, I am going about this backwards, but I have an older log mani and dont know what type of turbo fits it, it has no markings, etc.

There was a link (6mos or 1 year ago) that had the whole page of flanges with their measurements. I have been to the jgs page and atp. The flange I need is 1/4 inch shorter than the kt010 (gt25 or 15) or whatever.

Anyone recall the link?
I have searched over 400 threads and the google, but still haven't found this elusive link.
gamman is offline   Reply With Quote
Old 03-08-2007, 04:47 PM   #2
Boost Czar
iTrader: (61)
Braineack's Avatar
Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788

post a pic and measurements.
Braineack is offline   Reply With Quote
Old 03-08-2007, 05:35 PM   #3
Junior Member
Thread Starter
Join Date: Jan 2006
Posts: 45
Total Cats: 0
Default really

Really? Ok.

Outside measmts (edge to edge)
width 3 and 9/16 (or 3.5625)
high 2 and 1/2 (or 2.5)
[dont let the above measurements fool you - wait for the below]

bolt measurements [edit from centre of bolt to centre of bolt]
width 2 and 7/8 (or 2.875)
high 1 and 5/16 (or 1.3125) **

gases holes (or oval or whatever at the largest part)
width 2 and 1/4 *
high 1 and 1/4**

* is off by less than 1/4
** is off GT25 by more than or equal to 1/4 inch
Attached Thumbnails

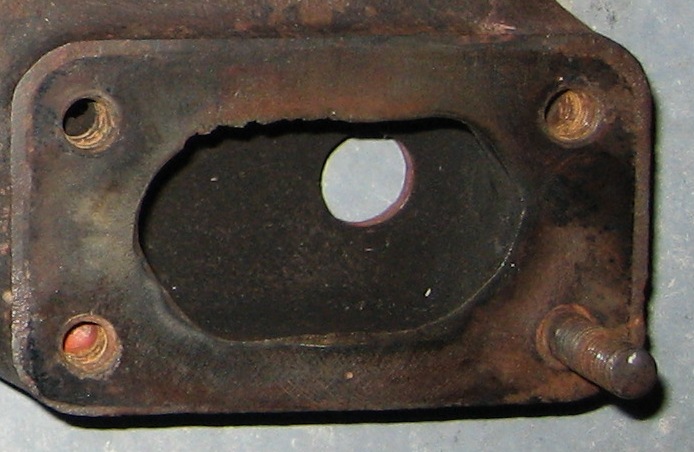

turbo flange questions-log-mani-zoom.jpg
