Old 07-11-2011, 02:16 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by golftdibrad View Post
Inconel just isnt in the budget right now, and I dont really track this car, just autox and mountain carving once a year. I dont think I'm serious enough for inco yet.
-Brad
My turbo-manifold 10mm bolts broke when I was 4-hours from home. They broke when I wasn't at the track, just cruising. I know it's not cheap, but it's probably the same price as a tow home.
hustler is offline   Reply With Quote
Old 07-11-2011, 02:36 AM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I must have a good manifold design, or magic bolts. 8mm, ACE hardware $.60 SS allen bolts, they all stay fairly tight. I replace them every couple track days, but that's more preventative than anything. My turbo sits on top of the manifold though, horrible for heat shielding, down pipe flow, down pipe routing, and looks, but apparently easy on bolts.
curly is offline   Reply With Quote
Old 07-11-2011, 09:44 AM   #23
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by hustler View Post
My turbo-manifold 10mm bolts broke when I was 4-hours from home. They broke when I wasn't at the track, just cruising. I know it's not cheap, but it's probably the same price as a tow home.
You almost have me sold, but part of the issue is the top set are through holes. To upsize to 10mm I'd likely have to do some fairly heavy dremeling as well.

Quote:
Originally Posted by curly View Post
I must have a good manifold design, or magic bolts. 8mm, ACE hardware $.60 SS allen bolts, they all stay fairly tight. I replace them every couple track days, but that's more preventative than anything. My turbo sits on top of the manifold though, horrible for heat shielding, down pipe flow, down pipe routing, and looks, but apparently easy on bolts.
Thanks for the info

Quote:
Originally Posted by JasonC SBB View Post
I think the Stainless Steel 308(??) type studs are a sol'n that's halfway effective between ordinary studs and the $$ Inconel studs.
They're the same material used on boilers - there's an ASME standard alloy for them, and yes they have better high temp creep and CTE characteristics than the ordinary studs.
Thanks for the info. Looking at 8-18 stuff from mcmaster right now.
golftdibrad is offline   Reply With Quote
Old 07-11-2011, 03:45 PM   #24
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

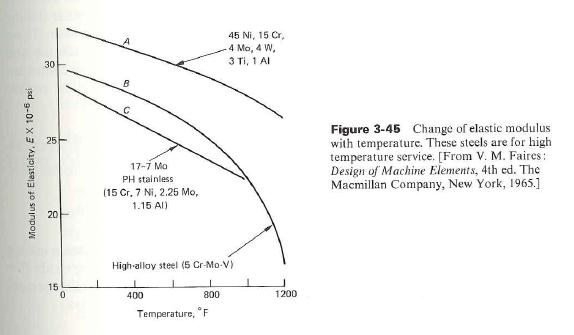

some data, plan steel is not on here, but the curve is likly similar to the high alloy just shifted down in the y-axis.

Attached Thumbnails
Turbo maifold bolts keep coming loose!-temp-curve.jpg
golftdibrad is offline   Reply With Quote
Old 07-11-2011, 04:02 PM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I believe "we" tried that metal at the advice of TiAL on the CHRA and it did not work.
hustler is offline   Reply With Quote
Old 07-11-2011, 04:18 PM   #26
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

I believe one of the euro track guys had good luck by having the nuts welded to the manifold. I believe he (Doppelganger?) made some pretty informative posts on what he did and how well it worked. I'm too lazy to search for you but the info should be out there. Seems cheaper than inconel parts...
Efini~FC3S is offline   Reply With Quote
Old 07-11-2011, 04:51 PM   #27
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

I bought 8-18 stainless with those nordlock things from mcmaster. I'll re-torque when hot and see how it goes.
golftdibrad is offline   Reply With Quote
Old 07-11-2011, 05:20 PM   #28
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Efini~FC3S View Post
I believe one of the euro track guys had good luck by having the nuts welded to the manifold. I believe he (Doppelganger?) made some pretty informative posts on what he did and how well it worked. I'm too lazy to search for you but the info should be out there. Seems cheaper than inconel parts...
Inconel safety wire works like this and allows for disassembly afterwards. My bolts are drilled and safety wired.
hornetball is offline   Reply With Quote
Old 07-11-2011, 06:52 PM   #29
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

316 SS is better than 304 SS, but looks like 304 is still better than ordinary stud material.

Here's my posts with info:

https://www.miataturbo.net/showpost....&postcount=691

https://www.miataturbo.net/showpost....&postcount=729

https://www.miataturbo.net/showpost....&postcount=692
(both 304 and 316 are used for hi temp fasteners, aka "B8" and "B8M")
JasonC SBB is offline   Reply With Quote
Old 07-11-2011, 07:25 PM   #30
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by JasonC SBB View Post
316 SS is better than 304 SS, but looks like 304 is still better than ordinary stud material.

Here's my posts with info:

https://www.miataturbo.net/showpost....&postcount=691

https://www.miataturbo.net/showpost....&postcount=729

https://www.miataturbo.net/showpost....&postcount=692
(both 304 and 316 are used for hi temp fasteners, aka "B8" and "B8M")
cool, thanks for the info. I also found out the 8-18 stainless is more or less 304 for our purposes; 304 has a few other metals that help corrosion resistance.
golftdibrad is offline   Reply With Quote
Old 07-14-2011, 11:08 AM   #31
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

Quote:
Originally Posted by Efini~FC3S View Post
I believe one of the euro track guys had good luck by having the nuts welded to the manifold. I believe he (Doppelganger?) made some pretty informative posts on what he did and how well it worked. I'm too lazy to search for you but the info should be out there. Seems cheaper than inconel parts...
It definitely wasn't Doppelganger....can't remember what the guys SN is.
