Old 08-23-2006, 06:39 PM   #21
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Jefe View Post
A while back there was a white turbo miata with a sidemount. It used a Saab 900 I/C and had a hood scoop. The IC layed semi-flat next to the intake manifold. I thought it was pretty neat, but not sure how efficient the set was.

---Nissan used to have a 1.8L top mounted I/C. The IC sat directly on the engine.---It's the I/C I use, I had to take it a part and rotate the tanks for it to be a FMIC...
Tell me where you got the piping for your IC set-up...looks pretty neat
RicanmiataRacer is offline   Reply With Quote
Old 08-23-2006, 08:57 PM   #22
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

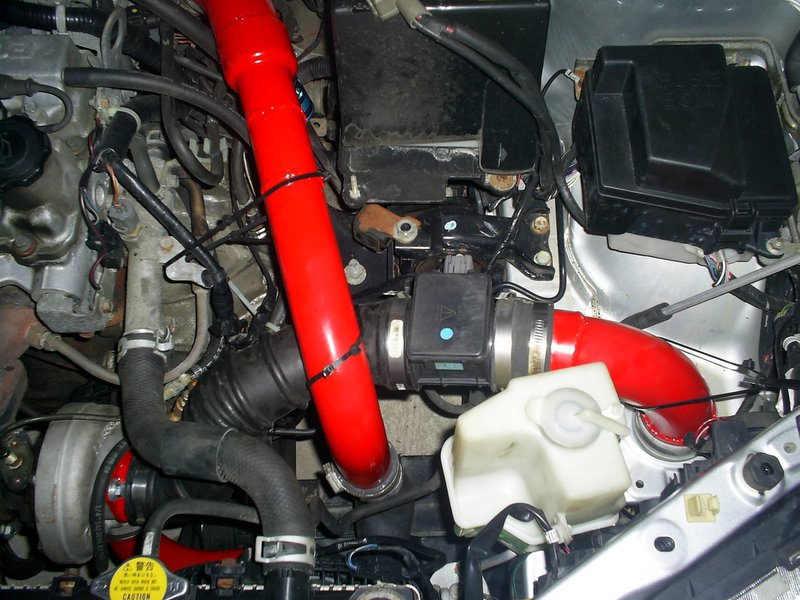

You mean these?
Attached Thumbnails
Turbo And Manifold, Need Help!-picture-224.jpg
Jefe is offline   Reply With Quote
Old 08-23-2006, 09:14 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

what engine bay is that?
Braineack is offline   Reply With Quote
Old 08-23-2006, 09:20 PM   #24
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

It's a Mazda engine bay...

BTW all my stuff comes from JCWhitney...Cheapest I can find (even cheaper then crinkle bends at the local parts store--otherwise I'd use them)
Jefe is offline   Reply With Quote
Old 08-23-2006, 09:40 PM   #25
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Jefe View Post
It's a Mazda engine bay...

BTW all my stuff comes from JCWhitney...Cheapest I can find (even cheaper then crinkle bends at the local parts store--otherwise I'd use them)

What kind of IC are u using
RicanmiataRacer is offline   Reply With Quote
Old 08-23-2006, 09:49 PM   #26
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

OK here's what you'll need:
You can do this without welding, but you'll need a few more hose clamps...
A saw for cutting metal; sawzall, grinder w/ metal cutoff wheel, chop saw w/ metal cutting blade(their only like $5 @ HD), hacksaw if you're that cheap.


From JCWhitney
3 2 1/2" 90 degee bends
1 2" 180 degree bend
2 2" 90 deg bend if you get the long 'legs' one, you'll have enough pipe
1 exhaust adaptor 2" to 2 1/4"

From Autozone
2" ID 90 bend radiator hose part#002482 s-531
2" ID 90+ other bend radiator hose part#885269 m-079

The input of the saab is 2 1/4" the output is 2 1/2"
Hose clamps- Ideal brand seem to work best

You'll have to source up some 2 1/2" rad hose --truck suppliers, most autostores sell it by the inch(it's used for to enclose fuel filler tubes)
Jefe is offline   Reply With Quote
Old 08-23-2006, 09:51 PM   #27
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by RicanmiataRacer View Post
What kind of IC are u using
I have a Nissan Bluebird and a Saab 900...
Jefe is offline   Reply With Quote
Old 08-23-2006, 09:52 PM   #28
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Jefe View Post
OK here's what you'll need:
You can do this without welding, but you'll need a few more hose clamps...
A saw for cutting metal; sawzall, grinder w/ metal cutoff wheel, chop saw w/ metal cutting blade(their only like $5 @ HD), hacksaw if you're that cheap.


From JCWhitney
3 2 1/2" 90 degee bends
1 2" 180 degree bend
2 2" 90 deg bend if you get the long 'legs' one, you'll have enough pipe
1 exhaust adaptor 2" to 2 1/4"

From Autozone
2" ID 90 bend radiator hose part#002482 s-531
2" ID 90+ other bend radiator hose part#885269 m-079

The input of the saab is 2 1/4" the output is 2 1/2"
Hose clamps- Ideal brand seem to work best

You'll have to source up some 2 1/2" rad hose --truck suppliers, most autostores sell it by the inch(it's used for to enclose fuel filler tubes)
sweet deal thanks much This will help big time
RicanmiataRacer is offline   Reply With Quote
Old 08-23-2006, 10:03 PM   #29
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

thats stainless steel pipe correct
RicanmiataRacer is offline   Reply With Quote
Old 08-23-2006, 10:39 PM   #30
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

I just used just the cheap 16ga stuff. After I welded and cleaned the pipes w/ spirits-- I placed them in an oven @ 400 degrees for ~ 15min. Then I put the pipes on a stick in the backyard and sprayed them with engine enamel Ford red. The paint adheres to the hot pipes real nicely-- you can coat as many times as you want...


My DP is stainless...

Also you'll need a 1 2 1/4" coupler (like 3" of rad hose) and tubing for you intake. IIRC I just used a 2 1/2" 180 u bend.
Jefe is offline   Reply With Quote
Old 08-23-2006, 10:43 PM   #31
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Jefe View Post
I just used just the cheap 16ga stuff. After I welded and cleaned the pipes w/ spirits-- I placed them in an oven @ 400 degrees for ~ 15min. Then I put the pipes on a stick in the backyard and sprayed them with engine enamel Ford red. The paint adheres to the hot pipes real nicely-- you can coat as many times as you want...

My DP is stainless...

was it bought here:

http://www.jcwhitney.com/autoparts/P...t=mandrel+bent
RicanmiataRacer is offline   Reply With Quote
Old 08-23-2006, 10:47 PM   #32
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Jefe View Post
OK here's what you'll need:
You can do this without welding, but you'll need a few more hose clamps...
A saw for cutting metal; sawzall, grinder w/ metal cutoff wheel, chop saw w/ metal cutting blade(their only like $5 @ HD), hacksaw if you're that cheap.


From JCWhitney
3 2 1/2" 90 degee bends
1 2" 180 degree bend
2 2" 90 deg bend if you get the long 'legs' one, you'll have enough pipe
1 exhaust adaptor 2" to 2 1/4"

From Autozone
2" ID 90 bend radiator hose part#002482 s-531
2" ID 90+ other bend radiator hose part#885269 m-079

The input of the saab is 2 1/4" the output is 2 1/2"
Hose clamps- Ideal brand seem to work best

You'll have to source up some 2 1/2" rad hose --truck suppliers, most autostores sell it by the inch(it's used for to enclose fuel filler tubes)
Are these measurements for in diameter or outer?
RicanmiataRacer is offline   Reply With Quote
Old 08-24-2006, 12:16 AM   #33
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Outside Diameter---That's exactly where and what I bought.

This may help you visualize a little. My list isn't exact. you'll need to add some pipe for the AIC valve and a BOV, but that only requires a 1" hole saw (a drill) some " black pipe(available @ any hardware store and some JB weld to seal it in place

mmm link no worky here...
Jefe is offline   Reply With Quote
Old 08-24-2006, 10:39 AM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I took a shot at it!

Braineack is offline   Reply With Quote
Old 08-24-2006, 10:58 AM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Now to make things simpler you can see why myself and a few other have chosen the intercooler I'm using:

Braineack is offline   Reply With Quote
Old 08-24-2006, 02:24 PM   #36
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by braineack View Post
Now to make things simpler you can see why myself and a few other have chosen the intercooler I'm using:



OMG Bow down to the master of pc paint, awsome awsome, thats just what I needed thanks to the both Of you guys, you rock!
RicanmiataRacer is offline   Reply With Quote
Old 08-24-2006, 02:25 PM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

heh heh, I cheated I wasn't using MS paint but Adobe InDesign. It just happened to be the program I had open at the time.
Braineack is offline   Reply With Quote
Old 08-24-2006, 02:25 PM   #38
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Where did you get that cooler from?
RicanmiataRacer is offline   Reply With Quote
Old 08-24-2006, 02:29 PM   #39
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Lmfao tricky basterd lmfao , jp , but thats cool ...I might look that program up, It looks useful
RicanmiataRacer is offline   Reply With Quote
Old 08-24-2006, 02:30 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

It's more of a layout program (books, flyers, etc.), but shares the same tools as Adobe Illustrator; Which would have been the preferred program I would have used.
Braineack is offline   Reply With Quote
