Default is this turbo a viable option for a 1.6?

i have this sitting on the shelf in the garage. car is just for weekend fun driving as of right now. may occasionally autocross it in the future. moderate hp goal of 200ish.
garrett t3/t04e



compressor side .50 a/r


exducer


inducer


turbine side .84 a/r (would probably need to source a .48 or .64 housing i believe)



inducer


exducer



open to ridicule, humor, general input, your
Attached Thumbnails

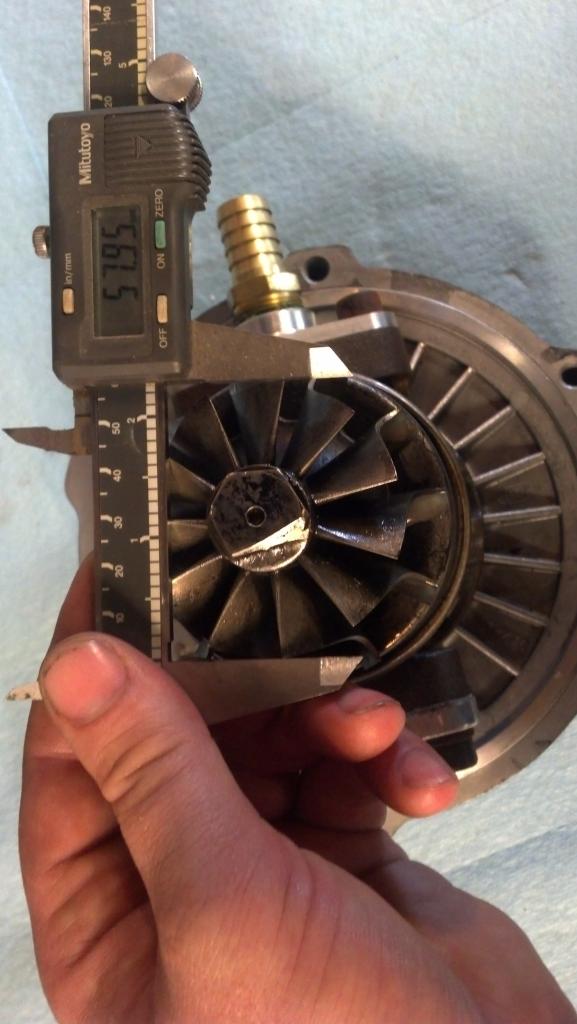

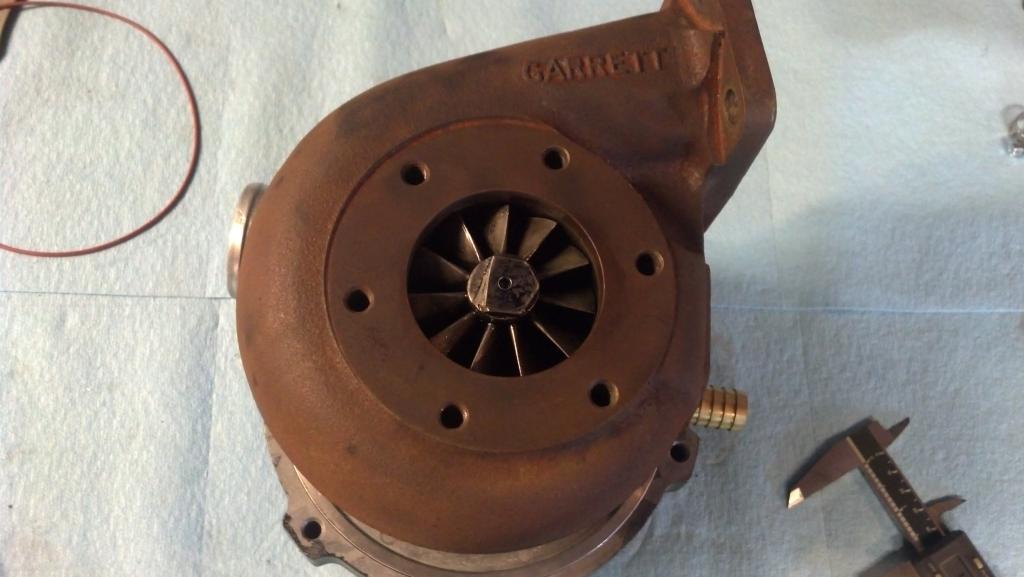

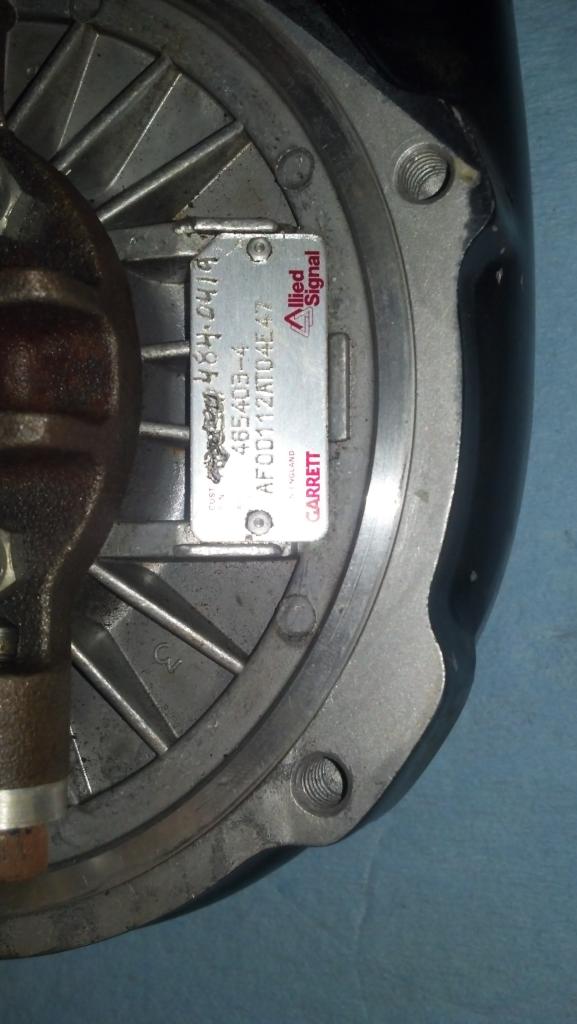

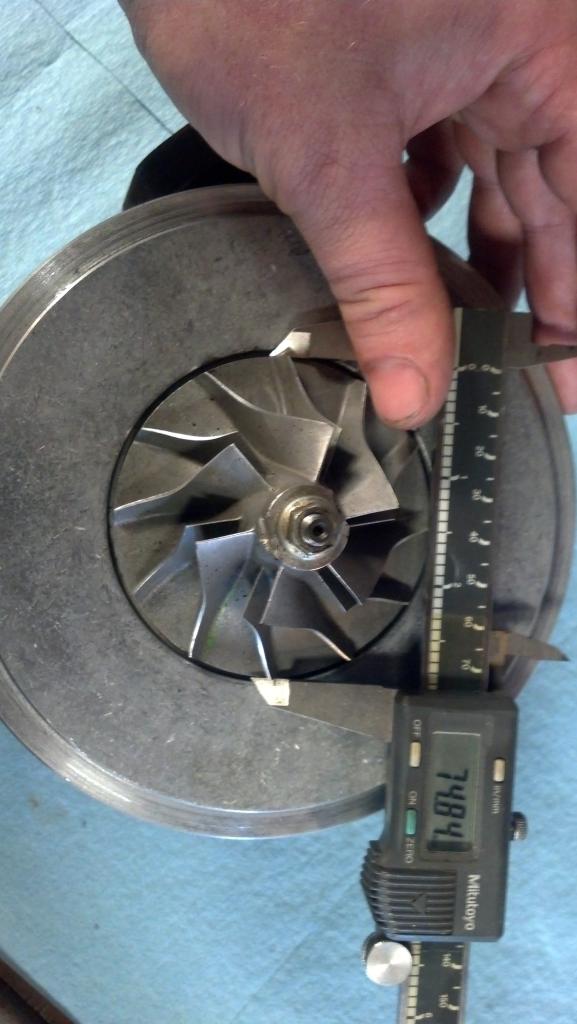

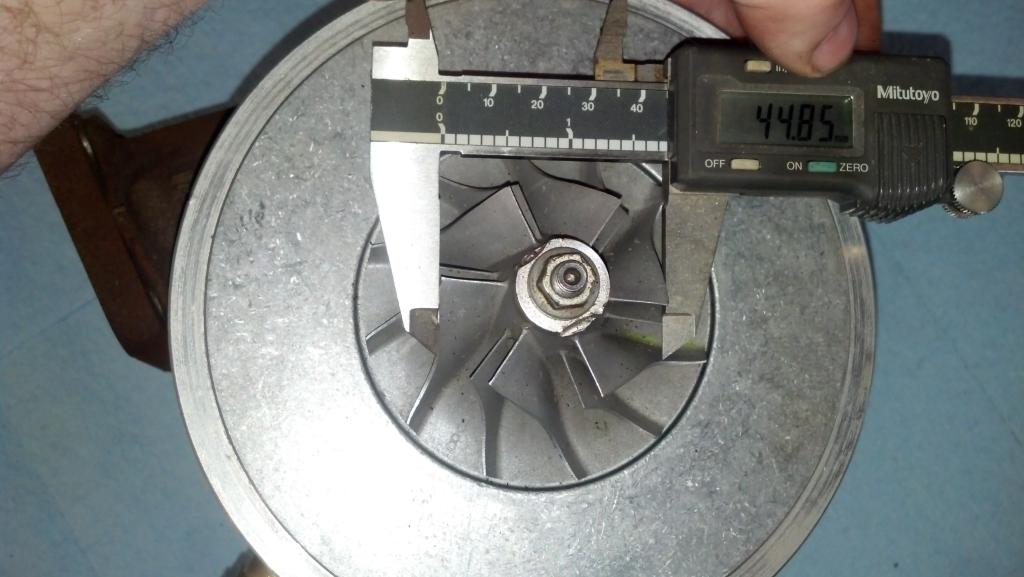

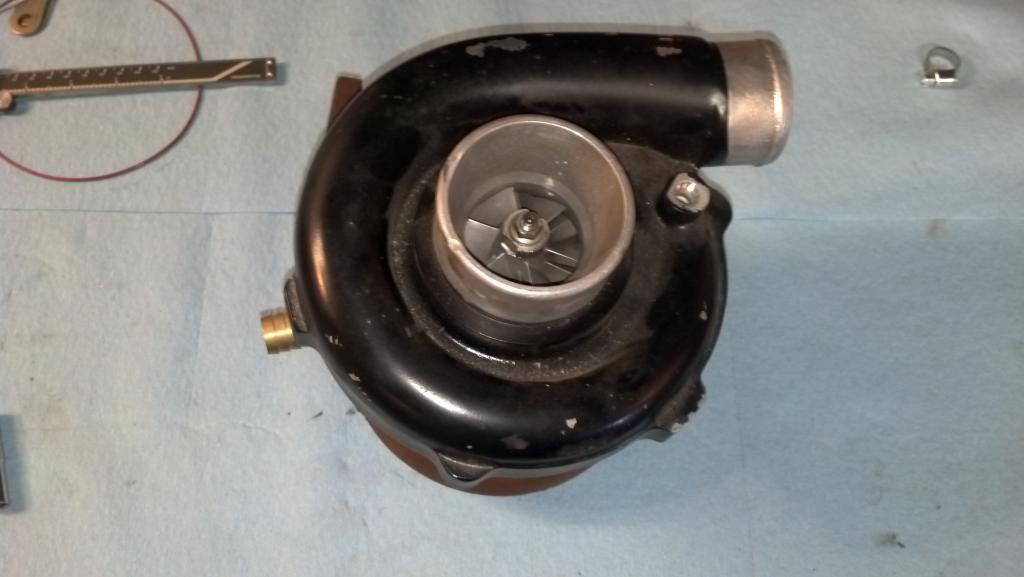

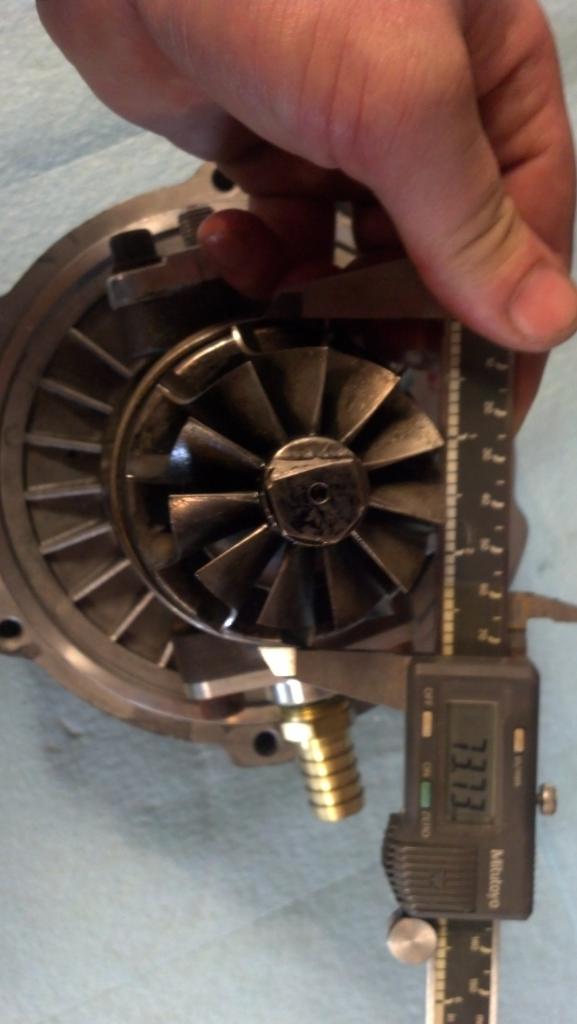

is this turbo a viable option for a 1.6?-img_20140629_114037_497.jpg   is this turbo a viable option for a 1.6?-img_20140629_113739_337.jpg   is this turbo a viable option for a 1.6?-img_20140629_113825_532.jpg   is this turbo a viable option for a 1.6?-img_20140629_113851_827.jpg   is this turbo a viable option for a 1.6?-img_20140629_113908_293.jpg

is this turbo a viable option for a 1.6?-img_20140629_113941_617.jpg   is this turbo a viable option for a 1.6?-img_20140629_114020_808.jpg
OhioHater is offline   Reply With Quote
Old 06-29-2014, 09:49 PM   #2
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

I think that's pretty big. Especially for a 1.6. It's an interesting compressor wheel though. The inducer is pretty small compared to the exducer which is pretty big.

For comparisson, my EVO3 16G compressor is 48mm and 68mm.
slmhofy is offline   Reply With Quote
Old 06-29-2014, 10:31 PM   #3
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

That's a diesel turbo hence compressor wheel ratio weirdness. You'll never spool it or be happy with it, but go ahead.
sixshooter is offline   Reply With Quote
Old 06-29-2014, 10:45 PM   #4
Junior Member

Join Date: Feb 2011
Posts: 96
Total Cats: 3
Default

Go for it. **** it. if it all ends terrible, you will still have a T3 flange IIRC Manifold if you don't like it. Sell the turbo on Turbobricks, and buy/trade a smaller T3 flanged Turbo. Profit?

If you got the cash/Burning desire. Go for it. I wanna see it. I would love to throw a Hx30/35W on a miata just for kicks and **** if I had the disposable income to justify it.
780racer is offline   Reply With Quote
Old 06-30-2014, 03:13 AM   #5
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

OP, get something less obscure. Don't build your car around a single part.

Quote:
Originally Posted by 780racer View Post
Hx30
It's been done.
https://www.miataturbo.net/build-thr...d-boost-44118/
viperormiata is offline   Reply With Quote
Old 06-30-2014, 08:23 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

do it once, do it right.
Braineack is offline   Reply With Quote
Old 06-30-2014, 08:26 AM   #7
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Braineack View Post
do it once, do it right.
Like 1.8...?
Zaphod is offline   Reply With Quote
Old 06-30-2014, 08:37 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

well yes. but there's no reason to build a system around a shitty turbo to find out it sucks then to have to figure a away to adapt the setup to something that actually works.
Braineack is offline   Reply With Quote
Old 06-30-2014, 08:54 PM   #9
Junior Member

Join Date: Feb 2011
Posts: 96
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
well yes. but there's no reason to build a system around a shitty turbo to find out it sucks then to have to figure a away to adapt the setup to something that actually works.
I agree with brain 100%

You should get a 1.8. But so long as the turbo is a T3 flange, do it. because you could always swap to a smaller T3 flanged turbo.

Again TurboBricks would love that turbo if its in good condition, if you dont want it, or whatever. They love the Diesel turbos for the 2.X motors.
780racer is offline   Reply With Quote
