Default Turbo XS Dual Stage, conversion to single stage ?

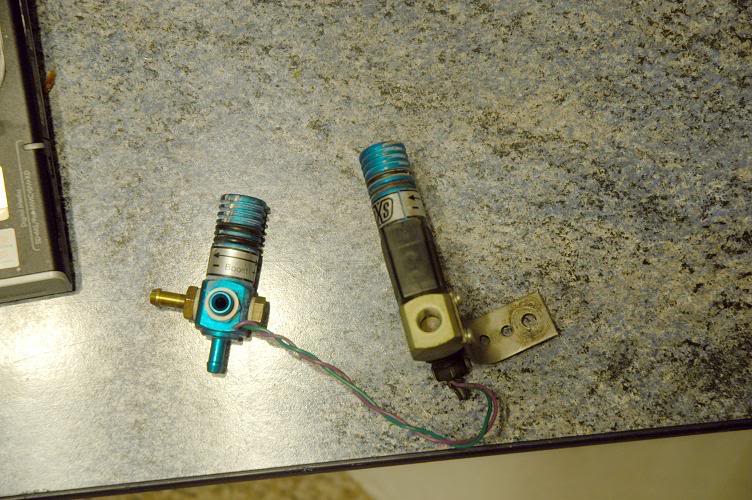

is it possible to change my dual stage to the single stage ? some photos are attached. can i just get a brass plug for the end and cap it ? and just use it like a single stage turbo xs boost controller ?



Name:  DSC_0761-1.jpg
Views: 1
Size:  87.8 KB

so wutcha guys think ? is it possible ?

Scott
shinobix is offline   Reply With Quote
Old 11-19-2006, 11:34 PM   #2
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

if you want to do that just dont hit the switch
mxv is offline   Reply With Quote
Old 11-19-2006, 11:37 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 257
Total Cats: 0
Default

but won't that make me run at a minimum of 10 psi ? i don't really have the means to support more then maybe 7psi right now -_-
shinobix is offline   Reply With Quote
Old 11-20-2006, 12:43 AM   #4
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Sell that thing to somebody who can use it and build yourself one... or just get one of these.
http://cgi.ebay.com/ebaymotors/Voodo...49285746QQrdZ1
For the low boost you're talking about, the cheap eBay one will work great.

Brain shows how to build one in the DIY projects section. Here's an almost identical approach: http://www.geocities.com/chmwatson/FAQs/mbc.html
samnavy is offline   Reply With Quote
Old 11-20-2006, 01:47 AM   #5
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

i ran 7 on my dual stage no probs. but youd be best off putting it back together and selling it as they are not cheap and youd get quite a bit for it and just by their single stage. youd walk away witha little extra cash that way
mxv is offline   Reply With Quote
Old 11-20-2006, 07:47 AM   #6
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by shinobix View Post
but won't that make me run at a minimum of 10 psi ? i don't really have the means to support more then maybe 7psi right now -_-
What is your wastegate spring? You might not need a boost controller if it's a 7 psi spring.

Frank
fmowry is offline   Reply With Quote
Old 11-20-2006, 11:36 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I've always wondered how those dual stages worked.

it looks like if you plug the port for the solenoid then you'd have youself a normal MBC. If it boosts too much at the sofest spring setting, you may need to cut a coil or two off.
Braineack is offline   Reply With Quote
Old 11-20-2006, 02:11 PM   #8
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
I've always wondered how those dual stages worked.

it looks like if you plug the port for the solenoid then you'd have youself a normal MBC. If it boosts too much at the sofest spring setting, you may need to cut a coil or two off.

there fun as hell! had one set at 8 psi and the other at 14.5. you can flip the switch while already being in full boost. its a blast its hillarious to do in the middle of a race, everyone suspects you of spraying, you can make some good money that way cause you can sandbag hella easy with it.
mxv is offline   Reply With Quote
Old 11-20-2006, 02:21 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Yeah I understand the concept, just would like to understand what's acutally going on the change to boost levels. Like when the solenoid is activated how exactly does it override the first spring setting.
