Default Unknown Rebuilt T25 Garrett - HELP!

Need help identifying this turbo and if it is worth my time and $. My goal is a DD-able 230-240whp (friends tell me to buy a S2k, too true )

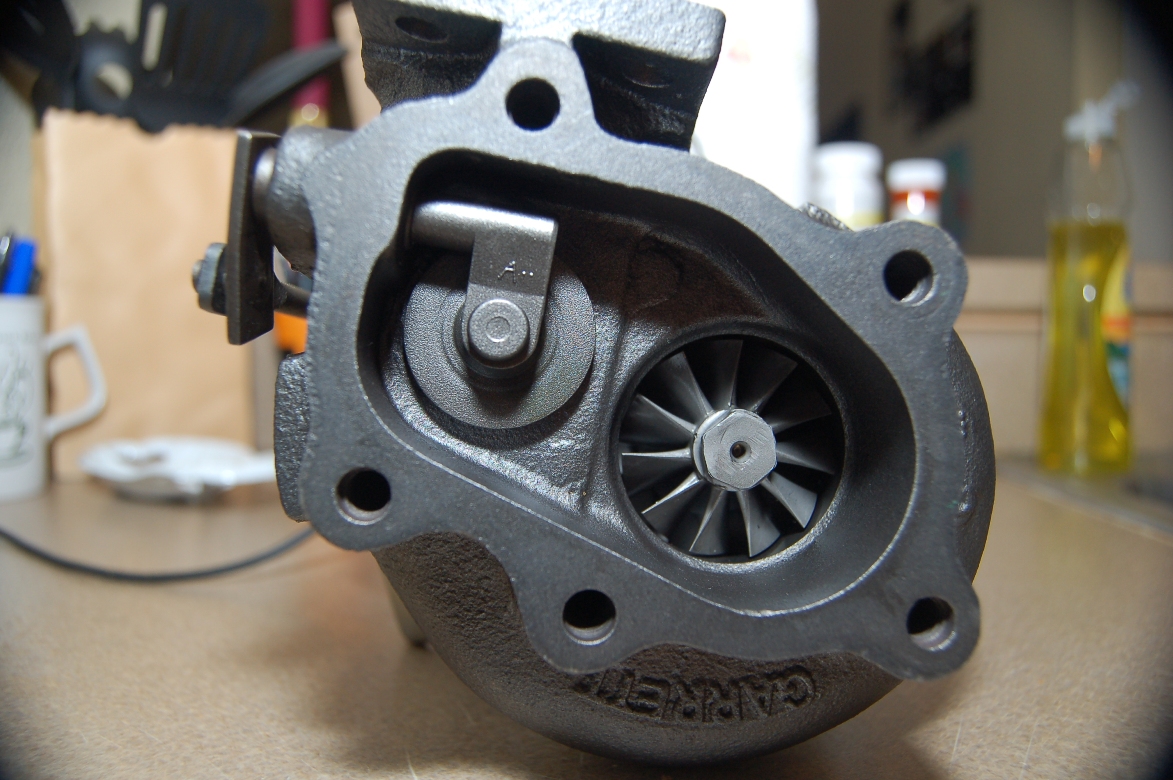

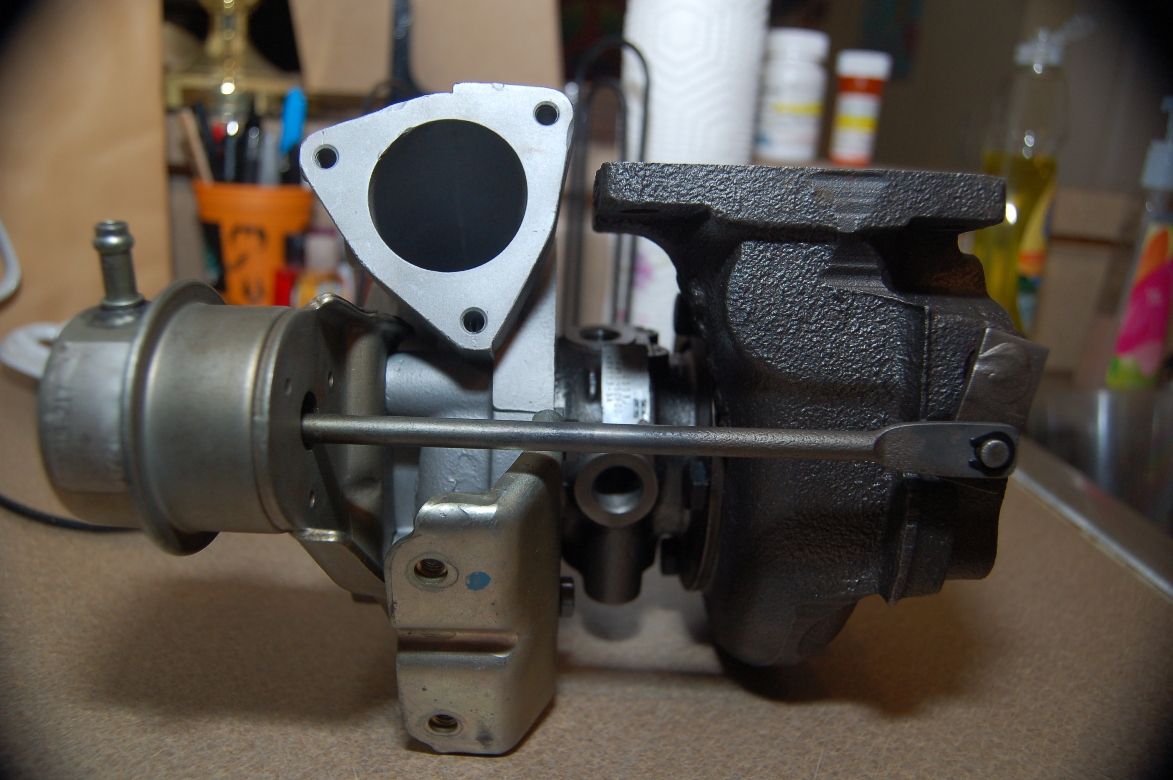

Owner says its a recently "rebuilt (by Garrett)" turbo, T25. Sent me good pics too...anyone more keen on details than I?

Unknown Rebuilt T25 Garrett - HELP!-dsc_0100.jpg
Unknown Rebuilt T25 Garrett - HELP!-dsc_0103.jpg
Unknown Rebuilt T25 Garrett - HELP!-dsc_0104.jpg
Unknown Rebuilt T25 Garrett - HELP!-dsc_0105.jpg
Unknown Rebuilt T25 Garrett - HELP!-dsc_0106.jpg

*Oops, fixed pics, I hope.

Last edited by JoeTheZoe; 02-29-2012 at 09:06 PM.
JoeTheZoe is offline   Reply With Quote
Old 02-29-2012, 08:47 PM   #2
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Your pictures don't work.

Post them as an attachment please, we (thankfully!) can't view files from your gmail account.
blaen99 is offline   Reply With Quote
Old 02-29-2012, 09:35 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by blaen99 View Post
Your pictures don't work.

Post them as an attachment please, we (thankfully!) can't view files from your gmail account.
Thanks. Fixed
JoeTheZoe is offline   Reply With Quote
Old 02-29-2012, 09:40 PM   #4
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

You may need to get the 4-bolt engine flange resurfaced.

It's in excellent shape, and I'd be pretty confident in a recent rebuild.

It's not a T25, I will lay a large amount of money that it's a T28. Looks like a good turbo to go for with your HP goals.
blaen99 is offline   Reply With Quote
Old 02-29-2012, 09:40 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

looks like a t25 off an sr20. what's the a/r stamp on the turbine?
Braineack is offline   Reply With Quote
Old 02-29-2012, 09:41 PM   #6
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Braineack View Post
looks like a t25 off an sr20. what's the a/r stamp on the turbine?

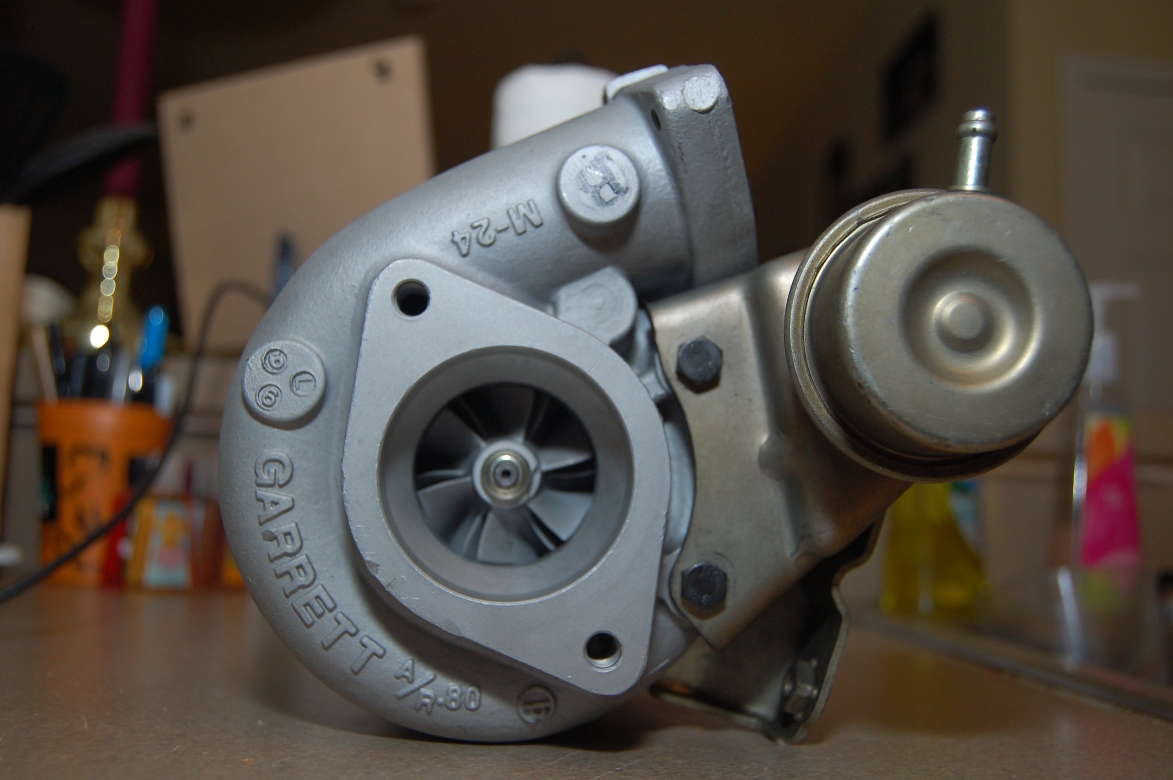

The a/r is .80 Brainy - I believe it's a T28.
blaen99 is offline   Reply With Quote
Old 02-29-2012, 10:11 PM   #7
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Looks just like my SR20 T25.
bikersam717 is offline   Reply With Quote
Old 02-29-2012, 10:40 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Just emailed owner about the Turbine A/R...hopefully will know by tomorrow
JoeTheZoe is offline   Reply With Quote
Old 02-29-2012, 10:40 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Its not a t28.


Blaen turbine not compressor
Braineack is offline   Reply With Quote
Old 02-29-2012, 10:49 PM   #10
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Braineack View Post
Its not a t28.


Blaen turbine not compressor
Interesting. What model is the .80 a/r T25 off of?

(Edit) Very weird, I'm supposed to have a SR20 T25 (T25G), but it only has a .62 or .64 (Whichever) compressor a/r. Hmmm...

(Edit2) Very, very weird. I'm not certain what turbo I do have now after a lot of searching... Damnit Brainy, oh well. I'm about to go chinacharger, so it's all good.
blaen99 is offline   Reply With Quote
Old 02-29-2012, 11:11 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

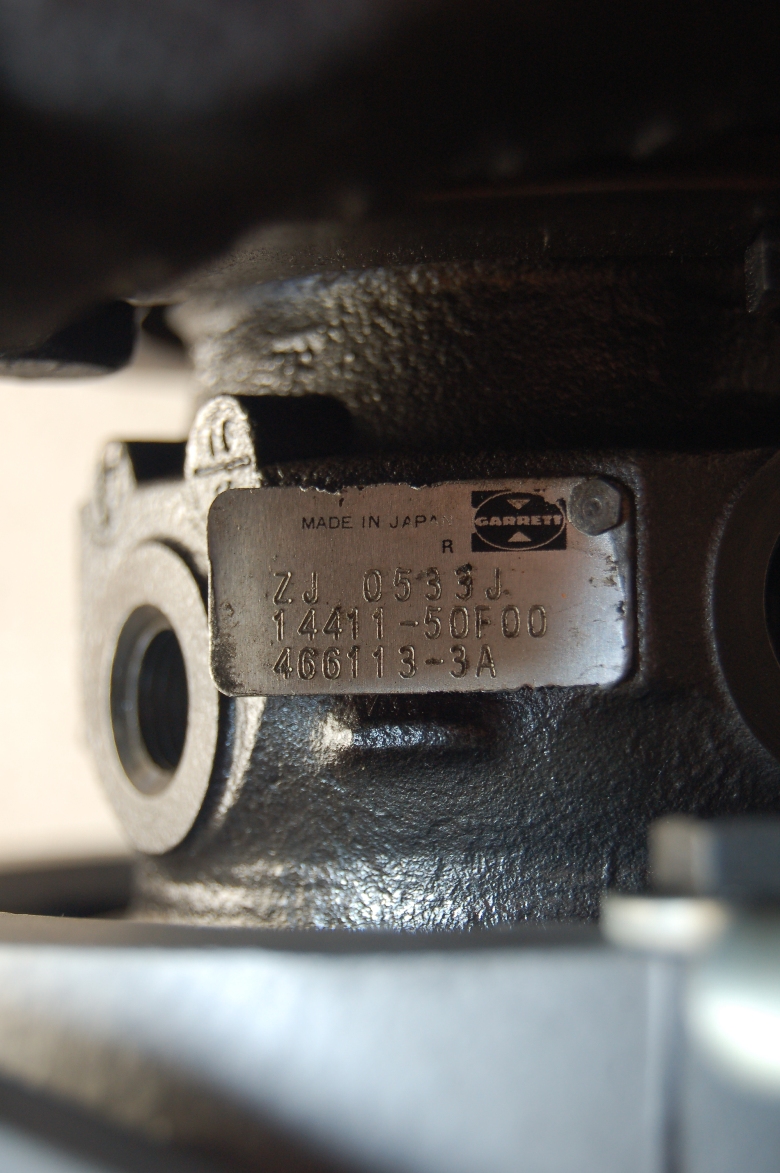

t25G off a PS13. go by part number.
Braineack is offline   Reply With Quote
Old 02-29-2012, 11:22 PM   #12
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Yep, def a T25G Brainy. I don't have a T25G though :(.
blaen99 is offline   Reply With Quote
Old 03-01-2012, 04:56 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

^So that means??? T25G (normally) has what turbine A/R?

1. Would this be good for my goals?
2. What Manifold/DP Combination would work best for me?
3. What did Blaen mean about getting the flange resurfaced?
4. $$$ What should I bargain with this guy? asking $400, but said if I'm serious we can negotiate.
JoeTheZoe is offline   Reply With Quote
Old 03-01-2012, 04:59 PM   #14
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

1. Yes
2. Classifieds to Artech, it's more your budget then anything.

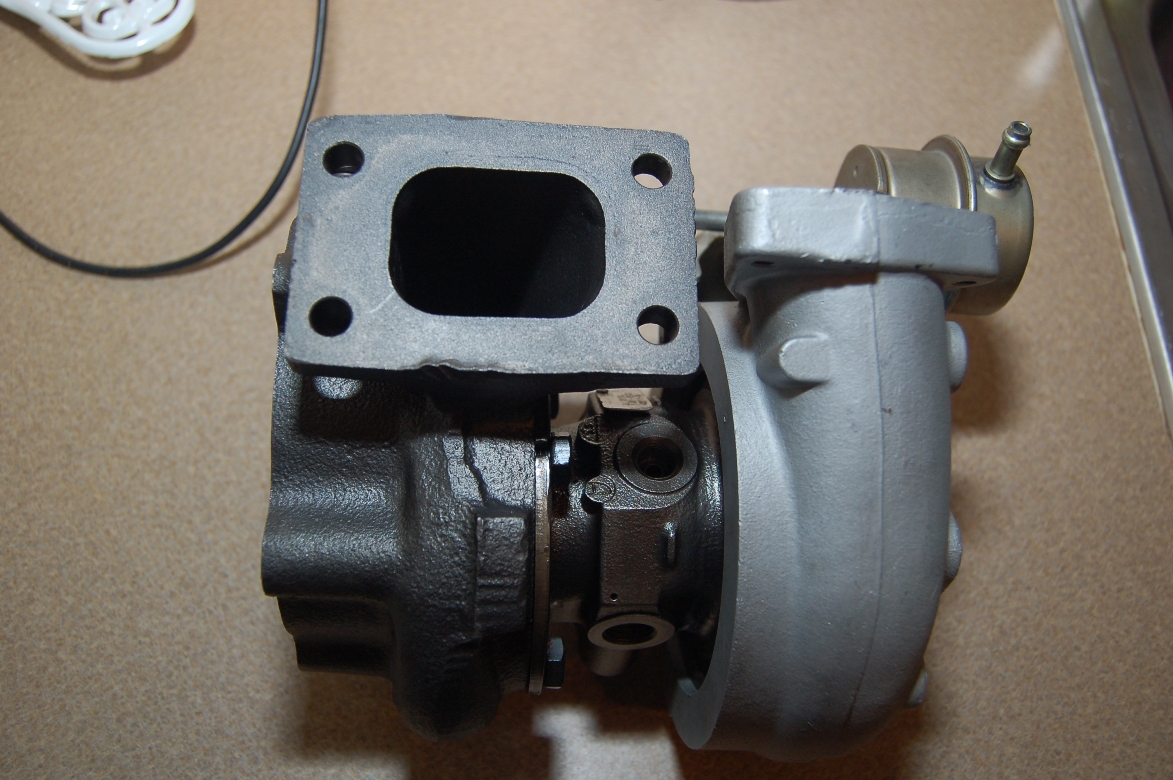

3. Look at the picture close, specifically at the 4-bolt engine-to-turbo flange in the second picture posted.
4. $400 for a T25G is -really- steep
blaen99 is offline   Reply With Quote
Old 03-01-2012, 05:06 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

1. Yes <GOOD!

2. Classifieds to Artech, it's more your budget then anything. <Sooooooo...any 1.8L Miata T25 flanged manifold? Custom downpipe I can have made by Miller-welding guys here with the Jet Dragster Team...Where can I find just the flange I need to mate to the outlet? Divorced is likely better than mixed right?

3. Look at the picture close, specifically at the 4-bolt engine-to-turbo flange in the second picture posted. <I see now, complicated process? I have access to very talented people with awesome equiptment.

4. $400 for a T25G is -really- steep <$200?
JoeTheZoe is offline   Reply With Quote
Old 03-01-2012, 05:34 PM   #16
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

2) You'll be able to do something awesome with that. I would imagine on par with Artech stuff.

3) No, all you are trying to do is get a flat surface. Or you could just use a gasket, but most people on here don't use a gasket.

4) $200 for a rebuilt T25G would be a good price I'd say.
blaen99 is offline   Reply With Quote
Old 03-01-2012, 08:49 PM   #17
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

I paid ~$100 for my rebuilt T25G. Anything above $200 is too much.
