probably, but an output circuit would have to be built to run it.
Braineack is offline   Reply With Quote
Old 04-20-2013, 12:13 PM   #42
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
probably, but an output circuit would have to be built to run it.
What would the circuit need?

EDIT: quick search found this

http://www.diyautotune.com/diypnp/ap...0-18bp-mt.html

Quote:
The VICS actuator should have vacuum at idle and changes state at 5000 RPM. We have used ALED as the output to control the VICS system at Connectorboard 4Q with RPM as a single output condition, a threshold of > 5000, a hysterisys of 300, "power on" set to 0, and "trigger value" set to 1. This all means that the output will activate at 5000 RPMs, won't turn back off until 4700 RPMs, is off when the MS is powred and the engine is started, and is activated when triggered

Last edited by buffon01; 04-20-2013 at 12:25 PM.
buffon01 is offline   Reply With Quote
Old 04-20-2013, 12:16 PM   #43
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

240_to_miata is offline   Reply With Quote
Old 04-20-2013, 01:02 PM   #44
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by 240_to_miata View Post
Thanks! I have an EBC laying around somewhere.
buffon01 is offline   Reply With Quote
Old 04-20-2013, 02:32 PM   #45
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by buffon01 View Post
Thanks! I have an EBC laying around somewhere.
use the charcoal purge solenoid or the EGR solenoid.
Braineack is offline   Reply With Quote
Old 04-23-2013, 09:19 PM   #46
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

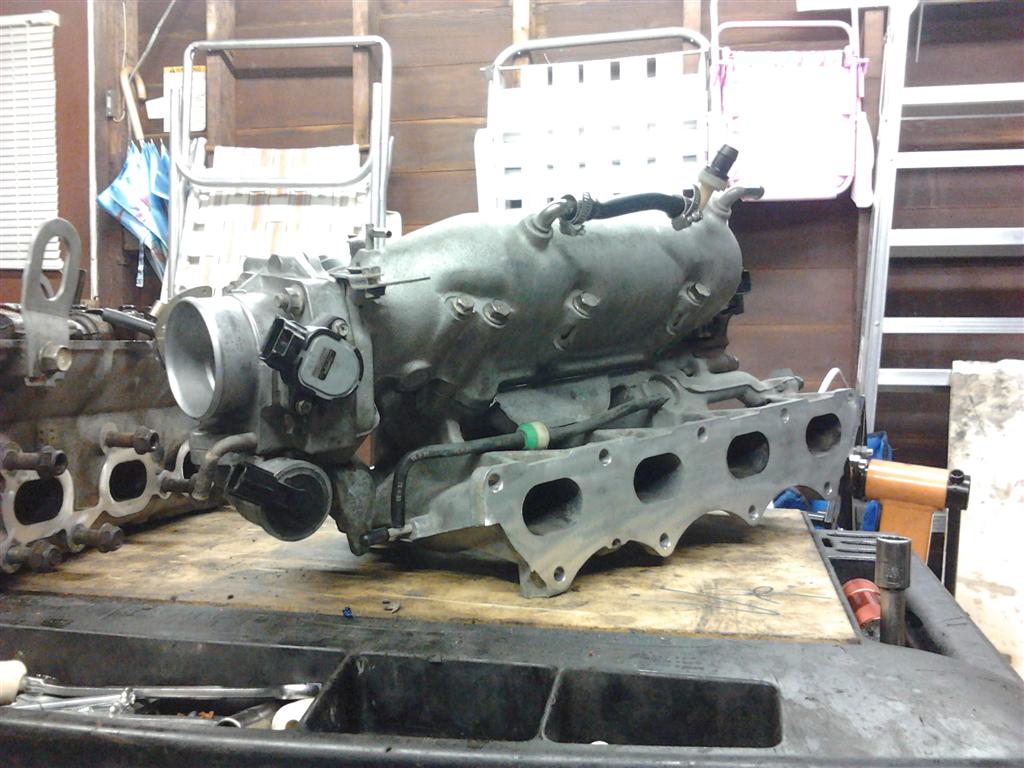

I might be late to the but I was searching through pics from my build thread and this is the best pic I have of the inner side of the mani. That's the check valve right there i think?

Hope it helps?
Attached Thumbnails
VICS operation - how to add-img_20111229_193114-large-.jpg
flounder is offline   Reply With Quote
Old 04-23-2013, 10:18 PM   #47
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yeah, I had that in place. I have it running perfectly. was stupid easy.
Braineack is offline   Reply With Quote
Old 09-18-2017, 05:08 PM   #48
Junior Member

Join Date: Nov 2014
Location: Ypsilanti, MI
Posts: 65
Total Cats: -2
Default

I know this is an old thread but I am working on installing the VICS but using race capture to run it instead of a RPM switch or megasquirt (still using factory 1.6 ecu). We have the script in the RCP correct and the wiring to the relay correct, However I dont think we wired the solenoid correctly. Can you guys tell me what the pinout of the solenoid is? I followed this thread to get the vacuum properly hooked up. Now just checking the wiring.
cj9694 is offline   Reply With Quote
