Default Volvo Turbos

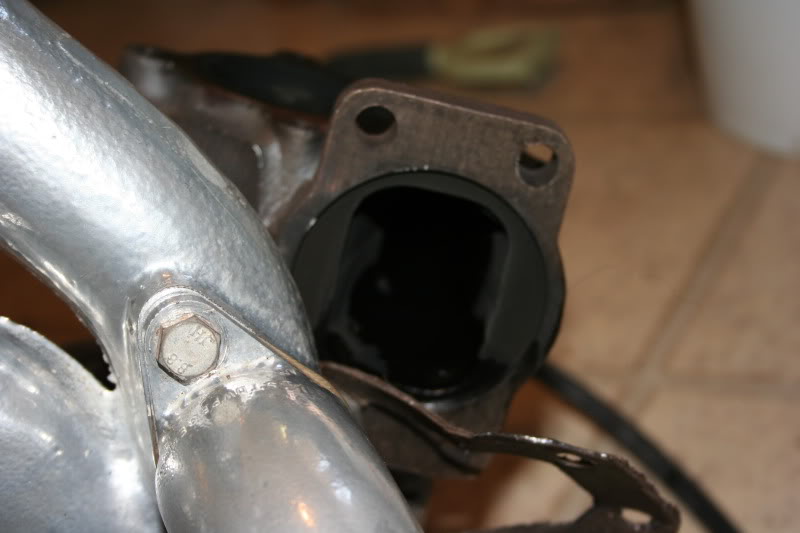

Do only Volvo turbos have that strange rounded exhaust flanged?

Or did Ford Tbirds come with it too?

Name:  IMG_2727.jpg
Views: 5
Size:  57.6 KB
kenzo42 is offline   Reply With Quote
Old 09-22-2010, 03:35 AM   #2
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

volvo has there own turbo flanges.

ford t3 manifold to turbo flange stay t3 while the turbine housing to downpipe flange are slightly different then regular t3
railz is offline   Reply With Quote
Old 09-22-2010, 09:25 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

IIRC you can just machine the lip down and it'll bolt up to a standard T3




or you can weld on the volvo flange:

Braineack is offline   Reply With Quote
Old 09-22-2010, 11:02 AM   #4
Junior Member
iTrader: (1)

Join Date: Feb 2006
Posts: 196
Total Cats: 1
Default

ATP also sells an adapter.
sicklyscott is offline   Reply With Quote
Old 09-22-2010, 02:25 PM   #5
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by Braineack View Post
IIRC you can just machine the lip down and it'll bolt up to a standard T3




or you can weld on the volvo flange:

Would machining make the flange super thin? Prone to cracking?
kenzo42 is offline   Reply With Quote
Old 09-22-2010, 02:27 PM   #6
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

This is what Gpop said:

Thank you for your interest. Your turbo has a Ford compressor housing and
a Volvo turbine housing. So, it has been modified at some point and there
would not be anyway of telling what seal you have without taking it apart
first. We will attach the rebuild instructions to this email. Follow these
and take it apart and then we can determine what seal you need. Let us
know if you have any other questions or if you need anything else. Thank
you,
kenzo42 is offline   Reply With Quote
Old 09-22-2010, 02:28 PM   #7
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Why would someone do this? ^^^
kenzo42 is offline   Reply With Quote
Old 09-22-2010, 02:29 PM   #8
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by sicklyscott View Post
ATP also sells an adapter.
Wouldn't the adapter, since it's not cast, expand at different rates and cause leakage?
kenzo42 is offline   Reply With Quote
Old 09-22-2010, 02:33 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by kenzo42 View Post
Would machining make the flange super thin? Prone to cracking?
you're only taking off like 2mm.


measure it and compare it to the diagram i posted.

Quote:
Originally Posted by kenzo42 View Post
Why would someone do this? ^^^
the t-bird had a better housing and a 60 trim compressor wheel.
