Default VTA BOV & TDR I/C ???'s

Yes... I did a search both here and at wine&cheese.net too... [Maybe I didn't use the right key words?]

I just bought a used TDR intercooler from a guy here on the forum. It is set-up to be used with a Greddy system but I still think I can make it work fine on my 1995 with the BEGI manifold and this Garrett/Nissan 300zx turbo. No biggie there.

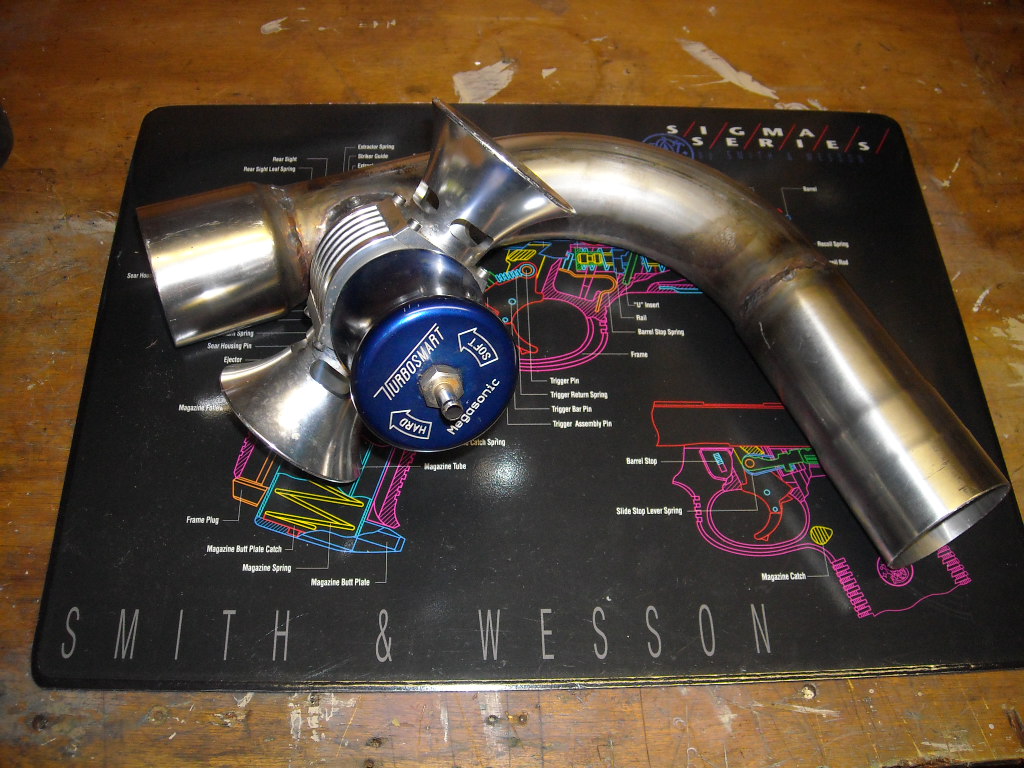

The problem is that the intake side has one port for a VTA BOV [more on that later] and there is no place for the tube that runs from the throttle body to the stock intake. I guess I can always have one welded on, but what does this tube do and has anyone routed it in differently?

Now about the VTA BOV... It is a Turbonetics Megasonic. From what I have read this baby is LOUD! I don't really want that. I already have a Megasquirt from Brainiack that I will be running piggyback and I have the AIT sensor that I will be screwing into the rubber connector at the intake, so I don't ahve to run a recirculated BOV, but I do want one that is not obnoxious. Can I quite this one down or should I just sell it and buy another one that is quite? Any suggestions on a quite one or maybe a swap from someone on the forum?

I'm still waiting on parts from BEGI, but I will be starting on the build soon and was just trying to get all my ducks in a row. Thanks for any help.
Attached Thumbnails
VTA BOV & TDR I/C ???'s-dscn0202.jpg   VTA BOV & TDR I/C ???'s-dscn0203.jpg
92Black&Tan is offline   Reply With Quote
Old 04-19-2009, 02:43 PM   #2
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

I have a intake pipe from that guy who ran the 15psi website or whatever the hell it was.. I'll sell it to you for mad cheap if you want it.. It has the connections for your IAC (the little tube you mentioned there is no port for) and for a BOV.
as for the BOV you could put foam over the outlets to quite it down.. I might have a Greddy RS if you want to trade
nicacus is offline   Reply With Quote
Old 04-19-2009, 03:21 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you can leave it disconnected from the intake. since you're running a MAP sensor, it doesn't matter where you source your air for the idle valve. you might consider a filter on it.
Braineack is offline   Reply With Quote
Old 04-19-2009, 03:30 PM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2006
Location: Birmingham, Alabama
Posts: 209
Total Cats: 0
Default

Quote:
Originally Posted by nicacus View Post
I have a intake pipe from that guy who ran the 15psi website or whatever the hell it was.. I'll sell it to you for mad cheap if you want it.. It has the connections for your IAC (the little tube you mentioned there is no port for) and for a BOV.
as for the BOV you could put foam over the outlets to quite it down.. I might have a Greddy RS if you want to trade
Thanks for the offer, but I think I will just try putting a little air filter on the pipe like Brainiack says and call it a day. As far as the AIT sensor, I think I will just drill a tight hole in the rubber/silicone hose connector and screw it in there.

Let me research about the Greddy RS. I might want to trade. I honestly don't know much about either BOV. This one looks like it is built well.

Good tip about putting some foam over the trumpets. I was thinking about something of that nature. I wonder what kind of pressures it will see? I was thinking about just taking off the trumpets and putting some kind of foam sleeve over the whole thing. I'll see what I can come up with.

Last edited by 92Black&Tan; 04-19-2009 at 03:45 PM.
92Black&Tan is offline   Reply With Quote
Old 04-19-2009, 03:36 PM   #5
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Cool let me know.
nicacus is offline   Reply With Quote
Old 04-19-2009, 03:38 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

try to keep the AIT out of the engine bay...
Braineack is offline   Reply With Quote
Old 04-19-2009, 03:42 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2006
Location: Birmingham, Alabama
Posts: 209
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you can leave it disconnected from the intake. since you're running a MAP sensor, it doesn't matter where you source your air for the idle valve. you might consider a filter on it.
OK... So that tube is going to the idle air valve. Cool. I am going to just run a filter on it like you say and see how that works.

Thanks for the quick response.
92Black&Tan is offline   Reply With Quote
Old 04-19-2009, 03:47 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2006
Location: Birmingham, Alabama
Posts: 209
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
try to keep the AIT out of the engine bay...
Wait a minute... I know this is a dumb question, but it is not supposed to plug into the intake track after the intercooler?

OK... You are talking about putting in the Intake track, after the intercooler, but out of the engine bay... Like this?

http://boostedmiata.com/new_miata/in...r/DSC01122.jpg
92Black&Tan is offline   Reply With Quote
Old 04-19-2009, 04:22 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
OK... You are talking about putting in the Intake track, after the intercooler, but out of the engine bay... Like this?
correct.
Braineack is offline   Reply With Quote
Old 04-19-2009, 04:56 PM   #10
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Also, if you have not done so already, and the valve works without them, take those gay-*** horns off of the port outlets! That should help with the noise.
ZX-Tex is offline   Reply With Quote
Old 04-19-2009, 04:59 PM   #11
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

I like the horn on my blow off valve.. Without it the noise was louder, it's higher pitched with it on it, more of a whistle sound. but definitely quieter.
nicacus is offline   Reply With Quote
