Old 05-14-2007, 02:28 PM   #21
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Are the majority of people who are having trouble with their LC-1 running it connected to a MS?
jayc72 is offline   Reply With Quote
Old 05-14-2007, 03:21 PM   #22
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Al Hounos View Post
There's gotta be something aside from the conservative timing though, for some reason it's running really rich on yours, the MS fuel constants should have adjusted for it perfectly, and I'll go check my timing again to make sure mine is correct.

But you see what I'm saying, there's no way my car is making even close to 170whp, given the 1/8th mile trap speed. Either something isn't translating correctly in the msq or you just REALLy need a bigger exhaust.

Al...I went back out today and checked the timing...I had my light set to 4-cycle as opposed to 2-cycle last time I set it...but that only made it an extra 2° more retarded at idle. So i fxed that...tried a few different settings and configurations on MS to confirm the timing was accurate...it is, I'm not questioning it anymore.

So I loaded my timing map I made this morning...pulls like a bat of out hell and no indications of knock.

look at the spark angle...21.7° at 12psi...at lot more than the FM map. This is close to what I was running with Bipes at the same psi level. If you think that the stock ecu is at 25° at WOT, I was retarding 8° and advanced 6°, so hitting 22° in boost.

Braineack is offline   Reply With Quote
Old 05-14-2007, 03:51 PM   #23
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

for a reference point.... here's the FM 2001 hydra on-boost defaults at least above 3500rpm.



Looks like you're running a few degrees more than me across the board--which is OK considering the lower compression.

Last edited by y8s; 01-12-2009 at 01:34 PM.
y8s is offline   Reply With Quote
Old 05-14-2007, 03:57 PM   #24
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yeah that table looks a lot closer to what I'm running now. I'm really just retarding 1° per every 3psi (was 1° per psi). When I fix my LC-1, i might have to take it back as I lean out the fuel.
Braineack is offline   Reply With Quote
Old 05-14-2007, 04:02 PM   #25
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by y8s View Post
--which is OK considering the lower compression.
and strong rods
Are those FM created defaults, or Hydra defaults?
m2cupcar is offline   Reply With Quote
Old 05-14-2007, 04:06 PM   #26
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

thanks for the table y8s. I'm going to compare that to my MS table now...
Ben is offline   Reply With Quote
Old 05-14-2007, 04:09 PM   #27
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

1.8 spark table is a little different than 1.6.

Braineack is offline   Reply With Quote
Old 05-14-2007, 05:00 PM   #28
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Curious how the hydra defaults don't follow the factory curve with the ~4k dip and raise and fall. I know the FM link defaults do produce a similar IGN curve- throughout all vacuum/boost levels.
m2cupcar is offline   Reply With Quote
Old 05-14-2007, 05:22 PM   #29
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default



I clean up the table a bit, added some low end timing, and added a bit of retard at 4k like the stock ecu does.
Braineack is offline   Reply With Quote
Old 05-14-2007, 05:24 PM   #30
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

thats pretty crazy thanks braineack i'll take this into consideration
PaKMaN is offline   Reply With Quote
Old 05-14-2007, 05:26 PM   #31
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

the hydra does follow the 4k dip. But up top the dip is shallow to the point of vanishing.



oh and those are Jeremy's defaults for my setup. probably same for all M2 cars with a hydra.

Last edited by y8s; 01-12-2009 at 01:34 PM.
y8s is offline   Reply With Quote
Old 05-14-2007, 05:34 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post


I clean up the table a bit, added some low end timing, and added a bit of retard at 4k like the stock ecu does.
You may want to consider adding a row below 20kpa for coast down--both fuel and spark. say 10kpa. make it 10° for all RPMs and it'll ease you into a lean coast condition. set the fuel to be like just above zero pulsewidth. .05 or something. it doesn't matter. make it like 17:1 afr Then make sure you never idle below 20kpa or set the last row before the 10 row to about 2kpa below your minimum idle kpa.

also, your 20 and 30 kpa rows for 0-1500 rpm should be 10 10 10 10 10 for idle. maybe 12-14 in the 30 row to help with the A/C or high electrical loads.

but that's for drivability. not power. power shmower.
y8s is offline   Reply With Quote
Old 05-14-2007, 05:36 PM   #33
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post

I clean up the table a bit, added some low end timing, and added a bit of retard at 4k like the stock ecu does.
I think you can add in a lot more timing in your vac cells.
Ben is offline   Reply With Quote
Old 05-14-2007, 05:49 PM   #34
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

What's DIYs N/A timing map look like?
Braineack is offline   Reply With Quote
Old 05-14-2007, 11:26 PM   #35
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Thanks for dyno testing the spark map, you've convinced me to get a knocksense and really try to tweak this thing.
Al Hounos is offline   Reply With Quote
Old 05-14-2007, 11:33 PM   #36
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
What's DIYs N/A timing map look like?
It's definately more agressive. Not sure they want it shared yet.
Ben is offline   Reply With Quote
Old 05-14-2007, 11:39 PM   #37
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Ben View Post
It's definately more agressive. Not sure they want it shared yet.
I'll just email jerry.
Braineack is offline   Reply With Quote
Old 05-15-2007, 12:47 AM   #38
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

It's hard to imagine them being more aggressive than near-20* advance at 220kpa. Is the MS actual advance degrees? If so Y8s is running 7* less advance around 5500. Curious to see what you find with that much advance at higher boost.
m2cupcar is offline   Reply With Quote
Old 05-15-2007, 04:21 AM   #39
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

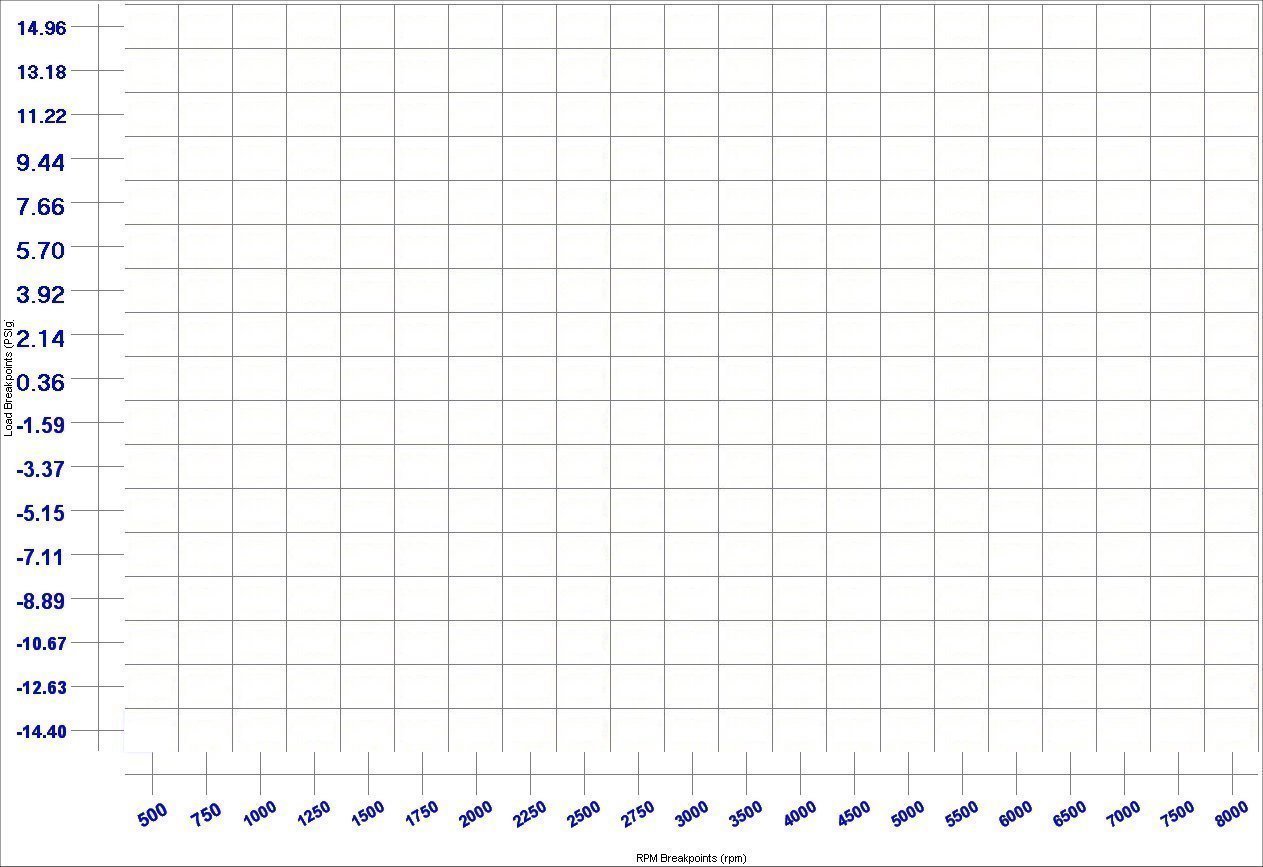

Anyone want to fill these in for me? see pic.
Attached Thumbnails
wanna see why timing is important?-map.jpg
lazzer408 is offline   Reply With Quote
Old 05-15-2007, 11:06 AM   #40
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by m2cupcar View Post
It's hard to imagine them being more aggressive than near-20* advance at 220kpa. Is the MS actual advance degrees? If so Y8s is running 7* less advance around 5500. Curious to see what you find with that much advance at higher boost.
7 degrees is a lot, but then so is 1 point of compression.
y8s is offline   Reply With Quote
