Default Weld turbo to manifold - bad idea?

Now wait I know this would be a bad idea under most circumstances but listen.

I got the old style Begi manifold that fits the areodyne turbo. I got a T3 turbo believing the manifold could be modified to fit "any" turbo. After getting both I learned from Begi that they couldn't modify it to fit a T3 only a T25.

In measuring and looking at both the main issue would be no room for bolts and nuts on the backside of the manifold to attach the T3. So I thought perhaps holes in the front and have a shop drill and tap studs in the back. Well in calling welding shops it is extremely expensive to use the right welding rods to weld mild steel to cast iron and with the labor included it would cost about as much if not more than a brand new cast 1.6 T3 manifold. So not really an option.

See the problem is I began this DIY turbo build with the idea of getting a basic turbo setup going for as little dough as possible. So my options:

#1 Send the mani to Begi to be modified to fit a T25 - $100 + shipping back and forth. then find a T25 (nissan type) which so far I haven't been able to find for less than $200 so lets so all together this option will be around $400.

#2 If I can have the turbo welded to the mani cost $??? I don't know but I cant imagine more than $100.

The issue is that while I think I can get my money back on the T3 at this point if I use option #1 if I don't use the manifold I don't think anyone else would want it so I would be eating the $150 I paid for it.

So I am leaning towards just welding them together (if it's possible) and running the turbo until it goes and then I will find a different mani and turbo. I only paid $110 for the T3 and with the cost of the manifold it's $260 even if this just gives me one summer of turbo fun and I replace them over the next winter it seems worth it as opposed to spending any additional $$$ now (money is short).

Time is also a factor modifying the mani and finding a T25 or finding a T3 mani that fits my budget ( i am trying to stay away from the cheap SS ebay manis )will take who knows how long as well, warm weather is here so......

So what do you guys think? Crazy or plausible?
akthor is offline   Reply With Quote
Old 04-22-2007, 10:45 AM   #2
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

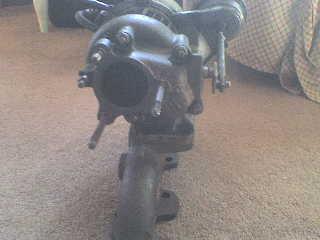

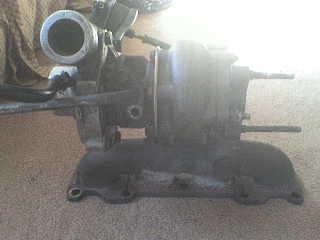

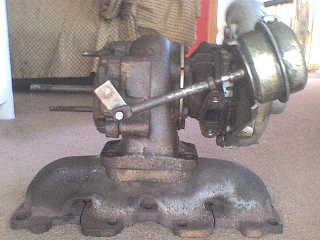

Here are some pics:

It looks like the oil lines are almost vertical the way the turbo would mount as is would I still need to clock it?

Also on the exhaust side if I take that thing with the three studs off would I then be able to use the standard T25 dump pipe/j pipe thing down pipe? I know mine is a T3 but that looks like the T25 exhaust side if you take that off?
Attached Thumbnails
Weld turbo to manifold - bad idea?-dsc00027.jpg   Weld turbo to manifold - bad idea?-dsc00028.jpg   Weld turbo to manifold - bad idea?-dsc00029.jpg
akthor is offline   Reply With Quote
Old 04-22-2007, 12:55 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

it works for the SRT-4
y8s is offline   Reply With Quote
Old 04-22-2007, 12:56 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

wait, sorry. what I meant was

welding cast iron is a crap shoot at best. chances are you'll get a few hundred miles and then it'll crack. and then it'll crack enough to make you regret doing it. even done right, it's still not very strong / crack resistant.
y8s is offline   Reply With Quote
Old 04-22-2007, 01:36 PM   #5
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

I dont understand why you dont just make an adapter plate?

With half inch steel with studs coming out each way..
Loki047 is offline   Reply With Quote
Old 04-22-2007, 02:15 PM   #6
Junior Member

Join Date: Aug 2006
Location: Farmington Valley, CT
Posts: 147
Total Cats: 0
Default

Loki has the right idea, IMHO, buy a cheep drill press and make it yourself.
Mechazawa is offline   Reply With Quote
Old 04-22-2007, 04:24 PM   #7
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

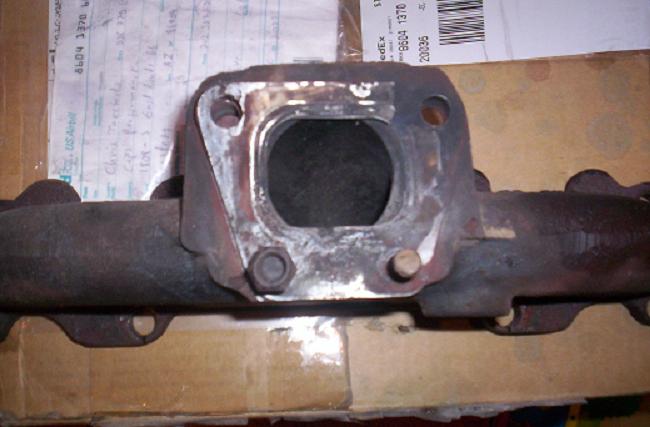

I would like to do that but look at this picture, on what I call the back side where the two studs are coming out if I drill into there its right inside the manifold. Could I drill the mounting plate for the turbo to fit the existing studs and drills holes in the mani on the other side to accomadate the T3 holes or would this weaken the mani too much?
Attached Thumbnails
Weld turbo to manifold - bad idea?-1.jpg
akthor is offline   Reply With Quote
Old 04-22-2007, 06:25 PM   #8
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

You can still do it using those studs. You would have to recess the nuts inside the adapter flange. If you give me dimensions I could draw it up for you.
Loki047 is offline   Reply With Quote
Old 04-22-2007, 06:50 PM   #9
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

dimensions of the manifold?
akthor is offline   Reply With Quote
Old 04-22-2007, 06:55 PM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Dimensions of the flange with locations of the studs.
cjernigan is offline   Reply With Quote
Old 04-22-2007, 07:12 PM   #11
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

The manifold flange or the turbo flange?
akthor is offline   Reply With Quote
Old 04-22-2007, 07:17 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The flange that the turbo bolts to on the manifold. The one you just showed a picture of.
cjernigan is offline   Reply With Quote
Old 04-22-2007, 07:43 PM   #13
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

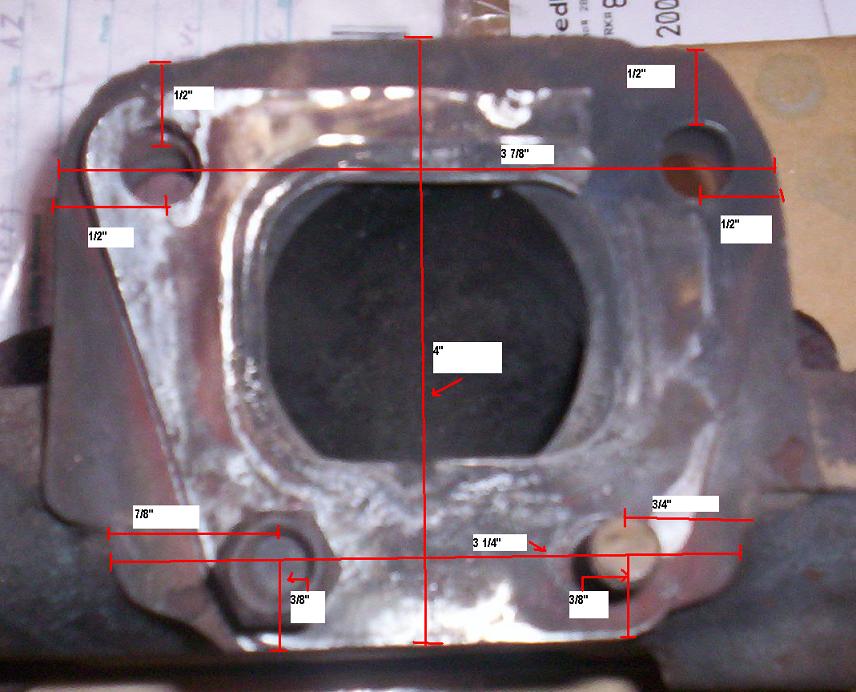

It's an odd shape:
Attached Thumbnails
Weld turbo to manifold - bad idea?-untitled.jpg
akthor is offline   Reply With Quote
Old 04-22-2007, 10:34 PM   #14
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Whats the pattern on the turbo?
Loki047 is offline   Reply With Quote
Old 04-22-2007, 10:42 PM   #15
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

for what it's worth, the previous owner of my car welded the turbo to the manifold. It has survived being on a heavily run turbo car for almost 2 years on constant abuse, drag strip runs, and autox. In fact, i really wanted to break them apart and use hardware, but the weld appears to be very well done. Hey, if it's lasted this long......
Trent is offline   Reply With Quote
Old 04-22-2007, 11:08 PM   #16
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

For dissimilar metals or cast iron I'd recommend brazing with silver solder.
iWeasel410 is offline   Reply With Quote
Old 04-22-2007, 11:23 PM   #17
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Just make an adapter plate. Make sure that the plate and the manifold are perfectly flat and it will all be ok. If you want to be clever about it you could put a o-ring in there but that's overkill.

Mark
Markp is offline   Reply With Quote
Old 04-23-2007, 08:01 AM   #18
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

The turbo is a T3. I think I understand how an adapter plate and I can't figure out how to attach it can you explain?
akthor is offline   Reply With Quote
Old 04-23-2007, 09:11 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Braineack is offline   Reply With Quote
Old 04-23-2007, 11:17 AM   #20
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

I have a mild steel T3 flange that I got from Ebay.
akthor is offline   Reply With Quote
