Old 06-04-2009, 08:04 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

Quote:
Originally Posted by Joe Perez View Post
So, Scott, what kind of material is that?

the stock cast manifold and whatever aluminum the runners happen to be.
Braineack is offline   Reply With Quote
Old 06-04-2009, 08:20 PM   #22
I'm Miserable!
iTrader: (2)

Join Date: Apr 2008
Location: monroe CT
Posts: 463
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
What is not generally known is that moderators have the ability to insert avatars larger than the 150px limitation imposed upon everyone else. Scott's new avatar will push his messages all the way off the damn screen.
but he only has a 10" screen
1990miata1.6 is offline   Reply With Quote
Old 06-04-2009, 08:25 PM   #23
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Braineack View Post
the stock cast manifold and whatever aluminum the runners happen to be.
hey *****-av, I think he meant your plenum and fabbed runners.
y8s is offline   Reply With Quote
Old 06-04-2009, 08:53 PM   #24
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

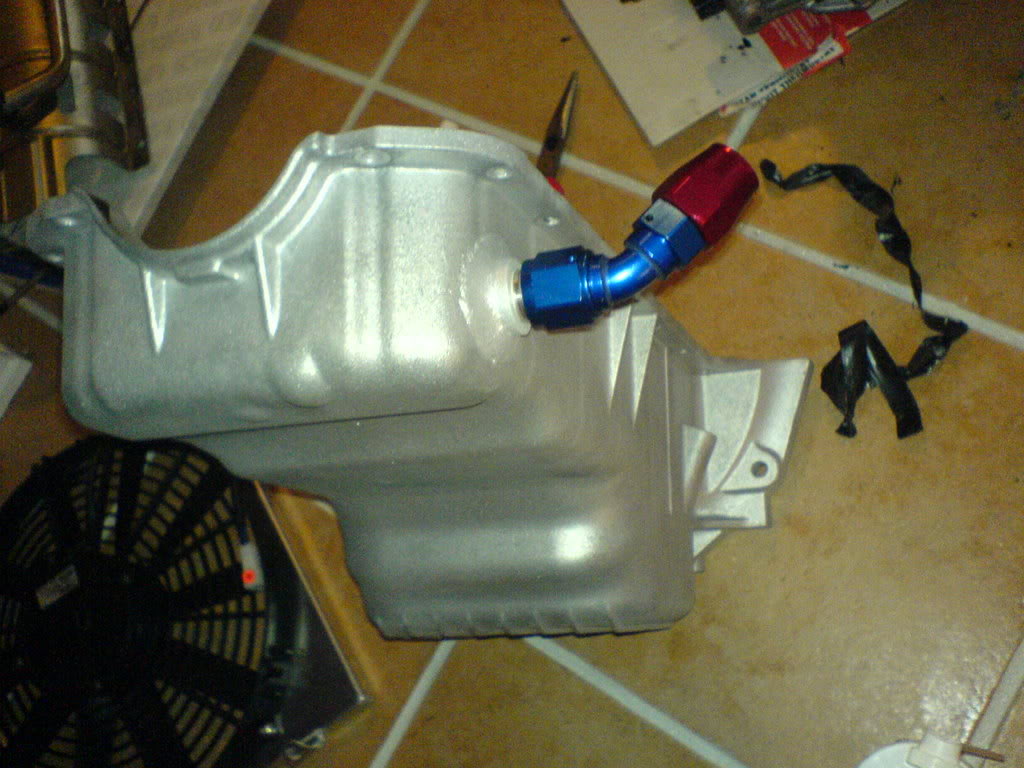

we also welded some runners to the stock inlet manifold flange on my first inlet .. and welded billet oil return parts, to the stock oilpan.. no problems, as long as the welder has some skill..

Name:  DSC00710.jpg
Views: 1
Size:  117.2 KB
hf-mx5t is offline   Reply With Quote
Old 06-04-2009, 08:58 PM   #25
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,913
Default

Ok, ok. I'll stop being a worrywart.

Thanks, all.
Joe Perez is online now   Reply With Quote
Old 06-04-2009, 09:15 PM   #26
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Aluminum cast alloys are all three digit. You won't see a cast 6061 7075 or 2024 part. You'll see a 333 or 290 something like that. The cast aluminum are all made very specially to reduce porosity, and keep homogeneity of the mix. Otherwise you end up with a jello shot of metals. Aluminum on top, then you have copper, ooo look some titanium and maybe some molybdenum!

You could buy all three recommended grades 4043,4145, and 5356 covers nearly every cast material to standard alloy. 4043 covers the widest and 4145 next. 5356 works with higher strength alloys such as the 6000 series alloys. Which one to use??? Chip a piece off and send it to a metallurgist pay a couple hundred for the analysis, or punt.
TravisR is offline   Reply With Quote
Old 06-04-2009, 11:22 PM   #27
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

If your welding cast theres only 1 filler metal to use. 4043, Reason? Has silicone in it to add weldability. The cast Aluminum is very porous and poses difficult problems to an inexperienced welder. If anyone has tried welding anodized aluminum they will know what i am talking about. To be specific what are you adding to the intake manifold. The grade of aluminum you will use is not that important. 5 or 6 series will do fine for whatever you plan on doing.

Questions to consider

1. Is there going to be constant stress on this attachment or is it free from anything tied down (fatigue stress/ductility). If there is you would want a more ductile grade 2024

2. Is there any liquid flowing through it (corrosive)? If there is you might consider 3003 or 5052

For your application i would use 6061 with 4043 filler rod (tig welding) If your welder is only welding on said attachement should be less than 70$

If you lived in the seattle area id do it for you for free
SKMetalworks is offline   Reply With Quote
Old 06-05-2009, 02:10 AM   #28
Junior Member
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default



i'm basically an ally-noob too but managed this with my tig fairly easily if somewhat sloppy. the most common prob is getting through the oxide layer because aluminum oxide melts at a gagillion degrees higher which makes the material underneath it liquid before the top oxide. you can flap disc it off, clean it off with acetone, or my fav; a clean stainless steel wire brush. some of the pros can weld without prepping the metal.

i still have to be careful even tho i did that, i tried to weld a cracked thermostat housing and it was a major PITA to weld. I did it tho!
demetri is offline   Reply With Quote
Old 06-06-2009, 03:32 PM   #29
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

****.

I was wondering when one of these threads would pop up. I bought a millermatic 180 with a spool gun for the express purpose of welding aluminum. Its been so long since I welded on a regular basis but I figured it'd be like riding a bike -- Except I've never tried aluminum and I'm pretty nervous about it.....

Have yet to run down another cylinder for 100% argon, or even wire up the spool gun.. Hell, I haven't even taken it out of the storage box. This is why I have no trubos...
elesjuan is offline   Reply With Quote
Old 06-06-2009, 04:24 PM   #30
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

The spool gun takes all of 10 minutes to add to your machine.

Start back w/ welding steel to steel, get it flowing pretty well and practice your bead-overlapping.

THEN wire in your spool gun and prepare to punch yourself in the head countless times in anger while practicing until you are able to weld aluminum worth a crap.

....or maybe I just have anger issues.
Project84 is offline   Reply With Quote
Old 06-06-2009, 07:41 PM   #31
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by elesjuan View Post
****.

I was wondering when one of these threads would pop up. I bought a millermatic 180 with a spool gun for the express purpose of welding aluminum. Its been so long since I welded on a regular basis but I figured it'd be like riding a bike -- Except I've never tried aluminum and I'm pretty nervous about it.....

Have yet to run down another cylinder for 100% argon, or even wire up the spool gun.. Hell, I haven't even taken it out of the storage box. This is why I have no trubos...
just go down to the local airgas type store and buy a small full cylinder. it wont break the bank and will last for a long time.
y8s is offline   Reply With Quote
Old 06-06-2009, 08:03 PM   #32
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by y8s View Post
just go down to the local airgas type store and buy a small full cylinder. it wont break the bank and will last for a long time.
I got some C25 in an "M" sized cylinder and ended up being $225.00 out the door. Would like to get the same thing for Argon, but I'm being kinda cheap here lately.

Had a line on one from Craigslist for $50.00 empty, called Airgas and asked if I could exchange it for a full cylinder and what the cost would be. IIRC woulda been $52 for Argon exchanged. Then the ******* never would answer my calls about the craigslist cylinder...

My other biggest problem is I can't find enough scrap steel and aluminum to get practice on. Planning on building my own downpipe so I started sawing off 1" long pieces of aluminized steel exhaust pipe I had tons of scrap of and butt-welding it back together. After about 15 slices I finally got back in the groove and figured out my settings pretty well. Just have to get more practice on welding in a straight line..
elesjuan is offline   Reply With Quote
Old 06-06-2009, 10:17 PM   #33
Junior Member
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

Quote:
Originally Posted by elesjuan View Post
I got some C25 in an "M" sized cylinder and ended up being $225.00 out the door. Would like to get the same thing for Argon, but I'm being kinda cheap here lately.

Had a line on one from Craigslist for $50.00 empty, called Airgas and asked if I could exchange it for a full cylinder and what the cost would be. IIRC woulda been $52 for Argon exchanged. Then the ******* never would answer my calls about the craigslist cylinder...

My other biggest problem is I can't find enough scrap steel and aluminum to get practice on. Planning on building my own downpipe so I started sawing off 1" long pieces of aluminized steel exhaust pipe I had tons of scrap of and butt-welding it back together. After about 15 slices I finally got back in the groove and figured out my settings pretty well. Just have to get more practice on welding in a straight line..
u can use argon for pretty much everything so i gave up on co2 mixes. as for aluminized steel; that coating is always liable to make your life difficult and confusing. spool guns are great for production work but can be difficult when ur trying to figure out how aluminum puddles etc. remember that aluminum also needs MUCH more heat than steel to weld so for the same thicknesses you need to crank up your machine.

dont give up!!!!!!!
demetri is offline   Reply With Quote
Old 06-06-2009, 10:46 PM   #34
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

I use argon in my TIG, I run through a big tank pretty quickly. Check locally if there is a place to rent the tank, I rent mine w/ a $50 deposit and a $40 fill, usually every 4 months or so. I'd run through one of those small bottles in no time.
fluke is offline   Reply With Quote
Old 06-07-2009, 11:42 AM   #35
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

May want to ask your local gas supplier if they have out of date bottles you can buy for cheap, have it sent out for a re-test (pressure test) that'll cost you $40-50 and when it passes they'll stamp it and it's good for like another 7 years... at that point the bottle is yours.

I think the setting for 16 gauge aluminum an .030 wire on my Millermatic 140 spool gun is 10V/40 speed. So yeah, lots of heat w/ aluminum...
Project84 is offline   Reply With Quote
Old 06-08-2009, 02:50 AM   #36
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

I've welded 6061 runners to the cast intake manifold flange with 4043 filler rod with no issues.
iWeasel410 is offline   Reply With Quote
