DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 04-30-2010, 02:51 PM   #1
Newb
Thread Starter

Join Date: Jan 2009
Location: Los Angeles-SGV
Posts: 10
Total Cats: 0
Default what flange? or DP

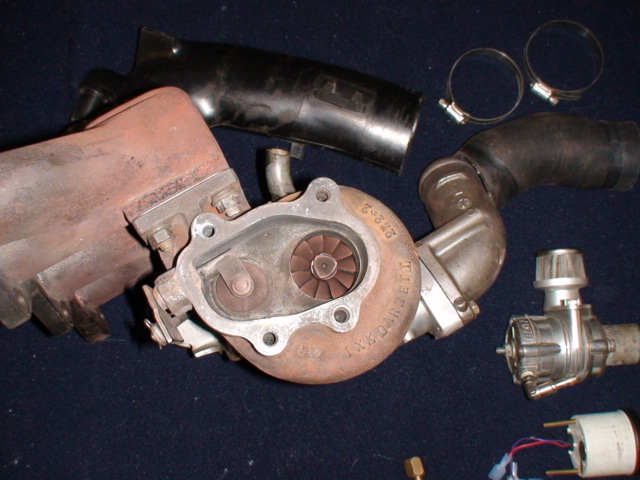

Was thinking of getting some used pieced kit for 400. Greddy manifold with some garrett ar .48 turbo, IC, SAFC. Doesn't have DP though and I can't find this 4 bolt design when I search. Anyone know what would fit or where and how much it might cost to make a down pipe?
Attached Thumbnails
what flange? or DP-dsc00061.jpg
lobuck is offline   Reply With Quote
Old 04-30-2010, 07:07 PM   #2
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Looks like a 300zx t25 turbo. Flanges can be found at ztune (google it). You're way better off to stay away from it though, there's nothing else on the market that uses that flange.
dustinb is offline   Reply With Quote
Old 04-30-2010, 07:34 PM   #3
Newb
Thread Starter

Join Date: Jan 2009
Location: Los Angeles-SGV
Posts: 10
Total Cats: 0
Default

Darn. Thanks. Yeah, was trying to find it for a while. 300zx does look like it. So for 400 stay away. comes with IC, blitz blow off, gagues. What if he goes lower?
lobuck is offline   Reply With Quote
Old 04-30-2010, 07:41 PM   #4
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

It spooled like mad on my car, made 16psi at 3000 rpm, but it has no top end at all. Check out my dyno graph:


You can see that hp and torque drop off really fast. By redline it's making less then 100torque, and only about 130hp. It was great for off the line and city driving. The car would just take off, but not good for drag racing situations.

I got my turbo for $100, and had a custom downpipe made for it. I soon wanted to upgrade to something larger and then found that I had no upgrade options. Everything else is a 5 bolt flange. I ended up selling everything and getting a new setup. I would suggest not getting into it.
dustinb is offline   Reply With Quote
Old 04-30-2010, 07:47 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it's a start, but you still need a lot more parts and its a manifold that's not very reliable.
Braineack is offline   Reply With Quote
Old 04-30-2010, 07:48 PM   #6
Newb
Thread Starter

Join Date: Jan 2009
Location: Los Angeles-SGV
Posts: 10
Total Cats: 0
Default

Yikes, thats a crazy chart. That does drop off pretty fast. Really, I was just looking for some fun around the streets. like 150-170. Would anyone even buy that turbo? So not worth $400.....$300 for the kit?
lobuck is offline   Reply With Quote
Old 04-30-2010, 07:50 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the r2d2 bov sells for a lot...


dustin, was that with the 1.8L motor?
Braineack is offline   Reply With Quote
Old 04-30-2010, 08:02 PM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by Braineack View Post
the r2d2 bov sells for a lot...


dustin, was that with the 1.8L motor?
Yes it was on a 1.8 with the HKS cast manifold.
dustinb is offline   Reply With Quote
Old 04-30-2010, 09:34 PM   #9
Newb
Thread Starter

Join Date: Jan 2009
Location: Los Angeles-SGV
Posts: 10
Total Cats: 0
Default

oh well, he sold it anyways.

Dang, now I got turbo on the mind.

Thanks to the both of you for your help.
lobuck is offline   Reply With Quote
