Default what happened to my poor bearing??

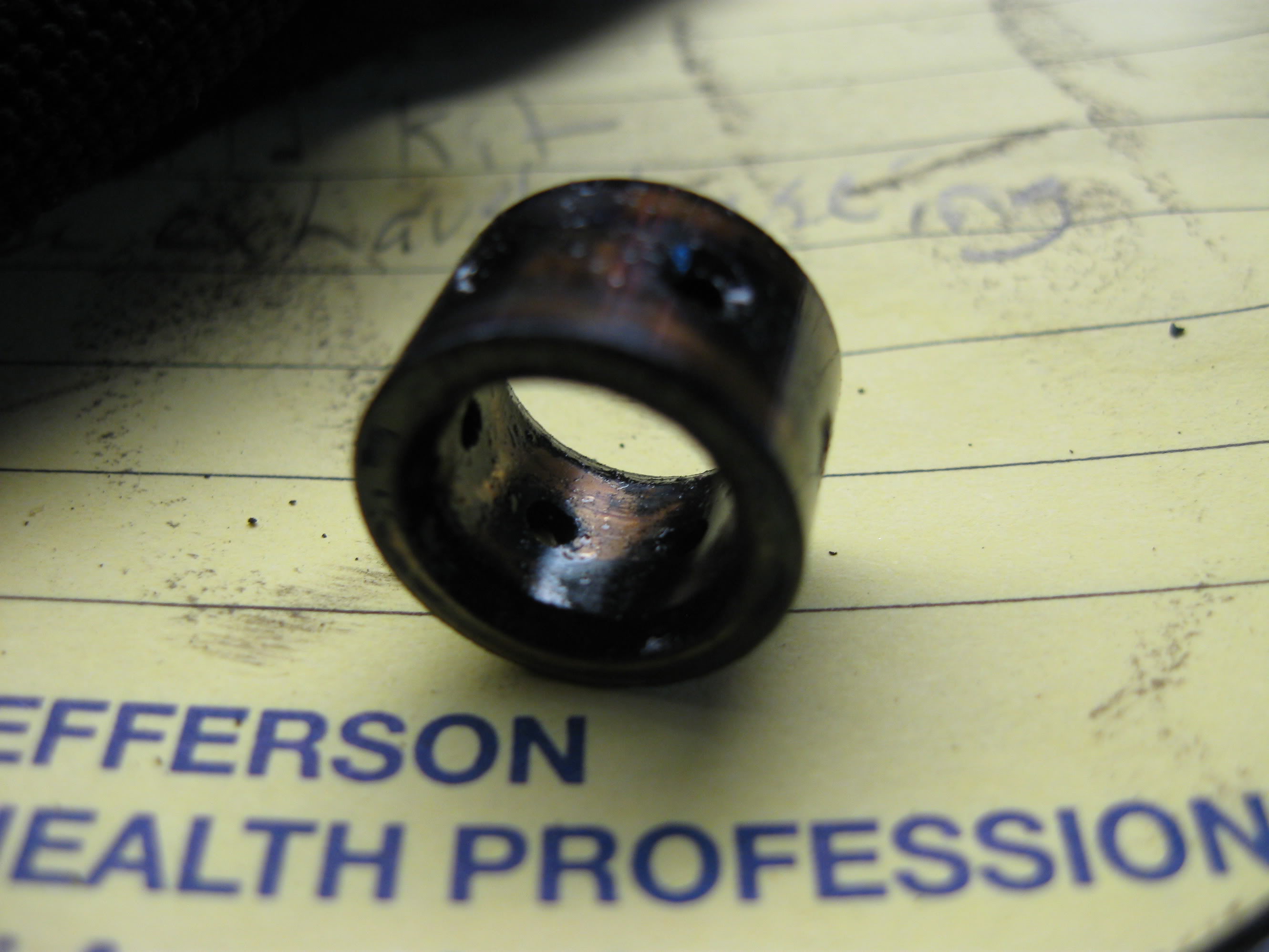

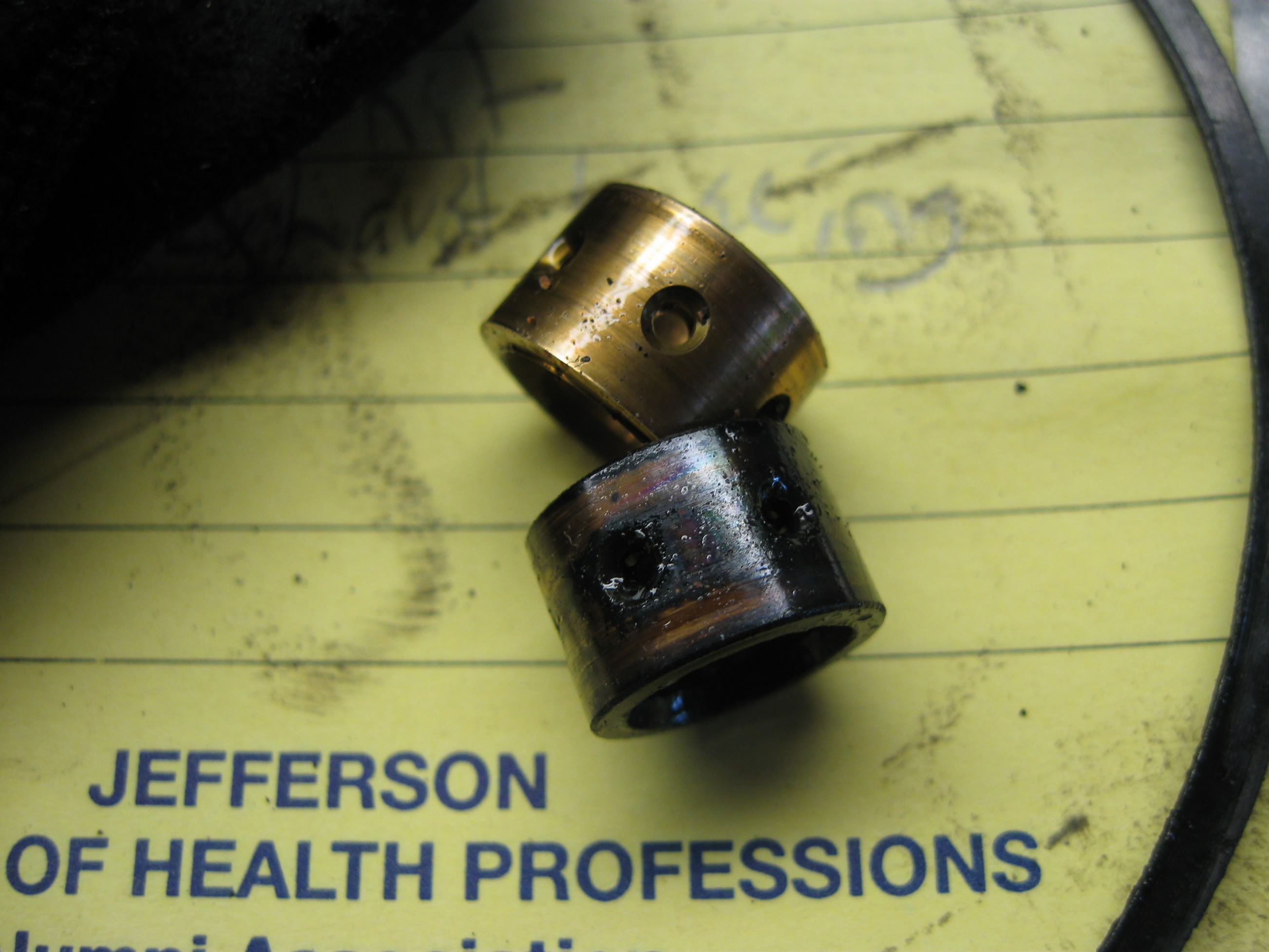

This is interesting, I rebuilt my turbo about 10k miles ago, and when I went to re do the exhaust today, I found the turbo had mega shaft play! I was lucky I checked it. It was seriously very close to killing itself. interesting thing is its just the turbine side bearing, the compressor side bearing looks fine (its in the pic).

Question is is this because of over heating or lack of oil for only that one bearing? Any ideas? Can I check the oil passageways?

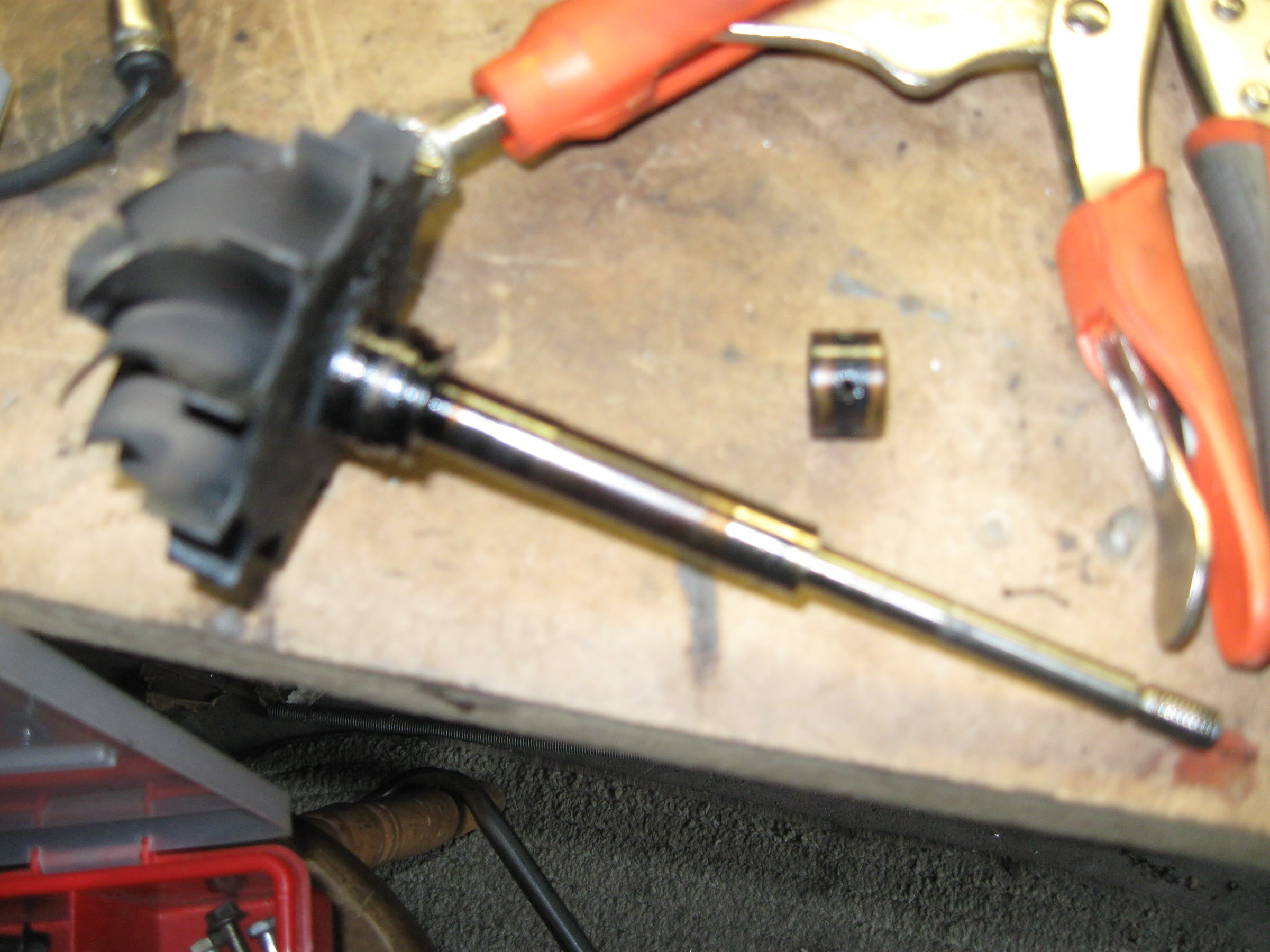

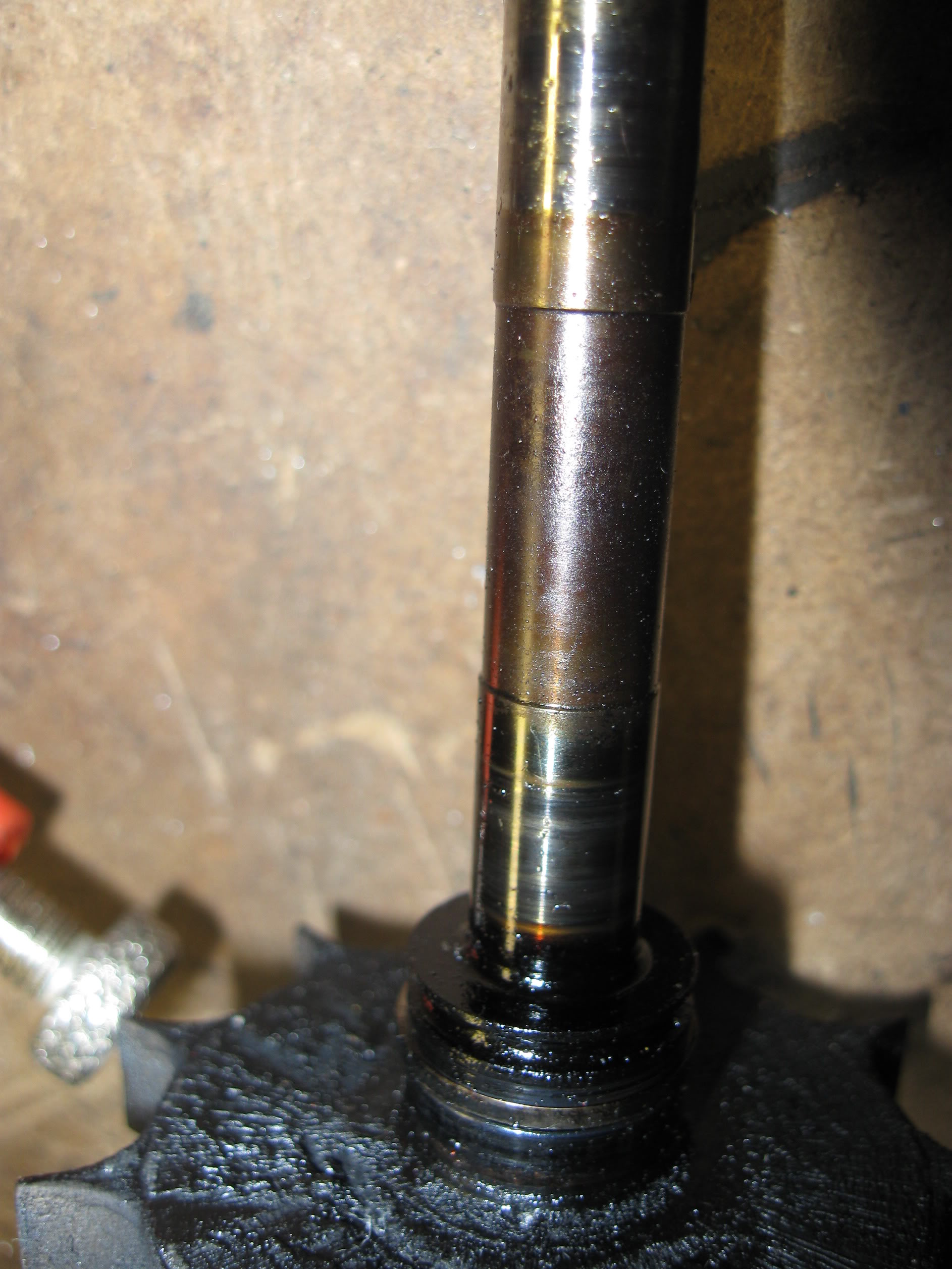

Also, is the shaft still usable? Its discolored, but not bent from what I can tell.

Finally, when I put it back together awhile back, and I dident pay enough attention to how everything lined up for balance. Could a mis balanced shaft cause only one bearing to fail?

Thanks

Name:  IMG_0943.jpg
Views: 1
Size:  313.7 KB

Name:  IMG_0945.jpg
Views: 1
Size:  344.1 KB

Name:  IMG_0942.jpg
Views: 1
Size:  388.6 KB

Name:  IMG_0944.jpg
Views: 1
Size:  429.6 KB
cardriverx is offline   Reply With Quote
Old 05-28-2009, 03:02 AM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

[QUOTE=cardriverx;412601]

Finally, when I put it back together awhile back, and I dident pay enough attention to how everything lined up for balance. Could a mis balanced shaft cause only one bearing to fail?

QUOTE]

Im not 100% sure but i think so. I know some people have ran forever without having the shaft rebalanced but others have had bearing failures.
SKMetalworks is offline   Reply With Quote
Old 05-28-2009, 03:08 AM   #3
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

[QUOTE=sbkcocker499;412605]
Quote:
Originally Posted by cardriverx View Post

Finally, when I put it back together awhile back, and I dident pay enough attention to how everything lined up for balance. Could a mis balanced shaft cause only one bearing to fail?

QUOTE]

Im not 100% sure but i think so. I know some people have ran forever without having the shaft rebalanced but others have had bearing failures.
The thing is I would think that would cause both bearings to fail like that, I dunno.
cardriverx is offline   Reply With Quote
Old 05-28-2009, 03:42 AM   #4
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Depends on where the imbalance was. Get something spinning >100,000 rpm and even something so tiny can cause a lot of excess heat from all of the extra pressure. I would say that is possibly your issue. Can't think of any other reason only one side would overheat like that.

I would think the shaft may be OK, but its not like you would be able to tell yourself with your own tools (unless you rebuild turbo's).
NA6C-Guy is offline   Reply With Quote
Old 05-28-2009, 09:32 AM   #5
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Did you check for a blockage in the feed and drain lines in the housing on the turbine side?

I'd buy a rebuild kit, and ship the rotating parts to Cherry Turbo for balance, he can also tell you if the shaft is ok or not.
fluke is offline   Reply With Quote
Old 05-28-2009, 09:52 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

are the oil passages on the one bearing clogged? which one was it, the compressor side or turbine side?

Looks like coked oil blocked the oil passage. is your turbo water cooled?
Braineack is offline   Reply With Quote
Old 05-28-2009, 12:07 PM   #7
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
are the oil passages on the one bearing clogged? which one was it, the compressor side or turbine side?

Looks like coked oil blocked the oil passage. is your turbo water cooled?
Turbine side, not water cooled.

how can I check the passages inside the CHRA?
cardriverx is offline   Reply With Quote
Old 05-28-2009, 01:28 PM   #8
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Pour oil in the inlet w/ the rotating ***'y out, look if it's running out both sides at same rate.
fluke is offline   Reply With Quote
Old 05-28-2009, 02:07 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

this is what your passages look like:


http://www.allpar.com/images/cars/fe...cuda/turbo.jpg


soaking it in a detergent or sea foam probably wouldn't hurt.
Braineack is offline   Reply With Quote
Old 05-28-2009, 09:08 PM   #10
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

kk, ill try to pour some oil through it.
cardriverx is offline   Reply With Quote
Old 05-30-2009, 07:37 PM   #11
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Well the turbine side bearing is getting oil, maybe alittle less than the other, but i dunno. Could i put the whole center section in a simple green bath just to make sure?
cardriverx is offline   Reply With Quote
Old 05-30-2009, 09:36 PM   #12
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Honestly, that shaft looks fine; get it cleaned up and balanced by Cherry. Last CHRA I rebuilt looked worse than that, think Jim charged me like $30 or something. The higher the imbalance, the higher the radial loads and the quicker the wear.

How does your turbine wheel look? Intact?
fluke is offline   Reply With Quote
Old 05-30-2009, 09:54 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

Quote:
Originally Posted by Braineack View Post
Hotlinking fail.
Joe Perez is offline   Reply With Quote
Old 05-30-2009, 10:54 PM   #14
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

the wheels look fine, could I bathe everything in simple green to clean it off?
cardriverx is offline   Reply With Quote
Old 05-31-2009, 10:09 AM   #15
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Turbine shaft: hit with brake cleaner, probably won't clean it completely. I think they typically "sand" blast it (dunno what media they use, glass maybe)

Center housing and turbine heat shield: remove everything, soak in brake cleaner, dry and coat w/ oil (it'll rust)

Compressor wheel: Don't hit w/ brake cleaner

Bearings: Replace w/ new
fluke is offline   Reply With Quote
Old 05-31-2009, 10:09 AM   #16
TTS
Newb

Join Date: May 2009
Posts: 3
Total Cats: 0
Default

seems like the turbo's not getting enough oil, also the oil went through it is very contaminated. Note all those scrolls on the bearings.

For this to work. You need to horn out your bearing housing, Check shaft tollorance, and use over sized bearings.
TTS is offline   Reply With Quote
