Smile What kind of turbo can I use with early corky bell's IHI kit

I have a early corky bells cortech IHI turbo kit with his intercooler. But the turbo is leaking coolant (smoking white out of exhaust). Anybody know what kind of turbo besides the IHI will fit on the manifold? Or what rebuild kit do it need? Also any resource for parts will be helpful also and thanks. BTW the kit is for 90-93 1.6
supra441979 is offline   Reply With Quote
Old 03-27-2007, 12:28 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Is that the aerodyne turbo?
cjernigan is offline   Reply With Quote
Old 03-27-2007, 12:29 AM   #3
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

So you finally isolated the leaking coolant to the turbo cartridge, huh? That's good.

As for what turbo to use, call up BEGi; they're easy to get a hold of and talk to.
bripab007 is offline   Reply With Quote
Old 03-27-2007, 01:42 AM   #4
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

the areocharger is no longer produced unfortunately mate. I dont know if there are standard turbos available that can be swapped in or not. You should call begi
akaryrye is offline   Reply With Quote
Old 03-27-2007, 09:19 AM   #5
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Smile

Quote:
Originally Posted by Brian View Post
So you finally isolated the leaking coolant to the turbo cartridge, huh? That's good.

As for what turbo to use, call up BEGi; they're easy to get a hold of and talk to.

well The thrust bearing on the block was bad. I just replaced the motor and the guy i bought the motor from he replaced all the seal and water pump. The front main seal was leaking and guess what the crank pulley came out without even trying hard (not torq) No damaged to the keyway or anything and I also replaced the head thinking it's a valve seal,but still white smoke. So for sure the turbo seal is bad. The turbo is a IHI turbo.

Last edited by supra441979; 03-27-2007 at 06:16 PM.
supra441979 is offline   Reply With Quote
Old 03-27-2007, 09:40 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

so pull the water lines to the turbo and see if that doesn't fix it....there are no "seals" for the coolant, just a hollow housing.



rebuild kits for IHI turbos can be found here:
http://www.gpopshop.com/ihiborgwarnerkits.html
Braineack is offline   Reply With Quote
Old 03-27-2007, 09:56 AM   #7
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

That's what I understood about the CHRA design. I think the only way for coolant to leak into the exhaust flow is for the CHRA to crack... which isn't very likely since the turbo would probably self-destruct.

And just call Begi... sometimes Corky answers the phone. 830-438-2890
samnavy is offline   Reply With Quote
Old 03-27-2007, 02:20 PM   #8
Junior Member

Join Date: Nov 2006
Location: Goshen, IN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
so pull the water lines to the turbo and see if that doesn't fix it....there are no "seals" for the coolant, just a hollow housing.



rebuild kits for IHI turbos can be found here:
http://www.gpopshop.com/ihiborgwarnerkits.html
You beat me to the rebuild link!

$98 isn't bad for a rebuild kit.

The IHI RHB5 that Corky used certainly isn't a bad turbo, just old. It spools quick and is good up to around 12 psi.
mkrazit is offline   Reply With Quote
Old 03-27-2007, 03:08 PM   #9
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

IIRC there was a T-bird compressor upgrade for it. Might be worth looking at if you're looking for more power, especially if you are not going to do the upgrade yourself.

Frank
fmowry is offline   Reply With Quote
Old 03-27-2007, 06:20 PM   #10
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
That's what I understood about the CHRA design. I think the only way for coolant to leak into the exhaust flow is for the CHRA to crack... which isn't very likely since the turbo would probably self-destruct.

And just call Begi... sometimes Corky answers the phone. 830-438-2890
what is CHRA? and thanks for the replies guys
supra441979 is offline   Reply With Quote
Old 03-27-2007, 07:24 PM   #11
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

The piece between the intake part and the exhaust, where all the oil and water lines go to...

CHRA (center housing rotating assembly)
greddymx5 is offline   Reply With Quote
Old 03-27-2007, 07:55 PM   #12
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

so rebuilt kit won't fix it then?
supra441979 is offline   Reply With Quote
Old 03-28-2007, 09:59 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

if you think it's leaking coolant, then no. the coolant portion of the CHRA is sealed, meaning it's just a hollow area where the coolant passes through to cool the turbo.

if you think it really it leaking coolant, then pull both the coolant lines and join them together off the turbo. then see if the same thing accurs.

my guess is that it will. sometimes even burning oil from a turbo looks white. but do that test first before you buy the rebuild kit. or discuss in detail with corky bell.
Braineack is offline   Reply With Quote
Old 03-28-2007, 11:53 AM   #14
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Is that the aerodyne turbo?
IIRC Aerodyne's are only air cooled (the oil is self contained - no oil feed or return line)
Jefe is offline   Reply With Quote
Old 03-28-2007, 07:30 PM   #15
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
if you think it's leaking coolant, then no. the coolant portion of the CHRA is sealed, meaning it's just a hollow area where the coolant passes through to cool the turbo.

if you think it really it leaking coolant, then pull both the coolant lines and join them together off the turbo. then see if the same thing accurs.

my guess is that it will. sometimes even burning oil from a turbo looks white. but do that test first before you buy the rebuild kit. or discuss in detail with corky bell.

would a that damaged CHRA effect idle?
supra441979 is offline   Reply With Quote
Old 03-28-2007, 07:32 PM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Are you still jerkin off with that motor with no compression?
Failed turbo or no, your compression sucks!

Knowing compression is real low, which is more likely, your turbo is ingesting coolant, or the motor is?
Ben is offline   Reply With Quote
Old 03-28-2007, 08:32 PM   #17
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
Are you still jerkin off with that motor with no compression?
Failed turbo or no, your compression sucks!

Knowing compression is real low, which is more likely, your turbo is ingesting coolant, or the motor is?
It has compression man and let's just leave it at that.
supra441979 is offline   Reply With Quote
Old 03-28-2007, 08:36 PM   #18
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by mkrazit View Post
You beat me to the rebuild link!

$98 isn't bad for a rebuild kit.

The IHI RHB5 that Corky used certainly isn't a bad turbo, just old. It spools quick and is good up to around 12 psi.

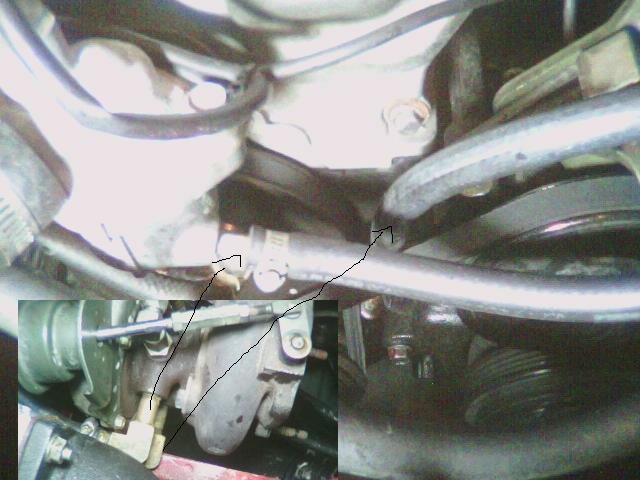

I just notice on this diagram the sides have oil and coolant lines on same side. But the way the turbo was hook up the sides of the turbo is running two coolant lines. One of them goes rightside of the water thermo neck and the other goes to the lines leftside of the power steering pulley. And the Oil feed and oil return lines seems to be right.
Attached Thumbnails
What kind of turbo can I use with early corky bell's IHI kit-new.jpg

Last edited by supra441979; 03-28-2007 at 10:30 PM.
supra441979 is offline   Reply With Quote
Old 03-29-2007, 07:51 PM   #19
Junior Member

Join Date: Nov 2006
Location: Goshen, IN
Posts: 58
Total Cats: 0
Default

supra, check your thread over on Miata.net.
mkrazit is offline   Reply With Quote
Old 04-01-2007, 05:01 PM   #20
Senior Member
Thread Starter
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

white smoke is fixed. But now the idle is going up and down none stop after it warms up and drive it for about 10mins. I have to find my vac gauge, but I don't think it has a vac leak anymore.
