Default What'd 'yall do about your upper radiator hose?

Just wondering. My charge pipe makes contact and slightly pinches it, but not nearly enough to significantly impede flow. I figure you track guys are running a much, much better solution because you need all the flow you can get.

I will eventually want to redo this since it's annoying and looks shitty, so what did you all do to stop this/did you do anything to stop it?
rider384 is offline   Reply With Quote
Old 06-02-2010, 09:09 PM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Coolant reroute....mine currently does the same thing.
Cspence is offline   Reply With Quote
Old 06-02-2010, 09:12 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

How would the coolant rerout help? It'd have to go into the upper radiator hose anyway, and mine is already trimmed down to compensate.
rider384 is offline   Reply With Quote
Old 06-02-2010, 09:19 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

We mess around our charge pipe and coolant hose setup/position. If you have a dedicated enough track car the radiator isn't even in the stock location or the rest of the ducting and cooling setup is good enough to compensate for a small pinch. If your car isn't a completely prepped race car then the small pinch probably isn't enough to matter. Pictures of your setup?
curly is offline   Reply With Quote
Old 06-02-2010, 09:43 PM   #5
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

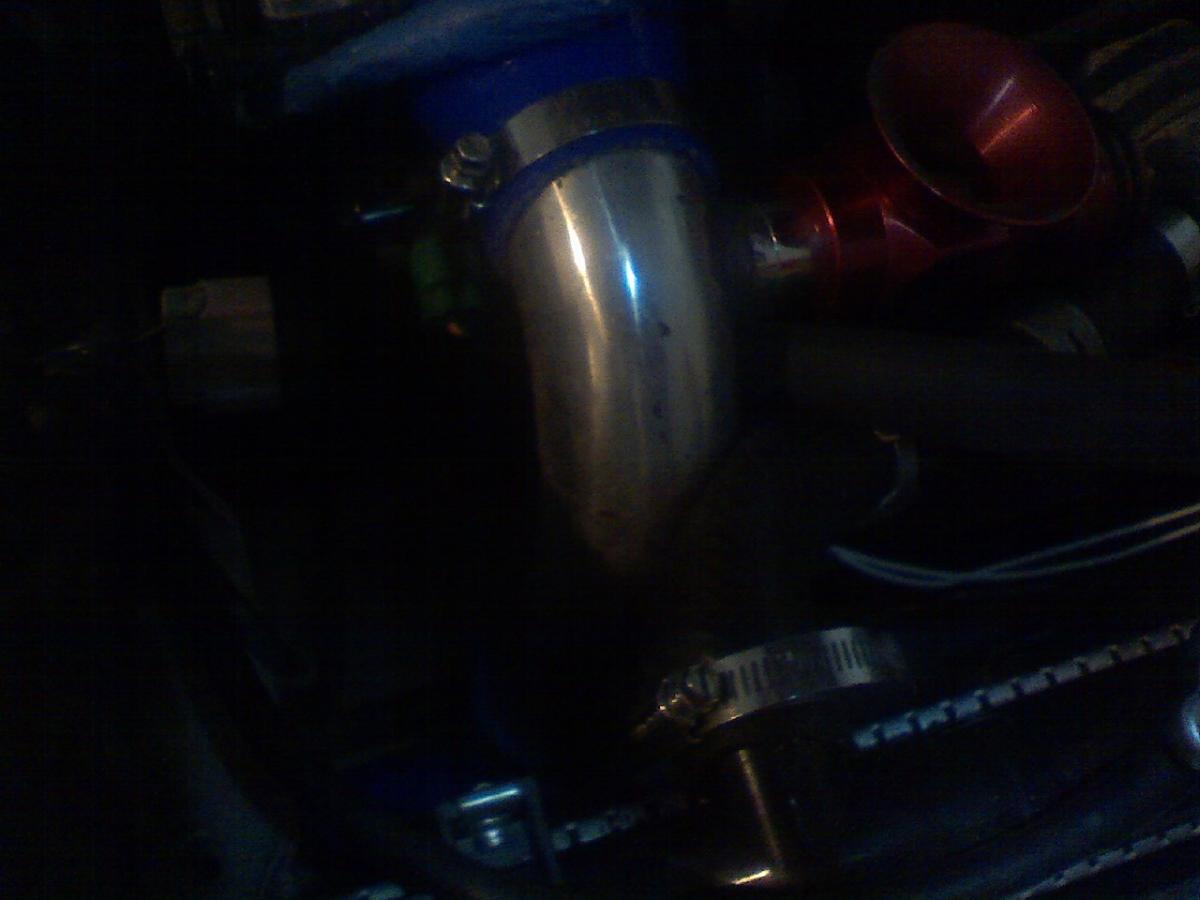

Shitty pictures, I lost my camera battery
Attached Thumbnails
What'd 'yall do about your upper radiator hose?-picture068.jpg
rider384 is offline   Reply With Quote
Old 06-02-2010, 09:47 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yikes that is a nasty pinch. You can forget about replacing your radiator with a thicker one any time soon too, no way it would fit. Have you tried cutting your silicone coupler shorter and shoving the pipe in further? You should have some more room by doing that.
curly is offline   Reply With Quote
Old 06-02-2010, 09:49 PM   #7
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by curly View Post
Yikes that is a nasty pinch. You can forget about replacing your radiator with a thicker one any time soon too, no way it would fit. Have you tried cutting your silicone coupler shorter and shoving the pipe in further? You should have some more room by doing that.
Pipe is in to the point where the throttle can just barely open. Unfortunately .

I'll probably make a new charge pipe, a little shorter and with re-placed fittings.
rider384 is offline   Reply With Quote
Old 06-02-2010, 09:53 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

Use a tighter throttle body pipe. I used a 90deg silicone off my throttle body.
Savington is offline   Reply With Quote
Old 06-02-2010, 10:04 PM   #9
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by rider384 View Post
How would the coolant rerout help? It'd have to go into the upper radiator hose anyway, and mine is already trimmed down to compensate.
https://www.miataturbo.net/showthrea...oolant+reroute



Cspence is offline   Reply With Quote
Old 06-02-2010, 11:07 PM   #10
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I have the same problem with my setup. I used a vibrant tight radius 90 off of the throttle body and have my IAT sensor bung welded into it. Eventually I'll just get a new bung welded on the charge pipe farther down and use a silicone 90. I think that's really the only option.
dustinb is offline   Reply With Quote
Old 06-02-2010, 11:09 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Your mother made this one for mine:
hustler is offline   Reply With Quote
Old 06-02-2010, 11:31 PM   #12
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I did a coolant reroute and over the top ic setup, no contact now.
astroboy is offline   Reply With Quote
Old 06-02-2010, 11:40 PM   #13
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by astroboy View Post
I did a coolant reroute and over the top ic setup, no contact now.
I really, really wanted an OTR setup, but the IC is so long that it would have been impossible without cutting the frame. Sad face .

I think what I'll do is buy a 2.5" -> 2" 90* silicone reducer and make a new pipe, but this should work fine for now.
rider384 is offline   Reply With Quote
Old 06-03-2010, 12:26 AM   #14
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

mine rubs too, the biggest thing that worries me about it is the radiator hose heating up the intake piping, and the intake charge, but i can;t imagine it does that to much effect.
wittyworks is offline   Reply With Quote
Old 06-03-2010, 12:36 AM   #15
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

90* 2.5" silicone coupler fit just fine in mine with no pinches and I have 1.8 swap with thicker CXRacing rad which = even less room than you're dealing with. Image isn't of the best angle but you can see both pipes.

[IMG][/IMG]
seraph is offline   Reply With Quote
Old 06-03-2010, 09:38 AM   #16
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

1.insert giant spring into upper radiator hose
2.win

the spring with the M-Tuned reroute is just the perfect size to slide into the upper radiator hole on my koyo. put a hose clamp on the hose+spring to hold the spring in place, sandwich the upper radiator tube between the spring and radiator hose. The spring will keep your hose from pinching while allowing it to remain flexible.
fooger03 is offline   Reply With Quote
Old 06-03-2010, 10:38 AM   #17
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

^This^ +1 I forgot about that! I can vouch for that method. We had to do that to my friends setup and it works great.
seraph is offline   Reply With Quote
Old 06-03-2010, 02:36 PM   #18
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Untill a year or two goes by and that spring has corroded its life away!!
p51hellfire is offline   Reply With Quote
Old 06-03-2010, 02:54 PM   #19
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Aluminum rad??? Cut rad end at an angle so it clears...
Preluding is offline   Reply With Quote
Old 06-03-2010, 04:25 PM   #20
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Had the inlet moved:
Laur3ns is offline   Reply With Quote
