Default What's a better coolant supply/return config?

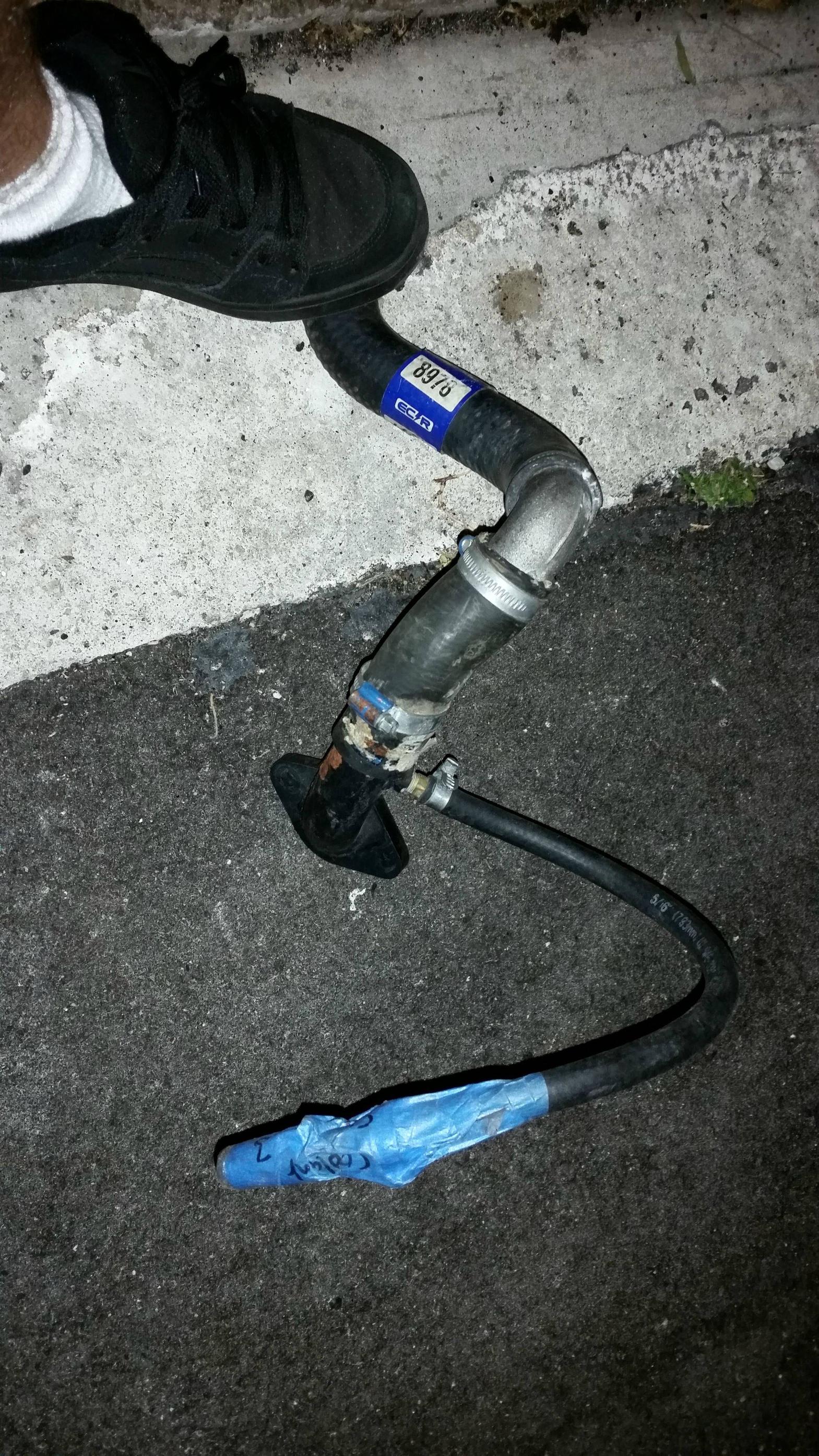

I'm trying to figure out what I am going to do with my coolant lines going to/from the turbo. I have acquired a used Begi S3 kit and I'm not sure what I should do with the coolant setup. It came with this:



With that, I can take the coolant from the thermostat housing, and return it to this barb. Great. But what do I do with the heater hose that's supposed to go to the mixing manifold? In their instructions, it says run the heater hose to a T in the upper radiator hose (i think they call this their "racer reroute") and if you don't want to run that, where would you return the heater line to? They don't seem to specify.

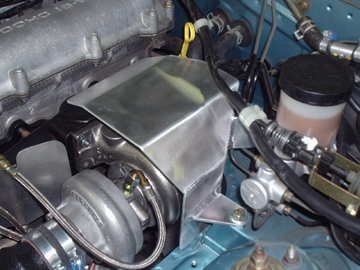

I like FM's/common standard to use the water line from the t-stat, and the nipple on the mixing mani, but then the heater hose stays in place and wont allow for the nice turbine housing heat shield...

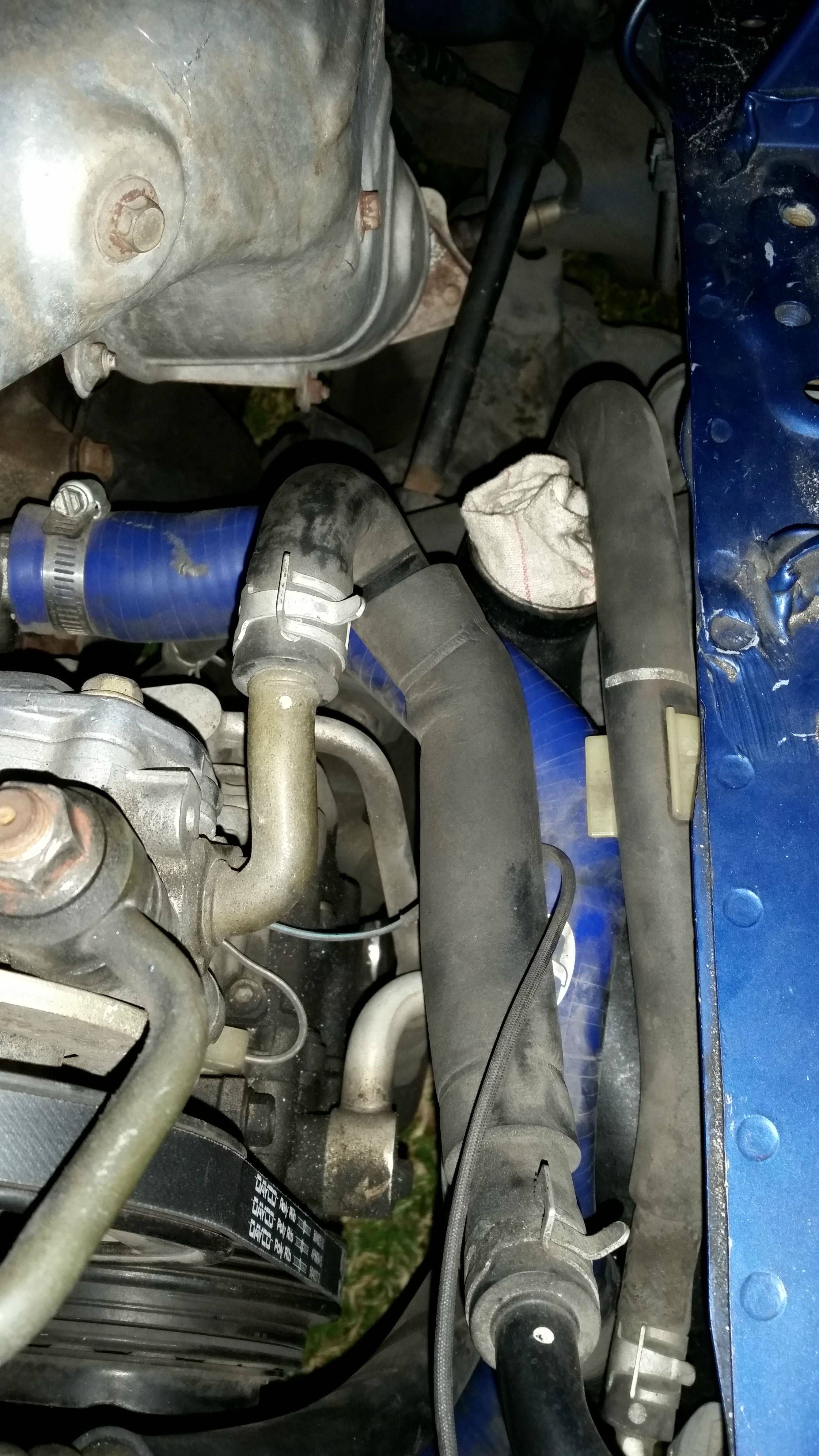

and there everything is kinda bunched together where the comp outlet pipe/ps line/lower rad hose is:



What do you think?
Attached Thumbnails
What's a better coolant supply/return config?-02_miata_heatshield_turbo1.jpg
Mech5700 is offline   Reply With Quote
Old 11-21-2014, 12:08 PM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default

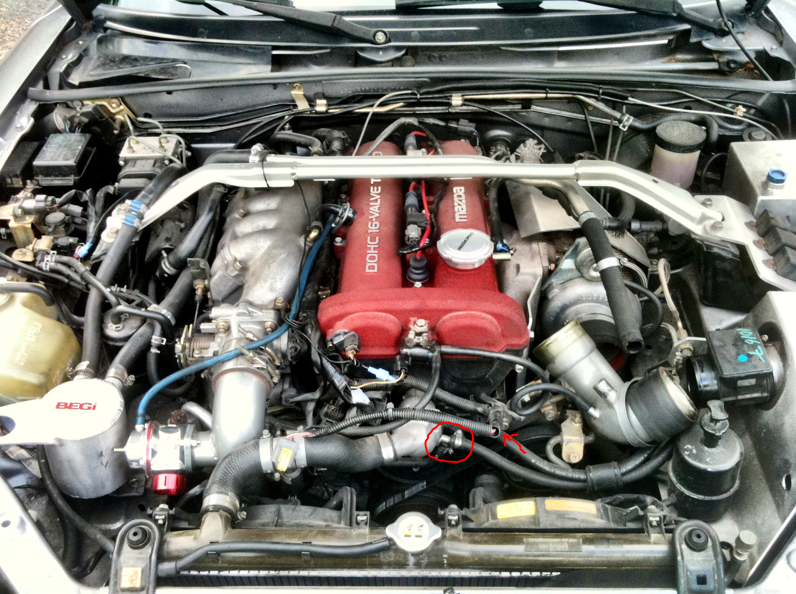

Here is my s3, hope it helps.

The turbo's coolant is sourced from the front and at the mixing manifold like you have pictured.

The upper rad hose has a T going to the rear. I actually have yet to follow to see where it connects (lazy)

Attached Thumbnails
What's a better coolant supply/return config?-es6of7.png
Girz0r is offline   Reply With Quote
Old 11-21-2014, 12:17 PM   #3
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Come on man, if you are running FI you need a re-route
btabor is offline   Reply With Quote
Old 11-21-2014, 12:31 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I'd trim your blue lower hose shorter to bring it closer to the a/c compressor and give your charge pipe more wiggle room.

I'd use the stock mixing manifold and heater core return.
Braineack is offline   Reply With Quote
Old 11-21-2014, 01:12 PM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

My heater core outlet to mixing manifold line runs outside the heat shield and under the master cylinder. Then it comes along the top of the frame rail before turning back toward the mixing manifold in front of and below the turbo.
sixshooter is offline   Reply With Quote
Old 11-21-2014, 03:13 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Port Saint Lucie,FL
Posts: 418
Total Cats: 3
Default

I plan on doing the kia neck reroute, that's why I'm not going to T in to the upper rad hose like begi suggests, and how Girz has it.

Brain, that's what I was initially thinking too, but the heater line is still in the way of the heat shield.

six, did you just leave the mixing mani in place and cut off part of the metal heater pipe and run a rubber heater hose to it?

Last edited by Mech5700; 11-21-2014 at 04:22 PM.
Mech5700 is offline   Reply With Quote
Old 11-21-2014, 11:14 PM   #7
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Quote:
Originally Posted by Mech5700 View Post
six, did you just leave the mixing mani in place and cut off part of the metal heater pipe and run a rubber heater hose to it?
Yes. Then later I had the stock hole on the mixing manifold welded shut and then tapped and added a fitting to attach the hose. It was more reliable than the o-ring setup from the factory.
sixshooter is offline   Reply With Quote
