Hi,

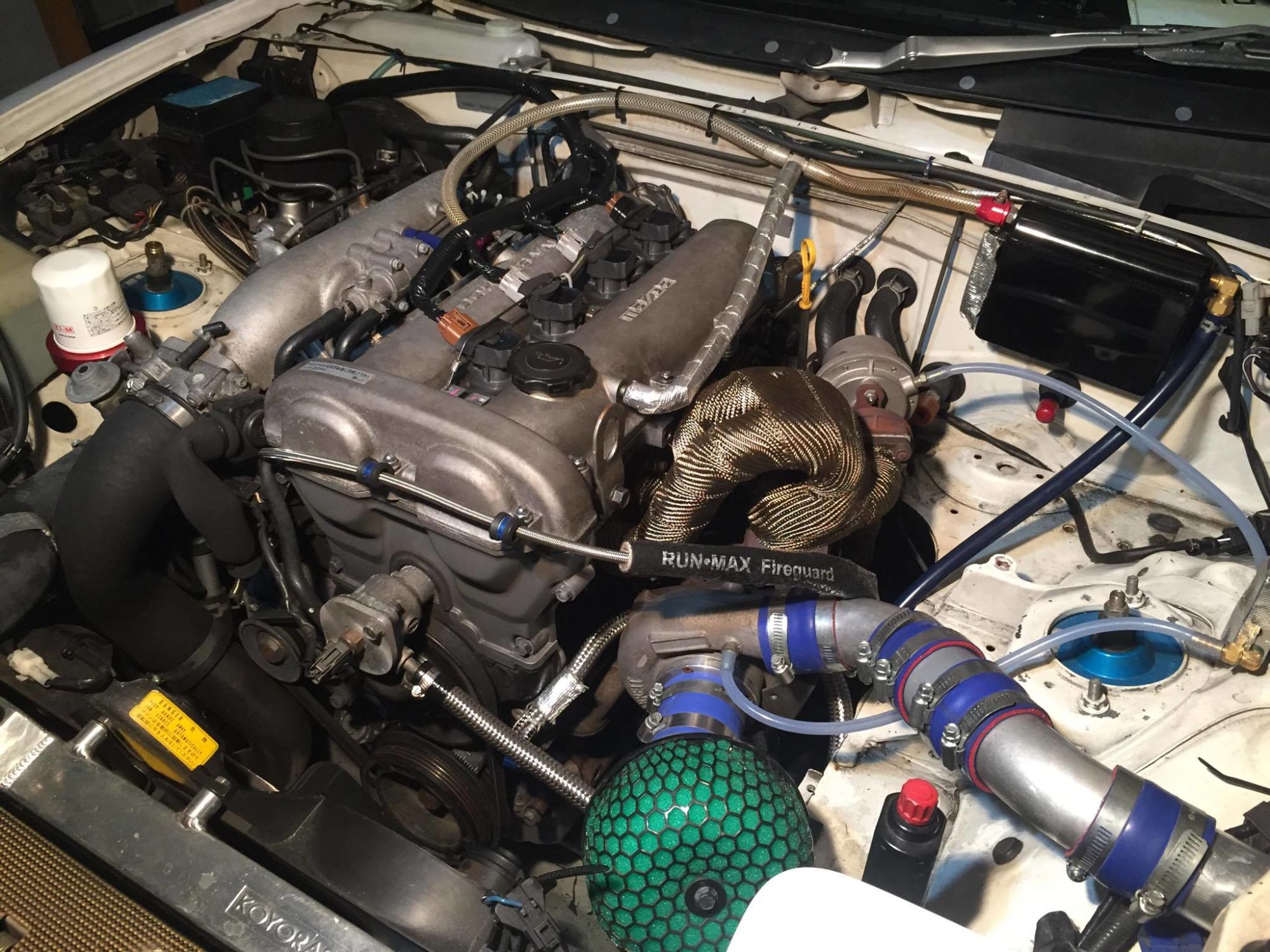

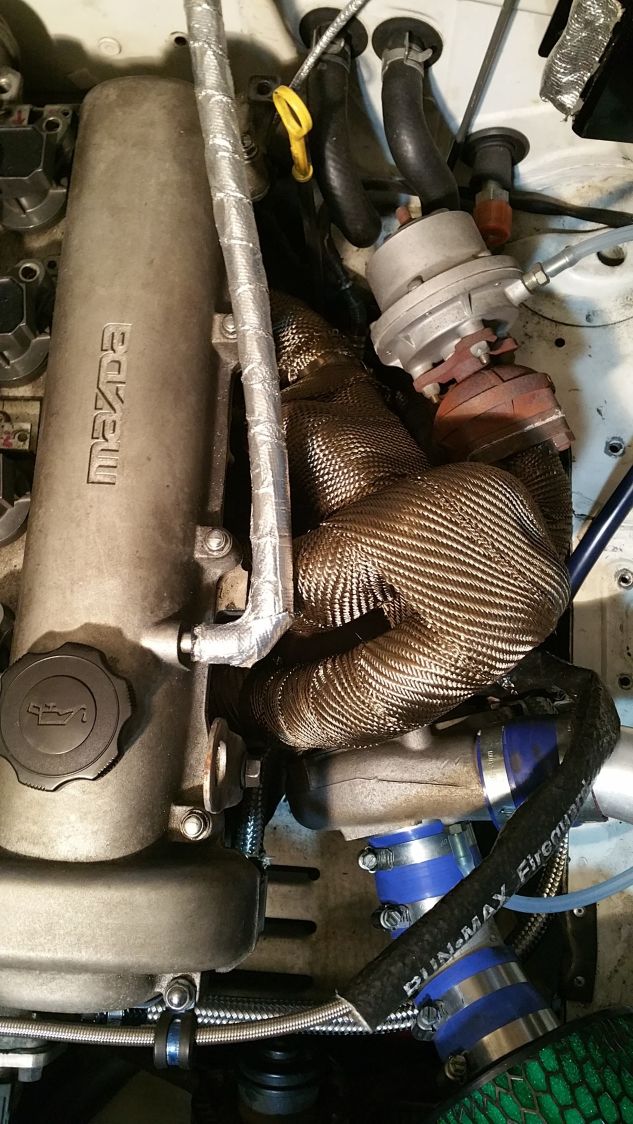

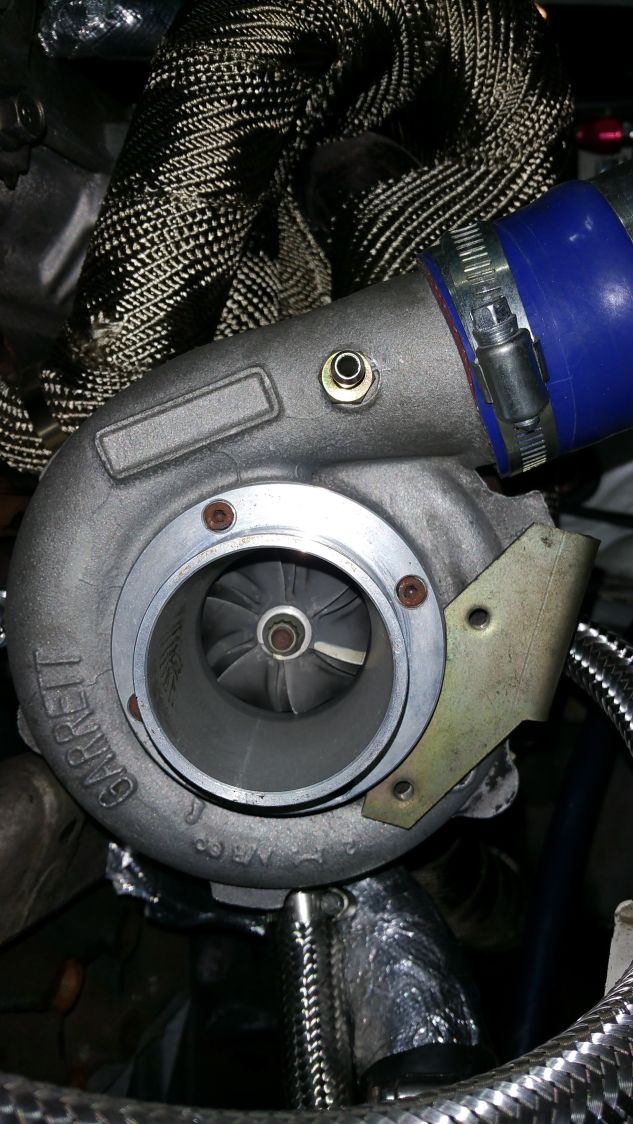

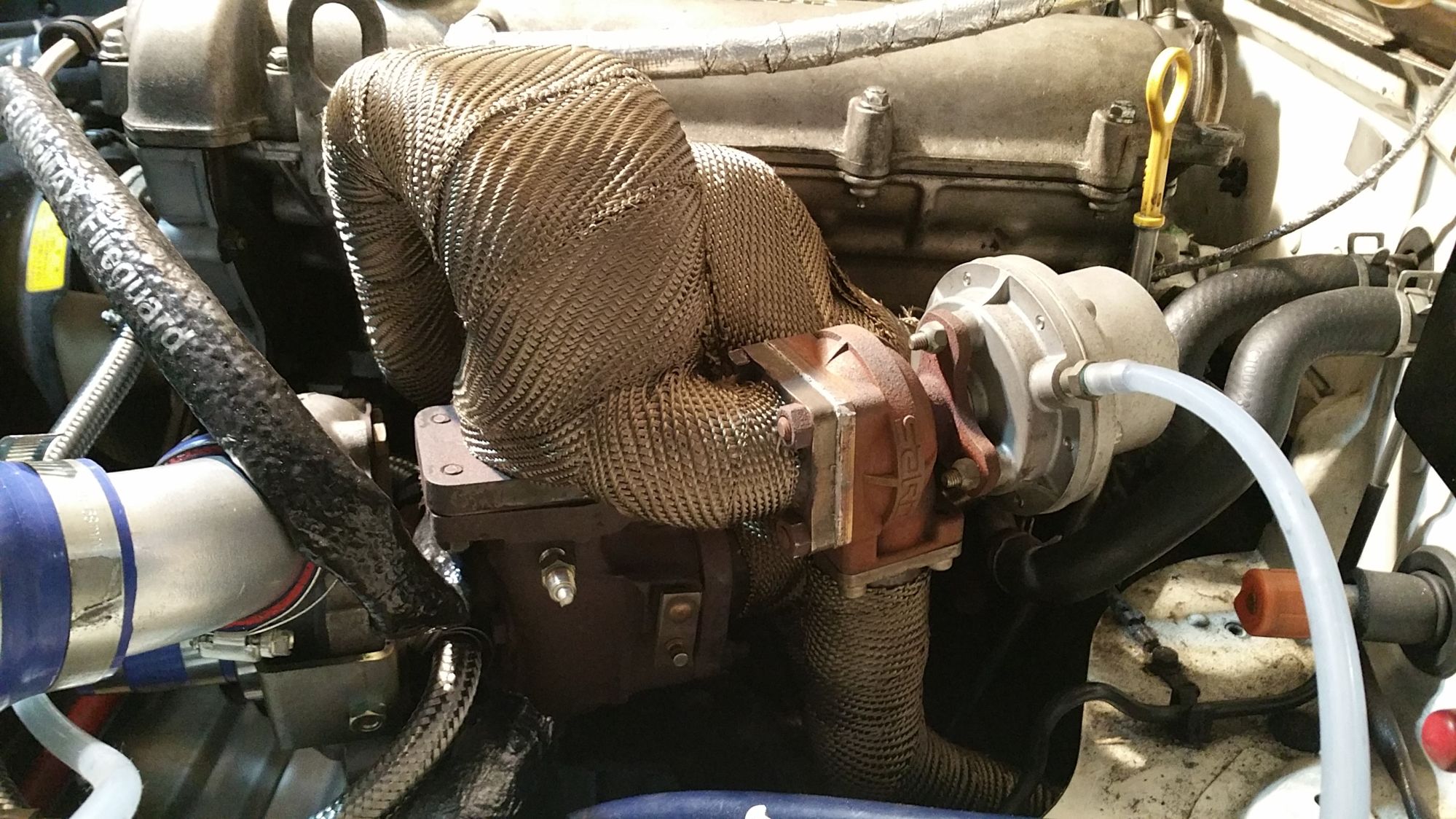

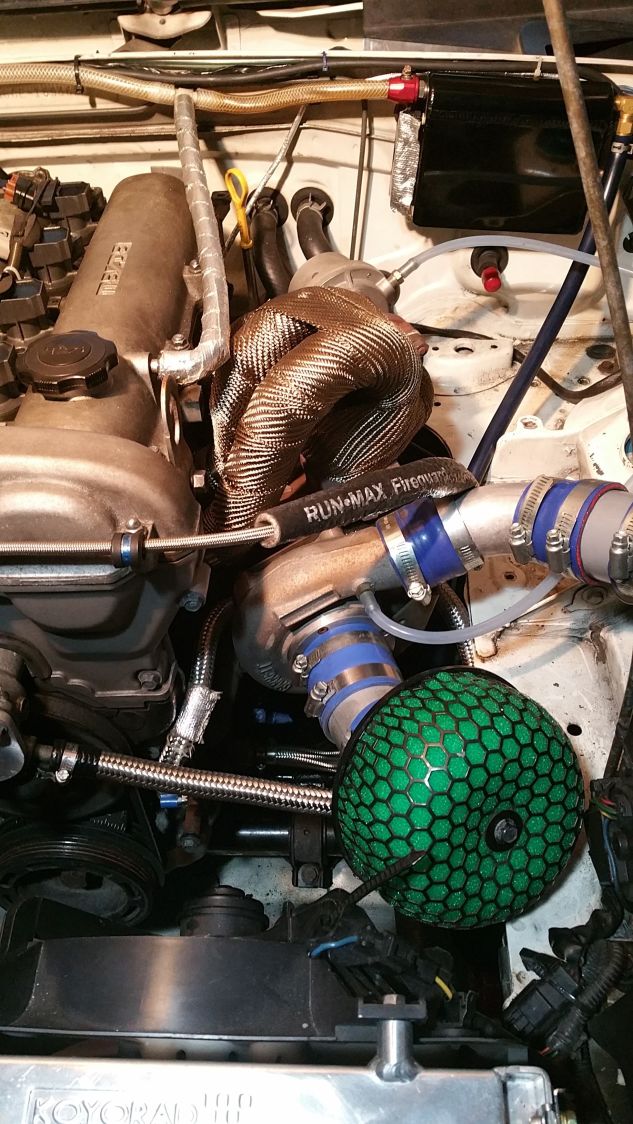

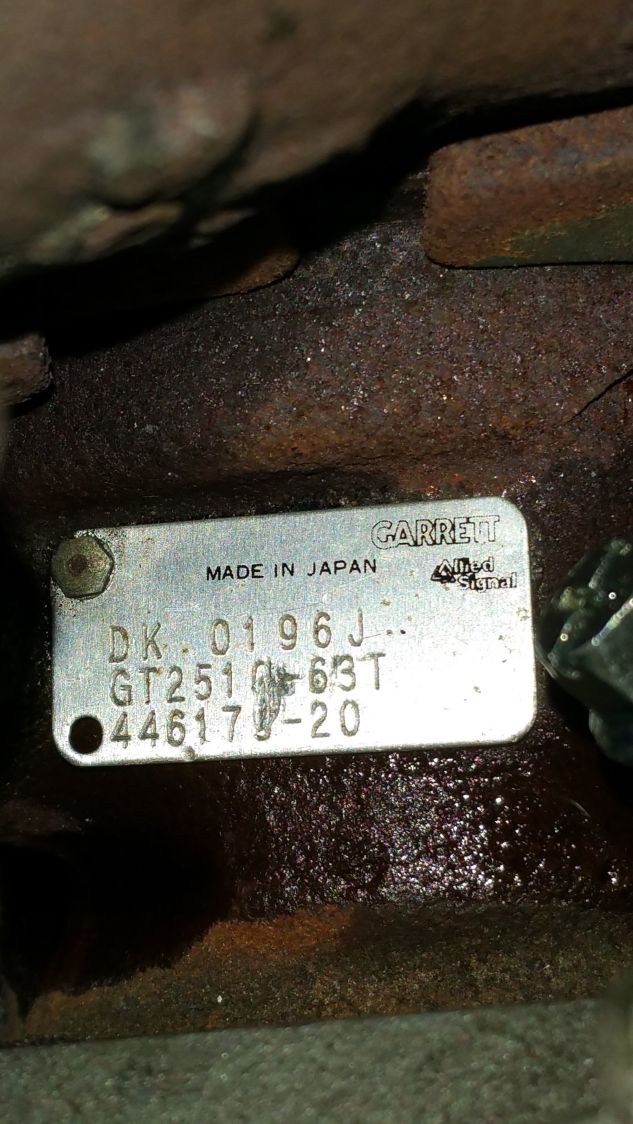

I picked up this turbo kit from Yahoo Auctions (about $300) and was wondering if anyone could identify it. It is all stainless, 60mm DP & mid-pipe, has an external wastegate and screamer pipe. It has a GT2510-63T turbo attached to it so I think it's a T3 flange (I thought it was a T25 when I bought it).



That's temporary - holding down the COPS!














Attached Thumbnails
What's this turbo kit?-80-12755438_10153830955240336_398687705_o_aa4a2f71404b5791f428ac812afee3e6d347032a.jpg   What's this turbo kit?-80-20160217_130149_6e1eed1a5a4a49f9fb6c9fd2704f2d1097b0525d.jpg   What's this turbo kit?-80-20160217_130204_50ae54ec4e9318adfb55436f5349d0888801e7ca.jpg   What's this turbo kit?-80-20160217_130214_121bd95f4d8b092b3e16b52e66a8c0bbc25f7d09.jpg   What's this turbo kit?-80-20160217_213157_3f738ab849b21eda3fa466103b14215d949f7026.jpg

What's this turbo kit?-80-20160217_213623_b22357c71d74739887c39c99945277c734b0349a.jpg
Rothko is offline   Reply With Quote
Old 02-17-2016, 10:28 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

looks custom
18psi is offline   Reply With Quote
Old 02-17-2016, 08:48 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Yeah, it definitely doesn't look like a full kit. If that's something you're looking at buying there are some promising things there. Looks like the afm is deleted (presumably standalone ecu), a coolant reroute, coil on plug conversion, and there are some decent parts there. Downside is it's a 1.6 and I'd be curious to know about that manifold and maybe take a look under that wrap for cracks.
pdexta is offline   Reply With Quote
Old 02-24-2016, 08:45 AM   #4
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Yokohama
Posts: 49
Total Cats: 2
Default

Thanks for the replies.

Done a lot of searching and I think you are right. It must be custom. Seems solid though.

The spool is horrific compared to my last turbo so probably going to go for the GT2554R next month (after testing this properly - on the track).

pdextra:
This is my car. Thanks for noticing my mods! You were right on all of them (including the downside!)
The manifold did have a crack at the wastegate so I had it rewelded. I'm hoping it'll last a few more miles.
Rothko is offline   Reply With Quote
Old 02-24-2016, 10:21 AM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,330
Total Cats: 1,928
Default

I'm having a dickens of a time locating any kind of datasheets for that turbo. I've never heard of a GT2510, and web searches aren't producing much in the way of coherent results. Closest I've come is this little blurb from an Aussie forum:
"Hi BSK , off the top of my head 446179-20 is a HKS spec Garrett BB GT28 series cartridge . The HKS GT2510 is basically a GT2530 with the more OEM style GT28 60T turbine . The GT2510 and 2530 both use the same 63T 60mm compressor which I've not seen in Garrett marketed GT BB 28's . Garrett normally use one of two very similar (to each other) 62 trim 60mm compressors ie in the Skyline GTR upgrade GT2860R and the GT28RS (GT2860RS) . Both 2510 and 2530 were early GT BB developments and have been improved upon by the GT-SS and that GTR type 2860R with the NS111 76T turbine."
It doesn't look like an outrageously large wheel, so I'm puzzled by your comment as to the spoolup being horrific. Does the shaft spin freely? Any play? What does the rest of the system look like? (exhaust, intake, etc.) Could this be something silly like a failed catalytic converter or an intercooler that's plugged up?
Joe Perez is online now   Reply With Quote
Old 02-24-2016, 10:29 AM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by Joe Perez View Post
I'm having a dickens of a time locating any kind of datasheets for that turbo. I've never heard of a GT2510, and web searches aren't producing much in the way of coherent results. Closest I've come is this little blurb from an Aussie forum:
"Hi BSK , off the top of my head 446179-20 is a HKS spec Garrett BB GT28 series cartridge . The HKS GT2510 is basically a GT2530 with the more OEM style GT28 60T turbine . The GT2510 and 2530 both use the same 63T 60mm compressor which I've not seen in Garrett marketed GT BB 28's . Garrett normally use one of two very similar (to each other) 62 trim 60mm compressors ie in the Skyline GTR upgrade GT2860R and the GT28RS (GT2860RS) . Both 2510 and 2530 were early GT BB developments and have been improved upon by the GT-SS and that GTR type 2860R with the NS111 76T turbine."
It doesn't look like an outrageously large wheel, so I'm puzzled by your comment as to the spoolup being horrific. Does the shaft spin freely? Any play? What does the rest of the system look like? (exhaust, intake, etc.) Could this be something silly like a failed catalytic converter or an intercooler that's plugged up?
It is a 1.6.
shuiend is offline   Reply With Quote
Old 02-24-2016, 10:32 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

HKS kit, HKS turbo.
Braineack is online now   Reply With Quote
Old 02-24-2016, 10:36 AM   #8
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

when searching this all i found on the turbo was some HKS connections but no manifold that matched that design. I am really surprised you have bad spool. Can you post up your spool data?
mmmjesse is offline   Reply With Quote
Old 02-24-2016, 10:41 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,330
Total Cats: 1,928
Default

Quote:
Originally Posted by shuiend View Post
It is a 1.6.
Ah, yes- I see the CAS. I'd been looking at the front thermostat housing, which is clearly a 1.8 part. (This is an interesting engine indeed.)

EDIT: I just noticed that the OP is in Japan, and that the car is RHD. This explains why it has the CAS on the 1.6 side, yet is equipped with what I, as an American, consider to be a 1.8 style thermostat housing. It's a '94-'97 JDM 1.6. I feel kind of silly for not noticing that earlier. This also explains why I've never seen a GT2510 turbo, and why most of the websearch results I got for it were in Japanese. That turbo is a JDM-exclusive part which never came over to the US, or any other English-speaking market for that matter.


Even still, just look at that turbo. Judging by the physical size alone, it's obviously not like he's trying to spin a 3071 here.

Last edited by Joe Perez; 02-24-2016 at 03:38 PM.
Joe Perez is online now   Reply With Quote
Old 02-24-2016, 10:55 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

by that logic the MSM ihi should spool off idle, and it spools like a disco potato
18psi is offline   Reply With Quote
Old 02-24-2016, 10:58 AM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,330
Total Cats: 1,928
Default

Is that internal wastegate actuator secured in the closed position?


Attached Thumbnails
What's this turbo kit?-80-undefined_61b7499a1ba8a55459e3b90f92e8bcbb71c1de54.png
Joe Perez is online now   Reply With Quote
Old 02-24-2016, 11:03 AM   #12
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

Quote:
Originally Posted by Joe Perez View Post
Is that internal wastegate actuator secured in the closed position?


Good catch Joe. that will definately cause **** spool.
mmmjesse is offline   Reply With Quote
Old 02-24-2016, 11:21 AM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

oh wow hopefully that's tacked inside, otherwise Joe just did you a huge favor
18psi is offline   Reply With Quote
Old 02-25-2016, 09:13 AM   #14
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Yokohama
Posts: 49
Total Cats: 2
Default

Yeah the internal wastegate is welded and it's all 60mm from downpipe to tailpipe (no cat).

The turbo I took off the car was a stock 300ZX(Z32) turbo. It pushed 10psi at 2600rpm on a 4th gear pull with a 50mm DP and stock mid pipe but, as you can imagine, had very little at the top end - it made 175hp.



This spools to 10psi by 3600. Looking at the numbers, it seems to be a little bigger than the GT2560R but it does have some shaft play.

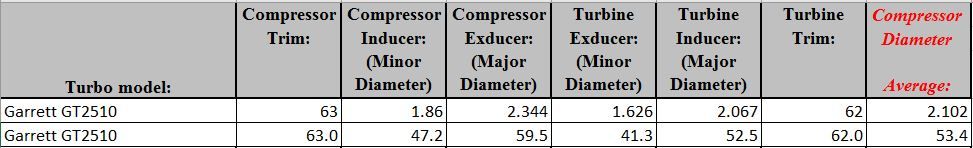

Not much reliable spool data but here's what I've got from a 4th gear wot pull (from 2600rpm, 10psi wastegate spring, no boost controller):

RPM kPa PSI(roughly)
2600 109 1.3
2700 120 2.9
2800 130 4.3
2900 137 5.3
3000 142 6.1
3100 148 7.0
3200 152 7.5
3300 158 8.4
3400 163 9.1
3500 168 9.9
3600 173 10.6 (max atm)

Actually going through the logs the spool doesn't seem too bad does it? Perhaps I'm just used to such a tiny turbo with a lot of punch (but not a lot else).

It is an HKS turbo but I'm 99% sure it's not the HKS kit. All the HKS kits I can find are top mount.
Attached Thumbnails
What's this turbo kit?-80-capture_61c3003c6ca6fa31372dee9863efa924e945fcd3.jpg   What's this turbo kit?-80-capture_bf8f5e04b83a8c5e9f724a552521d56c3ef2410e.jpg

Last edited by Rothko; 02-25-2016 at 09:26 AM.
Rothko is offline   Reply With Quote
Old 02-25-2016, 11:50 AM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Well yeah, throw a MBC or EBC on there and it'll help quite a bit. As will 3" exhaust. Sorry, 76mm.
curly is offline   Reply With Quote
Old 02-25-2016, 12:11 PM   #16
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

i am not surprised in this spool with only 60mm exhaust. it didnt hurt with the tiny VG turbo but will hurt with this one.
mmmjesse is offline   Reply With Quote
Old 02-25-2016, 12:56 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

thats a big compressor wheel but a small turbine.

when i had a 63 trim 60mm T3 wheel (essentially the same as this GT2510) spool was okay, but torque output sucked dick.

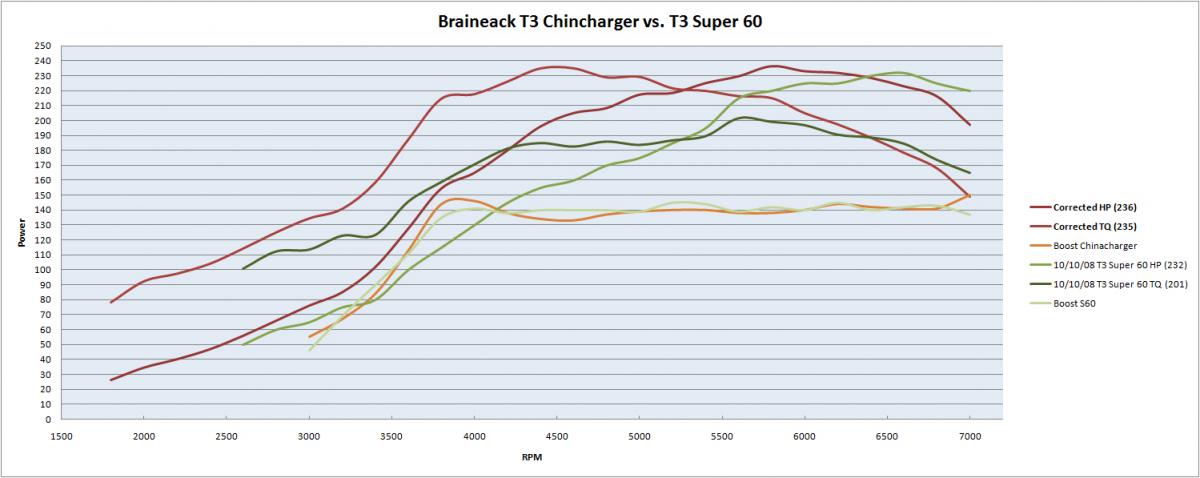

50 trim T3 vs 63 trim T3
Attached Thumbnails
What's this turbo kit?-46744d1340028058-t3-60-trim-dyno-2-22-psi-nov_13_2010_china_vs_nov_10_2008_garrett.jpg
Braineack is online now   Reply With Quote
Old 02-25-2016, 02:25 PM   #18
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

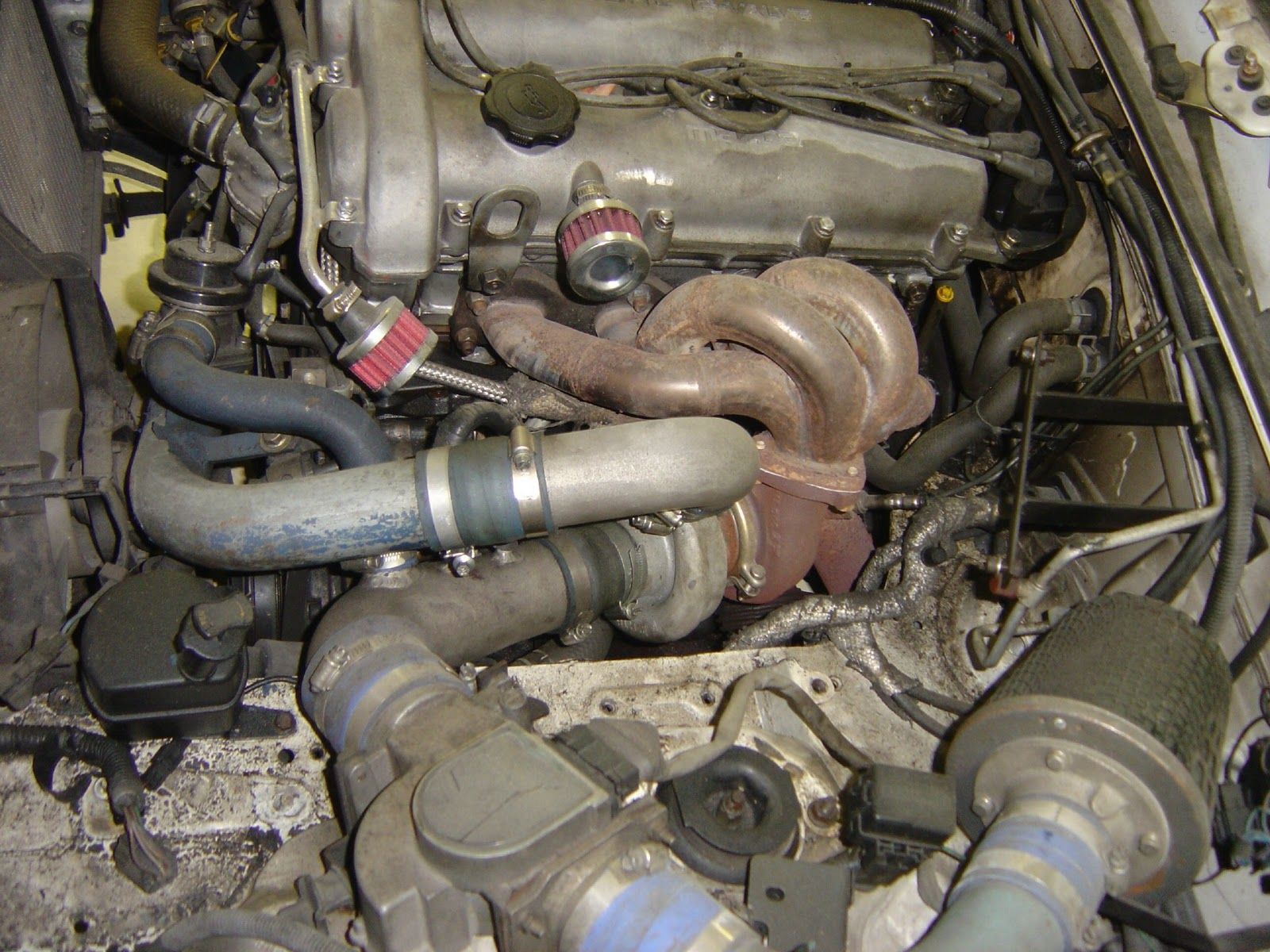

Looks pretty close to the OG Greddy (Trust?) kit that were never supposed to get.

Edit: I think they're correct in that it's a custom piece.

http://www.jdmdistro.com/shop/engine...unos-roadster/
Attached Thumbnails
What's this turbo kit?-80-turbo_2_f6471917c7af88a7704498b4fb8fd42577e11ce1.jpg
viperormiata is offline   Reply With Quote
