Default Where the Hell can I find these freaking fittings!? (1/8" BSPT)

Been searching around for awhile to find replacement hose barb fittings for my APEXi Boost Solenoid as one was sheared off in an accident. Thought I had found out that they were 1/8" NPT. Everything thread in smoothly until about 4 revolutions, then it got QUITE difficult to turn. After doing some searching I found out that the required fitting is actually a 1/8" BSPT. EFF! Been searching for hours with no luck. Found one place in the UK that wouldn't ship to the US... Checked McMaster as well with no luck. Basically I am looking for a (2) hose barb fittings with 1/8" BSPT male and 3/16" hose barb. Name:  1zhelp.gif
Views: 97
Size:  552 Bytes

Representative photo:
thagr81 us is offline   Reply With Quote
Old 04-07-2010, 04:05 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

my local Pep-Boys had them

pretty sure ace or home depot or lowes will carry it too
18psi is offline   Reply With Quote
Old 04-07-2010, 04:07 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

pep-boys carries BRITISH Standard Pipe Thread?
Braineack is offline   Reply With Quote
Old 04-07-2010, 04:08 PM   #4
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Thinking lowes...
Turbo_4 is offline   Reply With Quote
Old 04-07-2010, 04:17 PM   #5
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

mcmaster.com
boileralum is offline   Reply With Quote
Old 04-07-2010, 04:21 PM   #6
Junior Member
iTrader: (4)

Join Date: Jan 2008
Location: South Carolina
Posts: 262
Total Cats: 0
Default

If it threads in 4 rotations why not JB weld and thread until it jams up.
localtech is offline   Reply With Quote
Old 04-07-2010, 04:24 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

mcmaster 1075T71
y8s is offline   Reply With Quote
Old 04-07-2010, 04:25 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,583
Default

Quote:
Originally Posted by Braineack View Post
pep-boys carries BRITISH Standard Pipe Thread?
I'm NOT sure
I did get fittings that look exactly like that there though
18psi is offline   Reply With Quote
Old 04-07-2010, 04:30 PM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I hate that there are two pipe threads,If you can take it a part and tap it to NPT...you will make it easier to get fittings for...
(G)
Reverend Greg is offline   Reply With Quote
Old 04-07-2010, 04:36 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

This thread is full of fail

Braineack is offline   Reply With Quote
Old 04-07-2010, 04:39 PM   #11
!!! NOT CONFIRMED !!!
iTrader: (1)

Join Date: Oct 2008
Location: Cleveland Ohio
Posts: 67
Total Cats: 0
Default

your propably going to have to get a different size barb. I looked as well and it seems that the size your talking about just isn't made. I found some with 5/32 barbed and 1/4 barbed, but nothing in between. Its kinda wierd.
mrtbon is offline   Reply With Quote
Old 04-07-2010, 04:41 PM   #12
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by y8s View Post
mcmaster 1075T71
This is UBER close... I will check and see if I can get away with fitting a 1/4" ID hose on a similar fitting. :crosses fingers:

Mitchell, no JB Weld for this reason...Trying to avoid damaging the solenoid or modifying it as I plan to get rid of it once it is fixed... So yes, an APEXi AVC-R will be up in the FS section sometime soonish.

18psi, they were 1/8" NPT at Ace. That's where I got the ones that only thread in 4 rotations.

Brain, you are correct sir...

Last edited by thagr81 us; 04-07-2010 at 05:00 PM.
thagr81 us is offline   Reply With Quote
Old 04-07-2010, 05:03 PM   #13
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Turbo_4 View Post
Thinking lowes...
LOL no ******* way. You might be able to get it at a local mom & pop hardware store, but you'll have to give pops some hand relief to convince him to special order it, perhaps from jolly old England or wherever they use British pipe thread.

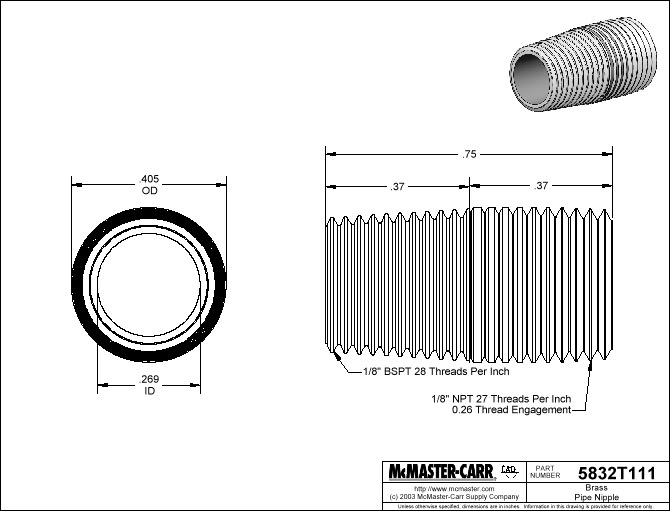

Here's a mcmaster part that may help:
5832T111
3/4" long pipe nipple with 1/8 BPST on one end and NPT on the other. To that you could attach a common 1/8 female NPT barb adapter. Assuming the additional length isn't a problem for your application.

Name:  5832T111.jpg
Views: 121
Size:  50.6 KB
ScottFW is offline   Reply With Quote
Old 04-07-2010, 05:17 PM   #14
Junior Member

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

Dude if you get really desperate I'll try the local hydraulic fittings place and see if they can get one, then ship it over to you. PM me the EXACT fitting you need and I'll give them a call.

edit: just re read the original post and I see you have already posted what you are after. Its past 9 in the evening now but ill try calling them in the morning if you like just to see if they have it and how much. Let me know if I should bother.
Blaize is offline   Reply With Quote
Old 04-07-2010, 05:21 PM   #15
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by Blaize View Post
Dude if you get really desperate I'll try the local hydraulic fittings place and see if they can get one, then ship it over to you. PM me the EXACT fitting you need and I'll give them a call.

edit: just re read the original post and I see you have already posted what you are after. Its past 9 in the evening now but ill try calling them in the morning if you like just to see if they have it and how much. Let me know if I should bother.
Appreciate it man... If all else fails here in the States I will let you know something for sure.
thagr81 us is offline   Reply With Quote
Old 04-07-2010, 05:24 PM   #16
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Are you 100% sure it's BSPT? Being Japanese it's more likely a metric fitting.
dustinb is offline   Reply With Quote
Old 04-07-2010, 05:26 PM   #17
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Tried metric fittings with the thread finder thing. None worked... Plus it is tapered.
thagr81 us is offline   Reply With Quote
Old 04-07-2010, 05:44 PM   #18
Junior Member
iTrader: (4)

Join Date: Jan 2008
Location: South Carolina
Posts: 262
Total Cats: 0
Default

sell it like it is. You may be better off just letting the next person deal with it. With fittings being 2-5 bucks here in the States I am sure the fittings from UK will be a lot more shipped.

It's cool that you are going to this extent to sell a good part though.
localtech is offline   Reply With Quote
Old 04-07-2010, 05:53 PM   #19
Elite Member
Thread Starter
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Yeah... I thought about selling it like it is. Also, I am fabricating a new mounting bracket for it as well as the other got destroyed in my accident. Just trying to make sure the buyer doesn't have to go through all of these hoops to have a running unit.
thagr81 us is offline   Reply With Quote
Old 04-07-2010, 06:16 PM   #20
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by thagr81 us View Post
This is UBER close... I will check and see if I can get away with fitting a 1/4" ID hose on a similar fitting. :crosses fingers:

Mitchell, no JB Weld for this reason...Trying to avoid damaging the solenoid or modifying it as I plan to get rid of it once it is fixed... So yes, an APEXi AVC-R will be up in the FS section sometime soonish.

18psi, they were 1/8" NPT at Ace. That's where I got the ones that only thread in 4 rotations.

Brain, you are correct sir...
if you're using silicone vac hose, it'll work fine. just pretend it's prom nite again. she'll stretch over you.
y8s is offline   Reply With Quote
