Default will the greddy egt probe fit in the begi egr port?

I'd rather plug the egt probe in there if it fits.

thanks
hustler is offline   Reply With Quote
Old 11-07-2007, 07:47 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The EGR port is huge. You'll have to make an adapter to fit the 1/8 NPT EGT probe in there.
cjernigan is offline   Reply With Quote
Old 11-07-2007, 09:06 PM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I guess I'll just weld it into the downpipe.
hustler is offline   Reply With Quote
Old 11-07-2007, 09:10 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I would take the EGR tube. Cut the fitting off the end that goes into the manifold. Then weld a 1/8" NPT bung to that.
cjernigan is offline   Reply With Quote
Old 11-07-2007, 09:31 PM   #5
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cjernigan View Post
I would take the EGR tube. Cut the fitting off the end that goes into the manifold. Then weld a 1/8" NPT bung to that.
i don't want to **** with welding to cast iron. Its gone horribly wrong in the past.
hustler is offline   Reply With Quote
Old 11-07-2007, 09:50 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Cast iron?
The fitting i'm talking about is connected to your stock EGR tube. Pretty sure it's either stainless or mild steel.
cjernigan is offline   Reply With Quote
Old 11-07-2007, 09:57 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default


Cut the tube and pull it out of the fitting. Then weld a bunch onto it or maybe even tap the fitting itself depending on how large it is for the sending unit.
cjernigan is offline   Reply With Quote
Old 11-07-2007, 10:01 PM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Actually i just pulled out my Begi mani. The fitting that is there for the EGR tube to connect two it has two parts. The outer threaded sleeve that they weld on and the internal cone that has a very small opening. The hole itself that allows exhaust gas into the egr port is small enough that you could easily drill it to the appropriate size and tap it for the EGT probe. To be able to tighten the probe very well you would most likely want to cut off the outer threaded ring though. Easy enough with a grinder or sawzall or both.
cjernigan is offline   Reply With Quote
Old 11-07-2007, 11:35 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

your manifold shouldn't have an egr port
Ben is offline   Reply With Quote
Old 11-08-2007, 03:06 AM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

..just drill a hole in the bottom of the manifold and tap it. This has worked perfectly for me. Pretty sure it's how BEGI does it.

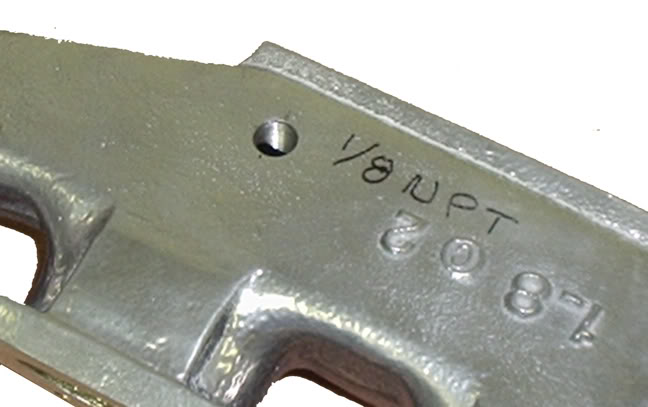

Edit: Stephanie sent me this photo when she asked where I wanted my EGT hole drilled as a recommended location.

Name:  P8312094.jpg
Views: 4
Size:  36.5 KB
Savington is offline   Reply With Quote
Old 11-08-2007, 10:53 AM   #11
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
your manifold shouldn't have an egr port
they sent me an EGR tapped manifold, and a plug.
hustler is offline   Reply With Quote
Old 11-08-2007, 11:33 AM   #12
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

drill a hole in the plug......this isn't rocket science.
neogenesis2004 is offline   Reply With Quote
Old 11-08-2007, 02:23 PM   #13
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by neogenesis2004 View Post
drill a hole in the plug......this isn't rocket science.
nah, I think this **** with thread. I have to get to the garage and try it though.
