Default Will a T3 turbo work for me?

The guy that is supposed to get me a used turbo is having trouble finding a T25 but says he's found lots of T3's so I have an early begi 1.6 manifold is there a T3 turbo I can use with it with minimum modifications?

Interested more in quick spooling than in upper horsepower for now.
akthor is offline   Reply With Quote
Old 04-01-2007, 07:49 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Sounds like you need to get on the nissan forums to look for a used T25 then if you want quick spool.
cjernigan is offline   Reply With Quote
Old 04-01-2007, 08:32 PM   #3
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

It depends on what size T3 i've got a real small T3 that I'm selling .42 a/r compressor side with .46 a/r turbine side. Would certainly provide quick spool characteristics.
MX_Eva is offline   Reply With Quote
Old 04-01-2007, 10:58 PM   #4
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

What are you relying on "a guy" for? Just go to sr20forums.com, register, and search the classifieds for one. Nobody should have trouble finding a T25. And manifolds have flanges that are specific to one turbo. Do you know what turbo the mani/DP are for? Post some pics for us if you don't know what flanges are for what kind of turbo. And I wouldn't recommend "modifying", ie. cutting and welding a new flange to a Begi manifold to fit another turbo. There are adapter brackets T2-T3, but those are universally shunned as they usually place the turbo right up against the hood or the brake reservoir and require a custom DP.

And take some pics for your vbGarage and put up a fill list of mods and the specs on the car.

Based on this post and your other one about parts leads me to the conclusion that you're in for a long and painful build process. If you've got a Begi DP/Mani for $150, then you're already about $500 ahead. First, post some pics so we can tell you what kind of turbo the Begi stuff is for.

If you'll fill out your signature and avatar with what city you live in, somebody might volunteer to come over and help you out with the clutch install... it's really no big deal. I'm telling you, DO THE CLUTCH FIRST! If you install the turbo and fry the clutch w/no money for a new one (budget $300 for parts and $400 for pro install), then you're SOL.

I'm trying to help man. I know you're on a budget, but that means it's even more important for you to do things right the first time.
samnavy is offline   Reply With Quote
Old 04-01-2007, 11:23 PM   #5
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

+1 spam i mean sam even kept it short for ya.
magnamx-5 is offline   Reply With Quote
Old 04-02-2007, 11:46 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

The "guy" was Zebra who was selling used turbos in the classifieds. I have already paid him so I am trying to work with him and give him a chance to find what I can use if he can.

I originally just figured a T25 but then I ran accross the used Begi manifold deal and couldn't pass it up.

I have updated my vbgarage thingy and posted pics of the manifold and DP there.

There is a custom exhaust shop 8 miles from me and I have already talked to them about doing a DP if I need one.

Anyone who can help plz look at the pics and tell me what would fit. Thanks
akthor is offline   Reply With Quote
Old 04-02-2007, 11:49 AM   #7
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

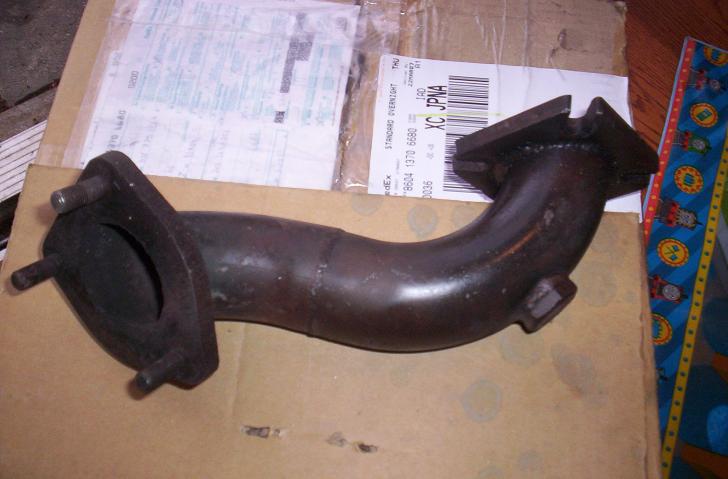

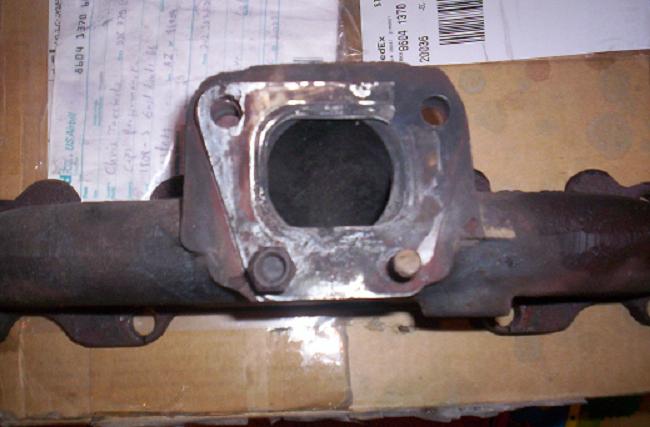

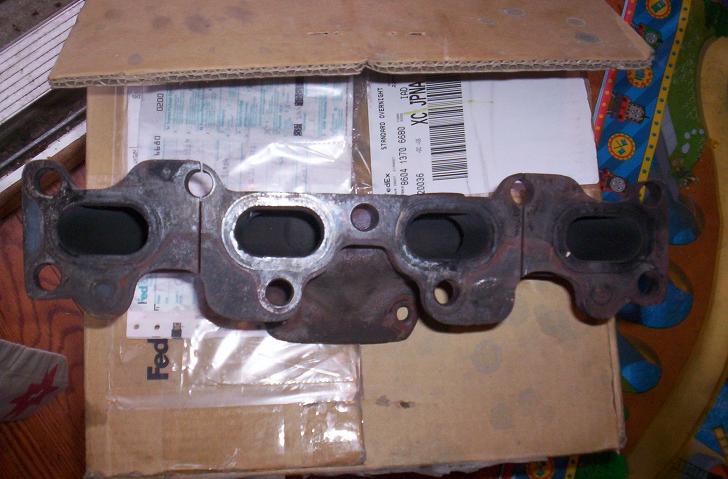

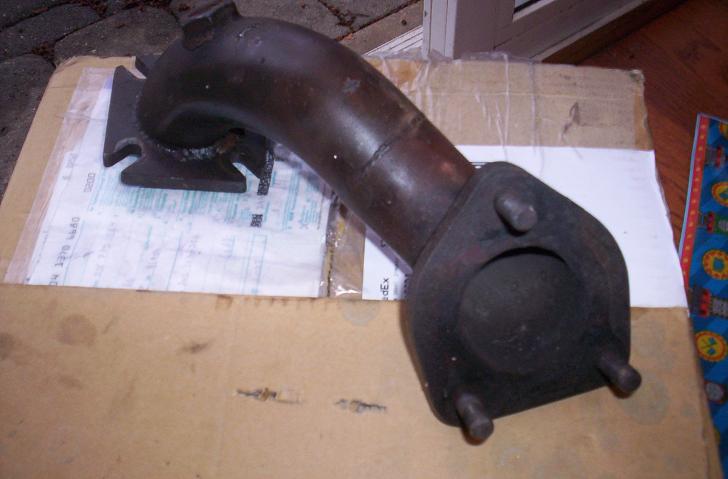

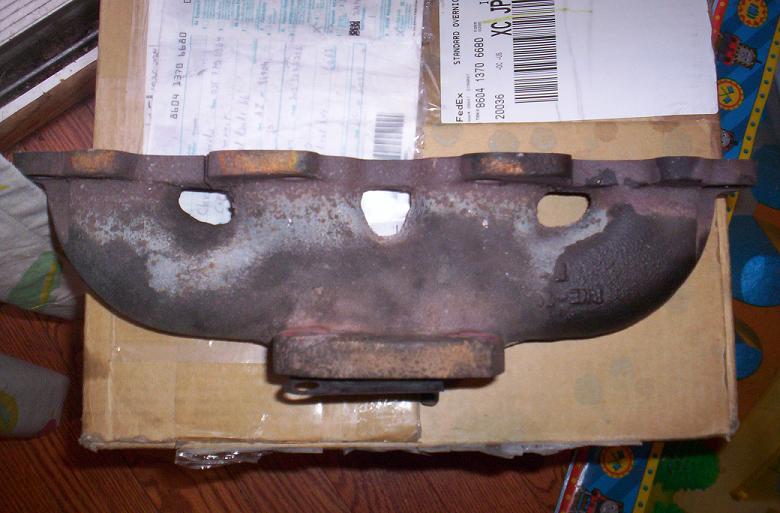

I'll post the pics in here as well:
Attached Thumbnails
Will a T3 turbo work for me?-1.jpg   Will a T3 turbo work for me?-2.jpg   Will a T3 turbo work for me?-3.jpg   Will a T3 turbo work for me?-4.jpg   Will a T3 turbo work for me?-5.jpg

akthor is offline   Reply With Quote
Old 04-02-2007, 11:57 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

looks like the IHI manifold..... possibly the aerodyne manifold. I'd contact Cokry Bell at bellengineering.net and discuss your turbo options.
Braineack is offline   Reply With Quote
Old 04-02-2007, 12:03 PM   #9
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

He did say on Miata.net he could remachine any of his manifolds to fit any turbo for $100

Last edited by akthor; 04-02-2007 at 12:34 PM.
akthor is offline   Reply With Quote
Old 04-02-2007, 12:27 PM   #10
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

http://cgi.ebay.com/ebaymotors/T25-T...spagenameZWDVW

You need to fit this onto the mani, and:

http://cgi.ebay.nl/T25-T28-GT25-GT28...QQcmdZViewItem

this to the downpipe to run a t25 (nissan) turbo , Don't think the dsm turbo's fit...
greddymx5 is offline   Reply With Quote
Old 04-02-2007, 01:02 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by akthor View Post
He did say on Miata.net he could remachine any of his manifolds to fit any turbo for $100


if that is the case, a t3 is a great cheap turbo. just as easy to find a good one as a t25.

it does spool tad bit slower than a t25, so then it comes down to your goals. a peppy little low-end torque monster, or a peppy top-end bandit?

i see with the cheapness of the manifold/dp you'll invest a little into making flange compatible, good job!
Braineack is offline   Reply With Quote
Old 04-02-2007, 01:59 PM   #12
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Yup, I'm not entire positive what that flange on the Mani is for, but it's not T2 or T3. As suggested earlier, it's probably for the Aerodyne. If Corky said he'd swap over another flange $100, then that's a deal.

But the DP is another problem. It actually looks kinda like the 3-bolt round Saab flange, but if they were sold as a pair, I'll assume it's for the Aerodyne as well. Since that Aerodyne stuff isn't made anymore, and were for a very specific application, you'd better call Corky and see what he says. Maybe he's got a solution for you.

If you call and get Stephanie, just tell her about your post, and she can get online and take a look at the pictures.

Thanks for posting pics and filling out your stuff. I'm not sure if anybody else around here is in Maine... maybe you're the first!
samnavy is offline   Reply With Quote
Old 04-02-2007, 03:14 PM   #13
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

Yeah the downpipe does look Kinda like the SAAB 3 bolt T3 exhaust outlet but it's really hard to say and the outlet comes with studs already in it.
MX_Eva is offline   Reply With Quote
Old 04-02-2007, 03:33 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

what are you tlaking about....the 3 bolt flange looks like it mates to the oem DP. the turbo flange looks to be a square 4-bolt pattern. which is why i think it may be a aerodyno manifold.
Braineack is offline   Reply With Quote
Old 04-02-2007, 05:07 PM   #15
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

DP is of secondary concern for me because if worse came to worse I can have one custom made locally. But if that DP will work on a Saab T3 is that what I should look for? I think my guy has a Saab T3 available right now.
akthor is offline   Reply With Quote
Old 04-02-2007, 05:18 PM   #16
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

I emailed stephanie at Begi I'll let you know what they say.
akthor is offline   Reply With Quote
Old 04-02-2007, 05:32 PM   #17
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

Yeah I would talk to Begi. Braineak is right I was looking at the ends of your downpipe and the 3 bolt flange is for your exhaust not for the turbo mate up. It wouldn't be hard for a shop to cut off the top flange and throw another one on there though.
MX_Eva is offline   Reply With Quote
Old 04-04-2007, 01:10 PM   #18
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

The manifold and downpipe looks like an aerodyne set up. It does not look like the IHI downpipes we have seen lately. But, I am not the authority on the older systems.

That manifold looks like it would be hard to drill for a T3. There is not much room on the flange. Can you take a photo of the manifold with a tape measure on it? I can check dimensions for you.

If you are looking for quicker spool, go with the T25.
We may have a used T25 in the next few months. Corky is taking the one off of his car and going to the potato.
Stephanie
