Old 03-23-2007, 12:56 PM   #21
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Markp View Post
It's not a 76 A/R, it's a 76mm compressor wheel (3.00 inches), garretts naming system actually makes sense.

Mark
it sorta makes sense. it describes the turbine wheel and then throws some letters in there for good measure.

like GT used to mean "new aero, new dual ball bearings" but now dont mean ****. I see "GT" turbos with journal bearings and I go "huh?"
y8s is offline   Reply With Quote
Old 03-23-2007, 01:19 PM   #22
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

looks really nice, you need to crank the boost on that turbo and see what it can do!
F20turbo is offline   Reply With Quote
Old 03-23-2007, 01:28 PM   #23
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by AndyFloyd View Post
looks really nice, you need to crank the boost on that turbo and see what it can do!
whatever you say boss!!

here's the rough plan:

1. finish my downpipe (this weekend?) I just got more wire and flap wheels woohoo!
2. tweak the exhaust and add the MetalCat and V-bands
3. Find a place to mount a turbo outlet pressure tap. I suppose a drill and tap operation would work.
4. get Begi to finish my compressor outlet pipe
5. SLIGHTLY re-route the lower radiator hose to clear space for #1
6. run it on the stock ECU and datalog the **** out of the OBDII port to characterise the stock car's timing, airflow, etc. for whatever personal reasons I want. (what, 150 rwhp?)
7. install the hydra and injectors, low boost (<200 rwhp)
8. install water injection and raise boost (>200 rwhp)
9. raise boost and break the motor (>> 250 rwhp)

it may not be a good plan but it is definitely A PLAN!
y8s is offline   Reply With Quote
Old 03-25-2007, 11:02 PM   #24
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

did a lot of welding today... no photos though.

But... the downpipe is pretty much done. just gotta add two sensor bungs. Unfortunately I didn't get to divorce the WG like I wanted to because it's just too tight with my manifold, but it's still ok. V-bands on everything now except the turbine outlet and wastegate. Should be a snap to reassemble and line up. 3 bolts basically hold my exhaust on. awesome.

oh and I also swapped out the rubber exhaust hangers for urethane ones. We'll see if that keeps motion of the pipes down.
y8s is offline   Reply With Quote
Old 03-26-2007, 11:29 AM   #25
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

ohhhh so big power is on its way. YESSSSSS
F20turbo is offline   Reply With Quote
Old 03-28-2007, 12:39 AM   #26
Newb

Join Date: Jan 2007
Posts: 31
Total Cats: 0
Default

My intercooler is that size and I get amibent temps at TB.
^ () ^ is offline   Reply With Quote
Old 03-28-2007, 01:11 AM   #27
Senior Member
iTrader: (6)

nester's Avatar

Join Date: Sep 2005
Location: Houston, TX
Posts: 812
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
GT2876R. Half potato, half god knows.

Irronically, I was just thinking about the same exact turbo on my car... in a mitsu flanged exhaust housing though..
nester is offline   Reply With Quote
Old 03-28-2007, 04:46 PM   #28
Newb

Join Date: Jan 2007
Posts: 4
Total Cats: 0
Default

Matt, your charge piping gives me serious wood.

I'm working on my car: 1990, 35k miles, with a BEGi IV.2 kit. I've just installed the FM happy meal clutch/flywheel kit, RC racing 550cc injectors, and I've ripped out the MSD box and AFPR in favor of a Hydra. I'm in the process of wiring it up, running sensors, etc. My kit is so old I had to get sensor bungs welded into the downpipe (WBO2) and throttle body inlet pipe (IATS). Also got FM's new intake and heat shield.

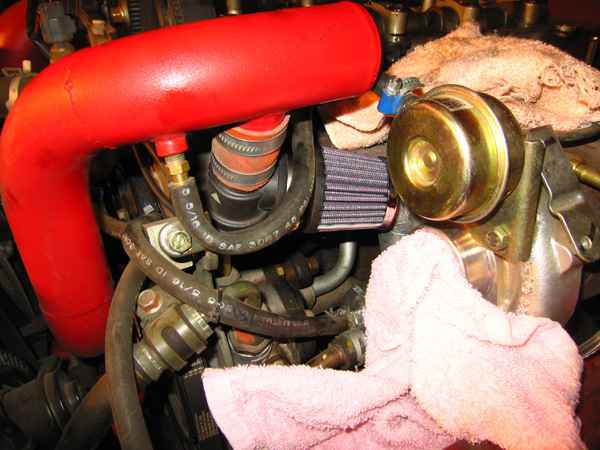

Here's my question. In the shot I've attached, you can see the turbo and some of the IC charge piping. I've got a little air filter looking doohickey attached to something - is that my BOV?

Again - Nice ride. I'm doing all my work myself but I'm hugely more impressed with the level of DIY you're tackling.
Attached Thumbnails
y8s diy turbo update tease-small_filter.jpg
busychild424 is offline   Reply With Quote
Old 03-28-2007, 04:53 PM   #29
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

your car makes me feel all
Pitlab77 is offline   Reply With Quote
Old 03-28-2007, 05:00 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by busychild424 View Post
is that my BOV?
yes
Braineack is offline   Reply With Quote
Old 04-01-2007, 12:06 AM   #31
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I got distracted today. Made some shiny things.



I did weld in my O2 sensor bungs and mounted the exhaust mostly. Also assembled the turbo and WG to the manifold and attached the water lines and oil return line. So now I have this heavy octopus thing I gotta put back in.

Also rerouted the lower radiator hose. I had to clear out the space where the intercooler piping goes (between the ps pump and upper control arm) so the hose worms around elsewhere. Mcmaster has some sweet double barb fittings that work perfectly. And the NAPA by my work had some crazy hose that I cut up to get the shape I needed. Werd.

I think tomorrow I'll clean up a little. My garage is a friggin MESS.
y8s is offline   Reply With Quote
Old 04-11-2007, 10:23 PM   #32
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Any new updates?
boostinsteve is offline   Reply With Quote
Old 04-11-2007, 11:24 PM   #33
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ok since you asked...

http://gallery.y8s.com/miata/turbo/intercooler/
New photos (reverse order fyi)

Since I don't use a BEGi manifold/turbo setup, I needed a custom compressor outlet pipe. I had Steph secretly send me a standard one to check fit and see where I needed to make changes. Also Corky is welding up one based on the Ghettocharger manifold/turbo position since he thinks it's pretty close to mine and markp left it at the shop.

You can tell it's PRETTY close except for 1) it's not 2-1/4" the whole length, 2) it's black, and 3) it runs into my sway bar bracket. Should be pretty simple to fix that. I could theoretically use it but it wouldn't be ideal.

2-1/2" turbo outlet, 2" pipe = CINCH IT = no.


battle of the large diameter tubes.


OH snap. I just realized I never got pics of the downpipe! Sorry guys. It's not all that exciting anyway. I can describe it tho.

stainless flange with the WG port welded shut
2-1/4 elbow to V-band clamp
2-1/4 transition to 3"
3" elbow to 3" v-band with two O2 bungs.
+

I love that 3 bolts hold my exhaust on. I think I mentioned that already.
y8s is offline   Reply With Quote
Old 04-12-2007, 12:04 AM   #34
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

I always love watching the builds come together. Seeing people do stuff themselves is really awesome. Here after I move into my new place, I will be purchasing a new welder, (yeah, I get to weld again), and start building my camaro turbo kit and a kit for my buddy's scion.
boostinsteve is offline   Reply With Quote
Old 04-12-2007, 12:36 AM   #35
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

nice. if i had unlimited time, i'd boost every car i drive.
y8s is offline   Reply With Quote
Old 04-12-2007, 03:44 AM   #36
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Isn't that the truth. If I complete the camaro, that will make my 2 cars boosted, and I am going to get a bike here soon and boost that also. Boost is extremely addictive.
boostinsteve is offline   Reply With Quote
Old 04-12-2007, 10:57 AM   #37
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

Quote:
Originally Posted by y8s View Post
nice. if i had unlimited time, i'd boost every car i drive.
m2cupcar is offline   Reply With Quote
Old 05-01-2007, 12:26 AM   #38
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Update!

So I'm waiting on lower injector insulators (the head-side donuts) from Finishline and my charge pipe from BEGi, but I did some work on the car today.

I started re-adding vacuum lines for the wastegate and BOV. Exciting stuff.

I also did some work on my bumper. It'd had a hard life of flying gravel, removed front logos, and honda civic rear ends. I thought "what the hell" I can either replace it with a real paint job part or do it my damn self. As we all know people on this forum have taken the latter approach so I thought "why not" and started workin. I did some bondo repairs (85% job cuz I dont care) and sanded the whole thing down and primed it today. The last coat of primer is drying tonight and I'll finish sand it. It's a LITTLE wavy but hell I rammed a car with it!

Tomorrow I guess I'll finish sand and tack cloth and spray the first coat of black. It's duplicolor so who knows how it'll come out. I've got all sorts of sandpaper and rubbing compounds and ****.

What's left to do:
Install injectors (fuel rail, top half of mani...)
Finish vacuum lines
Install intercooler pipe
Finish bumper (optional!)
Reconnect injector wires in hydra harness (I had them run separately)
Reinstall Hydra + load maps + tune the ****
oh and put my front wheels on.

Maybe more.

Pics tomorrow I guess.
y8s is offline   Reply With Quote
Old 05-01-2007, 12:32 AM   #39
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

you my friend...make me want to cry.
miatamania is offline   Reply With Quote
Old 05-01-2007, 12:48 AM   #40
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I just finished up a diy duplicolor front bumper cover (black). Those little-*** cans of brilliant black are good for about a coat. And do at least three. I polished through some areas just doing polishing by hand. Even so, it looks better than it did before. Good luck!
Atlanta93LE is offline   Reply With Quote
