Old 08-23-2011, 11:27 AM   #1
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default Diybob

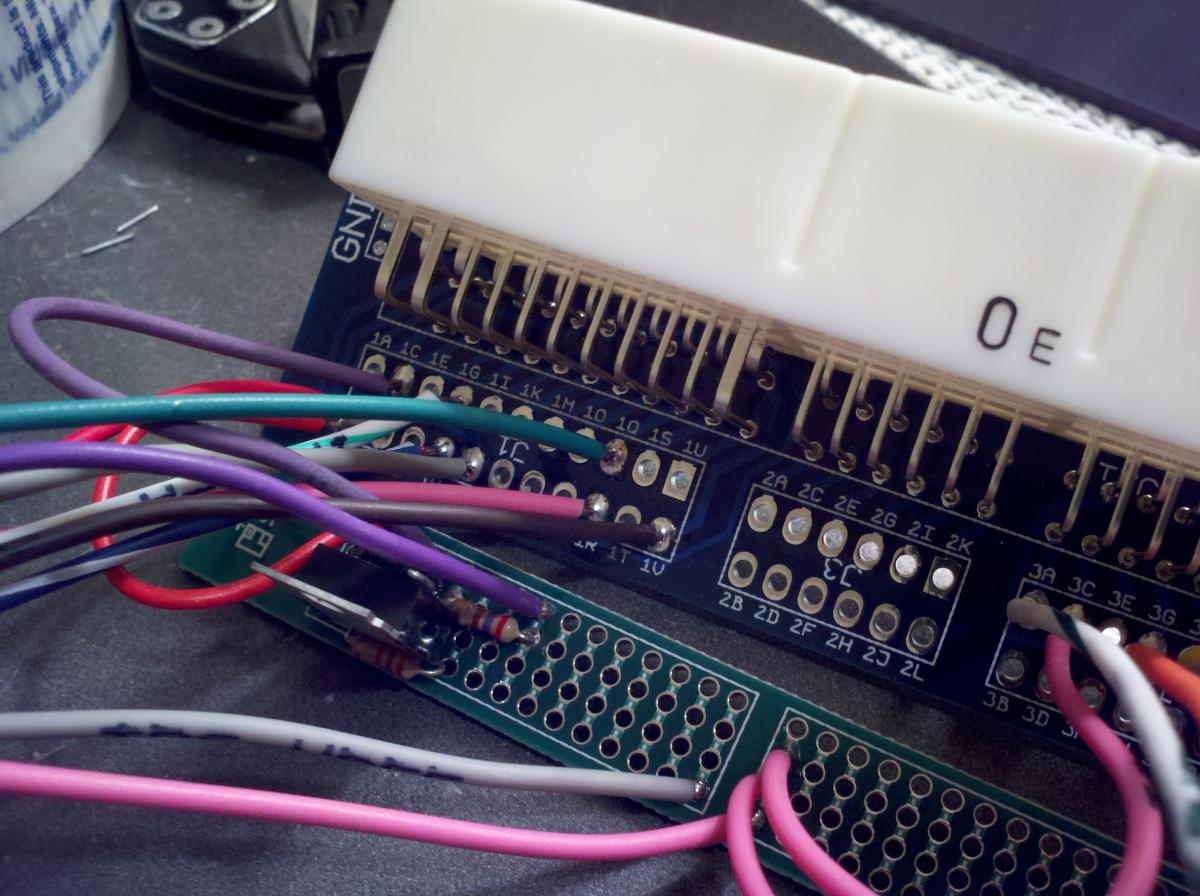

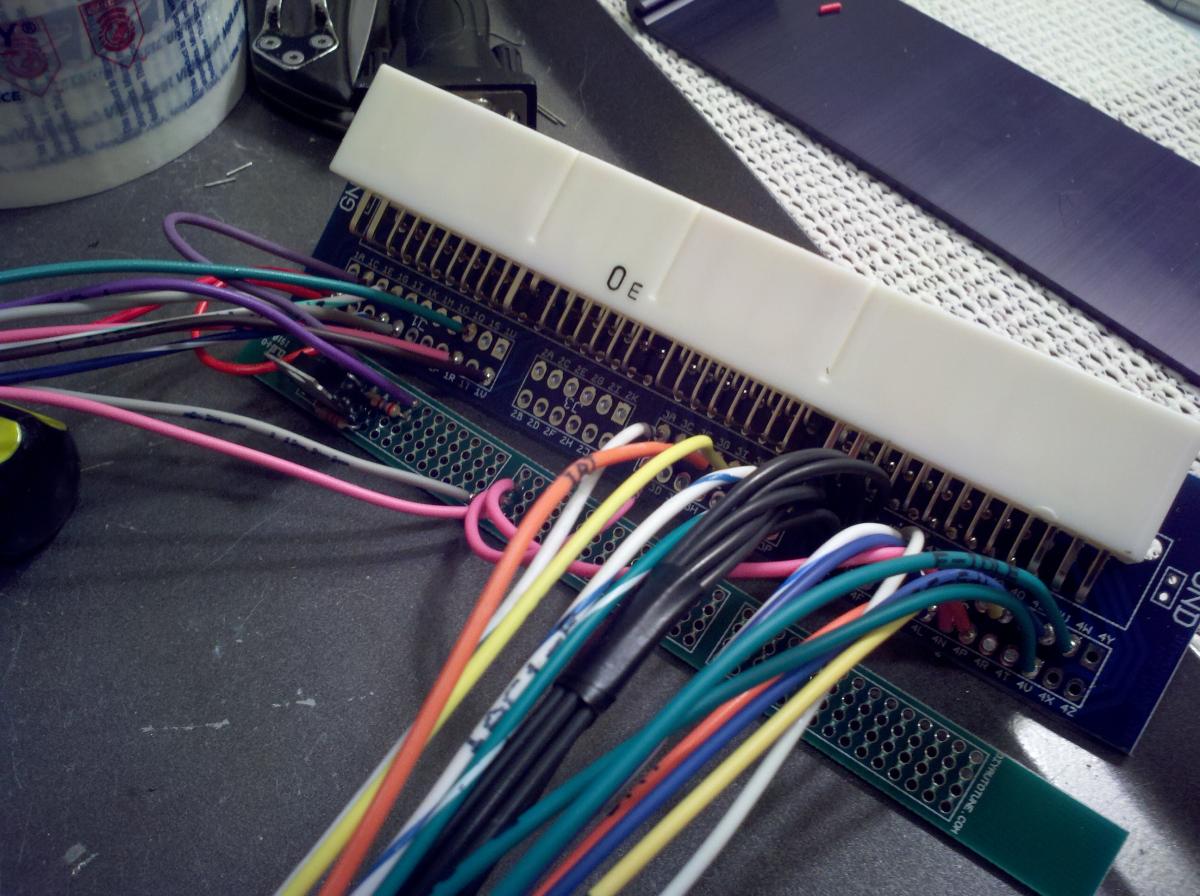

Attached Thumbnails
Diybob-2011-08-22_21-52-30_987.jpg   Diybob-2011-08-22_21-52-39_945.jpg
Braineack is online now   Reply With Quote
Old 08-23-2011, 11:32 AM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

And used exactly as intended. Makes a nice MegaSquirt to vehicle harness adapter, doesn't it.
Ben is offline   Reply With Quote
Old 08-23-2011, 11:38 AM   #3
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

works good as a cat comb untill you assemble it.
Braineack is online now   Reply With Quote
Old 08-23-2011, 11:50 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

So does this mean we will soon get MS3 PNP?
18psi is offline   Reply With Quote
Old 08-23-2011, 11:55 AM   #5
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

i mean all you have to do is ask.

I built that harness last night for a ms3x '91.
Braineack is online now   Reply With Quote
Old 08-23-2011, 12:05 PM   #6
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

If only they were like... $45 instead of $90. Too much money for something that's pretty but almost never seen
ianferrell is offline   Reply With Quote
Old 08-23-2011, 12:08 PM   #7
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

I dont care about looks, I care about function. Makes the harness so much cleaner, and easier. Much easier to make any changes or do things like build circuits like seen above.
Braineack is online now   Reply With Quote
Old 08-23-2011, 12:09 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Wow that's good news.
Stuff like this makes me laugh: reminds me of when I found out that you could order begi/fm logs in t3 footprint, and "all you had to do was ask"

WE DONT ASK BECAUSE WE DIDN'T EVEN KNOW IT EXISTS

Now we know. And will ask.
lulz
18psi is offline   Reply With Quote
Old 08-23-2011, 12:46 PM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by ianferrell View Post
If only they were like... $45 instead of $90. Too much money for something that's pretty but almost never seen
This. I was once asking customers if they wanted the DIYBOB for an extra $90, so that their harness would like nice, protected, etc. I stopped asking after I got a solid 100% no.
Reverant is offline   Reply With Quote
Old 08-23-2011, 12:54 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I still don't understand how this is cleaner or more robust. You're soldering to a 1/8" board vs. 1/4" prong. And it comes off at a 90* angle.


P.S. I saw in the latest email that you now have thumb screws for the MS side of the harness. How can we order just that thumb-screw-equipped case?
curly is offline   Reply With Quote
Old 08-23-2011, 01:24 PM   #11
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

I've probably built 40+ harnesses by cutting off the legs of the connector and soldering directly to it, then heat shrinking.

I prefer this tenfold; I wish mine was built this way. but i do agree it comes at a premimum for sure... cough cough.
Braineack is online now   Reply With Quote
Old 08-23-2011, 01:29 PM   #12
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
Wow that's good news.
Stuff like this makes me laugh: reminds me of when I found out that you could order begi/fm logs in t3 footprint, and "all you had to do was ask"

WE DONT ASK BECAUSE WE DIDN'T EVEN KNOW IT EXISTS

Now we know. And will ask.
lulz
rharris19 is offline   Reply With Quote
Old 08-23-2011, 03:09 PM   #13
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by curly View Post
I still don't understand how this is cleaner or more robust. You're soldering to a 1/8" board vs. 1/4" prong. And it comes off at a 90* angle.


P.S. I saw in the latest email that you now have thumb screws for the MS side of the harness. How can we order just that thumb-screw-equipped case?
The cleaner part is that this is all covered up by what's basically a cut down DIYPNP case once it's finished.

I find holes a bit easier to solder to, as the wire isn't likely to move as far. The final connection isn't any stronger, but it is a bit easier to assemble. Other than the Mustang adapters, which use a specially made crimp connector, if we did PNP systems as adapter harnesses, we'd go for the board approach to make production easier.
Matt Cramer is offline   Reply With Quote
Old 08-24-2011, 01:38 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Matt Cramer View Post
The cleaner part is that this is all covered up by what's basically a cut down DIYPNP case once it's finished.
The thing Braineack failed to show us you mean? That makes sense now.


Quote:
Originally Posted by curly View Post
P.S. I saw in the latest email that you now have thumb screws for the MS side of the harness. How can we order just that thumb-screw-equipped case?
*cough cough*
curly is offline   Reply With Quote
Old 08-24-2011, 11:07 AM   #15
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

The case hasn't changed; we've just changed the screws on the DB37.
Matt Cramer is offline   Reply With Quote
Old 08-24-2011, 11:15 AM   #16
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

I'd actually argue the solder joints on the PCB of the DIYBOB are better/stronger.

I've had bad things happen on my personal harness: pins pull out/weaken, pins break off from stress, and wires fall off at the solder joint.

also, things like running multiple wires into a single pin becomes a real pain or even making changes - you'll find yourself trying ot remove heatshrink and making a mess out of things, where the PCB allows you to simply pull the wire out of a hole and move it to another.

Will I still build them like that, surely, but I always suggest the DIYBOB first if the user is willing to go that route.

fwiw, this is only the second I've ever built.
Braineack is online now   Reply With Quote
Old 08-24-2011, 12:05 PM   #17
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

This is a great option for people that want to go from a diypnp to an MS3 and not change all of their wiring.
miatauser884 is offline   Reply With Quote
Old 08-24-2011, 12:08 PM   #18
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

not sure if i follow you.
Braineack is online now   Reply With Quote
Old 08-24-2011, 12:12 PM   #19
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

So you can plug your ms3 into your factory harness which is utilized by the diypnp.
miatauser884 is offline   Reply With Quote
Old 08-24-2011, 12:16 PM   #20
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

this should be the norm regardless of what previous ecu you used; stock or aftermarket.


my ms3x:

Braineack is online now   Reply With Quote
