1.6 Begi GT2560 E85 12psi 206whp/261nm - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 10-17-2012, 07:32 AM   #1
Junior Member
Thread Starter

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default 1.6 Begi GT2560 E85 12psi 206whp/261nm

I just came from dyno. 206whp/261newton meter from wheels.

Car specs:
stock 1.6 '93
850cc ev14 injetors
Garrett 2560 turbo
Begi series 1 turbokit
2.5" full exhaust (with cat)
MSPNP
12psi (0,85bar)
E85

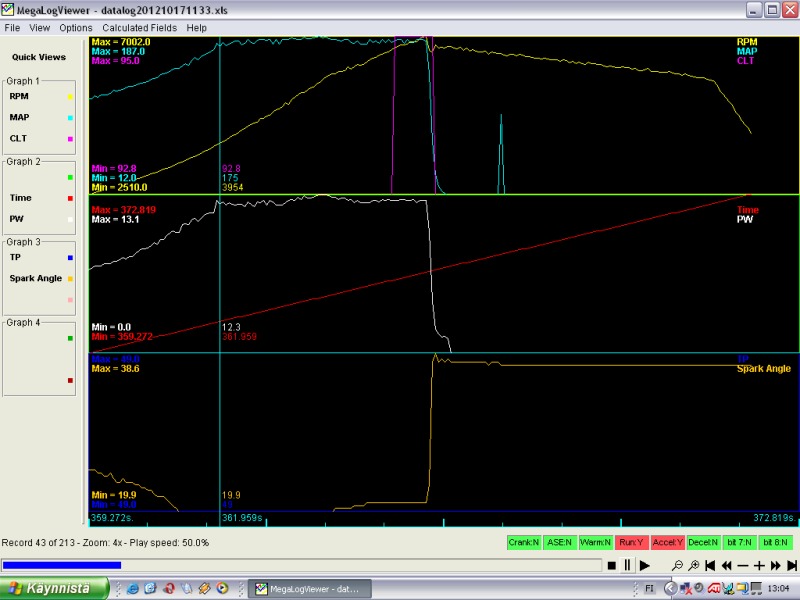

Log from dynorun:
Attached Thumbnails
1.6 Begi GT2560 E85 12psi 206whp/261nm-2quhzxg.jpg   1.6 Begi GT2560 E85 12psi 206whp/261nm-2utsw3o.jpg
jim_rocketmow is offline   Reply With Quote
Old 10-17-2012, 07:42 AM   #2
Junior Member
Thread Starter

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

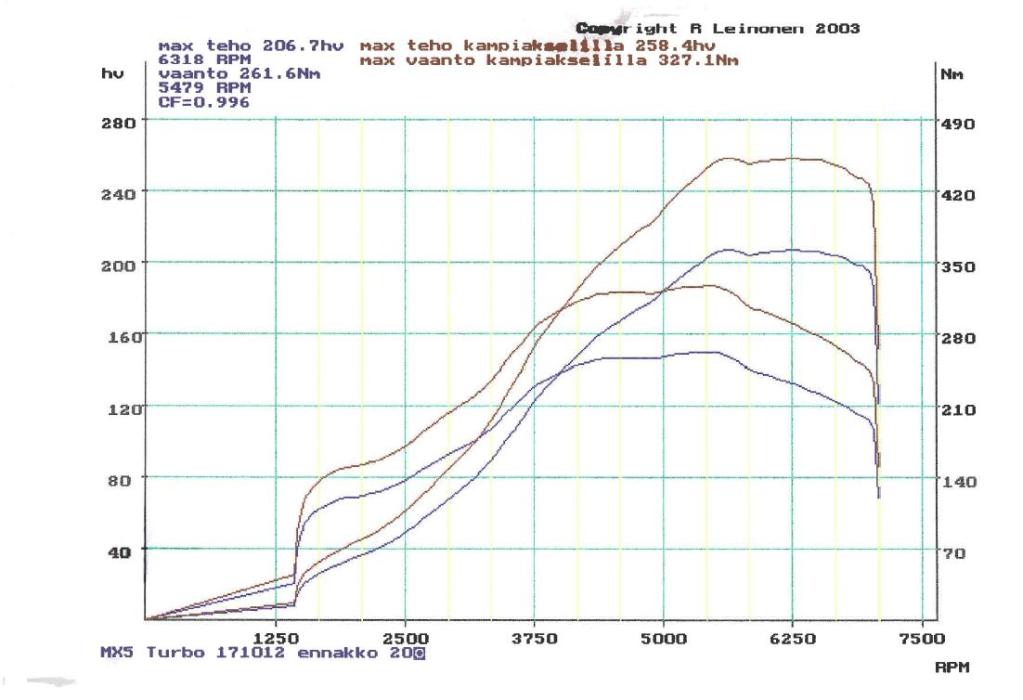

Upper lines are est. crankpower, lower actual whp.

261nm = 192ft-lbs
jim_rocketmow is offline   Reply With Quote
Old 10-22-2012, 11:30 AM   #3
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

So almost 260 engine hp from a 1.6l? That's 160hp per liter. Not too shabby!

Your coolant temp seems to be behaving weirdly though....
stefanst is offline   Reply With Quote
Old 10-22-2012, 11:37 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by stefanst View Post
So almost 260 engine hp from a 1.6l? That's 160hp per liter. Not too shabby!

Your coolant temp seems to be behaving weirdly though....
where'd you get 260BHP?

He produced around 206rwhp; that's roughly 230BHP. But since he didn't dyno just the motor outside the drivetrain, we'll never know.
Braineack is online now   Reply With Quote
Old 10-22-2012, 11:58 AM   #5
Junior Member
Thread Starter

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

This was just "before" engine build dyno pull. Car was roadtuned by my ***, AFR's about 11.5-11.8 wot & timing 20degrees at 4000-7000rpm. Winter I will put forged internals with 10.6:1 pistons. Plan is to build über smallblock E85 beast. So next spring plan is to have ~1.2 bar (~17psi) boost & properly tuned reverant ecu.
jim_rocketmow is offline   Reply With Quote
Old 10-22-2012, 12:02 PM   #6
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

The engine hp number is the estimate from the printout: 258.4hv

Since afaik engine hp is what manufacturers usually claim, it's a value that's fair to compare to factory setups. Of course it's an estimate and probably on the high side. But even if it's only 230hp engine, we're still talking 145hp/l or so. Still damn impressive.
stefanst is offline   Reply With Quote
Old 10-22-2012, 12:08 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

I know this BHP/WHP conversation have been here too many times before, but this side of great ocean we tend to use bhp figures. I personally like your style to use whp. More accurate between different dynos, better to compare with each other and so on. BHP is nearly always an estimate!
jim_rocketmow is offline   Reply With Quote
