Old 05-09-2008, 07:52 AM   #21
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

the small pipe is the exhaust side of the wastegate which exits just below the block while the bigger pipe is the exhaust side of the turbine which goes all the way to the muffler
marlon the great is offline   Reply With Quote
Old 05-09-2008, 07:53 AM   #22
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

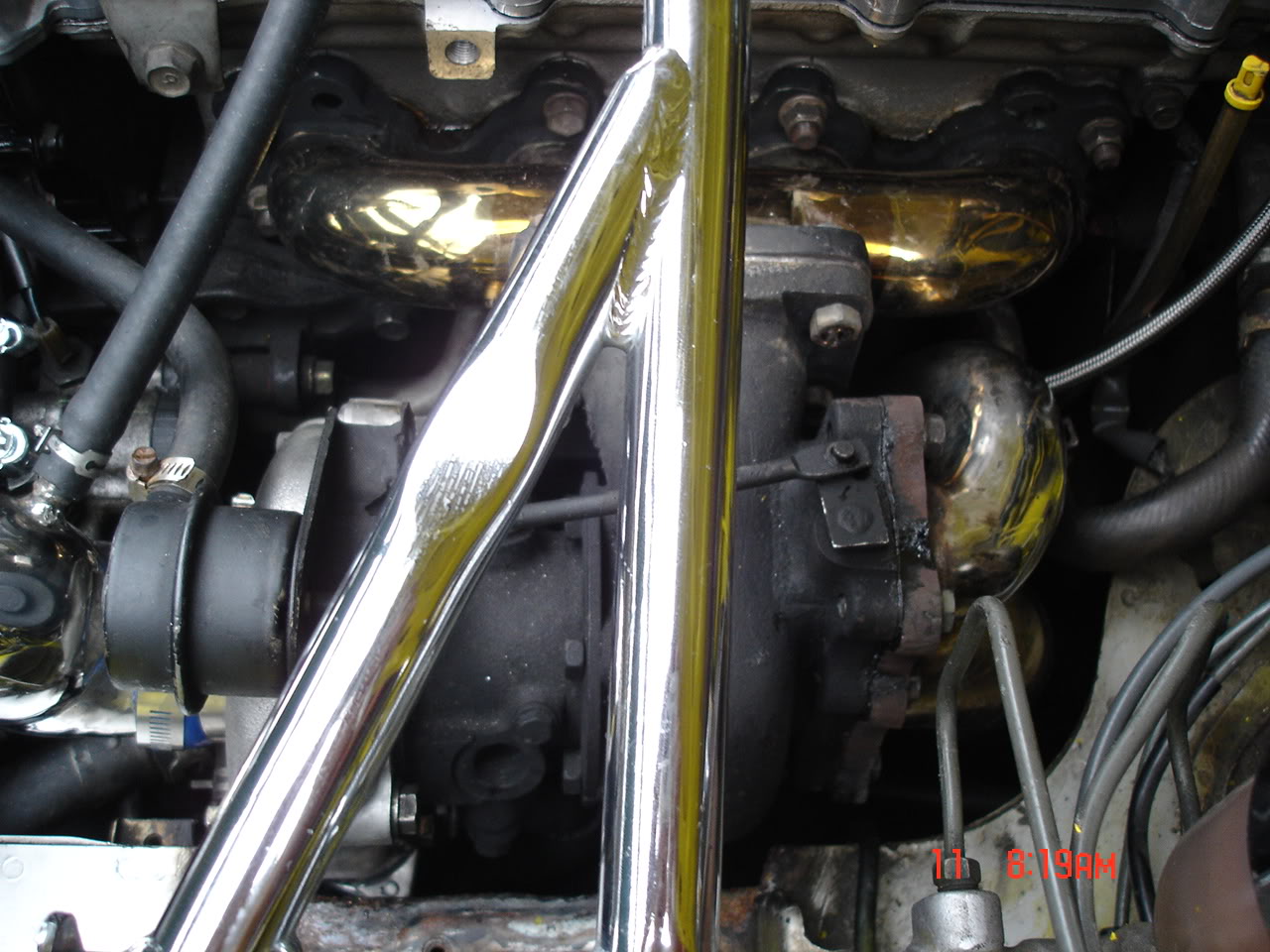

another shot of the turbo and exhaust

Name:  engine_shots1007.jpg
Views: 0
Size:  176.4 KB
marlon the great is offline   Reply With Quote
Old 05-09-2008, 09:56 AM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

did you just take that picture? looks like a bad leak.

it obvious it's not the exhaust; so it's either a leak in the exhaust, a clogged cat, or bad wastegate control. Are you just using a MBC?


how does the actuator rod bend? looks odd, shock brace is blocking the view.
Braineack is offline   Reply With Quote
Old 05-09-2008, 10:04 AM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,237
Total Cats: 290
Default

I agree- you've got a WAY bad angle on your actuator rod. Mine wasn't that bad when I got my turbo and I had problems. Basically had to cut up the compressor mount and correct the angle so the rod is perpendicular to the rear of the can (or as close as possible).
m2cupcar is offline   Reply With Quote
Old 05-09-2008, 10:08 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

well if you look close it comes out of the can perfectly straight...
Braineack is offline   Reply With Quote
Old 05-09-2008, 12:25 PM   #26
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
did you just take that picture? looks like a bad leak.
this picture was taken a few days after the install which is about a year or so. I already fixed this by making a copper gasket.

Quote:
Originally Posted by Braineack View Post
it obvious it's not the exhaust; so it's either a leak in the exhaust, a clogged cat, or bad wastegate control. Are you just using a MBC?

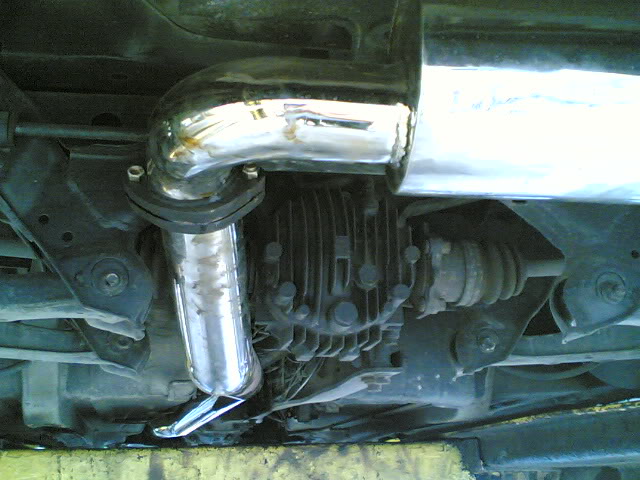

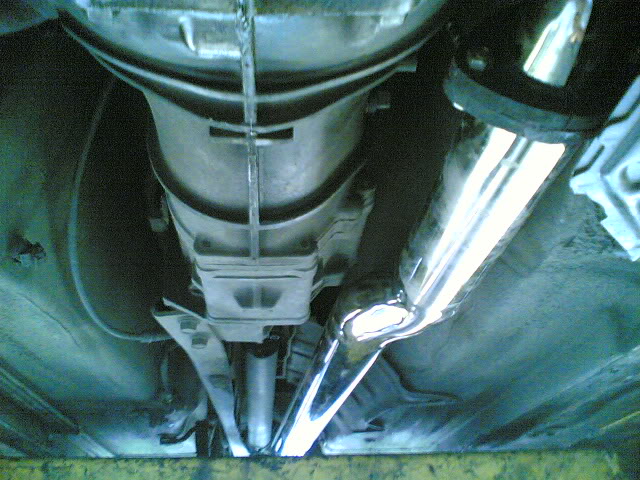

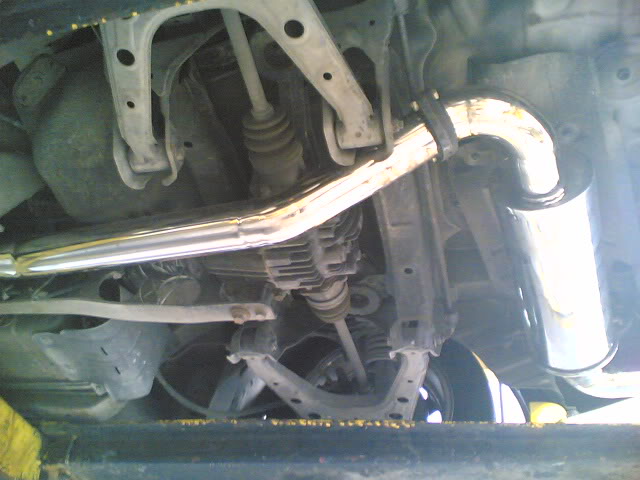

I don't have a cat-back exhaust...as can be seen here. But I do use a MBC the HKS Universal VBC

Name:  11232006003.jpg
Views: 0
Size:  87.1 KB
Name:  11232006004.jpg
Views: 0
Size:  50.7 KB
Name:  11232006006.jpg
Views: 0
Size:  66.1 KB

Quote:
Originally Posted by Braineack View Post
how does the actuator rod bend? looks odd, shock brace is blocking the view.

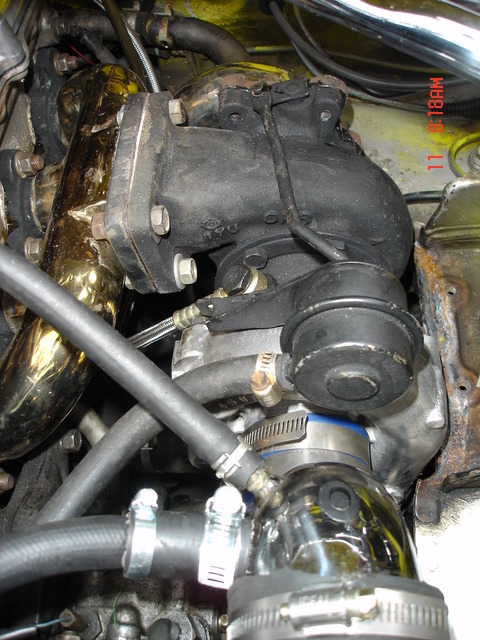

this is how the actuator rod looks like in a different angle

Name:  engine_shots1006.jpg
Views: 0
Size:  120.1 KB
marlon the great is offline   Reply With Quote
Old 05-09-2008, 12:38 PM   #27
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Actually, what's the 5.8 ratio? That's supposed to match the axle gearing...I assume it was third gear based on the number they have inputted. You would be at 5.72:1 if they do use overall. 1.330 trans and 4.3 final. That will lower the numbers some, but only a few HP.
yes, I forget to mention this pull was done in 3rd gear. revving the engine at 2000 rpm, enough to spool the turbo (& not to stall the engine)..then pulling all the way to 6000+ rpm
marlon the great is offline   Reply With Quote
Old 05-09-2008, 01:03 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

im sticking with my not holding boost theory.
Braineack is offline   Reply With Quote
Old 05-24-2008, 02:15 AM   #29
Junior Member

Join Date: May 2005
Location: Kelowna, BC, Canada
Posts: 133
Total Cats: 0
Default

why does the turbo look so "sooty"? That actuator rod is gnarly. The pivoting arm on top looks to be rotated 180 (should point towards the driver's side?)
mcsinc is offline   Reply With Quote
Old 05-24-2008, 07:47 AM   #30
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Looks to me like your O2 clamp is coming in too late.
olderguy is offline   Reply With Quote
Old 05-24-2008, 12:02 PM   #31
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Never seen an actuator rod with that much funky angle.. I vote for replace actuator for better alignment with flapper arm.
kotomile is offline   Reply With Quote
Old 05-24-2008, 03:20 PM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

ghettocharger
hustler is offline   Reply With Quote
Old 05-24-2008, 03:46 PM   #33
Junior Member
iTrader: (2)

Join Date: Jun 2007
Location: Western N.C.
Posts: 447
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
ghettocharger
Hustler, He is making over 94 HP.
Milton Tucker is offline   Reply With Quote
Old 06-02-2008, 11:35 PM   #34
Guest

Join Date: Sep 2007
Posts: 9
Total Cats: 0
Default

try getting a aftermarket wastegate acuator?
gohdunlam is offline   Reply With Quote
Old 01-18-2009, 01:15 AM   #35
Junior Member

Join Date: Dec 2008
Location: Hamilton, Ontario
Posts: 89
Total Cats: 0
Default

Quote:
Originally Posted by devin mac View Post
sure there's not a potato in the tailpipe or something? :-)

hahaha
TrackTestedMiata is offline   Reply With Quote
Old 01-25-2009, 10:09 AM   #36
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

miataspeed2005 is offline   Reply With Quote
Old 01-27-2009, 12:15 AM   #37
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Don't bump 7 month old threads.
Savington is offline   Reply With Quote
