1.8 Hybrid T28 @ 15psi - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 03-20-2011, 09:43 AM   #1
Newb
Thread Starter

Join Date: Oct 2009
Location: London, UK
Posts: 17
Total Cats: 0
Default 1.8 Hybrid T28 @ 15psi

After spending the winter months here in England swapping out my JRSC M45 for a turbo setup I finally collected the car Friday evening after having the ecu fitted and mapped, and the sump drilled and taped for the oil drain, something I was too keen on doing myself on my driveway.

The setup consists of stock '94 bottom end with 74000 miles on, unknown head work by previous owner, FM manifold, outlet and down pipe, Turbo Technics S186 hybrid Garrett T28, cat delete pipe, HKS Super Dragger all 2.5", Walbro fuel pump, Subaru 550cc Pink injectors, DIY over the rad IC, NGK BKR7E plugs, Magnecor 8mm leads, Exedy HD clutch, Emerald K3 ecu which has 3 separate maps switchable from the dash, standard 5 speed transmission and 4.3 diff, mapped on 97RON fuel.

Unfortunately I forgot to grab the at the wheel and AFR graphs before heading home I'll ask for them to be mailed to me next week, neither do I have much information about the turbo other than it's a journal bearing core with a 360* thrust bearing and different exhaust/compressor wheels, Turbo Technics are reluctant to issue full specs for obvious reasons, I chose this over a 2560 mainly as it was cheaper and the rebuild costs of the BB cores is ridiculous the journal cores can be rebuilt for as little as 150, after a few phone conversations about the cars use, and my goals I was suggested to try the S186 with a swap from the .84 to .64 housing and clocked as I required.


Do you think the rods are on borrowed time??

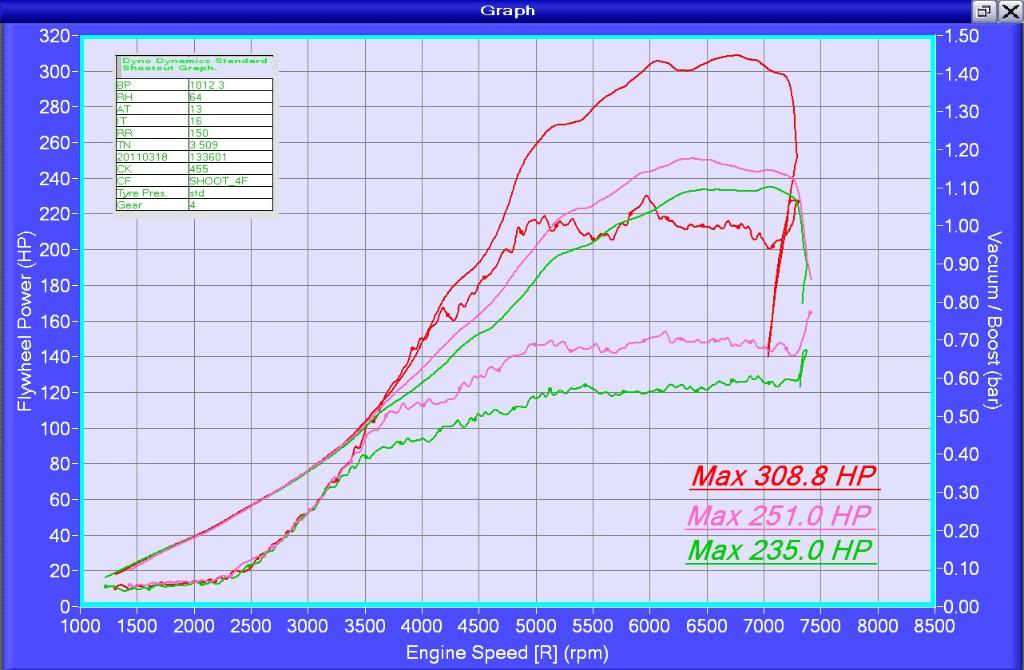

Name:  mx5_p_b.jpg
Views: 47
Size:  93.5 KB

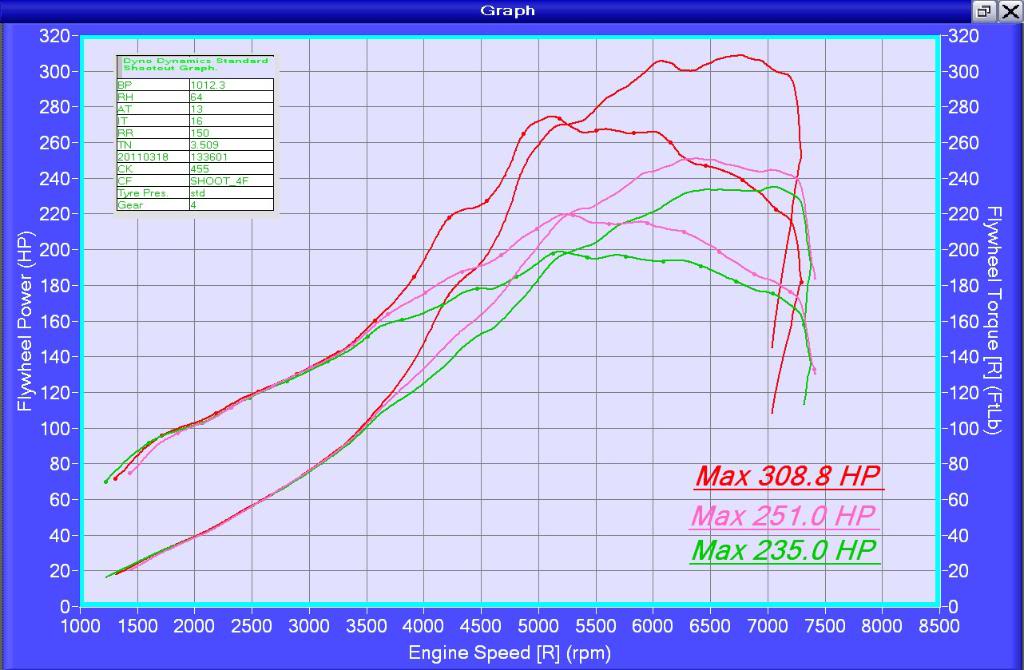

Name:  mx5_p_t.jpg
Views: 44
Size:  94.8 KB

The guy that mapped the car has a fair amount of experience with Miata's, currently building a 400hp car for another customer he also does alot of work mapping big power GTR's and historic turbo F1 cars so I trust his judgment, he was amazed how well the engine was reacting to mapping and told me the timing and AFR's are fairly conservative and there was more if I wanted, although for the sake of the bottom end it was probably enough.

Last edited by Buck65; 03-20-2011 at 06:09 PM.
Buck65 is offline   Reply With Quote
Old 03-20-2011, 09:48 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Did you install an Emerald ECU if my memory serves me right?
Reverant is offline   Reply With Quote
Old 03-20-2011, 09:53 AM   #3
Newb
Thread Starter

Join Date: Oct 2009
Location: London, UK
Posts: 17
Total Cats: 0
Default

Yeah it's a Emerald K3.

I was in on your GB for a MSII but pulled out as the tuner was happier with the Emerald and it was available there and then, but due to a month long honeymoon and life in general getting in the way I've only just finished the build.
Buck65 is offline   Reply With Quote
Old 03-20-2011, 10:01 AM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

I remembered as much, I just failed to read through your post. Excellent results.
Reverant is offline   Reply With Quote
Old 03-20-2011, 10:47 AM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Awesome numbers! More details about turbo please!
thirdgen is offline   Reply With Quote
Old 03-20-2011, 06:18 PM   #6
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Very impressive at 15psi !
dgmorr is offline   Reply With Quote
Old 03-21-2011, 10:40 AM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Nice power!

Yes, I think the rods are on borrowed time.
Faeflora is offline   Reply With Quote
Old 03-21-2011, 10:54 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

that's one big T28. does it spool that slow on the street? Looks more like 71mm wheel as opposed to anything with a 60mm T28 wheel.

Could the ramp rate be effecting it?

FWIW, IIRC, when the DD dyno displays flywheel numbers, it's correcting the output higher to give "dynojet" numbers.
Braineack is offline   Reply With Quote
Old 03-21-2011, 11:19 AM   #9
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Is this on an engine Dyno????

If not, how does the Chassis Dyno determine "flywheel power"

Either way, AMAZING numbers!
Preluding is offline   Reply With Quote
Old 03-21-2011, 11:22 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Like I said, I think when you put the DD on "shootout" mode, it converts the numbers to match a Dynojet and shows it as flywheel. Something like that.
Braineack is offline   Reply With Quote
Old 03-21-2011, 11:50 AM   #11
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

reading fail.... thanks!
Preluding is offline   Reply With Quote
Old 03-21-2011, 03:27 PM   #12
Newb
Thread Starter

Join Date: Oct 2009
Location: London, UK
Posts: 17
Total Cats: 0
Default

I'll try again to get the full spec from TT but I don't hold much hope of getting them.

On the road it spools a couple of hundred RPM soon than the printout shows, it really doesn't feel that laggy to me, I'm sure I've seen 2560's that spool in a very similar way anyone got plot showing there 2560 results to compare?

I think I'm going to get the boost target on the high boost map reduced to 13psi and aim for 280'ish bhp until I can afford to buy some forged rods/pistons, but it's nice to know the blower has got the ability to make some serious power once I've got a good solid bottom end.
Buck65 is offline   Reply With Quote
Old 03-21-2011, 03:44 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

My T3 spools better than that on my 1.6L... but your power output makes me think that turbo is much bigger than just a T28.

Most 2560s on a 1.8L will make 15psi by 3500RPM easy.
Braineack is offline   Reply With Quote
Old 03-21-2011, 11:14 PM   #14
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Hey awesome numbers. We are running basically the same amount of boost, same manifold & downpipe, test pipe, and a 2.5" exhaust. Your turbo must be really close to the specs on mine, because my crank HP would probably be 280-290ish.

Awesome job!
dustinb is offline   Reply With Quote
Old 03-21-2011, 11:39 PM   #15
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Looks like closer to a 2871 journal bearing.... or maybe a 2876.
chicksdigmiatas is offline   Reply With Quote
Old 11-28-2011, 03:43 AM   #16
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

seems like everyones talking about how big your turbo is .
Stock rods will hold up to about 250tq so you are a bit past the point where most people start to worry.
1slowna is offline   Reply With Quote
Old 11-28-2011, 05:04 AM   #17
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

It didn't end well :(
Posted by Buck65 on mx5nutz.com in April 2011: "Well I knew I was pushing my luck with the std rods at 310bhp/278ft-lbs and even though I'd turned the boost down from 15psi to 12psi which was still making 280bhp/255ft-lbs and after 600 miles in which I've been giving it some abuse my number 4 con rod through in the towel this afternoon and parted company with the rest of the internals and out the side of the block "


In for updates from the man himself if he's reading...
owenwilliams is offline   Reply With Quote
Old 11-28-2011, 05:25 AM   #18
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

IIRC he's in the process of building his engine.
richyvrlimited is offline   Reply With Quote
Old 11-28-2011, 07:55 AM   #19
Newb
Thread Starter

Join Date: Oct 2009
Location: London, UK
Posts: 17
Total Cats: 0
Default

As Owen has already pointed out it only lasted 600 miles before it died... but she lives on, I've subsequently had a new block rebuild with forged rods, pistons, ACL mains and four new valves with suitable grinds after the wayward piston bend all four. After the running in was completed it went back for mapping where it destroyed the clutch due to a rather aggressive torque curve, the replacement was fitted and bedded in it was mapped to a more trans friendly level for the sake of the gearbox and diff.
Attached Thumbnails

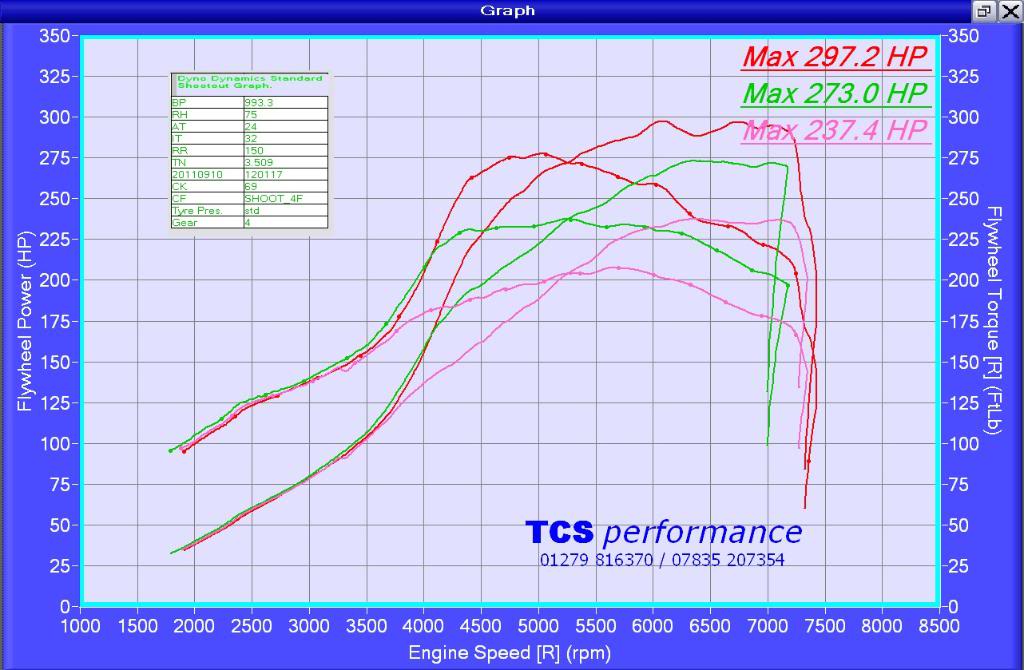

1.8 Hybrid T28 @ 15psi-fpower_torque.jpg
Buck65 is offline   Reply With Quote
Old 11-28-2011, 08:05 AM   #20
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Good news Bet that's tricky to put down on nearly freezing roads! Any chance of vids or photos?
owenwilliams is offline   Reply With Quote
