Old 04-20-2008, 09:44 AM   #21
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default Results with HR code

First, please understand that these new results are *not* load tuned. I pulled timing in higher boost back 5 and 3 back in mid boost across the table. Even though the results are lower, the car runs much better than before and does not feel any slower to me at all.

Here's how she pulled yesterday at the MS meet at DIY (same dyno as before). This is with the same setup I've been running for a while, spark fired through Toyo Cops, plugs at stock .045" gap.

236whp / 220wtq--waiting on DIY to email me the graphs




Can you say boost control issues?

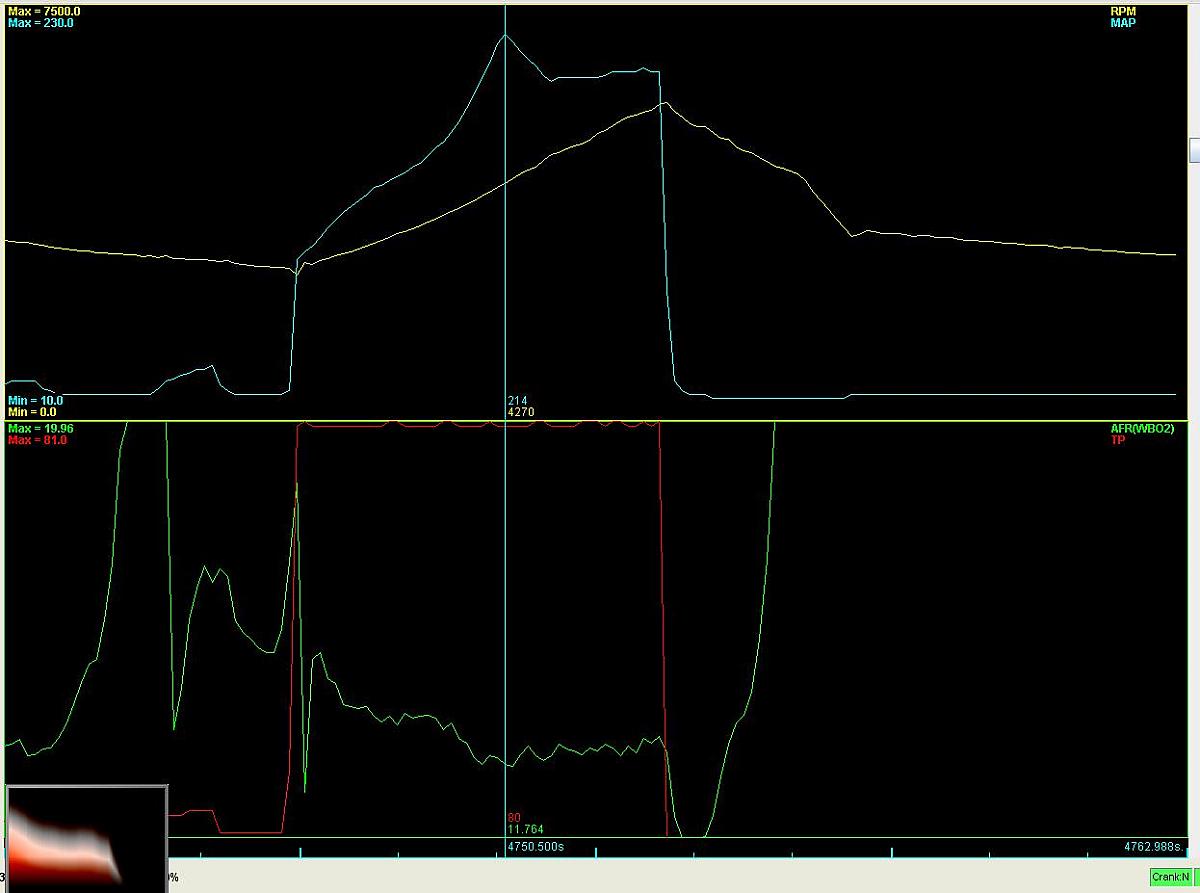

Now, remember above when I said the car doesn't feel slower than before? Below is a cap from a pull on the street. Notice how much higher and sooner full spool is. Also note how much better it's held. I bet there's at least the 20 whp that can't be accounted for on the dyno. And this is with spark peeled back.
Ben is offline   Reply With Quote
Old 04-20-2008, 10:36 AM   #22
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ben do you have a datalog of boost duty cycle?
y8s is online now   Reply With Quote
Old 04-20-2008, 12:08 PM   #23
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

No, unfortunaltey with the new code I'm running there's a hoop to jump through before I can log boost duty cycle. Which I just haven't done. But I have no reason to believe that it's anything other than what I've laid into the boost duty table posted.
Ben is offline   Reply With Quote
Old 04-20-2008, 01:43 PM   #24
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Ben, why does your car sit at ~1500 rpm for a while after you floor it? dyno?
y8s is online now   Reply With Quote
Old 04-20-2008, 01:53 PM   #25
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

It's the load dyno. I don't think the ramp rate and run time used were correct. Which also explains why my MAP curve looks entirely different on the street than on the dyno.

I'm probably going to be running on a dynodynamics later this week, just for a comparison. I met the owner of a semi-local shop with one, and he said I could come and take pulls for free when I wanted.
Ben is offline   Reply With Quote
Old 04-20-2008, 03:47 PM   #26
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Real good stuff Ben, wish I could've attended the MS meet!

So basically your EBC table is showing that the WGA has to pretty much keep the WG shut to hold boost to redline? Are you still on the original actuator?
kotomile is offline   Reply With Quote
Old 04-20-2008, 05:36 PM   #27
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I think what's happening is the WG doesn't shut. I've got an actuator from a 16G to replace it with. One day, maybe, I will. Also considering installing my webcam 505s.
Ben is offline   Reply With Quote
Old 04-21-2008, 05:05 PM   #28
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

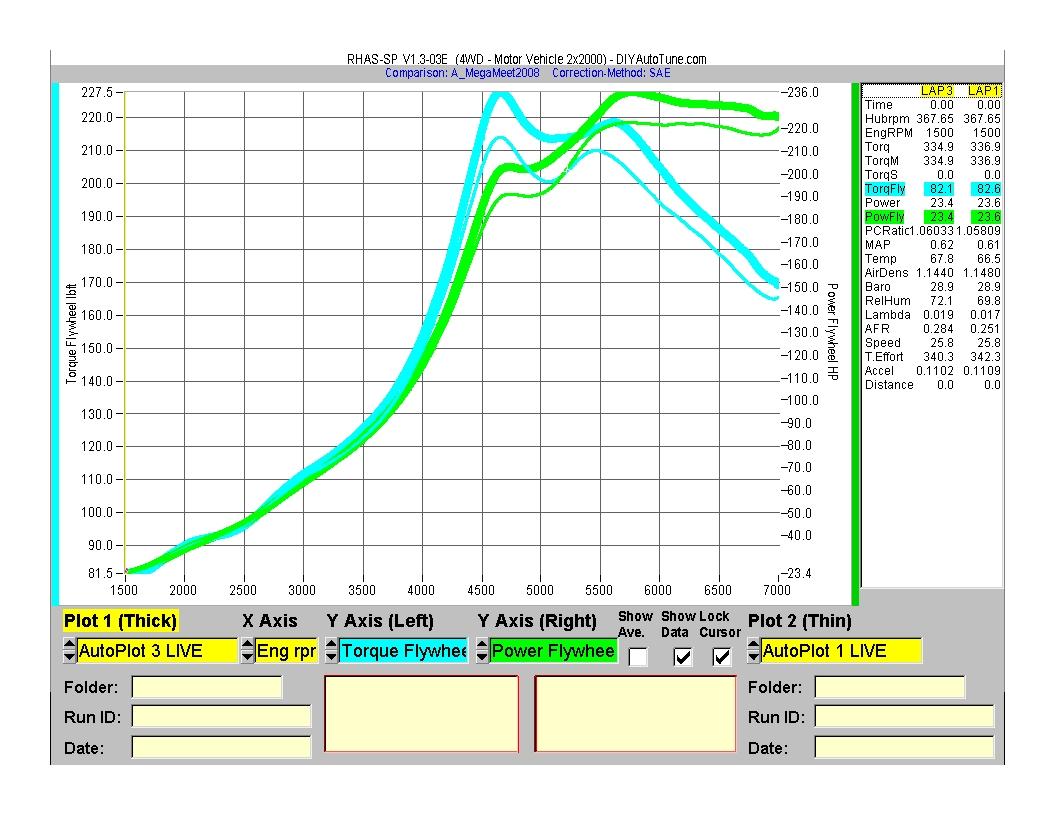

Here's my plot from Saturday. Compare the tq curve to the falling boost curve.

Like with Atl93's run, the dyno wasn't set up right. I can't imagine how it's not putting down at least 260 with the way it drives.
Attached Thumbnails
1991 1.6 Greddy-benberush%5B1%5D.jpg
Ben is offline   Reply With Quote
Old 04-30-2008, 01:48 PM   #29
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Quote:
Originally Posted by Ben View Post
If we asked the EBC to hold boost at 15 psi, what would happen? Well, if I had a built motor I could carry more boost to redline and keep the torque curve very flat to redline. The HP curve would contiune on its steep increasing slope, though we're really starting to push the compressor, but there may be 270 rwhp in there.
If I may ask for some clarification here, if your motor is able to handle the 15 psi that it shows you climb to, why would you need a built motor in order to handle holding that 15 psi to redline? Is a given pressure harder on the motor the higher the rpms?
Thanks I just like to keep learning.
-Ryan
ThePass is offline   Reply With Quote
Old 01-18-2009, 01:18 AM   #30
Junior Member

Join Date: Dec 2008
Location: Hamilton, Ontario
Posts: 89
Total Cats: 0
Default

a freind of mine used the magnaflow kit and it had good results. I belive it was the 2.5 inch 'non turbo' design
TrackTestedMiata is offline   Reply With Quote
Old 01-25-2009, 10:01 AM
miataspeed2005
This message has been deleted by Ben.
Old 01-29-2009, 04:18 PM   #31
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Quote:
Originally Posted by ThePass View Post
If I may ask for some clarification here, if your motor is able to handle the 15 psi that it shows you climb to, why would you need a built motor in order to handle holding that 15 psi to redline? Is a given pressure harder on the motor the higher the rpms?
Thanks I just like to keep learning.
-Ryan
Curious about this as well..
albumleaf is offline   Reply With Quote
