Spec Miata Turbo Fuel limited - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 01-30-2009, 12:41 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default Spec Miata Turbo Fuel limited

Here is a video of a pull done at Oscar Jackson's dyno ( ex-Jackson Racing) on a 1.6 liter with 1.8 liter injectors, stock FPR and fuel pump. With the fuel restriction, boost must be limited at higher RPM as you can't deliver enough fuel safely. This is a first attempt at variable boost with a manual Boost controller, stock Greddy WG.
We are building 3" downpipes for the Greddy starting next week, which should improve the spool up considerably.
Next week we will be testing the Rotrax supercharger on the same car for comparison.
Click on higher quality to read the computer screens
YouTube - Super Spec Miata Turbo Dyno Run
drgoodwrench is offline   Reply With Quote
Old 01-30-2009, 12:44 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Braineack is online now   Reply With Quote
Old 01-30-2009, 01:01 PM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Omnitech ecu? Why not MS... offers same.
Greddy kit for a spec series? Where do you plan on supplying all those kits from as the company is dead?

I still get a kick out of this spec miata turbo idea.
Splitime is offline   Reply With Quote
Old 01-30-2009, 03:39 PM   #4
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

The Omnitek ECU is straightforward in its programming ( ms of injector time vs mathematics), and retails with the IAT, MAP sensor and PnP harness for the same price as a PnP MS.

Greddy USA says no problem supplying Mazda with their kits. Personally I'd prefer a split outlet seperated Exhaust manifold going to a twin scroll turbine GT2550 that hangs below the head with a straight shot exhaust and external wastegate, but cost is A BIG factor in designing the kit.
drgoodwrench is offline   Reply With Quote
Old 01-30-2009, 03:52 PM   #5
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by drgoodwrench View Post
The Omnitek ECU is straightforward in its programming ( ms of injector time vs mathematics), and retails with the IAT, MAP sensor and PnP harness for the same price as a PnP MS.

Greddy USA says no problem supplying Mazda with their kits. Personally I'd prefer a split outlet seperated Exhaust manifold going to a twin scroll turbine GT2550 that hangs below the head with a straight shot exhaust and external wastegate, but cost is A BIG factor in designing the kit.
The closing their doors and going bankrupt Greddy says no problem?
or did something in their closing their doors plans change.

Make the spec guys build their own MS's. Costs under half the PnP option

edit: from some site/homework... appears Greddy USA says they are ok. Wierd, I'd have thought the companies would be a bit more linked with production/supply etc.
Splitime is offline   Reply With Quote
Old 01-30-2009, 05:32 PM   #6
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Are you going bigger injectors?
Deatschwerks is offline   Reply With Quote
Old 01-30-2009, 06:28 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

The idea is to run stock OEM injectors to limit HP. The Races will be just long enough so a lean set up may get you through the race with no pit stop, but if you run fat, you'll need to pit.
By limiting fuel delivery, you can let folks play with all the other parameters all they wish with no need to police it. Just check Fuel pressure, fuel type (spec fuel, so Spec gravity ez to check), and injectors. We may actually label all injectors and "mix them" before each race and pass them back out just before Grid time.
The less to police, the less hassle at impound. I've made the case to let them use any turbo or Supercharger set up they want....
drgoodwrench is offline   Reply With Quote
Old 01-30-2009, 07:21 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

You're running out of fuel on top, so you're going to add a 3" downpipe to the equation to require more flow and more fuel?

Anyone else highly unimpressed with where this idea is going?
Savington is offline   Reply With Quote
Old 01-30-2009, 08:30 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

If I were standing up this series, I might try an intake restriction rather than fuel injector limitations. Seems easier to enforce, plus handing out fuel injectors just before a race and then having the teams install them in a hurry sounds like a recipe for some well-done Miatas. Add to that the temptation to run more fuel pressure to compensate for the limited injectors...
kotomile is offline   Reply With Quote
Old 01-30-2009, 08:33 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

Going to a 3" down pipe will mostly improve spool rate. And we don't "run out of fuel", as the ECU is fully adjustable, so it's up to you to tune it as lean as you dare....
Intake restriction has been used in the past and can be defeated in many ways. Fuel limitation keeps you honest because the consequence is not getting caught, its blowing your motor....
drgoodwrench is offline   Reply With Quote
Old 01-30-2009, 08:52 PM   #11
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

you should sell these "3inch greddy Downpipes"
turbobluemiata is offline   Reply With Quote
Old 01-30-2009, 08:54 PM   #12
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

once we cost them out, they will be available..
drgoodwrench is offline   Reply With Quote
Old 01-30-2009, 10:19 PM   #13
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by turbobluemiata View Post
you should sell these "3inch greddy Downpipes"
LOL. has he tried fitting a 3inch pipe in the motor bay? i know me and turbo blue had tt downpipes at 2.5 and they were snug

good luck...
urgaynknowit is offline   Reply With Quote
Old 01-30-2009, 11:30 PM   #14
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

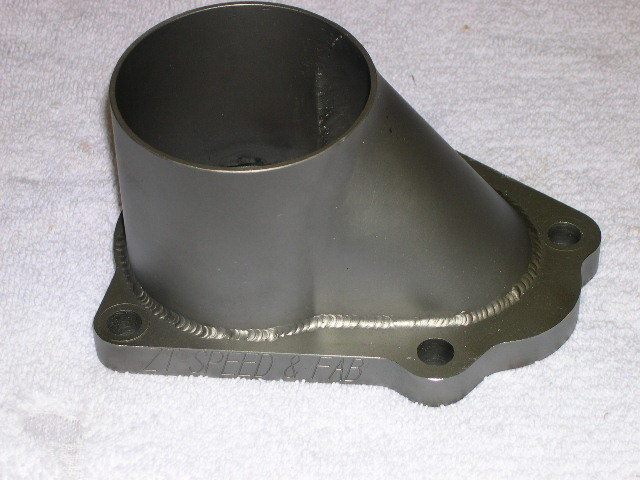

Definitely a challenge....
Attached Thumbnails
Spec Miata Turbo Fuel limited-ztsturboflange4.jpg
drgoodwrench is offline   Reply With Quote
Old 01-31-2009, 12:07 AM   #15
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

if u do it, i want one......
ill sell my new tt down pipe for a 3 incher anyday
urgaynknowit is offline   Reply With Quote
Old 01-31-2009, 12:29 AM   #16
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

I am 100% for the idea of a spec turbo miata class. Sadly, there are sooooo many problems with the idea I don't expect it to take off. Here's hoping though.
-Ryan
ThePass is offline   Reply With Quote
Old 01-31-2009, 04:57 AM   #17
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Some one say 3" DP.......count me in!
IcantDo55 is offline   Reply With Quote
Old 01-31-2009, 11:42 AM   #18
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default

Appreciate the encouragement, we'll see what can be done!
drgoodwrench is offline   Reply With Quote
Old 01-31-2009, 12:39 PM   #19
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Another +1 for an intake restrictor, not a fuel restrictor. Who wants to swap out fuel injectors every time before a race? Recipe for a fuel leak. Besides, there will be variances in the actual flow on an individual basis. Plus who knows if you get a dirty injector? What if the other team savataged their injectors before handing them in? So what if they people got money they can afford to keep a few spares and risk running lean?

Anyway, I think a restrictor would be easier to enforce.
patsmx5 is offline   Reply With Quote
Old 01-31-2009, 01:59 PM   #20
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Hmmm. Aleast my brother's roomate got a greddy car. I'm out on this one. I already spent too much to change now. Why not just use stock greddy kits, stock 1.8l injectors and run 6 psi.
Your fuel will be safe, everybody is the same, and Have the boost controller under the hood, with tech making sure the cars are at 6psi.

Last edited by Toddcod; 01-31-2009 at 06:12 PM.
Toddcod is offline   Reply With Quote
