Default 94 BEGI s4, 2860rs, MSPNP, 10+psi

Here is what happened today. Went to a shop to get dyno'd, see where I was at, make sure it was safe and see if I could get a little more.

BEGI installed the S4 system with the 2860rs, internal wg, MSPNP, ebc, 2 1/2" enthuza, 550 rx7 injectors.

At BEGI they ran it on spring only and using narrowband. Got 217 whp at 10psi, 106 degree weather and with a little boost creep. Full boost was available at 4000 rpm.

NOW: EBC made a big difference in spool Full boost at 3400-3500rpm. Boost is overshooting some around 4-5K rpms but settles back to 10. Might be an issue with the ebc. I'm going to check it out.

Anyway, drum roll please...

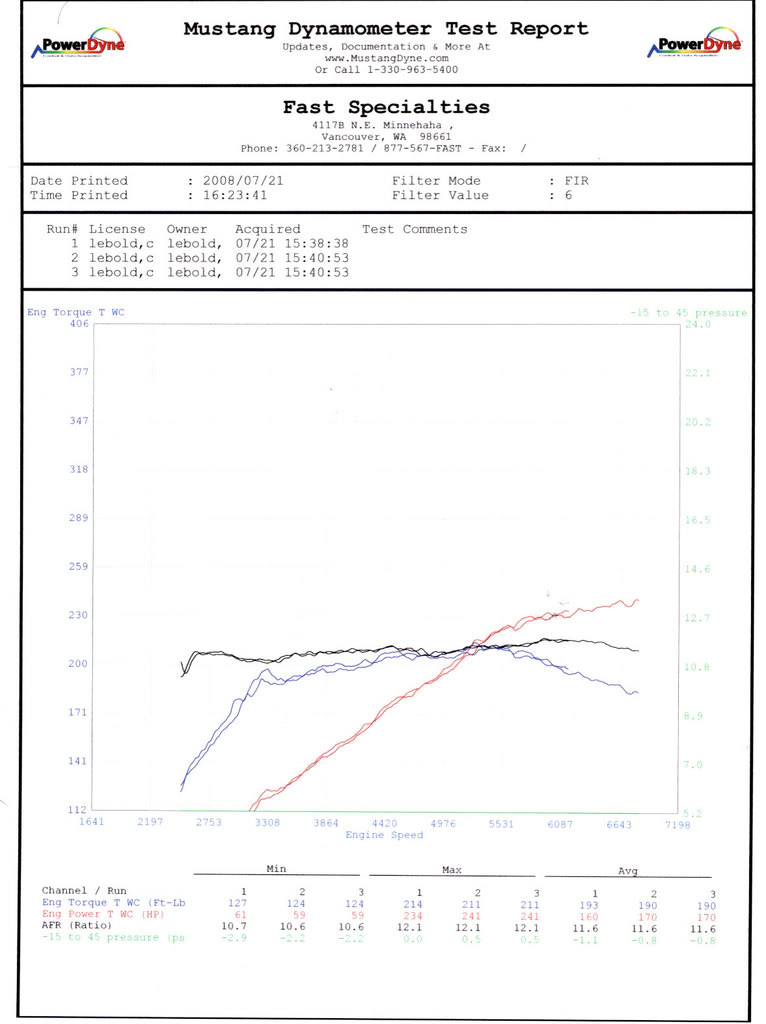

241 rwhp and 211 lbs of torque on a Mustang dyno! I'm a happy boy at just over 10psi. That's pretty nice power at a reasonable PSI on a daily driver. The dyno guy lifted very early on the 1st run to see where he was at. Dug a little deeper the 2nd. Ran it to 6900 rpm the final run. Each run was very consistent. I was getting just a little rich at the top end but that's what I had in my AFR tables just to be on the safe side.

Name:  mustangdyno.jpg
Views: 13
Size:  73.9 KB

When I figure out the overboost issue I'll crank it up a couple more psi!

Now if I could just fix my idle bounce.
cueball1 is offline   Reply With Quote
Old 07-21-2008, 11:39 PM   #2
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

that's really good on a mustang at that psi. Did they tune both spark and fuel?
johndoe is offline   Reply With Quote
Old 07-21-2008, 11:50 PM   #3
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

John Doe,

They didn't do squat! These were the baselines they put down for me! They tried to up the boost but it was getting some weirdness from the EBC. Overboosting and then settling back to 10psi. I said 10+ psi since we don't know exactly where it was. When we got the numbers from the baseline and everything looked safe, the tuner and I looked at the maps and said "the hell with it. It's about as good as it gets right now." The only changes we made was a little less richening at the top end but we didn't do any more full run pulls. All it cost me was the base price hookup and baseline runs. No tuning time.

When I picked the car up from BEGI it wasn't doing the overboost thing. I've been working on the suspension, washerbottle and some other stuff that's all right around the EBC. I don't know if I have a wiring issue now - cut, grounded wire, etc. - or if maybe the sending lines have gotten pinched. Gotta track it down.

Like I said, I'm a happy boy with those #'s on a mustang.
cueball1 is offline   Reply With Quote
Old 07-22-2008, 12:06 AM   #4
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

And I'll say I'm happy to be starting with some of your MSQ.
johndoe is offline   Reply With Quote
Old 07-22-2008, 12:09 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by cueball1 View Post
Here is what happened today. Went to a shop to get dyno'd, see where I was at, make sure it was safe and see if I could get a little more.

BEGI installed the S4 system with the 2860rs, internal wg, MSPNP, ebc, 2 1/2" enthuza, 550 rx7 injectors.

At BEGI they ran it on spring only and using narrowband. Got 217 whp at 10psi, 106 degree weather and with a little boost creep. Full boost was available at 4000 rpm.

NOW: EBC made a big difference in spool Full boost at 3400-3500rpm. Boost is overshooting some around 4-5K rpms but settles back to 10. Might be an issue with the ebc. I'm going to check it out.

Anyway, drum roll please...

241 rwhp and 211 lbs of torque on a Mustang dyno! I'm a happy boy at just over 10psi. That's pretty nice power at a reasonable PSI on a daily driver. The dyno guy lifted very early on the 1st run to see where he was at. Dug a little deeper the 2nd. Ran it to 6900 rpm the final run. Each run was very consistent. I was getting just a little rich at the top end but that's what I had in my AFR tables just to be on the safe side.



When I figure out the overboost issue I'll crank it up a couple more psi!

Now if I could just fix my idle bounce.
read it wrong.

I hope mine makes similar #'s. It should with the 3" exhuast, 99 head, and slight overbore.

Congrats. I'd raise boost just a hair to put it right at 250whp and leave it there forever.

Last edited by hustler; 07-22-2008 at 12:21 AM.
hustler is offline   Reply With Quote
Old 07-22-2008, 12:48 AM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Hustler,

With everything you have in your motor you should make another 100hp! If you only make 250 something is wrong. You've got bigger exhaust, pistons, rods, better head, etc. Your's should be very safe to what, 18 psi?

Mines a stock 94 motor and I have to say I'm extremely comfortable with those numbers on it. Once the EBC issue gets worked out and I get the Knocksense in I'll add the extra psi or two. The torque curve is a thing of beauty just the way it is! Really appreciate that in my daily driving.

Now I've got to fab a splitter/ undertray. 1st track day is next Tuesday. Another a week after that. Yee Haw!
cueball1 is offline   Reply With Quote
Old 07-22-2008, 01:42 AM   #7
Senior Member
iTrader: (2)

Join Date: Apr 2008
Location: Tallahassee, FL
Posts: 1,378
Total Cats: 0
Default

Nice numbers!

God I need to install my turbo.
naarleven is offline   Reply With Quote
Old 07-22-2008, 02:29 AM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That looks great man. I hope to do well with my new turbo, ended up buying a nice new one with a warranty. (Center section only) A T3 60 trim, shooting for 300 rwhp. Once you get the EBC issues worked out ( I have issues as well) it should be a beast.
cjernigan is offline   Reply With Quote
Old 07-22-2008, 02:53 AM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

that looks good, with a very useable tq curve. are you sure the boost creep is the ebc and not a mechanical issue....i would think its from turbo being un-ported with a small wg flapper, but thats based completely on past subaru experiences....congrats, regardless...
18psi is offline   Reply With Quote
Old 07-22-2008, 04:01 AM   #10
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

cjernigan, your avatar pic, is it the northern lights?

Nice numbers!
thesnowboarder is offline   Reply With Quote
Old 07-22-2008, 05:31 AM   #11
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Congrats!! VERY nice numbers!! I'd be happy with that for sure on a stock longblock!!!
elesjuan is offline   Reply With Quote
Old 07-22-2008, 08:33 AM   #12
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Quote:
Originally Posted by 18psi View Post
that looks good, with a very useable tq curve. are you sure the boost creep is the ebc and not a mechanical issue....i would think its from turbo being un-ported with a small wg flapper, but thats based completely on past subaru experiences....congrats, regardless...
begi does port the wastegate
johndoe is offline   Reply With Quote
Old 07-22-2008, 08:41 AM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by thesnowboarder View Post
cjernigan, your avatar pic, is it the northern lights?

Nice numbers!
Yes indeed. Random picture from google though.
cjernigan is offline   Reply With Quote
Old 07-22-2008, 09:57 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by cueball1 View Post
John Doe,

They didn't do squat! These were the baselines they put down for me! ...I said 10+ psi since we don't know exactly where it was.

it's why we log our pulls
Braineack is offline   Reply With Quote
Old 07-22-2008, 10:09 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default



so in this case it would be equally accurate to say "5+ psi"?
m2cupcar is offline   Reply With Quote
Old 07-22-2008, 12:38 PM   #16
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

OK. I've gone over the logs. Also read up on EBC in the Ms manual. What was happening was boost overshoot. DIY talks about this in the manual. As you can see by the torque curve, the car really likes it!

When full boost would come on it would overshoot to 12.5 psi. This settles back down to 10psi by 5500 rpms. Essentially it would run 12.5 psi from 3600 to 4000rpms and a gradual taper back to 10psi by 5500. Explains the W I D E and flat torque curve. ( at least to my newb way of thinking. )

At the top end it's at 10psi so the hp numbers are accurate. You can tune overshoot out on megasquirt, but I'm not sure I want to! As the chart shows, the car really likes it in the mid range. This car really pulls hard mid range which is where I'm using it since it's a dd car. Any opinions? The 12.5psi overboost bad idea?

Last edited by cueball1; 07-22-2008 at 12:53 PM.
cueball1 is offline   Reply With Quote
Old 07-22-2008, 12:40 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

then you made 241rwhp at 10psi

you simply need to tune your duty cycle targets table....
Braineack is offline   Reply With Quote
Old 07-22-2008, 12:55 PM   #18
Elite Member
Thread Starter
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Do I need to or is the overshoot to 12.5 a good thing in beefing up the mid range? Don't want to damage anything if it's not safe but that midrange power is kinda nice.

Any yes, BEGI does port the wg.
cueball1 is offline   Reply With Quote
Old 07-22-2008, 12:57 PM   #19
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

we have lower compression pistons than other years I believe so you'd probably be safe with even a little more. Why not tune it for 12.5 all the way to redline?
johndoe is offline   Reply With Quote
Old 07-22-2008, 01:11 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

post your boost plot on your log....doesn't look bad to me...but if 12.5psi was held to redline.....
