Default '96 1.8, China 2870, FM log mani, 9psi

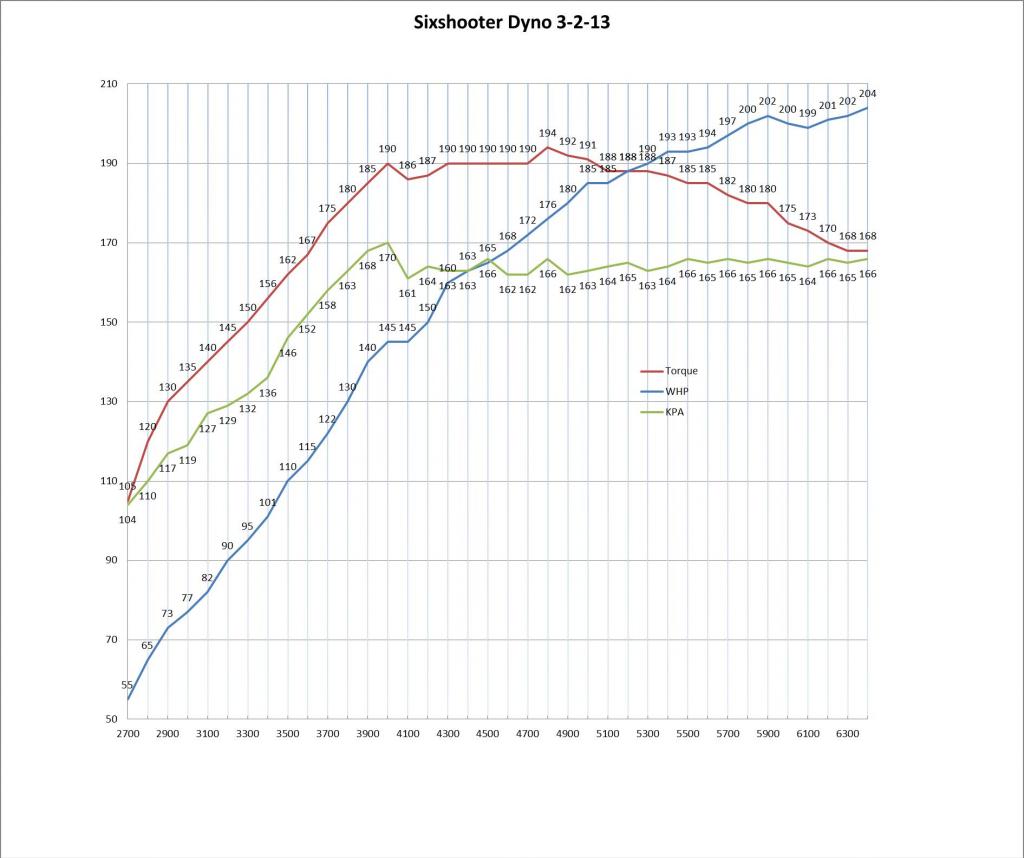

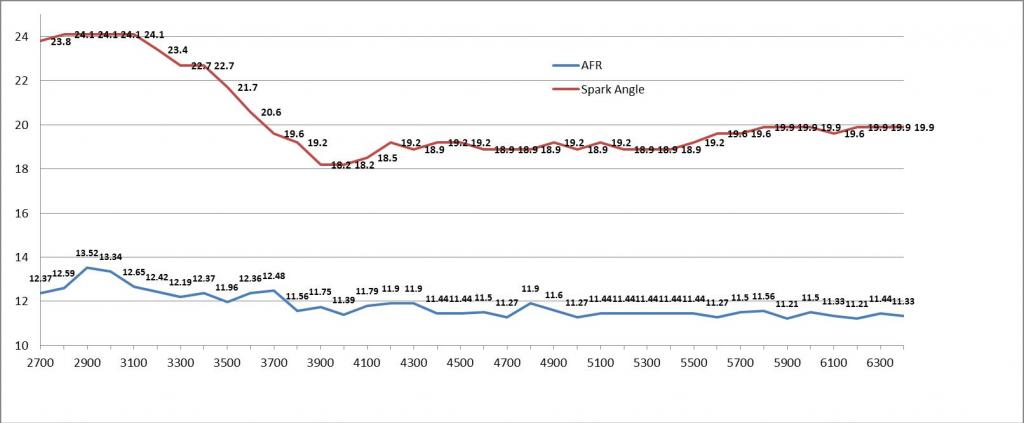

'96 1.8, China 2870, FM log mani, 9psi, RX7 460cc, ebay intercooler, sea level, 62*F, 3inch exhaust turbo back, EBC, stock 135k mile engine, stock coils. Dynojet, dyno operator lifted early because of optimistic stock tach.



Attached Thumbnails
'96 1.8, China 2870, FM log mani, 9psi-sixdyno2_zpsdc315d50.jpg   '96 1.8, China 2870, FM log mani, 9psi-afrspark2_zpsb60a0dbd.jpg
sixshooter is offline   Reply With Quote
Old 03-04-2013, 01:58 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Looks good. 'Grats.
Just fyi your motor can easily take more boost even with 135k miles, but you probably already know that. I'm seeing fairly aggressive spark but very mild boost. I think more boost and less spark would actually be easier on the engine.
18psi is offline   Reply With Quote
Old 03-04-2013, 02:09 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

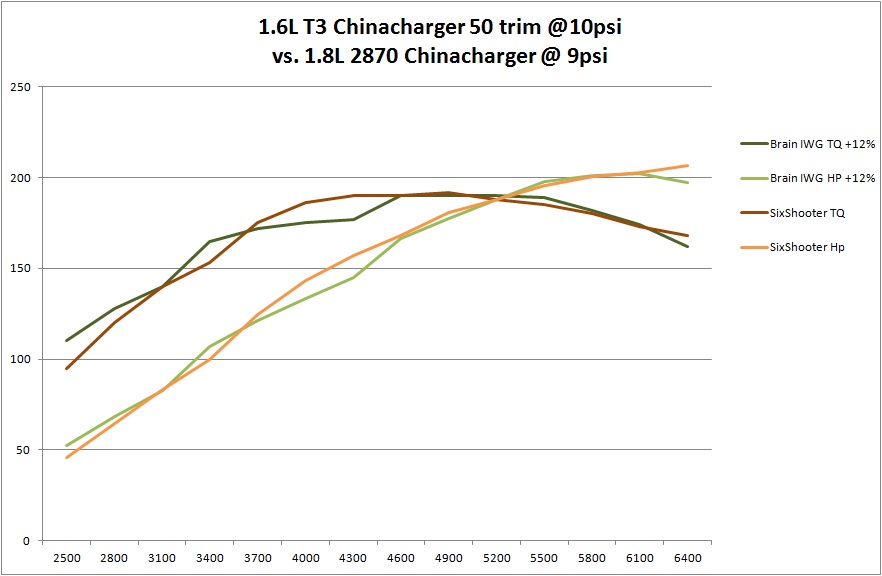

I bet I know exactly how your car feels:






* I dynoed on a dyno dyanmics and it reads 12% lower than all my dynojet plots. hense the CF.
Attached Thumbnails
'96 1.8, China 2870, FM log mani, 9psi-china1.6lvschina18l.jpg
Braineack is offline   Reply With Quote
Old 03-04-2013, 02:18 PM   #4
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Quote:
Originally Posted by Braineack View Post
I bet I know exactly how your car feels:
Wow! That is eerily close.

Do you also think my timing is too aggressive (19-20 at 9psi)?
sixshooter is offline   Reply With Quote
Old 03-04-2013, 02:27 PM   #5
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Attached Thumbnails

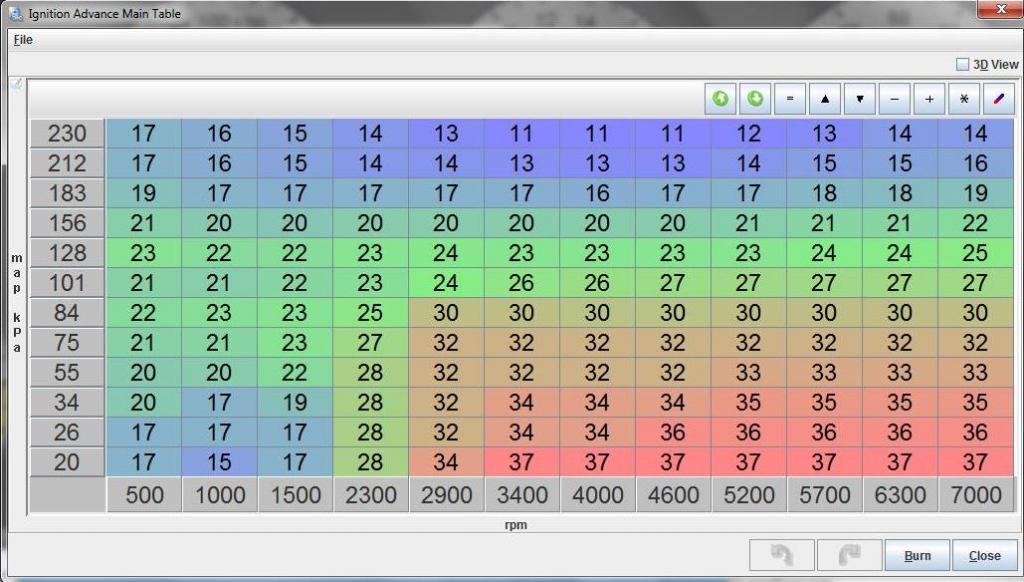

'96 1.8, China 2870, FM log mani, 9psi-sparktable_zpsf9ff6d35.jpg
sixshooter is offline   Reply With Quote
Old 03-04-2013, 02:27 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

I'm running ~18-19 at 10psi. i run 15-16 at 15psi.
Braineack is offline   Reply With Quote
Old 03-04-2013, 02:32 PM   #7
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

I am pretty sure I am running more aggressive timing than that on my car and I have seen others who have even more aggressive timing. Especially under 100kpa. Not that you are ever in that region on the track...
Ryan_G is online now   Reply With Quote
Old 03-04-2013, 02:33 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

that's a pretty base timing map; it's safe is what's nice.
Braineack is offline   Reply With Quote
Old 03-04-2013, 03:55 PM   #9
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

I don't want it to be risky for detonation if everything gets overheated at the track. Heat soak sets in to everything when the asphalt is 140+degrees and you are running as hard as you can in boost for 20-40 minutes straight. Everything was cooking and breaking at 8psi last summer.
sixshooter is offline   Reply With Quote
Old 03-04-2013, 04:00 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Didn't know you track the car. Keep the boost down in that case. Perhaps my term "fairly aggressive" is a bit stretched, but I don't think thats a "base" map. Just my .02

*edit: then again, we have the worst pump gas here in CA, so maybe its fine on your guys' 93 nectar
18psi is offline   Reply With Quote
