Artech 1.6 at 10 psi - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 07-18-2012, 09:07 PM   #1
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default Artech 1.6 at 10 psi

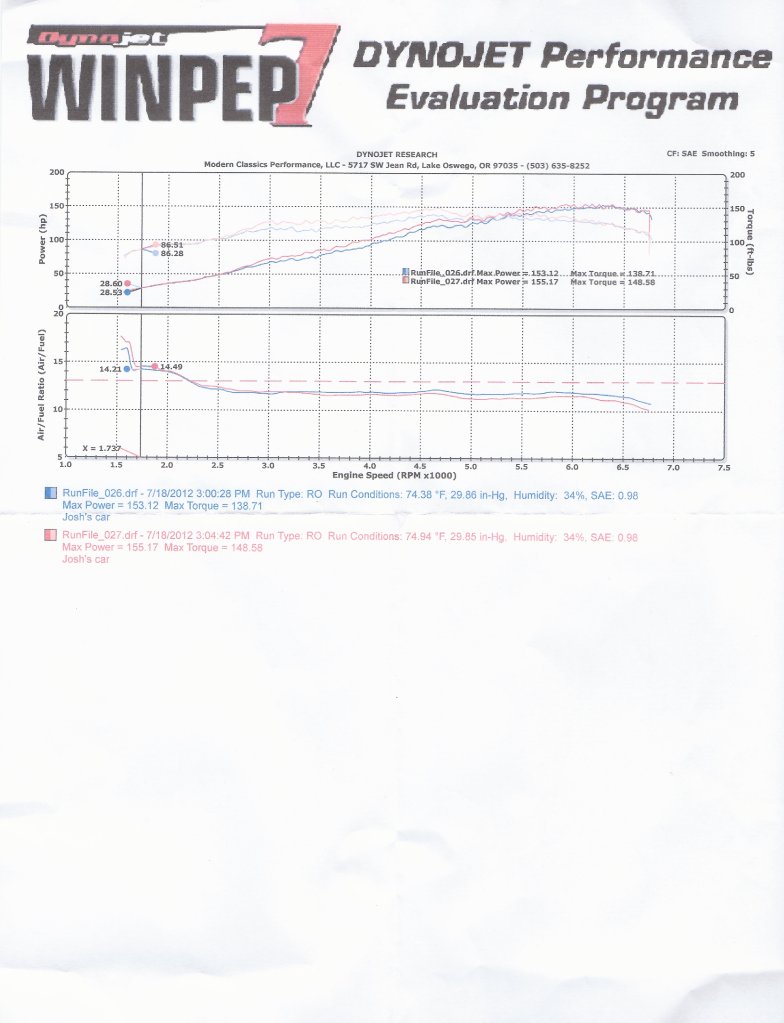

After helping a friend with some MS tuning on the dyno, apparently the "boss" was gone for the day, so I got two free runs on the dyno. Only changed boost, from 9psi to 10.5psi ish. Dyno and data logs below. I'm not terribly happy, but whatevers, I'll work on it.

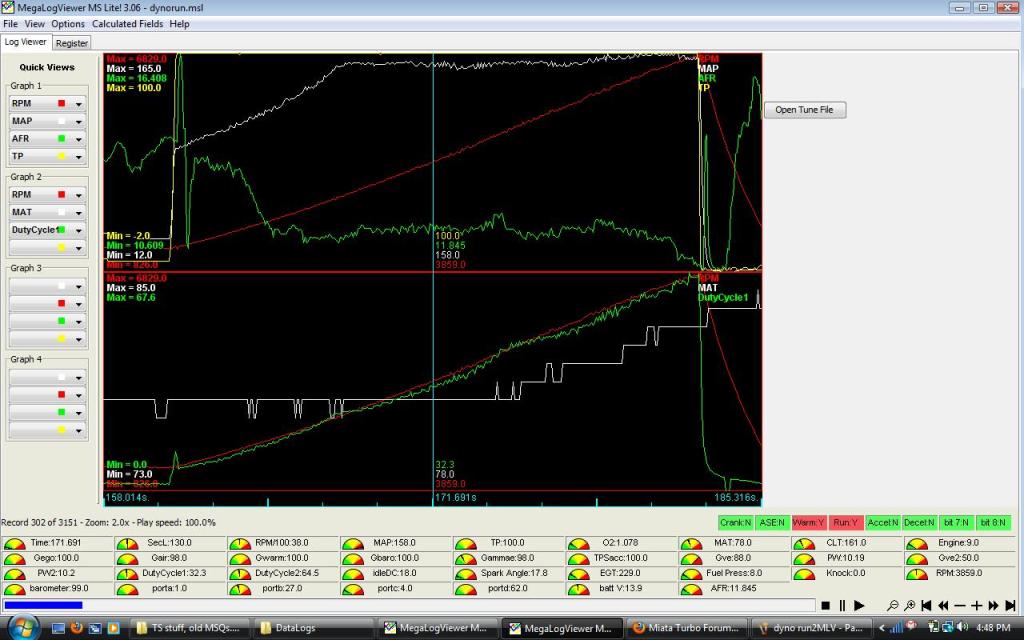

First, 165kpa log datalog:

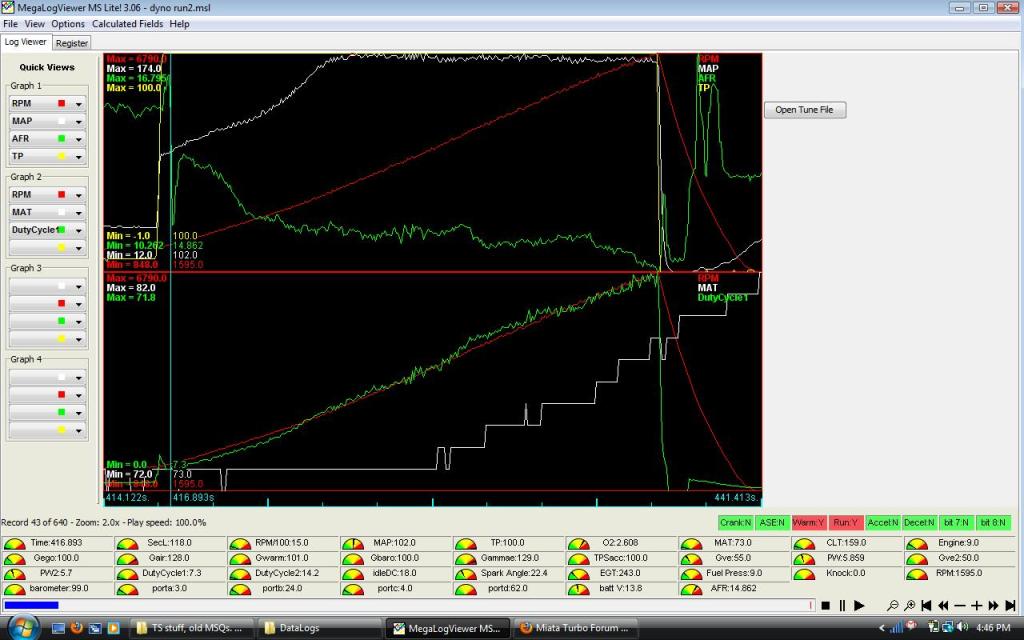

2nd, 174kpa run:


Hmm, setup is pretty much in my signature, 3" downpipe choked down to a 2.5" cat and 2.5 crush bent exhaust, unknown health on the engine, hopefully the compression is higher than my boost.

Comments welcome, not sure where to go from here...the shop did name their dyno "dream crusher".
Attached Thumbnails
Artech 1.6 at 10 psi-scan0001.jpg   Artech 1.6 at 10 psi-dynorunmlv.jpg   Artech 1.6 at 10 psi-dynorun2mlv.jpg
curly is offline   Reply With Quote
Old 07-18-2012, 09:11 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

ouch...
18psi is offline   Reply With Quote
Old 07-18-2012, 09:14 PM   #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

you look like you're running *decent* amount of timing...
is your timing synchronized correctly?
soviet is offline   Reply With Quote
Old 07-18-2012, 09:20 PM   #4
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Wow. Not what I expected. Is this a Greddy turbo?
mgeoffriau is offline   Reply With Quote
Old 07-18-2012, 09:24 PM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

SR20 T25.

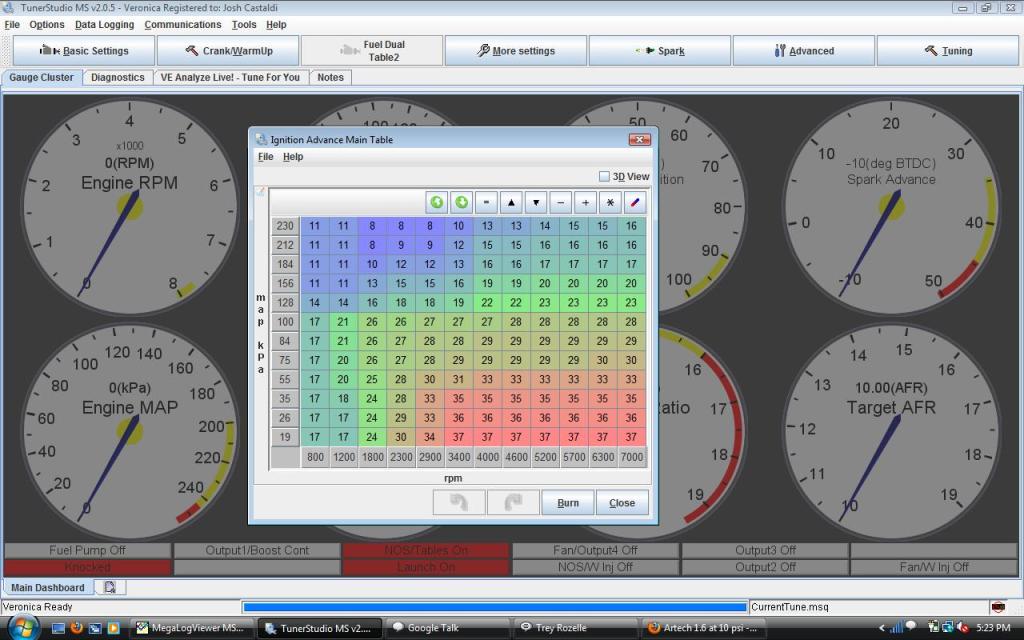

I should double check both the timing belt and the timing light thingy, I just redid them and they were pretty spot on. Doesn't hurt to check. Timing map:

Attached Thumbnails
Artech 1.6 at 10 psi-sparkmap.jpg
curly is offline   Reply With Quote
Old 07-18-2012, 09:35 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

timing map looks good
18psi is offline   Reply With Quote
Old 07-18-2012, 09:44 PM   #7
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I don't like this dyno.
curly is offline   Reply With Quote
Old 07-18-2012, 10:14 PM   #8
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
timing map looks good
Explain.

That is some limp dick weaksauce timing for 10psi.

It still doesn't explain the 50hp gap between dyno'd hp and what it should be at.
Faeflora is offline   Reply With Quote
Old 07-18-2012, 11:15 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Did the guy running the dyno have the right correction values in? If the engine is healthy, the exhaust is 3", then you should have made 50-75whp more.
hustler is offline   Reply With Quote
Old 07-18-2012, 11:20 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Edit:
I changed my mind, don't load that table. Did you hit MBT?
Attached Files
File Type: table TryThisOldMan.table (2.7 KB, 265 views)
hustler is offline   Reply With Quote
Old 07-18-2012, 11:41 PM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by hustler View Post
Edit:
I changed my mind, don't load that table. Did you hit MBT?
Come on. Unless he shaved his head a foot he is like 6* away from MBT
Faeflora is offline   Reply With Quote
Old 07-19-2012, 01:07 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by Faeflora View Post
Explain.

That is some limp dick weaksauce timing for 10psi.

It still doesn't explain the 50hp gap between dyno'd hp and what it should be at.
Not sure about how good your gayz gas is, but over here besides e85 we only have CA 91 camel ****. On said camel **** 14-16* is about the max I'd run @ peak tapering up to about 18-19* at redline depending on turbo and setup.

More timing and the engine pulls a Faeflora

If you have 93 and its good quality, then nevermind
18psi is offline   Reply With Quote
Old 07-19-2012, 02:16 AM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
Not sure about how good your gayz gas is, but over here besides e85 we only have CA 91 camel ****. On said camel **** 14-16* is about the max I'd run @ peak tapering up to about 18-19* at redline depending on turbo and setup.

More timing and the engine pulls a Faeflora

If you have 93 and its good quality, then nevermind
Ah, wow, ok. That explains your subaru timing map too.

I have no experience tuning CA 91.
Faeflora is offline   Reply With Quote
Old 07-19-2012, 02:36 AM   #14
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by curly View Post
dyno "dream crusher".
update your sig? I am only 157....
sturovo is offline   Reply With Quote
Old 07-19-2012, 09:14 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

Quote:
Originally Posted by mgeoffriau View Post
Wow. Not what I expected. Is this a Greddy turbo?
exactly what I expected considering his exhaust setup.
Braineack is online now   Reply With Quote
Old 07-19-2012, 09:32 AM   #16
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yeah, that non hi-flow cat and 2.5 isnt helping.

I'm running 93 octane all the time.

Hustler showed me his timing map and I split the difference between his and diy's ultra conservative base map. Should I go for something more aggressive? Playing with the timing with the NA car certainly showed what timing changes can do, it really liked 30*. I wanna be pretty safe though.
curly is offline   Reply With Quote
Old 07-19-2012, 09:33 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

will adding timing decrease your backpressure?
Braineack is online now   Reply With Quote
Old 07-19-2012, 09:35 AM   #18
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by hustler View Post
Did the guy running the dyno have the right correction values in? If the engine is healthy, the exhaust is 3", then you should have made 50-75whp more.
Not 3", see above.
curly is offline   Reply With Quote
Old 07-19-2012, 09:37 AM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

You need to listen to teh Brainz and increase VE instead of ramping up timing on a constipated setup. 3" all the way would be a good start. Then you can bump up timing another 6* like Fae is suggesting without much ill effect

Should pick up a large chunk of power
18psi is offline   Reply With Quote
Old 07-19-2012, 09:43 AM   #20
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I'll keep that in mind, i also know how much choked. Exhaust adds heat, I wonder if I should be looking at my cat for cloggage. It's pretty old.
curly is offline   Reply With Quote
