Default 99 T28 Churbo 16psi Dyno Run

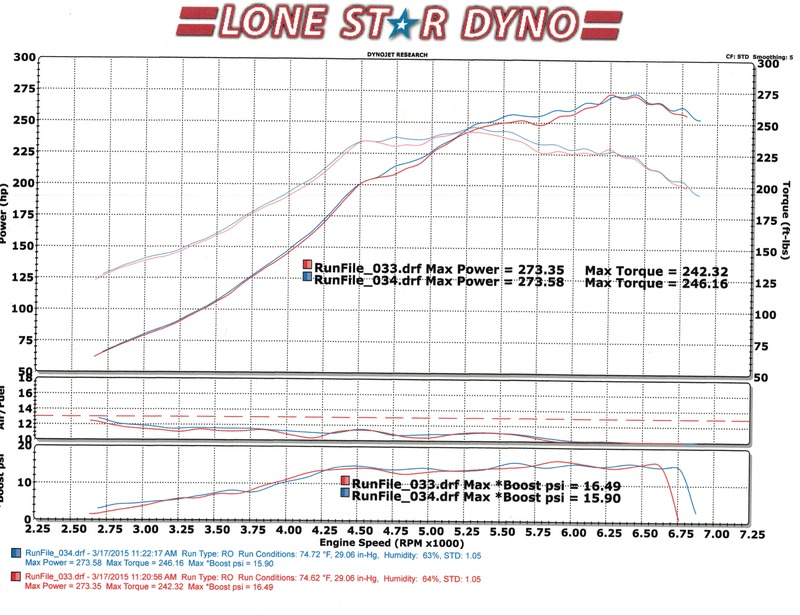

I finally got my car tuned by Stephanie at BEGi after my engine rebuild a year and a half ago. I am running the T28 Churbo at 16psi. Engine got Supertech 84mm pistons, H Tuned rods, BE billet oil pump, LS9 Coils, Artech 3" downpipe and Enthuza 3" full exhaust. Here's my dyno plot.







Link to Youtube;
Attached Thumbnails

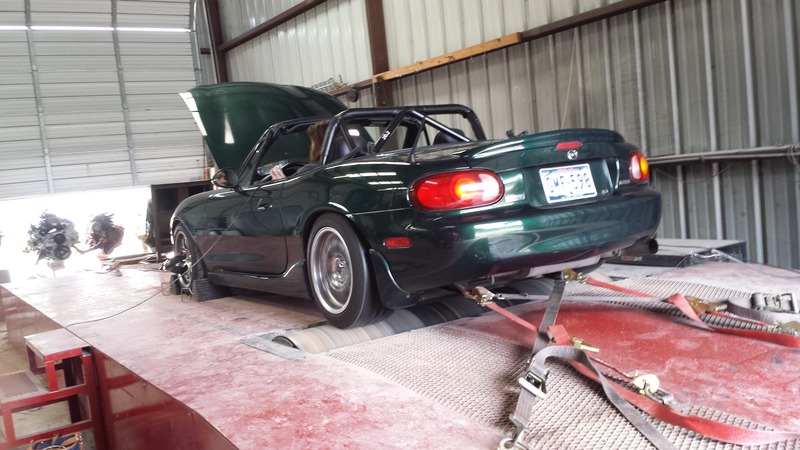

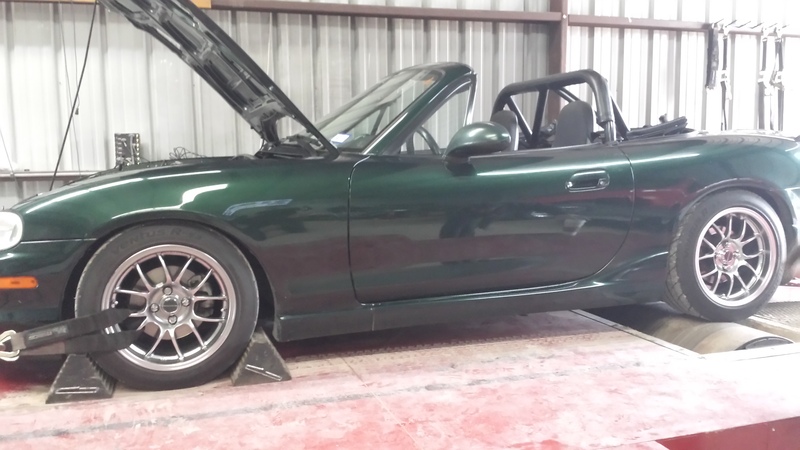

99 T28 Churbo 16psi Dyno Run-cci03182015_zpsc2onxpai.jpg   99 T28 Churbo 16psi Dyno Run-2015-03-17%252010.41.19_zpsghwpynp5.jpg   99 T28 Churbo 16psi Dyno Run-2015-03-17%252009.42.34_zpssz6eb9zk.jpg
lsc224 is offline   Reply With Quote
Old 03-18-2015, 10:23 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Nice #'s . is this BEGI's churbo?
240_to_miata is offline   Reply With Quote
Old 03-18-2015, 11:04 PM   #3
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by 240_to_miata View Post
Nice #'s . is this BEGI's churbo?
Thanks, yes it's BEGi's T28 Churbo. http://www.bellengineering.net/produ...roducts_id=404

Last edited by lsc224; 03-19-2015 at 12:44 AM.
lsc224 is offline   Reply With Quote
Old 03-19-2015, 12:28 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Nice numbers! Nice car too. Reminds me of mine, except its driveable right now!
thirdgen is offline   Reply With Quote
Old 03-19-2015, 12:45 AM   #5
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
Nice numbers! Nice car too. Reminds me of mine, except its driveable right now!
Thanks. My car was down for about a year. Car is now so fun to drive!
lsc224 is offline   Reply With Quote
Old 03-19-2015, 01:21 AM   #6
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

My car has had a leaky water pump since last year this time. It's time to get her back on the road.
thirdgen is offline   Reply With Quote
Old 03-19-2015, 03:09 AM   #7
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 30
Default

Did you pay extra to have Stephanie stand behind the rear bumper to check for detonation?
SchmoozerJoe is offline   Reply With Quote
Old 03-19-2015, 10:05 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Good job op, solid numbers out of a churbo.
Quote:
Originally Posted by SchmoozerJoe View Post
Did you pay extra to have Stephanie stand behind the rear bumper to check for detonation?
18psi is offline   Reply With Quote
Old 03-19-2015, 10:05 AM   #9
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by SchmoozerJoe View Post
Did you pay extra to have Stephanie stand behind the rear bumper to check for detonation?
She had somebody look in the rear for detonation.
lsc224 is offline   Reply With Quote
Old 03-19-2015, 10:06 AM   #10
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
My car has had a leaky water pump since last year this time. It's time to get her back on the road.
Water pump is such an easy fix after I've been thru. Yes it's time to get your car back on the road.
lsc224 is offline   Reply With Quote
Old 03-19-2015, 01:16 PM   #11
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by 18psi View Post
Good job op, solid numbers out of a churbo.


Thanks V!
lsc224 is offline   Reply With Quote
Old 03-19-2015, 05:30 PM   #12
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

I'm sure that's fun to drive. Looks like you have a little boost-creep. Are you running off WG?
If so, using boost control should help with spool and max torque at lower rpms.
stefanst is offline   Reply With Quote
Old 03-19-2015, 05:35 PM   #13
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by stefanst View Post
I'm sure that's fun to drive. Looks like you have a little boost-creep. Are you running off WG?
If so, using boost control should help with spool and max torque at lower rpms.
Stephanie did mention about boost creep. I am running internal WG with MBC. I may replace my MBC with something better or run EBC.
lsc224 is offline   Reply With Quote
Old 03-19-2015, 05:47 PM   #14
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,843
Total Cats: 271
Default

Looking good!
Girz0r is offline   Reply With Quote
Old 03-19-2015, 05:55 PM   #15
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Girz0r View Post
Looking good!
Thanks!
lsc224 is offline   Reply With Quote
Old 03-19-2015, 10:47 PM   #16
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

What gear was the dyno run done in? Since you have the 6 speed 5th is your 1:1 gear so that is what I would have expected you to use on the dyno. It looked like 4th perhaps even 3rd was used... your spool up doesn't look that bad, but it would have looked considerably better in 5th.

Very impressive!

Keith
Twodoor is offline   Reply With Quote
Old 03-19-2015, 11:02 PM   #17
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Twodoor View Post
What gear was the dyno run done in? Since you have the 6 speed 5th is your 1:1 gear so that is what I would have expected you to use on the dyno. It looked like 4th perhaps even 3rd was used... your spool up doesn't look that bad, but it would have looked considerably better in 5th.

Very impressive!

Keith
Thanks! That dyno run was on 3rd gear during initial pulls. Tuning was done on 4th gear.
lsc224 is offline   Reply With Quote
Old 12-02-2016, 01:42 PM   #18
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

So I have this GT2860RS turbo with 0.80 turbine sitting in my garage. Wondering is it worth swapping out with my Chinese 2871. I have a log manifold with a 3" Artech downpipe and a bottom end built 1.9L motor.

Any input would be appreciated. I've searched and I don't think anybody is running with this setup.
lsc224 is offline   Reply With Quote
Old 12-02-2016, 01:46 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Chinese 2871 for an authentic garrett gt2860rs?
yes, though ideally you'd want the .64 turbine
18psi is offline   Reply With Quote
Old 12-02-2016, 02:13 PM   #20
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by 18psi View Post
Chinese 2871 for an authentic garrett gt2860rs?
yes, though ideally you'd want the .64 turbine
Okay, thanks, sounds good. Yeah rather have a .64 turbine, but the 0.80 turbine is what I have.
