Default Begi S1 Dyno numbers

Tried posting on m.net but the file sizes were too big. Appears allowable file size is much larger here.

Anyways, I took the car to be dynoed and tuned, and found out that the stock clutch was slipping too much to do any consistent pulls. Attached are the dyno sheets from one of the pulls that the dyno operator said had the least amount of slippage.

While I shop for a new clutch (likely FM level 1 w/ 1.8 flywheel from autozone), I'd like to find out why my AFR is so rich under boost. I have the FMU neede valve turned pretty close to the lowest rate of rise. Don't know if it matters, but my base timing is 12 and Bipes is pulling 6 total. The spool also appears to be really slow, which I believe is because of the 2.25 exhaust? Or is the spool still bad even for my 2.25 exhaust?

Thanks for the help!
Attached Files

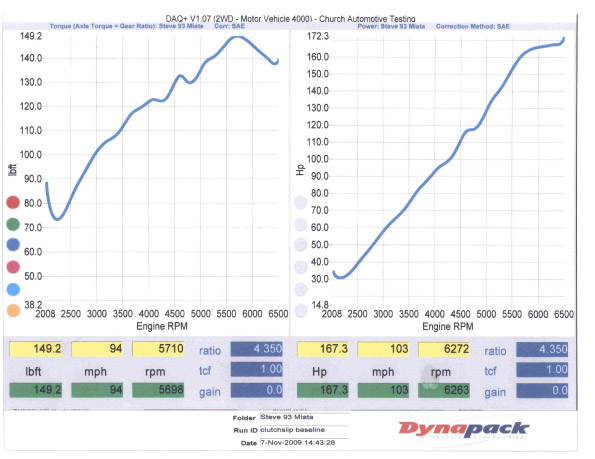

File Type: pdf Power numbers.PDF (256.8 KB, 186 views)

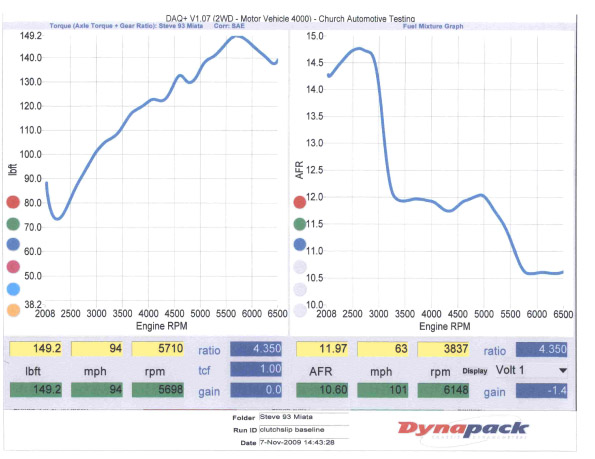

File Type: pdf AFR numbers.PDF (249.1 KB, 173 views)

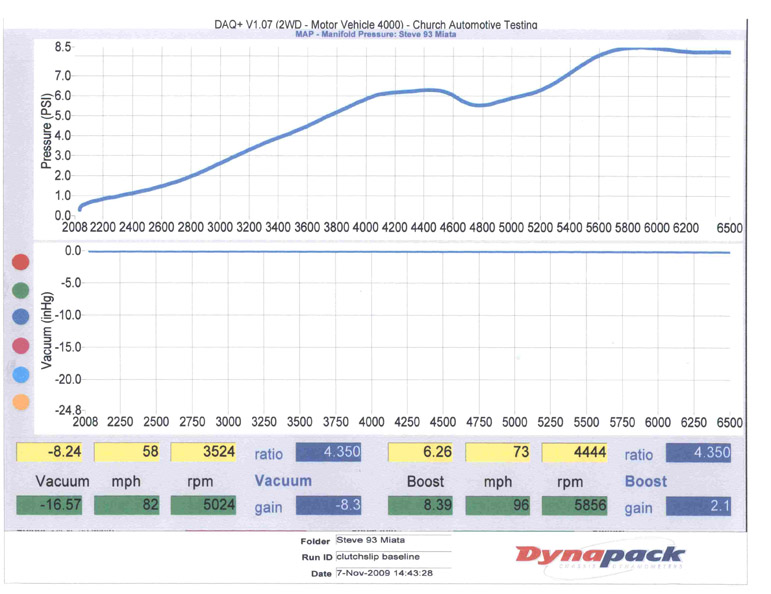

File Type: pdf Boost number.PDF (249.3 KB, 179 views)
cafemoto is offline   Reply With Quote
Old 11-09-2009, 03:17 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

gg
Attached Thumbnails
Begi S1 Dyno numbers-power-numbers.jpg   Begi S1 Dyno numbers-afr-numbers.jpg   Begi S1 Dyno numbers-boost-number.jpg
Braineack is offline   Reply With Quote
Old 11-09-2009, 03:50 PM   #3
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Your spool looks slow even for a 2.25" exhaust. My T3 spools faster than that with a cat and 2.25" exhaust. If your clutch is slipping then there won't be as much load which will keep the turbo from spooling.
TurboRoach is offline   Reply With Quote
Old 11-09-2009, 03:50 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

That's not terriby slow spool, not great though. Your low afr come from the begi afpr, don't forget to lower your base pressure, which should help, but lower it too much and you'll have issues transitioning into boost. You should be able to tune that out at your current pressure though. Much higher and you either run big rich or have a rough transition into boost.
curly is offline   Reply With Quote
Old 11-09-2009, 06:03 PM   #5
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Not to shabby for band aides
Gotpsi? is offline   Reply With Quote
Old 11-09-2009, 06:09 PM   #6
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Gotpsi? View Post
Not to shabby for band aides
My words exactly.
Laur3ns is offline   Reply With Quote
Old 11-09-2009, 06:14 PM   #7
Newb
Thread Starter

Join Date: Mar 2008
Location: So Cal
Posts: 12
Total Cats: 0
Default

thanks for posting that, brain.

curly, what do you mean by lowering my base pressure? you mean to adjuster the center screw on the afpr? it's currently set at around 50 at 0 boost. also, would inserting the small restrictor in the signal line help with the rich afr?
cafemoto is offline   Reply With Quote
Old 11-09-2009, 07:24 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I wouldn't mess with the restrictor just yet. Mainly because I never did, so I'm not sure how it will react. I suffered through a crappy boost transition for quite some time to get my target AFR at the track, but it wasn't my daily. Lean it out till when you floor it starting at 2000ishrpm it falls on it's face when entering boost (should be running very lean at that point, so don't stay there long!), then richen up just a hair till it stops, that'll be about perfect. It's what I did and it worked good. This is all with the center screw, I never had any luck adjusting the needle valve, didn't seem to do anything. When I first got rid of the boost transition issue, it was dipping into the low 10's above 5000rpms and had no power gain after that, leaning it out just a hair provided good boost transition and high 10's, which was good for more powah.
curly is offline   Reply With Quote
