Default A bit of a start, 1.8 gt2554

So I finally got my car properly tuned after a year of running the MS on it. I took the car to a local tuning shop called UMS Tuning and those guys are the ****. The car is much faster, but it definitely still needs some tweaking.

It is having some serious boost drop off, which is hopefully due to the low psi waste gate actuator! Because of this we didn't run much timing and I will definitely be making a trip back there soon. Thoughts?

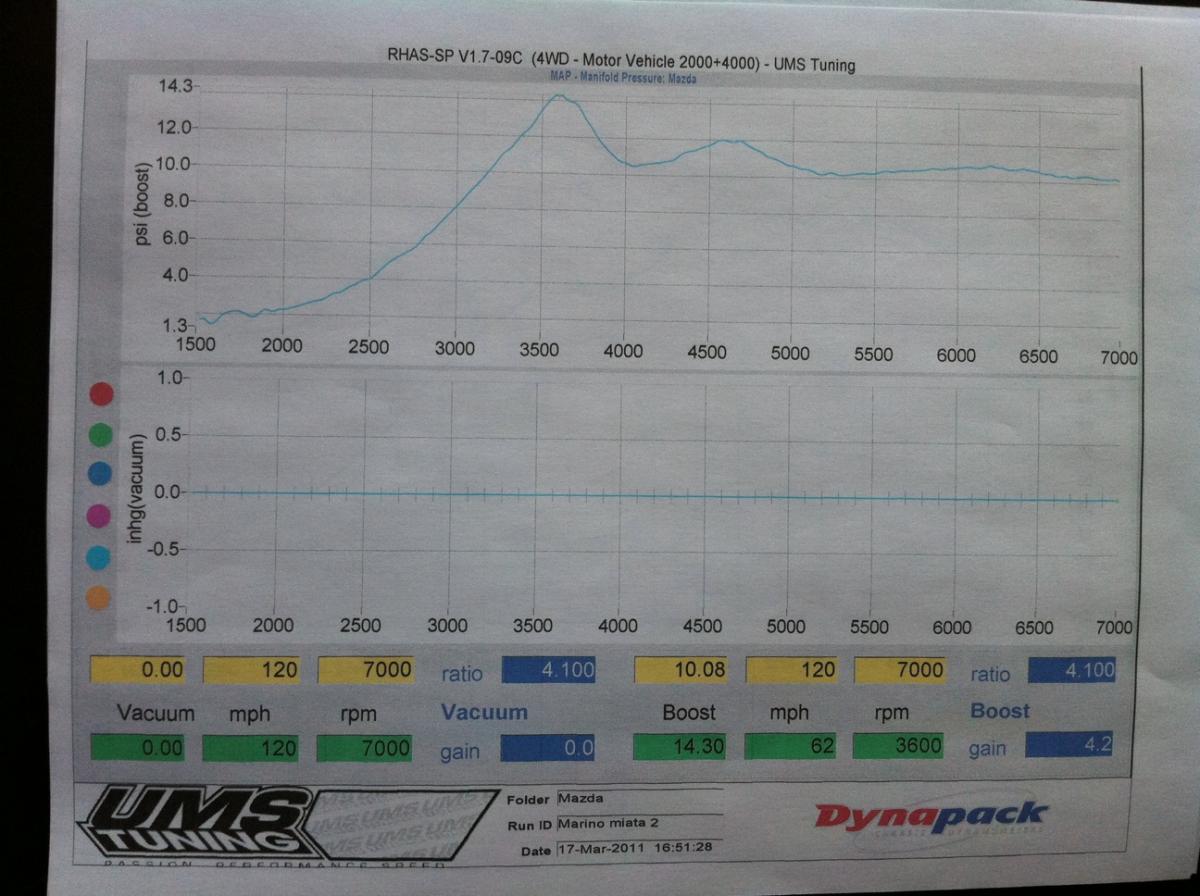

A bit of a start, 1.8 gt2554-photo-2.jpg

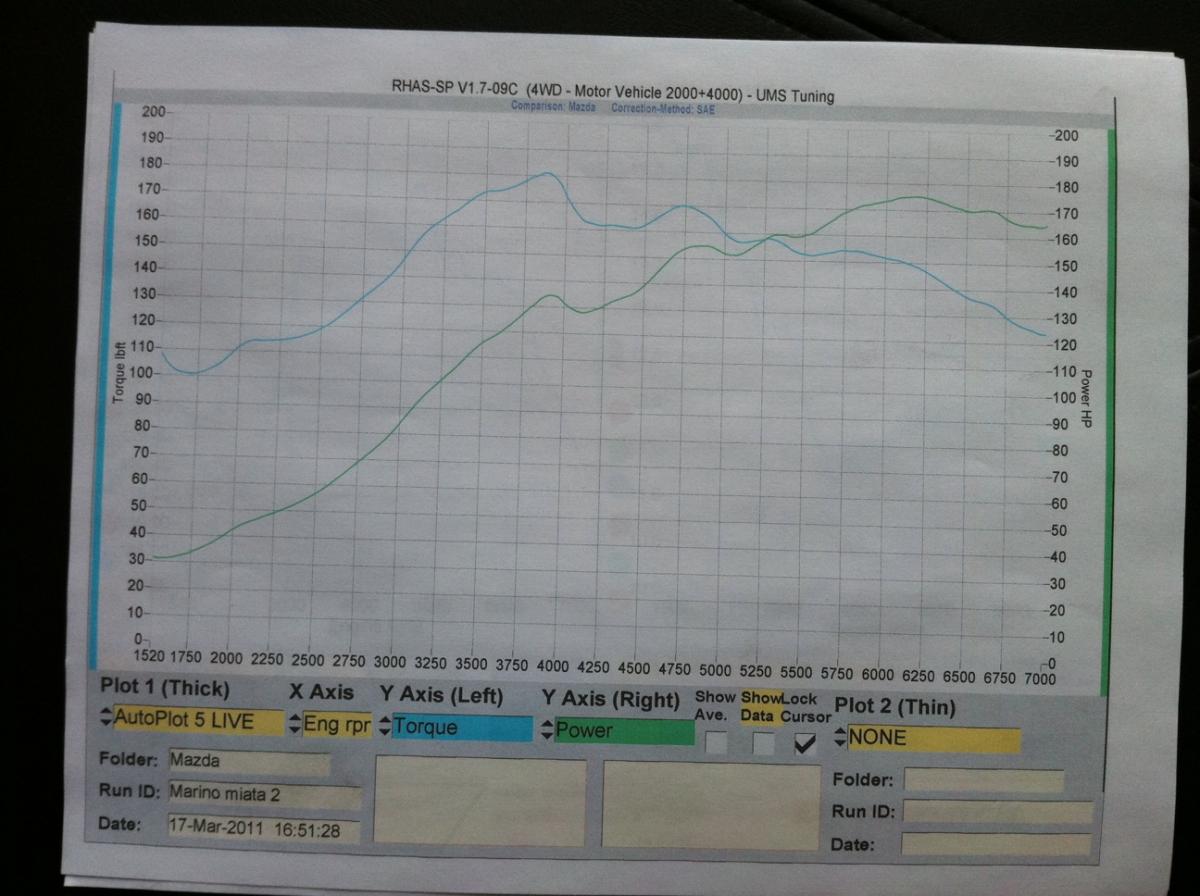

A bit of a start, 1.8 gt2554-photo.jpg


(link to same photos)
http://imgur.com/xpPNc&gyjG5
hellothere is offline   Reply With Quote
Old 03-18-2011, 11:42 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Congrats. I'd say it still has at least another 20hp in it easily, and fixing the boost issue/smoothing out everything should result in a much more pretty looking curve. Looks peaky as hell as is.
18psi is offline   Reply With Quote
Old 03-18-2011, 11:44 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,784
Default

boost isn't dropping off, wastegate is spiking
Braineack is offline   Reply With Quote
Old 03-18-2011, 11:48 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

is the wga adjustable?
18psi is offline   Reply With Quote
Old 03-18-2011, 11:56 AM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Post your spark map if you don't mind. You also need a 3inch exhaust to free up some more power.
shuiend is offline   Reply With Quote
Old 03-18-2011, 12:07 PM   #6
Newb
Thread Starter

Join Date: Aug 2008
Posts: 29
Total Cats: 0
Default

Yah I was just stoked that it didnt blow up ha. The actuator is a non adjustable, whatever came with the begi kit. Possibly a 6psi unit? The shop recommended going with a 10psi actuator.
hellothere is offline   Reply With Quote
Old 03-18-2011, 12:09 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

What all does your setup consist of (sorry can't see sigs if you have it listed there).
injector size?
if you have the injectors/fmic/other supporting mods for it, just slap an mbc on there and see if that will smooth it out. they're like 15 bux. if not then its new wga time.
18psi is offline   Reply With Quote
Old 03-18-2011, 01:06 PM   #8
Newb
Thread Starter

Join Date: Aug 2008
Posts: 29
Total Cats: 0
Default

My current setup is 1.8l, Gt2554, Flyin Miata IC, Megasquirt, 440s, Cat-less Enthuza 2.5', begi s downpipe and manifold. I actually have some fancy turbo xs dual adjustable boost controller. This is the best boost that we could get with it. My goal is a smoother curve and to hit 200whp.

I'm going to try an 8psi actuator and hope that its strong enough to hold..

Heres my spark map:

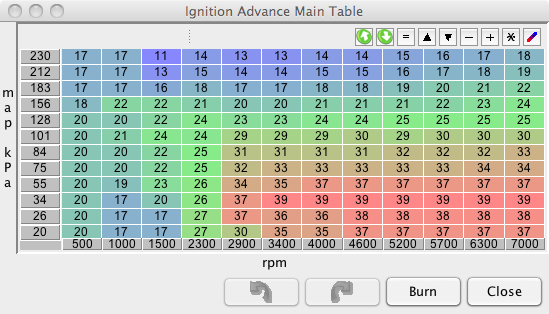

A bit of a start, 1.8 gt2554-175sparkmap.png

Do you guys think that a better flowing manifold and down pipe would make a huge difference on this setup/turbo?
hellothere is offline   Reply With Quote
Old 03-18-2011, 01:22 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

From what I've read/heard TurboXs is a "bleed type" mbc and is junk. No personal experience with one, but I'd try a known good ball/spring one like a hallman es or the nxs ones many of us are using.

as for gains from less restrictive exhaust: yes the gains should be pretty decent.

I'd focus on your boost issue for now, and try to get more power out of the setup as is. You should be well in the 200-220whp range even with the 2.5 exhaust

*edit: doens't look like your spark map is too conservative either
18psi is offline   Reply With Quote
Old 03-18-2011, 02:12 PM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default



That was my SR20 t25 which is very close to a gt2554 on a begi s1 kit at 9psi. Running Megasquirt with 440cc injectors on a stock 94 block. The only big difference between what you have and I had are the different downpipes and I have a 3" Enthuza exhaust. Below is my final tuned spark map.

shuiend is offline   Reply With Quote
Old 03-20-2011, 05:21 AM   #11
Newb
Thread Starter

Join Date: Aug 2008
Posts: 29
Total Cats: 0
Default

Yeah the turbo xs one that I have is the bleed type, and it is my first experience with one. I can give a different type of boost controller a try, I had better luck with a 5$ home depot brass special ha. (Although external wastegate setup on completely different car). It wouldn't hurt to give a halman or something a try. Surprisingly the dude who tuned it was stoked on the turboxs unit though.

Yeah the spark map on mine doesn't seem very conservative at all. I'll have to get the boost issue sorted and then go back to the dyno.

Shuiend, that looks like some nice power for that setup. Thanks for posting your spark map! What kind of dyno is that on?

Would a 10psi waste gate actuator be proper for this setup?
hellothere is offline   Reply With Quote
Old 03-20-2011, 06:48 AM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Feed that turbo a LOT of timing up top. The compressor is tapped out by ~5500 or so so you can run a huge amount of timing and prop the torque curve up with it.

My '99 GT2554R spark map - please don't just copy it, but look at the numbers and see where you can turn it up a bit on your next trip to the dyno.

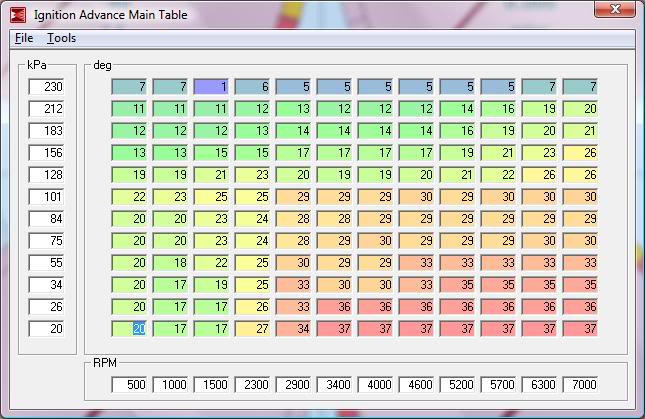

Name:  sparkmapFFTEC.jpg
Views: 40
Size:  64.1 KB

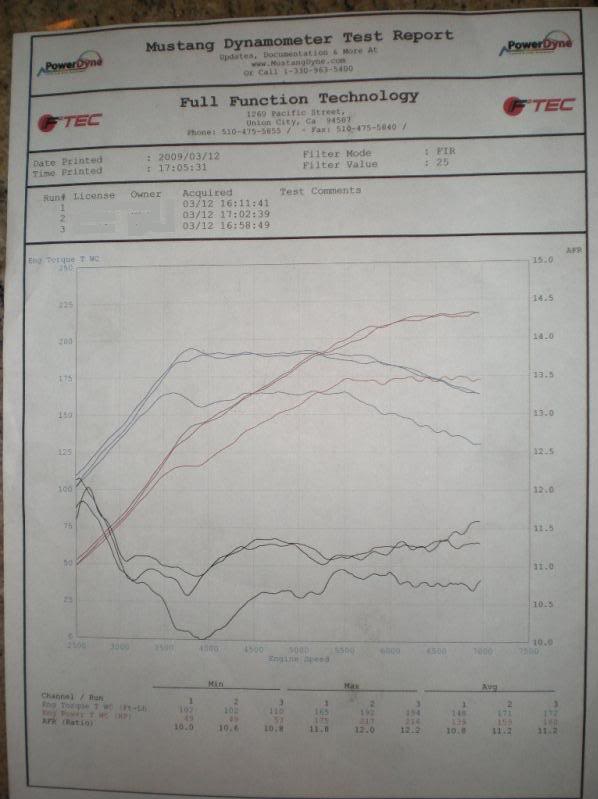

Name:  DSCN1328.jpg
Views: 40
Size:  44.8 KB
Savington is offline   Reply With Quote
Old 03-20-2011, 08:05 AM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Where's the boost source for the waste gate? If it's from the compressor, block it off and source the boost from right before the throttle body. Don't waste time on a MBC or new wastegate before you do that.
curly is offline   Reply With Quote
Old 03-21-2011, 12:46 PM   #14
Junior Member
iTrader: (4)

Join Date: Jan 2009
Location: Fife, Scotland
Posts: 296
Total Cats: 4
Default

FWIW I made 221whp with a GT2554R on a 1994 1.8 and only used a 2.5" exhaust with the Begi seperated gasses DP.
GrahamC is offline   Reply With Quote
Old 03-21-2011, 12:50 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by curly View Post
Where's the boost source for the waste gate? If it's from the compressor, block it off and source the boost from right before the throttle body. Don't waste time on a MBC or new wastegate before you do that.
+1
If this isn't done yet, it def should be THE FIRST thing you do. Free "mod" ftw
18psi is offline   Reply With Quote
