Default Braineack T3 Super 60 Dyno Runs (232rwhp)

Slightly disappointed. Run on a loaded 424xLC dynojet dyno, these numbers are reading almost exactly 10% lower than my previous runs on any 248 x Dynojet. The shop says the eddy brake is putting slight load on the rollers and they are getting a replacement model (we couldn't do loading base tuning). I called Dynojet and they said the condition might cause this loss.

But here's the results. If I factor in 10% I'm very happy and right where I thought I should be, otherwise I'm scratching my head on both cars that we ran today where the missing power is.

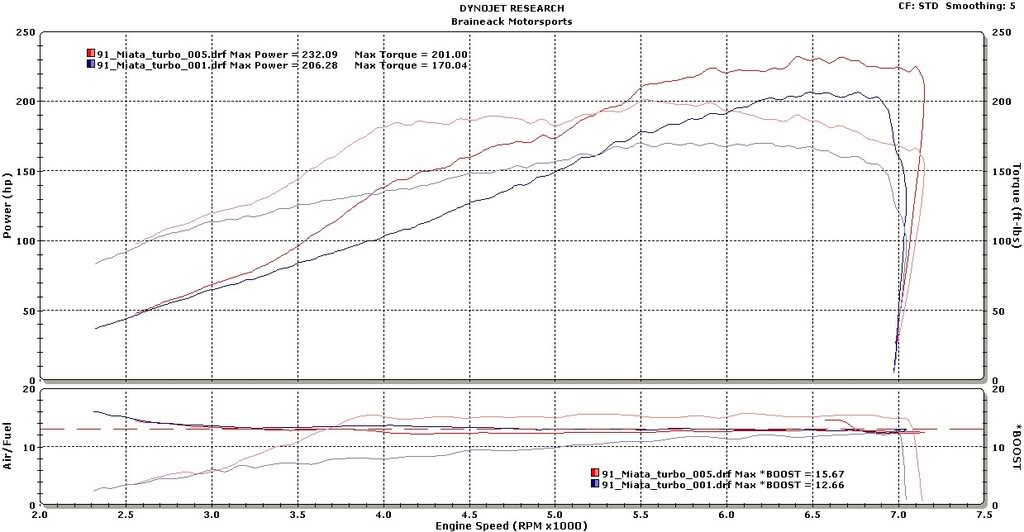

Wastegate vs EBC:

Name:  wastegate_vs_solenoid.jpg
Views: 45
Size:  98.8 KB

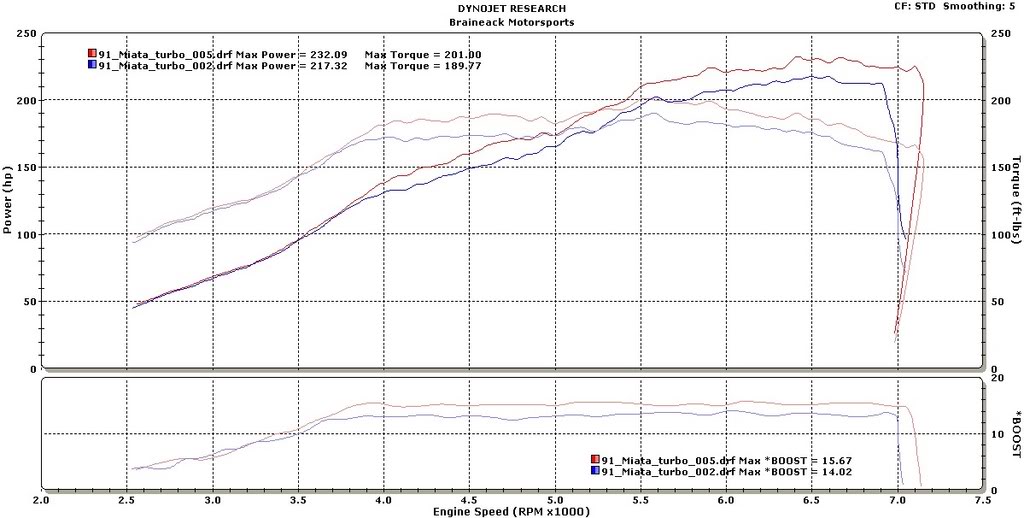

In vs. Out results:

Name:  in_vs_out_232.jpg
Views: 38
Size:  92.2 KB

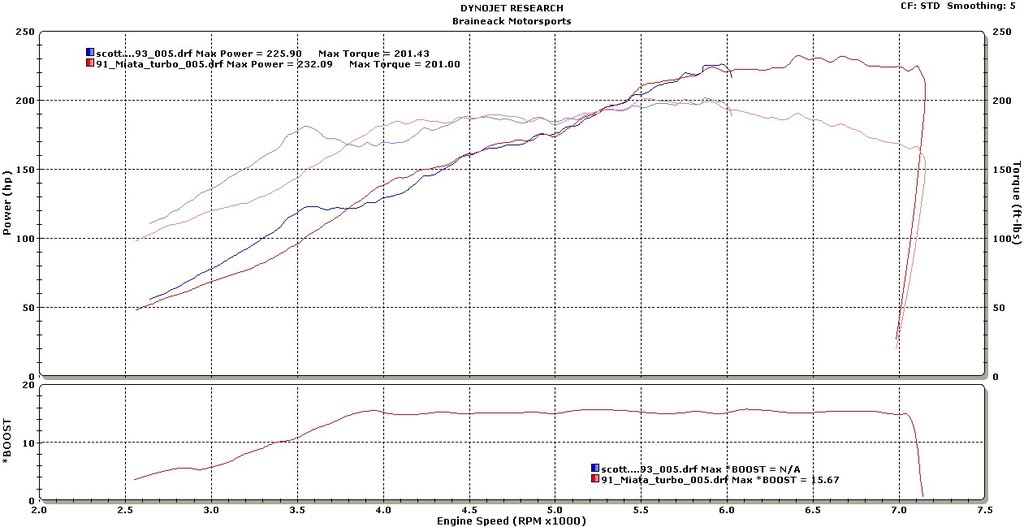

Here's comparing today's results with last years...at only 13psi peak, I'm missing 10% power throughout:

Name:  scott_old_vs_new1.jpg
Views: 29
Size:  87.5 KB
Braineack is offline   Reply With Quote
Old 10-10-2008, 03:08 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Atleast you know where you're at. Your torque curve is pretty nice, I like it as I'm sure you do as well.
cjernigan is offline   Reply With Quote
Old 10-10-2008, 03:10 PM   #3
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

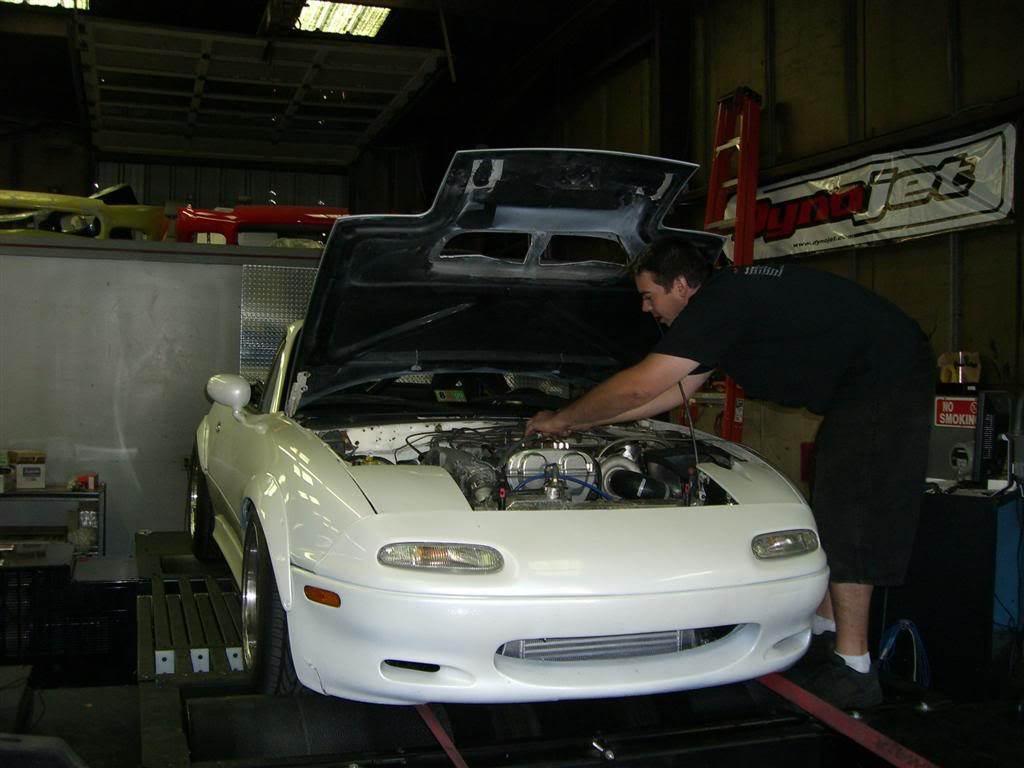

The pics:






Shop cars:


Newbsauce is offline   Reply With Quote
Old 10-10-2008, 03:11 PM   #4
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Boo faulty brake.

Hopefully I get back to the dyno next weekend. I'll have fresh #s off the WG and then ebc fun.
Splitime is offline   Reply With Quote
Old 10-10-2008, 03:16 PM
Braineack
This message has been deleted by Braineack.
Old 10-10-2008, 04:21 PM   #5
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by Splitime View Post
Boo faulty brake.

Hopefully I get back to the dyno next weekend. I'll have fresh #s off the WG and then ebc fun.

yeah really, the only change in my setup is a larger IC and resonator on the exhaust. I can't see a 10% loss from that. I do see loss of spool due to the larger IC, but the power loss is beyond me. They said it themselves it reads lower than most dynojets in the area and the brake module is being replaced next week, they said a drum always has a slight load on it. If I'm right about the 10% loss that puts me at 255rwhp / 221rwtq, pretty much exactly what I was expecting.

I guess I'll wait for the next local dyno day on a straight up 242x Dynojet and see what I get.
Braineack is offline   Reply With Quote
Old 10-10-2008, 04:38 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

4-door turbo e30 = my next car. mmm.

scott, what the heck happened to going to classic GT? you guys like going other random *** places?
y8s is online now   Reply With Quote
Old 10-10-2008, 04:59 PM   #7
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

So you're running 13PSI boost and making 232whp? Sounds good to me.
patsmx5 is offline   Reply With Quote
Old 10-10-2008, 06:29 PM   #8
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by y8s View Post
4-door turbo e30 = my next car. mmm.
I know right, thing had a huge Holset on it, making 280rwtq or something crazy.

Quote:
Originally Posted by y8s View Post
scott, what the heck happened to going to classic GT? you guys like going other random *** places?
They don't run the dyno during the week and Brad wasn't going to be able to to do it any Saturday anytime soon, so we went to Moore's.

Quote:
Originally Posted by patsmx5 View Post
So you're running 13PSI boost and making 232whp? Sounds good to me.
15 pounds; look at the boost plot The last dyno comparison above I hit 225rwhp @ 6K at 13psi last year. At 13psi, at the same rpm today, I only hit 205rwhp.

I was expecting to break 250rwhp today with around 15 pounds.

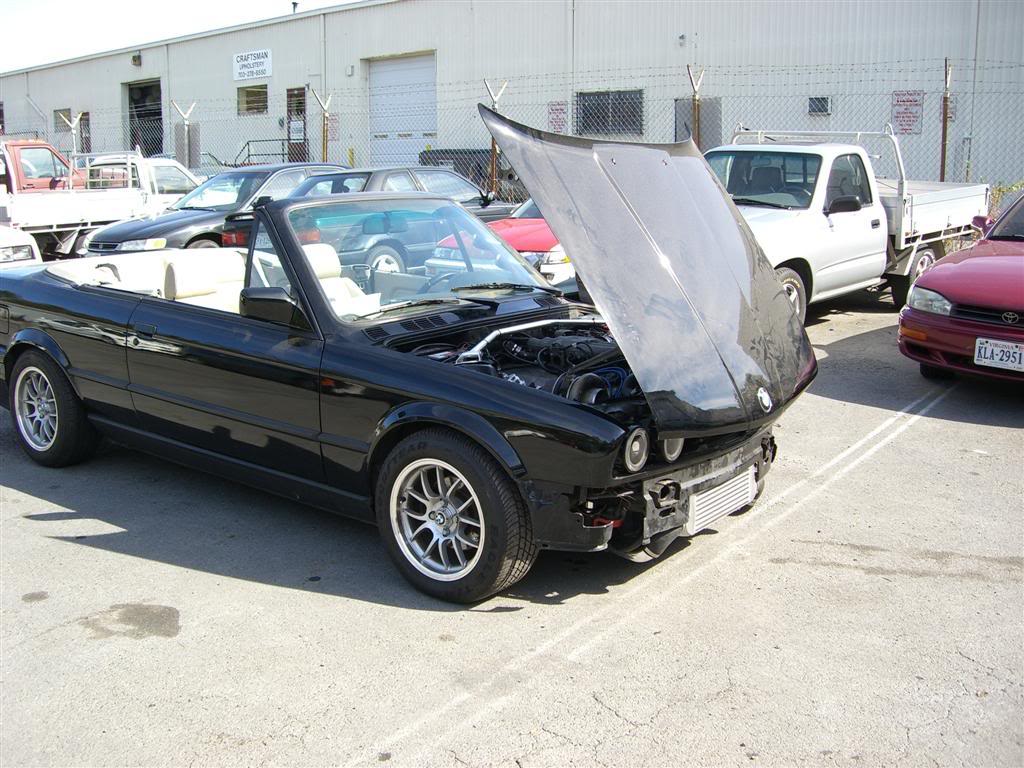

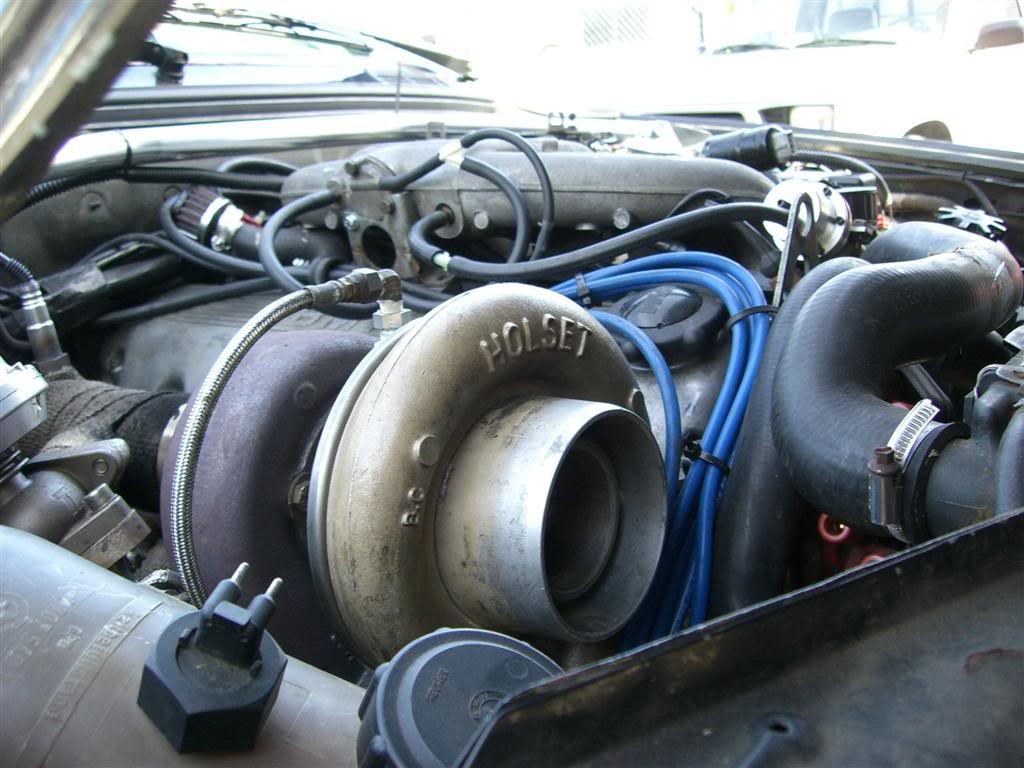

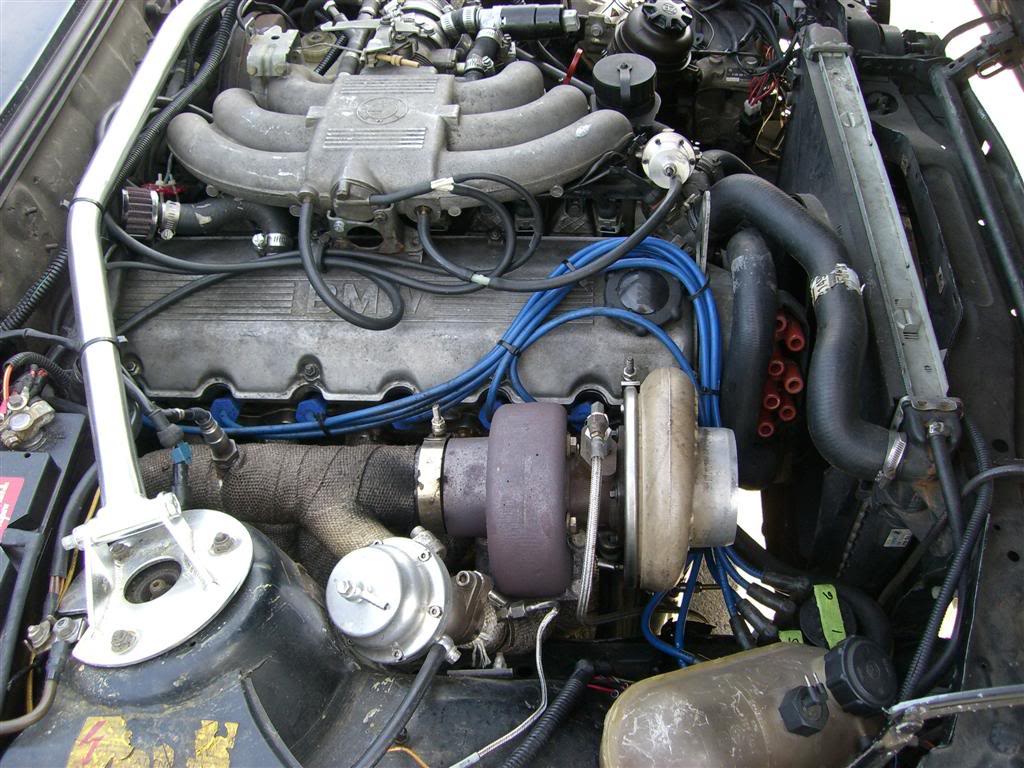

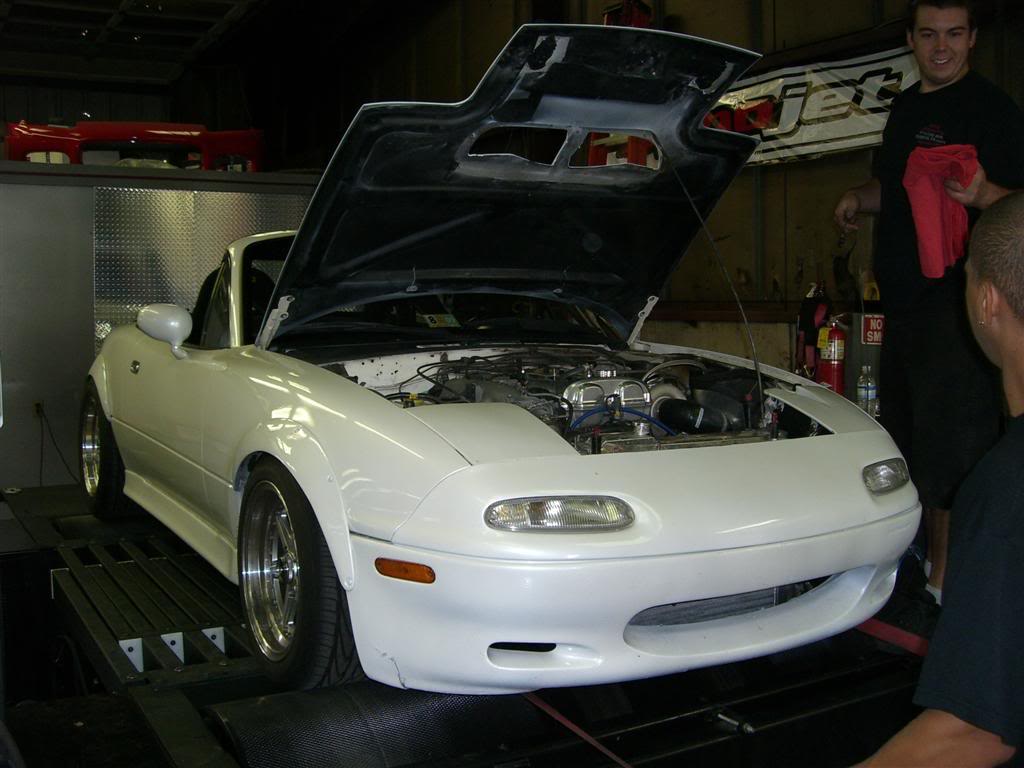

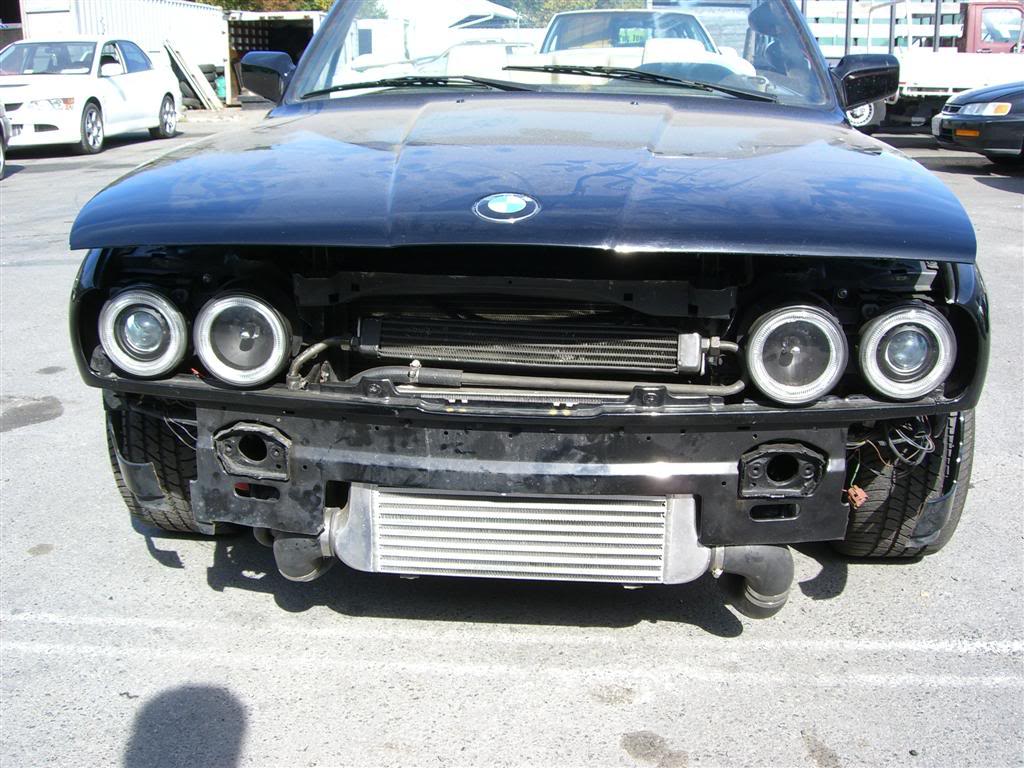

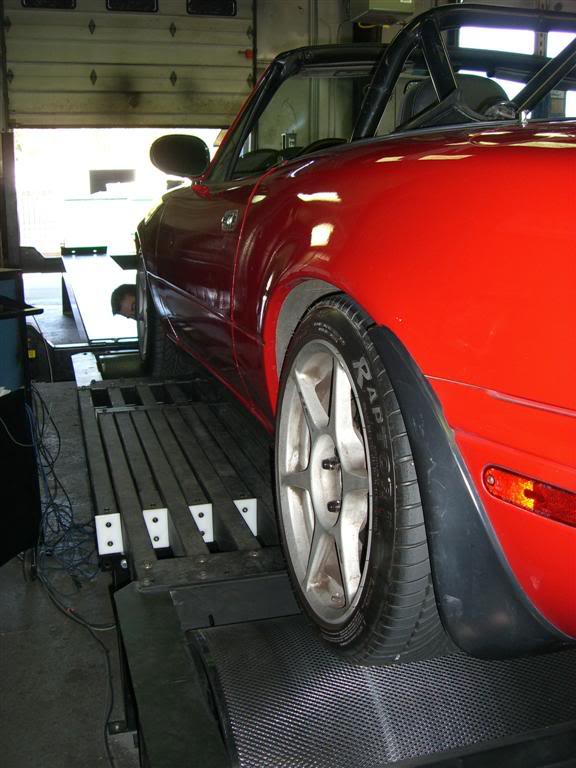

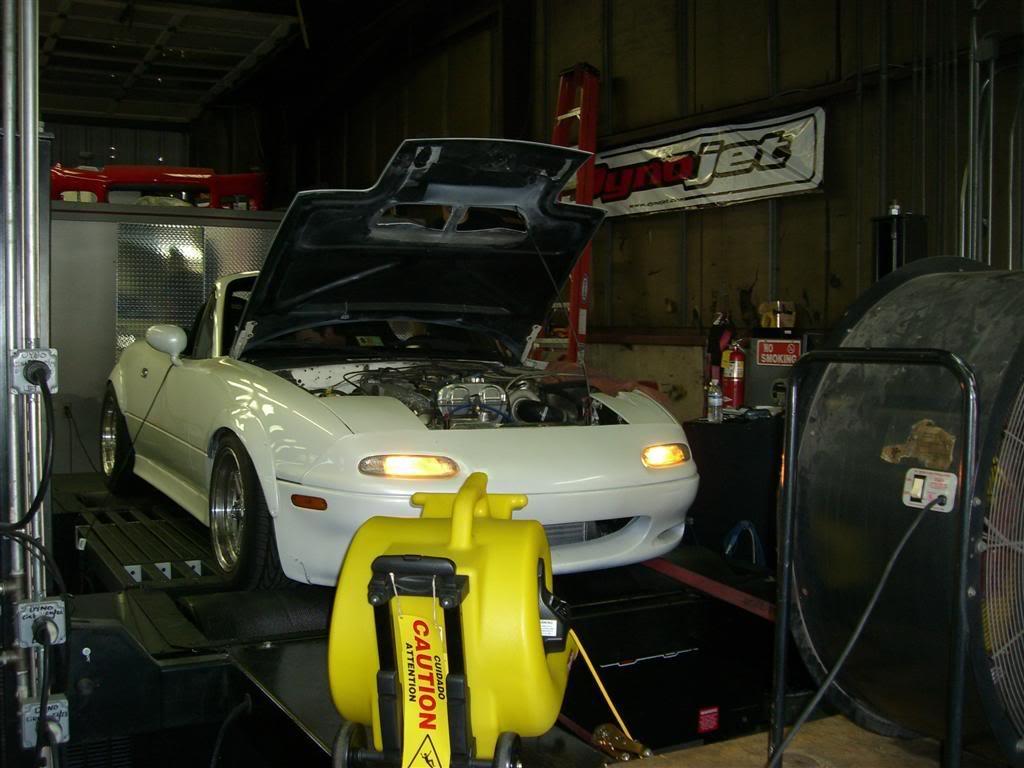

More pics:

Name:  CIMG1784Large.jpg
Views: 28
Size:  78.5 KB

Name:  CIMG1785Large.jpg
Views: 28
Size:  73.2 KB

Name:  CIMG1786Large.jpg
Views: 28
Size:  87.3 KB

Name:  CIMG1792Large.jpg
Views: 29
Size:  95.3 KB

Name:  CIMG1793Large.jpg
Views: 28
Size:  62.8 KB



Name:  CIMG1788Large.jpg
Views: 28
Size:  137.6 KB

Name:  CIMG1789Large.jpg
Views: 28
Size:  142.2 KB

Name:  CIMG1790Large.jpg
Views: 29
Size:  101.6 KB

Name:  CIMG1791Large.jpg
Views: 28
Size:  137.3 KB
Braineack is offline   Reply With Quote
Old 10-10-2008, 06:49 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

6uls fit on e30s. noted. probably with spacers.
y8s is online now   Reply With Quote
Old 10-10-2008, 07:25 PM   #10
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

man, looking at my logs...

run five, which shows 15.6psi through the dynojet was recorded on my MS as 195-197kPa or only 13.8psi or so....(peak spike hitting 14.6psi at 5.6Ki)

duty cycle hitting 85% at 7000RPM @ 11.9:1


I've attached my run file. In any case the car is running great. Need to swap out the intake manifold and get rid of the restriction...guess I need 550s soon too
Attached Files
File Type: xls dyno - pull 5.xls (328.5 KB, 81 views)
Braineack is offline   Reply With Quote
Old 10-10-2008, 07:26 PM   #11
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Ahem, like I said.....
patsmx5 is offline   Reply With Quote
Old 10-10-2008, 07:26 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Matt if you are really interested in e30's I got a friend you might want to talk to. He is working on a boosted e30 running ms. Actually it was the first car that Moores tuned last winter on their dyno.
shuiend is offline   Reply With Quote
Old 10-10-2008, 07:27 PM   #13
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Look at the pictures closely, that one was running (2) Megasquirts!!!
Braineack is offline   Reply With Quote
Old 10-10-2008, 07:59 PM   #14
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

He probably didn't hear that only the PC-Pro can be used as additional intercoolers.
BenR is offline   Reply With Quote
Old 10-10-2008, 08:06 PM   #15
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by BenR View Post
He probably didn't hear that only the PC-Pro can be used as additional intercoolers.



The cars are looking nice, still good power imo. They should give you both a free run because their dyno was fuxord.
Fireindc is offline   Reply With Quote
Old 10-10-2008, 09:44 PM   #16
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Do you get over 67 ft-lbs per liter per atmosphere of MAP?
JasonC SBB is offline   Reply With Quote
Old 10-10-2008, 10:23 PM   #17
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by JasonC SBB View Post
Do you get over 67 ft-lbs per liter per atmosphere of MAP?


At the same rpm, the previous run that hit 13psi at 6K when I lifted calculates to 65 ft-lb. Today's run where I logged 14.06psi at 6k calculates to 61.7 ft-lb.
Braineack is offline   Reply With Quote
Old 10-11-2008, 11:50 AM   #18
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Duh, in the title.

I am assuming that is with MS.
ray_sir_6 is offline   Reply With Quote
Old 10-11-2008, 12:22 PM   #19
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by ray_sir_6 View Post
I am assuming that is with MS.

yes um
Braineack is offline   Reply With Quote
Old 10-11-2008, 06:19 PM   #20
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

In an effort to figure out why I'm down 20hp with a touch more boost I went out and looked at my Cam timing. I was never confident I did it correctly when I had to swap my crank pulley. It's dead on.

So I took out the timing light and saw I was off 4.5*!!!

Where MS said I was idling at 17*, I was really around 12*. With no other changes but adding 1* on the dyno I made 7 peak HP. Could be where I'm missing some power, I'll have to double check Newbsauce's timing as well, but it could be where my loss was.

I still wanna strap on a Dynojet 248LC and see what I end up with now...when I compare these plots with the ones I did in July with my bad turbine/shaft, I'm only up 15rwhp on the good turbo...doesn't add up (same spark & boost level). The way the turbo is spool off the dyno doesn't correlate with my 4th gear street pulls. Oh well.
