Question Chinacharger 2560 @ 11psi on a 1999

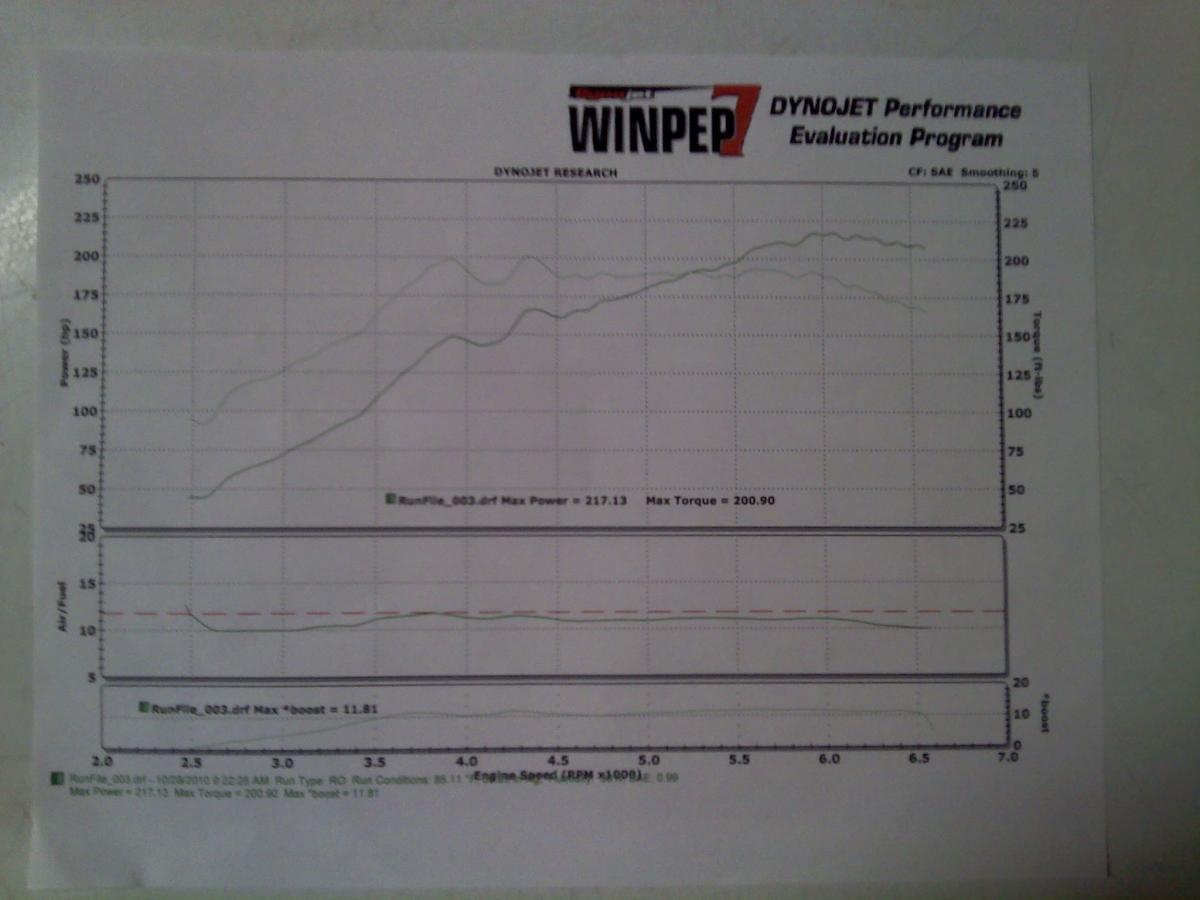

Installed my GT2560 Churbo, not to happy with the numbers: 217whp 200tq @ 11.8 psi..................also a strange dip in the numbers between 3,800-4,300 rpms Dyno guy said its because my wastgate accuator set to high ( 9 psi ) I should lower it to 6 psi and use the MBC to control the difference ? Does this sound correct ? Set-up as follows: Downpipe 2-1/2, no cat, Borla Sport muffler RB midpipe, RX-7 460cc injectors EMB for control, 73% duty cycle @ wot
Attached Thumbnails
Chinacharger 2560 @ 11psi on a 1999-chinacharger-dyno.jpg
elderc is offline   Reply With Quote
Old 10-28-2010, 12:23 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,879
Total Cats: 1,790
Default

run it to redline next time. dip is probably the boost overshooting then leveling off, as you can see on the boost plot.
Braineack is online now   Reply With Quote
Old 10-28-2010, 12:30 PM   #3
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Thanks

Last edited by elderc; 10-28-2010 at 02:50 PM.
elderc is offline   Reply With Quote
Old 12-14-2010, 12:54 PM   #4
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

damn i hope i put down more than that when i go to 12 pounds, i'm especially surprised since you have a 99. Still, that's not slow
kewilso3 is offline   Reply With Quote
Old 12-14-2010, 01:06 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,328
Default

Looks like my GT2554R graph... on a Mustang dyno. Churbo fail once again.
Savington is offline   Reply With Quote
Old 12-14-2010, 01:08 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,879
Total Cats: 1,790
Default

was that with a 2.25" exhaust?
Braineack is online now   Reply With Quote
Old 12-14-2010, 02:29 PM   #7
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by Savington View Post
Looks like my GT2554R graph... on a Mustang dyno. Churbo fail once again.
Could be tune fail too.
fmowry is offline   Reply With Quote
Old 12-14-2010, 02:49 PM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

Is this a ball bearing turbo with a 60mm 60 trim compressor wheel? Just wonderin, cause I made 209whp/ 206wtq at 11.9psi with a MS-1 parallel running my current turbo. This setup sounds pretty similar to mine, but now I'm running MS2 standalone instead of MS1 parallel. My turbo is a journal bearing unit with a 56mm 60 trim comp wheel. I also had my stock midpipe too. I guess your numbers aren't bad depending on actual turbo size.
thirdgen is online now   Reply With Quote
Old 12-14-2010, 07:50 PM   #9
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Journal Bearing, 2.5 exhaust........still I was looking for at least 225whp based on the fact my old Saab turbo (.48/.49) made 217whp on 11psi. Churbo specs. Compressor a/r .60 (42.6-60 trim 51 ) Turbine a/r .64 ( 46.2-53 trim 79 )

Last edited by elderc; 12-14-2010 at 08:06 PM.
elderc is offline   Reply With Quote
