Default Diy 1993 Td04l 1.6

Mod lists includes:

Destek Unichip EMS
TD04L from 05 WRX
Walbro 255HP Fuel Pump
1 External 700cc Power Enterprise Injector
Sard Fuel Pressure Regulator
Apexi AVCR Electronic Boost Controller
HKS Mushroom reloaded air filter
Brand New Mines Bar and Plate FMIC
Top Mount Custom Turbo Manifold
2.5 inch Charge pipes Hot and Cold sides
2.5 inch Downpipe and straight through exhaust
Samco Hoses
Greddy Type Rs BOV

- The final retune.... the result was this....

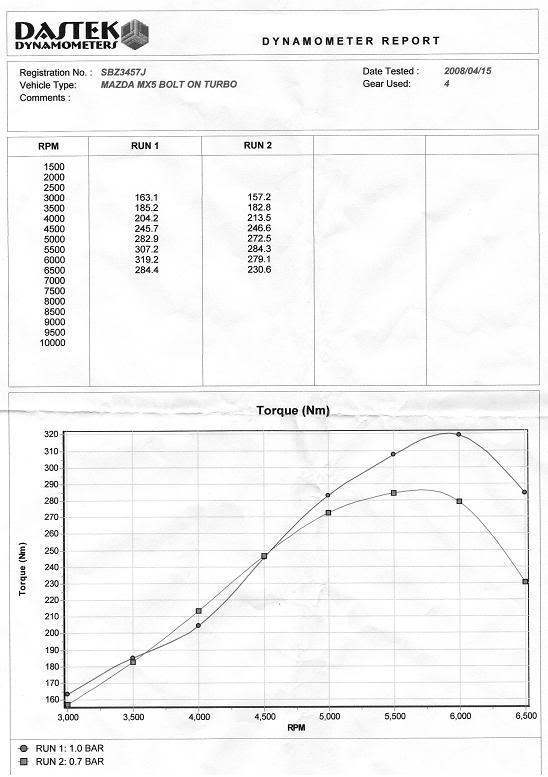

Name:  newTorque-1.jpg
Views: 83
Size:  49.2 KB

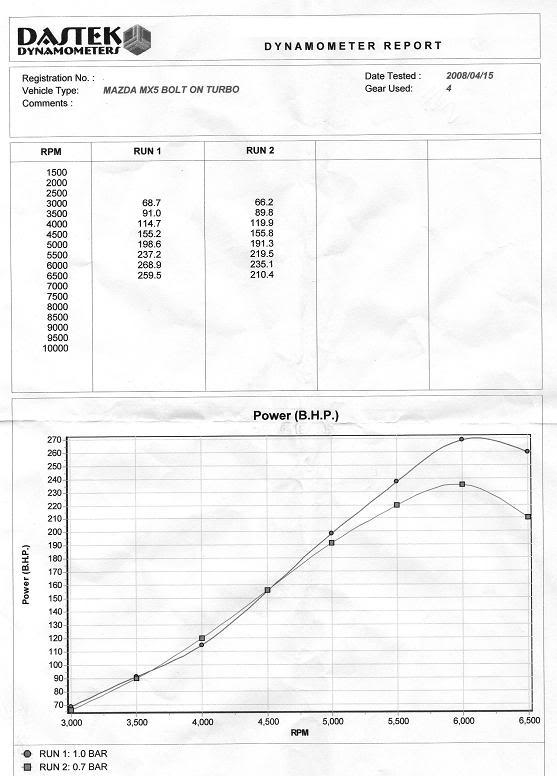

Name:  newHP-1.jpg
Views: 77
Size:  51.7 KB

Now, the ride feels much more powerful... very very satisfied with the retune.

i would like to thank all the helpful peeps in this forum and also the shop...
crazymiata is offline   Reply With Quote
Old 04-22-2008, 07:09 PM   #2
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Nice. Looks similar to mine, but higher everywhere
Atlanta93LE is offline   Reply With Quote
Old 04-22-2008, 08:26 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

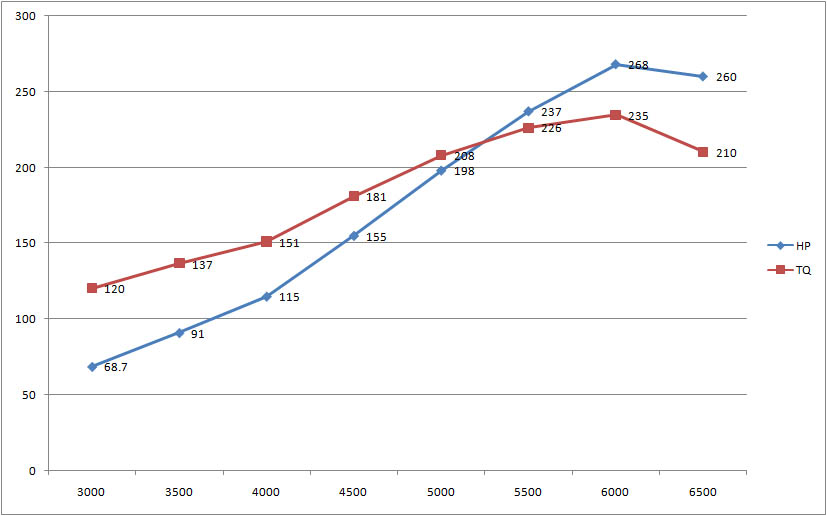

had to format it for standardized for my eyes:
Attached Thumbnails
Diy 1993 Td04l 1.6-crazydriver.jpg
Braineack is offline   Reply With Quote
Old 04-22-2008, 08:36 PM   #4
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

says it's bhp, any idea of your rwhp?
zoom2zoom is offline   Reply With Quote
Old 04-22-2008, 08:49 PM   #5
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

bhp = rwhp when its measured on a chassis dyno.
The_Pipefather is offline   Reply With Quote
Old 04-23-2008, 12:52 AM   #6
Newb
Thread Starter

Join Date: Apr 2008
Posts: 15
Total Cats: 0
Default

thanks brain neck bro for the format... didnt know how to do that ... lol

Hey zoom2zoom ... this measurement is for power on the crank.... if its rwhp ... take away 10 percent power and bam !! theres the rwhp... i think

Hey pipefather... i will post some pics of the car when i can get the images in the cellphone onto the CPU..
crazymiata is offline   Reply With Quote
Old 04-23-2008, 07:26 AM   #7
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Did they really measure flywheel horsepower? Certainly a difficult thing to do, unless they measured rwhp and put some arbitrary correction factor for flywheel. I've always seen drivetrain losses as ~20% for Miatas, but normally quoted for N.A. numbers.
Atlanta93LE is offline   Reply With Quote
Old 04-23-2008, 08:52 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

If it was on a roller it's rwhp. a lot of the software is setup for engine dynos.
Braineack is offline   Reply With Quote
Old 04-26-2008, 06:50 AM   #9
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Malibu, CA
Posts: 749
Total Cats: 0
Default

Interesting setup and nice numbers, how does it feel with the TD04? I was talking to people who thought it would be too big of a turbo for a miata to still feel "responsive" although I know that its all relative.
speedf50 is offline   Reply With Quote
Old 05-15-2008, 02:11 AM   #10
Newb

Join Date: May 2008
Location: New Zealand
Posts: 19
Total Cats: 0
Default

are you serious about him getting 270rwhp from a td04l?

my mates turbo'd 4agze mr2(1600 supercharged convert) was getting 215rwhp at 11psi, how much boost are you running?

PEace
557795
557795 is offline   Reply With Quote
Old 05-21-2008, 12:58 PM
nopq152
This message has been deleted by Braineack.
Old 05-28-2008, 10:19 AM
efgh928
This message has been deleted by Braineack.
Old 06-03-2008, 11:26 PM   #11
Newb

Join Date: Jun 2007
Location: Minnesota
Posts: 1
Total Cats: 0
Default

Hey crazy, how did the wiring of your AVC-R go on your ride? I am just starting an install on mine and am curious to hear how you wired everything in.

#'s look good!

Adam
Just-Us Racing is offline   Reply With Quote
Old 07-02-2008, 03:12 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

very very nice....man, im so excited: this is exactly what i plan on doing, except on a 99+
18psi is offline   Reply With Quote
Old 08-26-2008, 11:03 AM   #13
Newb

Join Date: Aug 2008
Location: manila philippines
Posts: 19
Total Cats: 0
Default

nice numbers sir...i do have a question, are you still running on stock internals?thanks
roadster363 is offline   Reply With Quote
Old 09-10-2008, 03:11 PM
bobo690113
This message has been deleted by Ben. Reason: spam
Old 09-10-2008, 03:15 PM
JDMAflac
This message has been deleted by Braineack.
Old 09-16-2008, 12:15 PM
RedMiata
This message has been deleted by Braineack.
Old 09-16-2008, 12:21 PM
KPLAFIN
This message has been deleted by Braineack.
Old 09-16-2008, 12:37 PM   #14
Newb

Join Date: Sep 2008
Location: SC
Posts: 43
Total Cats: 0
Default

I had a 1.6 and replaced it with a 1.8 because I did not think you could make that much power.
RedMiata is offline   Reply With Quote
Old 04-02-2009, 05:26 PM   #15
Newb

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by 557795 View Post
are you serious about him getting 270rwhp from a td04l?

my mates turbo'd 4agze mr2(1600 supercharged convert) was getting 215rwhp at 11psi, how much boost are you running?

PEace
557795

it says 1 bar, thats atmospheric... approximately 14.7 psi...


those numbers are phenominal, do you have any pictures of your setup? i'm working on one for myself with a td04l, and would like to steal some ideas
sinhumane is offline   Reply With Quote
Old 04-02-2009, 09:01 PM   #16
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

I'm guessing this is from somewhere in Europe and that figure is a corrected crank HP number.
The_Pipefather is offline   Reply With Quote
Old 04-03-2009, 04:07 PM   #17
Newb

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

i though of that too.. but toyota engines versus mazda engines... apples and oranges.

pipefather, how is your setup doing?
sinhumane is offline   Reply With Quote
Old 04-03-2009, 04:20 PM   #18
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

I am going to redo the exhaust and intercooler sometime in the next two months to take care of the flattened torque curve above 5000 rpm.
The_Pipefather is offline   Reply With Quote
Old 04-03-2009, 05:14 PM   #19
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

I don't believe that dyno is correct. The TD04 is such a small turbo it should make MUCH more torque at a lower RPM.

Checkout the dyno plot from here:
MX-5 Miata Forum - DIY Turbo 1.8 - on the cheap

Something smells extremely fishy. Waaaay too much power with that turbo on either a 1.6 or 1.8......
karter74 is offline   Reply With Quote
Old 04-03-2009, 06:15 PM   #20
Newb

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

you could factor in later spool because of the smaller engine size, and also it looks like the turbo on his setup might be ported... that makes a HUGE difference.

i'm finishing up my manifold for the subie turbo i picked up, just a standard log mani, but should get the job done.
sinhumane is offline   Reply With Quote
