Default DYNO/1999 219whp 184tq @ 10.25psi

Went to the dyno the other day was shooting for 225whp but only made 219whp, It looks like I was still making power up top do you think if the dyno guy went to say 6,700 instead of stopping at 6.300 I could have squeezed out a few more hp's ?

Garrett T-25 .48/.49
410cc injectors
A/F 11.5 @ 75% injector Duty cycle
Emanage Blue
219 whp @10.25 psi
Attached Thumbnails

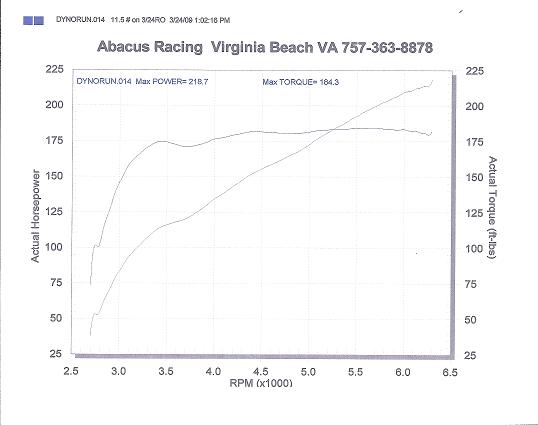

DYNO/1999 219whp 184tq @ 10.25psi-dyno.jpg
elderc is offline   Reply With Quote
Old 03-26-2009, 12:30 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

yes, you would have hit your goal. never rely on the stock tach; it's always at least 500rpm too fast at high rpms.


pretty nice torque curve.
Braineack is offline   Reply With Quote
Old 03-26-2009, 12:35 PM   #3
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Damn, you are at 75% duty with 415's on a t25? Any other fuel mods?
Turbo_4 is offline   Reply With Quote
Old 03-26-2009, 12:38 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

i was at 80% with 460s at 232rwhp.
Braineack is offline   Reply With Quote
Old 03-26-2009, 12:39 PM   #5
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Thumbs up

Thanks, thats what I was thinking next time I'll have the dyno guy push a little more RPM's, remember the stock fuel pressure on the NB's is 57-61 psi ( the injectors are 360cc from a 323 gtx but the flow rate is 410 @ 57psi stock fuel pump)
elderc is offline   Reply With Quote
Old 03-26-2009, 12:40 PM   #6
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

what's the specifics on the rest of your setup.
Mach929 is offline   Reply With Quote
Old 03-26-2009, 12:42 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by elderc View Post
Thanks, thats what I was thinking next time I'll have the dyno guy push a little more RPM's

just rev until you hit the limiter...that's why it's there.
Braineack is offline   Reply With Quote
Old 03-26-2009, 01:03 PM   #8
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

I'am all about hitting the rev limt, but for some reason the dyno guys don't want to do it?
Other mods : Koyo 37mm Rad, 2-1/2 racing beat midpipe, Borla exhaust, turbosmart MBC, saab turbo downpipe, NGK wideband, EMB, Bilstein HD's, Spec 1 clutch 18x12x3 intercooler,otherwise stock.
elderc is offline   Reply With Quote
Old 03-26-2009, 01:16 PM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

That's a nice looking pull - good curves. It really is a shame he didn't stay in it. It's pretty much mandatory to tell the dyno operator to stay in it until X rpm and do not look at the car's tach, watch the computer screen with the ign pick up.
m2cupcar is offline   Reply With Quote
Old 03-26-2009, 01:33 PM   #10
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

I told him to take to at least at least 6,700 I guess he was looking at my tach instead of his computer screen.
elderc is offline   Reply With Quote
Old 03-26-2009, 01:39 PM   #11
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Turbo_4 View Post
Damn, you are at 75% duty with 415's on a t25? Any other fuel mods?
Man, I'm scared now. Same setup and I'm at 8 psi with stock injectors.

I need me some mo bigga ones.
Stein is offline   Reply With Quote
Old 03-26-2009, 03:13 PM   #12
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

nice numbers for 10psi
paul is offline   Reply With Quote
Old 03-26-2009, 03:20 PM   #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Very nice numbers. The 99 heads flow hard up top. It's a shame you didn't rev it to the limiter, though.
Savington is offline   Reply With Quote
Old 03-26-2009, 03:36 PM   #14
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

The 99 head flows better than I thought I was suprised I was still making power up top with a small T-25, I made one pass at 11.50psi and lost 18hp so for that turbo anything beyond 10-10.5psi must be in the chock zone ?
elderc is offline   Reply With Quote
Old 03-26-2009, 03:42 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

yeah, but what rpm did he decide to lift at?
Braineack is offline   Reply With Quote
Old 03-26-2009, 03:52 PM   #16
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

6,084 RPM is what my data log shows. maybe he lifted to soon ? I might have picked up a few more hps. if he stayed in it longer.
He told me the pass at 11.50 was 10mph faster than 10.25psi, so does that mean at 11.50psi @ 6,084 produces more mph than [email protected] 6,300 ?

Last edited by elderc; 03-26-2009 at 04:08 PM.
elderc is offline   Reply With Quote
Old 03-26-2009, 04:14 PM   #17
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

haha, it can't mean that. gears are gears. it could only mean you got to a certain point in less time.
paul is offline   Reply With Quote
Old 03-26-2009, 04:20 PM   #18
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

That what I'am talking about....................but I'am no "dyno guy" lol
elderc is offline   Reply With Quote
Old 03-26-2009, 04:25 PM   #19
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

maybe he meant the 10psi pass topped out 10mph faster than the 11psi pass. but does 216rpm in 4th gear translate to 10mph?


edit: Just checked and that only makes a 3.4 mph difference if you have a 5 speed with 205/50/15s
paul is offline   Reply With Quote
Old 03-26-2009, 04:35 PM   #20
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

All passes were in 3rd gear (5spd) and tires are 205/45/16 if that helps, so bottom line I guess I'll have to go back to the dyno for a do-over lol.
