Default Ghettocharger Revision 1.00

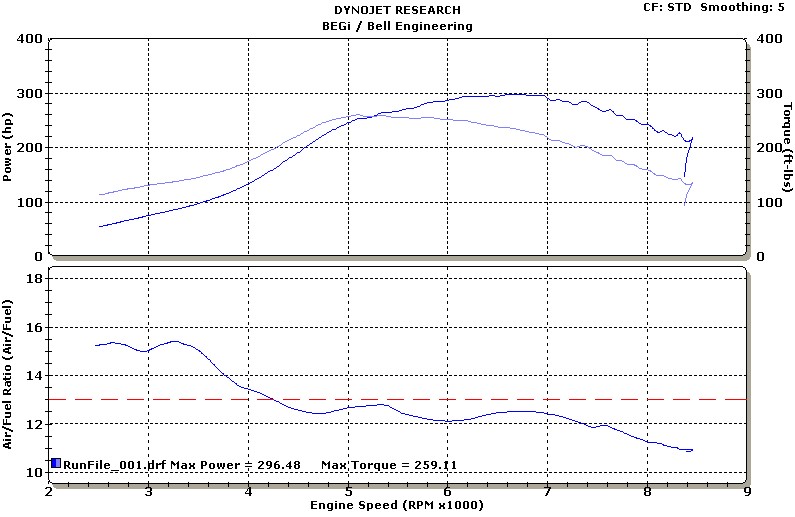

Here is the dyno chart... Feel free to discuss. Numbers are uncorrected. Corrected numbers would have been around 310 RWHP and 277 ft/lbs of torque. I had another run with 264 ft/lbs and 296 RWHP, this was the backup run with 259 Torque 296 RWHP.

Mark
Attached Thumbnails
Ghettocharger Revision 1.00-peugeot_run1b.jpg
Markp is offline   Reply With Quote
Old 12-07-2006, 02:12 PM   #2
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Looks good mark, I just saw the chart on miataforum. That kind of power is what spins the first 3 gears with ease. However, like me you see massive torque dropoff on the topend. I believe that when we move to the BEGI Intake Manifold that we will carry torque deeper into the rpms. From the looks of your chart you spool just a tad slower than I do, maybe 500rpms or so. The lag isnt nearly as bad as I had imagined it would be. When you get a new exhaust manifold I bet power will carry out after 7000rpm a LOT better, not to mention the new intake manifold as well. If I was you though I would be shifting at 7200 on your setup since revving it out wouldnt be worth it...still must be nice to carry it out to 8500 though
F20turbo is offline   Reply With Quote
Old 12-07-2006, 02:29 PM   #3
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

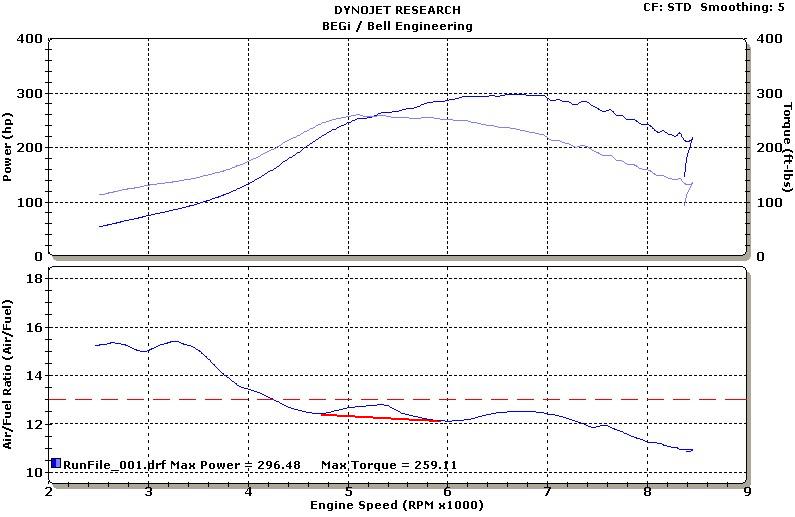

It looks a little lean (almost 13 at ~5400 rpm) near peak torque. If it's a butt sniffer it should be good but if it was me I would want it to be a little richer around peak torque.

Something like that *arrow down*
Attached Thumbnails
Ghettocharger Revision 1.00-mspaintbishes.jpg
Efini~FC3S is offline   Reply With Quote
Old 12-07-2006, 02:35 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

is that with the new manifold?
Braineack is offline   Reply With Quote
Old 12-07-2006, 06:10 PM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by braineack View Post
is that with the new manifold?
No, that's the old manifold.

Mark
Markp is offline   Reply With Quote
Old 12-07-2006, 07:28 PM   #6
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Nice.
TurboTim is offline   Reply With Quote
Old 12-07-2006, 07:40 PM   #7
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

doesn't look like going past 7000rpm is doing much for you at this point(maybe the manifold?). The intake manfold might help but i'm guessing cams are what you really need since it looks like you're making more power at 5Krpm than you are at 8.
Mach929 is offline   Reply With Quote
Old 12-07-2006, 09:17 PM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

(per Efini's post) You're running a minimum 12:8 to 12.0:1 AFR at 15-19psi? Is that the dyno tail pipe sniffer? If so, that shows about a full point leaner- right?
m2cupcar is offline   Reply With Quote
Old 12-08-2006, 01:15 PM   #9
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
(per Efini's post) You're running a minimum 12:8 to 12.0:1 AFR at 15-19psi? Is that the dyno tail pipe sniffer? If so, that shows about a full point leaner- right?
Dyno tail pipe sniffer... so ya, it's probably rich. I didn't datalog it, so I don't know yet.

Mark
Markp is offline   Reply With Quote
Old 12-14-2006, 02:50 PM   #10
I'm Miserable!

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

What is ghettocharged?
iluvtruenos is offline   Reply With Quote
Old 12-14-2006, 08:05 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by iluvtruenos View Post
What is ghettocharged?
A way of life :gay:
magnamx-5 is offline   Reply With Quote
Old 12-14-2006, 08:17 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

A diy turbo setup built around a chinacharger.
m2cupcar is offline   Reply With Quote
Old 03-28-2007, 12:05 AM   #13
Newb

Join Date: Mar 2007
Posts: 21
Total Cats: 0
Default

Very Nice
smallblockman69 is offline   Reply With Quote
Old 03-28-2007, 01:21 AM   #14
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

ah,now that this is backup.
the phrase the nimbers are uncorrected what does that mean.
its ran on a different type of dyno,or above sea level.
turbopezz is offline   Reply With Quote
Old 03-28-2007, 09:45 AM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

no it gave raw dyno numbers with no altitude and or temp compensation. for STP
magnamx-5 is offline   Reply With Quote
Old 03-28-2007, 11:47 AM   #16
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

at higher altitudes, cars make less power basically.
akaryrye is offline   Reply With Quote
Old 03-28-2007, 07:30 PM   #17
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

im at sea level.thats probaly why i never hear of that term.
turbopezz is offline   Reply With Quote
