Default Greddy @ 5psi, with EMB.

Got the car dyno tuned & tested the other week.

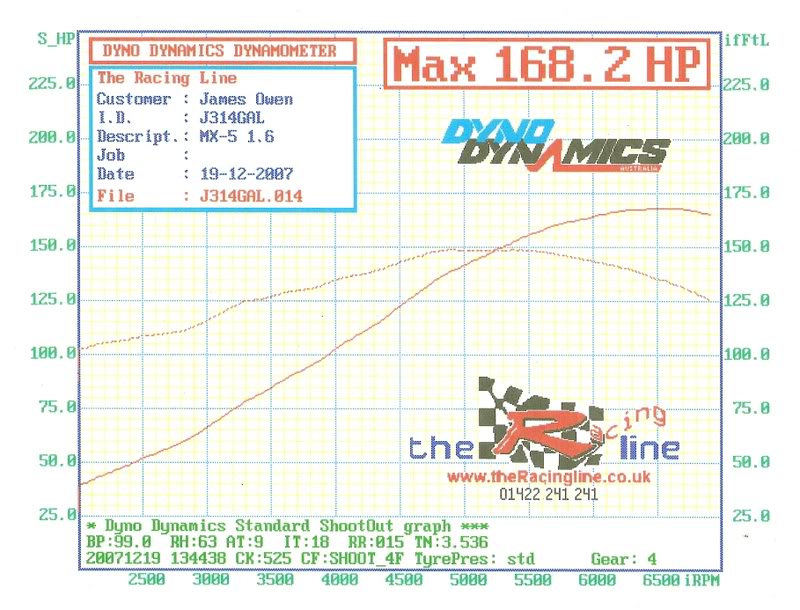

168bhp at the flywheel, 138rwhp, it was a cold, cold day

Name:  BHPftlb.jpg
Views: 4
Size:  100.6 KB

Name:  PsiAFR.jpg
Views: 4
Size:  97.9 KB
jim-NA is offline   Reply With Quote
Old 01-04-2008, 06:26 PM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

i don't know how reasonable the power is for the setup, but it is more than i am making, nice job
mazda/nissan is offline   Reply With Quote
Old 01-04-2008, 06:27 PM   #3
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

not bad for only 5psi. you still running the stock downpipe and exhaust? that will make a huge improvement.

*edit* you boost seems to come on late for such a small turbo... you might want to get a manual boost controller and see if you can pick up some more bottom end.
Arkmage is offline   Reply With Quote
Old 01-04-2008, 06:37 PM   #4
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

This was a couple weeks ago, with Jackson Racing cat-back & cat replacement pipe, stock/Greddy downpipe ****.
I've since replaced the downpipe & will be going to a "dyno day" with some guys from MX5nutz.com over here in UK, so we shall see what difference the DP makes then.
jim-NA is offline   Reply With Quote
Old 01-04-2008, 07:19 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

looks typical. looks good
Braineack is offline   Reply With Quote
Old 01-04-2008, 08:24 PM   #6
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Nice !
Did you tighten up that waste gate arm ?
You should be able to get up to 6PSI on the standard Greddy kit.
Fergus is offline   Reply With Quote
Old 01-04-2008, 08:31 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Quote:
Originally Posted by Fergus View Post
Nice !
Did you tighten up that waste gate arm ?
You should be able to get up to 6PSI on the standard Greddy kit.
I may try that when it goes on the dyno.

Is it typical for the wastegate to "rattle"? I think that's what I can hear sometimes, seemed "loose" when i was changing the DP the other day.
Holds boost fine though.
jim-NA is offline   Reply With Quote
Old 01-04-2008, 09:31 PM   #8
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by jim-NA View Post
I may try that when it goes on the dyno.

Is it typical for the wastegate to "rattle"? I think that's what I can hear sometimes, seemed "loose" when i was changing the DP the other day.
Holds boost fine though.
it shouldn't rattle... mine did the same thing. tightened it down and now I spool 750 rpm sooner and also hit 8 psi instead of 6. the annoying rattle sound is also gone, which is a bonus.
Arkmage is offline   Reply With Quote
Old 01-04-2008, 09:47 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Quote:
Originally Posted by Arkmage View Post
it shouldn't rattle... mine did the same thing. tightened it down and now I spool 750 rpm sooner and also hit 8 psi instead of 6. the annoying rattle sound is also gone, which is a bonus.
Well, I don't want to increase the boost without making other changes first but i would like to cure the annoying rattle. will tightening the actuator arm very slightly help with this?
jim-NA is offline   Reply With Quote
Old 01-05-2008, 12:52 AM   #10
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Yes, if that is what is causing the rattle.
But it will go near to 6PSI then
Fergus is offline   Reply With Quote
Old 01-05-2008, 04:30 AM   #11
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Quote:
Originally Posted by Fergus View Post
Yes, if that is what is causing the rattle.
But it will go near to 6PSI then

In that case I'll put up with a bit of a rattle until i sort out bigger injectors etc etc... thanks for the help guys
jim-NA is offline   Reply With Quote
Old 01-05-2008, 09:09 PM   #12
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

You don't need bigger injectors until you get near 8PSI !!
Tighten it up until there is no rattle, it'll be fine.
Fergus is offline   Reply With Quote
Old 01-05-2008, 09:14 PM   #13
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Fergus View Post
You don't need bigger injectors until you get near 8PSI !!
Tighten it up until there is no rattle, it'll be fine.
Depends on which system he has for enrichment. The vortech taking the fuel pressure to 78~80 psi and the EMB there to add injection would take care of 6psi easily. However, if he has the "black box" European GReddy enrichment and no fuel pressure increase, it's "iffy".
olderguy is offline   Reply With Quote
Old 01-05-2008, 09:17 PM   #14
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

I thought he had the standard kit.
I'm in Euroland and have the standard kit with the blue pressure regulator, standard 1.6 injectors etc.
I've no EMB or BiPeS etc.
My setup is going to change again soon though
Fergus is offline   Reply With Quote
Old 01-05-2008, 09:35 PM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

dude what do you mean holds boost fine towards redline you are running .2 bar that is like 2.94 psi it is hurting your perfomance for sure. Tighten the rod and adjust your fueling etc on the EMB and you will be fine.
magnamx-5 is offline   Reply With Quote
Old 01-06-2008, 12:09 PM   #16
Junior Member
Thread Starter

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
dude what do you mean holds boost fine towards redline you are running .2 bar that is like 2.94 psi it is hurting your perfomance for sure. Tighten the rod and adjust your fueling etc on the EMB and you will be fine.

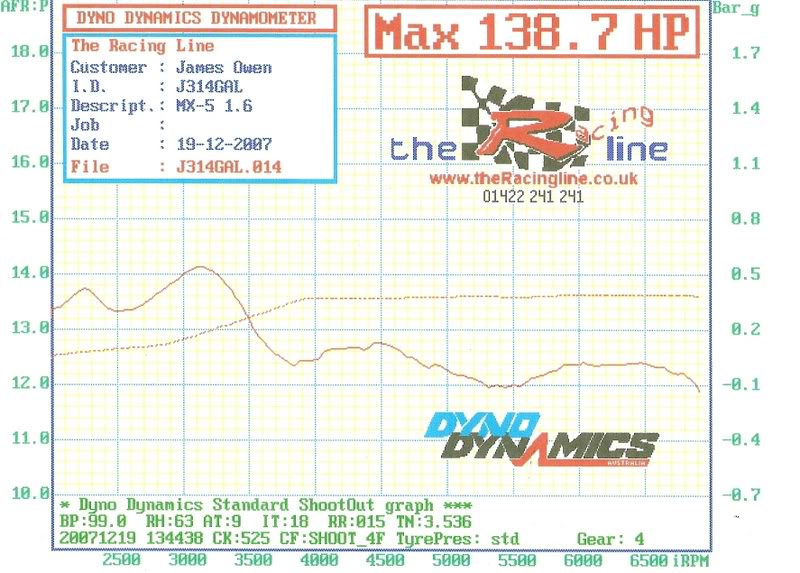

??? You mean me? look at the dyno graph, it's holding nearer 5 to 5.5psi.

just i noticed the rattle more after fitting a new downpipe. and yes it is from the wastegate.


btw, I have the blue AFPR and also Emanage
jim-NA is offline   Reply With Quote
Old 01-06-2008, 10:44 PM   #17
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Blue(Vortech) AFPR with the 12:1 disc they supply and a stock fuel pump in decent shape, will be good to 6psi. Add some additional injection with the EMB and you have enough fuel for 8psi, so I wouldn't be worried about tightening the wastegate rod.

This is especially true with a wideband in place to monitor your AFR and bring your additional injection in where you need it.

I would expect at 6psi that the only problem would be heat soaking, unless you have an intercooler we don't know about.
olderguy is offline   Reply With Quote
Old 01-07-2008, 05:06 AM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

My bad i mistook your AFR line for boost
magnamx-5 is offline   Reply With Quote
