Default GReddy at 12PSI trailing to 9.

Had the Miata tuned today.

Stock 1.6 block
ETD Manifold
GReddy turbo
2.5'' d/p to 3'' exhaust with high flow cat
CXRacing IC
2'' hot side piping
2.5'' cold side piping
RX7 460cc injectors
Walbro 190 HP pump
DIY dual feed fuel rail
Megasquirt 1
Toyota COPS
NGK BKR7E plugs gapped at .045

Pretty happy with the results. The car is so much faster than before. Going to gut the cat, fix the exhaust leak, port the wastegate and go back so we can push it to 14+ PSI. The wastegate didn't like holding anything more than 12PSI even with my ball/spring boost controller.

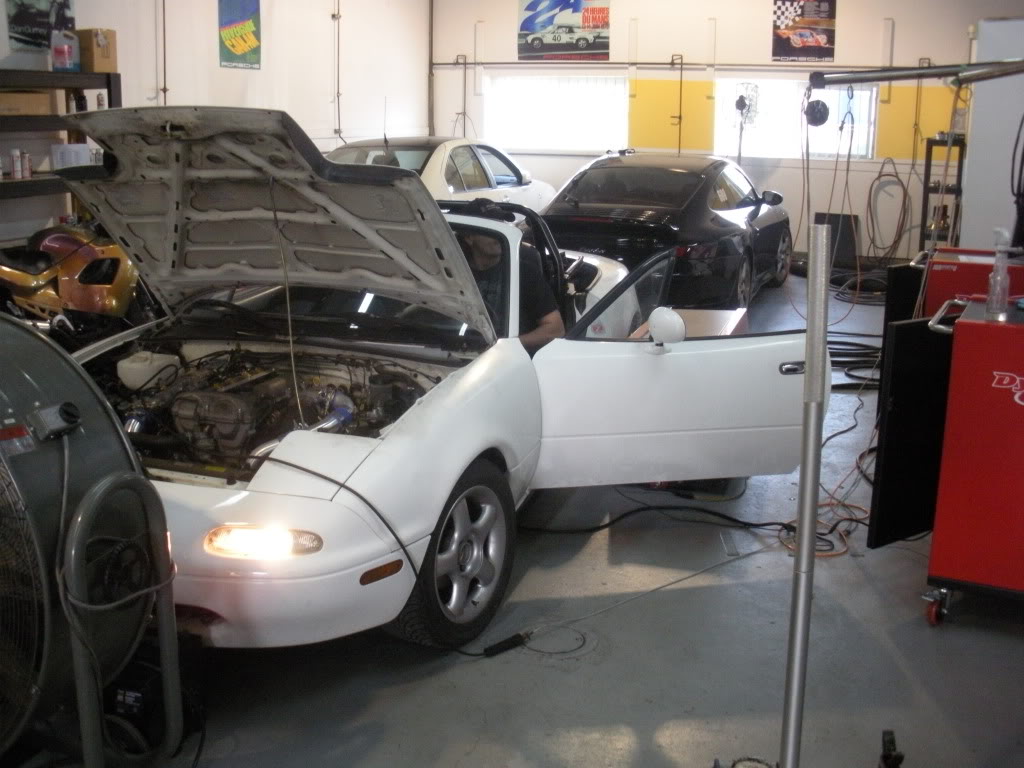

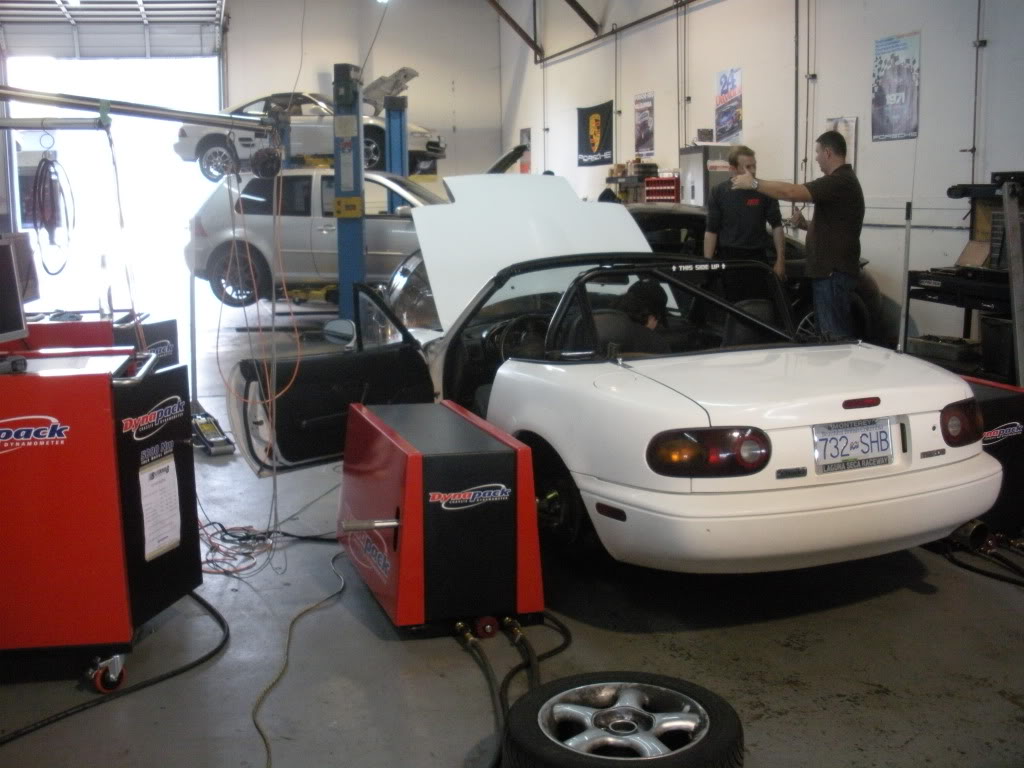

And the results (note the PSI... not bad from my research at this PSI). My tuner said that Dynapacks are like Mustang dynos and read %7-%10 lower than Dynojet. That puts it at 200-+whp on a Dynojet. But 180whp for me is still hella fast. Considering the car was stock when I first started driving it.


Name:  DSCN2935-1.jpg
Views: 3
Size:  147.1 KB
Name:  DSCN2936-1.jpg
Views: 4
Size:  148.7 KB

falcon is offline   Reply With Quote
Old 05-18-2010, 01:31 AM   #2
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

After reading Joe's thread... I'm going to take the boost signal from after the IC and see if I can get better boost control.
falcon is offline   Reply With Quote
Old 05-18-2010, 01:33 AM   #3
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Very cool. I was tempted to call you and find out how it went.

If you want, i'll make you a test pipe. That way you can save your cat for emissions. I can whip you up a test pipe pretty quick.
wayne_curr is offline   Reply With Quote
Old 05-18-2010, 02:32 AM   #4
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

It went well.. I think with no cat, fix the exhaust leak and porting the wastegate along with an electronic boost controller there is a lot more left in it. I also have a fully ported head with mech lifters that I want to throw on.

The exhuast has the cat welded in... it's not like stock. So I'm just going to have it cut out.

The COPS were glorious as well. It was a last minute decision to whip them up. I hit up a local wrecker on Thursday (got em for $75 out of a Pontiac Vibe). The Vibe uses Toyotas 1ZZFE engine. All in all it cost under $100 and I didn't have to worry about spark at all. It had no problem firing at .045 all day long.
falcon is offline   Reply With Quote
Old 05-18-2010, 06:38 AM   #5
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by falcon View Post
After reading Joe's thread... I'm going to take the boost signal from after the IC and see if I can get better boost control.


THIS. Do it asap.
Fireindc is offline   Reply With Quote
Old 05-18-2010, 09:38 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

what's your timing like? it's spoolin' a bit slow.
Braineack is offline   Reply With Quote
Old 05-18-2010, 01:12 PM   #7
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
what's your timing like? it's spoolin' a bit slow.
I know.

Exhaust leak from manifold to turbo.

timing was kept a bit on the conservative side as well. I need this tired old engine to last the summer.

Going to fix the leak, port the wastegate and remove my cat and go back for more power.

Quote:
Originally Posted by Fireindc View Post
THIS. Do it asap.
If I hold boost better with this... will it effect how the AFR's run? I figure since the car is tuned to 10PSI across the board, that if I can get it to hold a solid 10PSI I should be good, yes?
falcon is offline   Reply With Quote
Old 05-18-2010, 01:14 PM   #8
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

The WG cans are an issue also on greddy kits, replace the can with a bigger one.
IcantDo55 is offline   Reply With Quote
Old 05-18-2010, 01:35 PM   #9
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I'd like to take a look at the datalog from that run if you have it, or possibly get together with you and have a look at the way the car behaves. I don't particularly like your afr plot.
Jeff_Ciesielski is offline   Reply With Quote
Old 05-18-2010, 01:47 PM   #10
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by IcantDo55 View Post
The WG cans are an issue also on greddy kits, replace the can with a bigger one.
It dosen't have the stock wastegate on there anymore. Not sure which one it is since it came with the kit when I bought it used.

Quote:
Originally Posted by Jeff_Ciesielski View Post
I'd like to take a look at the datalog from that run if you have it, or possibly get together with you and have a look at the way the car behaves. I don't particularly like your afr plot.
I'll see what I can find. I don't have my wideband installed yet. He used his own LM1.

Perhaps once I have it installed I can make a trip down to Seattle and you can take a look at it. The car runs great and it makes decent power. It runs well in the city/stop/go traffic. So it gets the job done for now. I'm sure I can still make more power out of it though.
falcon is offline   Reply With Quote
Old 05-18-2010, 02:20 PM   #11
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
The exhuast has the cat welded in... it's not like stock. So I'm just going to have it cut out.
Well i've got 3" piping if you want help. We could weld flanges on everything so its swappable.

So I wont be making it to Knox this year. My car just isn't going to be back together in time for this weekend :(
wayne_curr is offline   Reply With Quote
Old 05-25-2010, 11:59 AM   #12
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

I have very similar setup, I made 186whp @ 12 psi, tuned conservatively.
jbrown7815 is offline   Reply With Quote
