Default GTX2863R

GTX2863R using ATP .72 A/R exhaust housing with EWG v-band port, turbosmart EWG, FM2 log manifold, FM 3" exhaust with cat deleted for this dyno run, FM intercooler.

1.8L w/ 9.0:1 84mm supertechs, Carrillo A-beams, BP4W head, +1mm oversize intake valves, porting work by FM 10 years ago, BP-5A intake cam, stock exhaust cam. id1000 injectors, MSLabs MS3. 100 octane fuel.

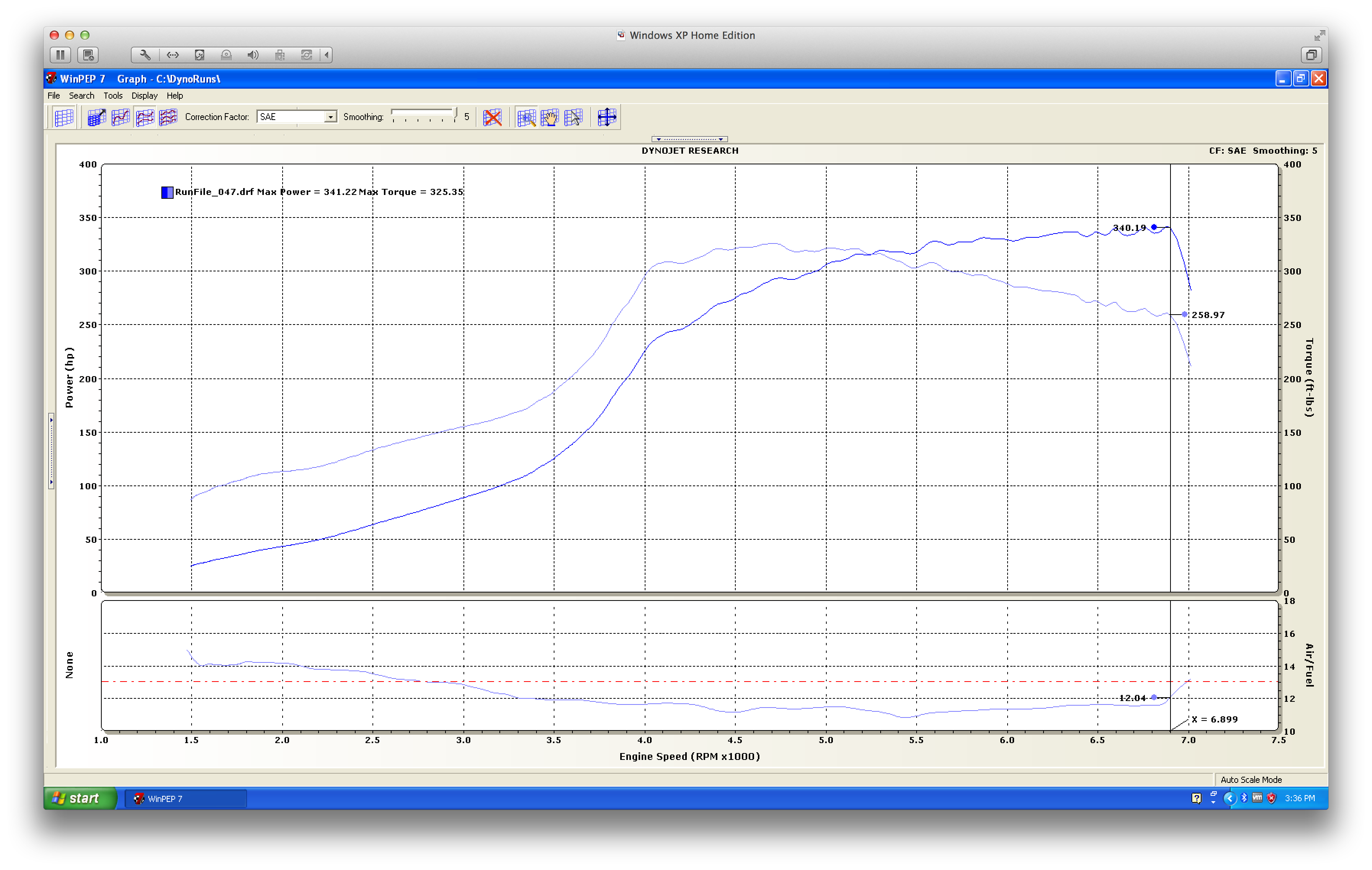

This is at 24 psi:



--Ian
Attached Thumbnails

Last edited by codrus; 11-03-2015 at 01:11 PM.
codrus is offline   Reply With Quote
Old 11-03-2015, 11:59 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

That is some good power, congrats
18psi is offline   Reply With Quote
Old 11-03-2015, 12:14 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Those are some great numbers, but I feel like I was expecting a little more. I think I just keep overestimating the GTX series. Was that about what you were expecting?
pdexta is offline   Reply With Quote
Old 11-03-2015, 01:06 PM   #4
Elite Member
Thread Starter

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by pdexta View Post
Those are some great numbers, but I feel like I was expecting a little more. I think I just keep overestimating the GTX series. Was that about what you were expecting?
Garrett rates the 2863R at 430hp, so I'm guessing it probably tops out around 380 at the wheels. This current motor is more ping-prone than my old one was, my current theory is that the actual compression ratio is substantially higher than the 9.0:1 pistons would suggest. On straight 100 octane it will reach MBT at 240 kpa (and makes 330 rwhp there), but it's ping-limited at 265 kpa (the chart above), and is only making 10 more. I think there's more in it with more boost and more timing, I just don't have the octane to support that right now. E85 would probably do it, but that's a PITA as far as availability is concerned around here.

I was hoping for a nice round 350, but I'll take 340. It's well into 6-speed-shredding territory, so I don't know how often I'll run this much boost.

--Ian
codrus is offline   Reply With Quote
Old 11-03-2015, 01:25 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Looks good Ian. Why not run that boost level all the time, just 6 speed concern?
patsmx5 is offline   Reply With Quote
Old 11-03-2015, 01:27 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

It's no EFR, but it's also no slouch. People need to keep in mind that you're on the significantly inferior (flow wise) FM manifold too
18psi is offline   Reply With Quote
Old 11-03-2015, 01:44 PM   #7
Elite Member
Thread Starter

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by patsmx5 View Post
Looks good Ian. Why not run that boost level all the time, just 6 speed concern?
The timing is significantly retarded at 265 to make it not ping, so EGTs would be high. I'll probably run 215 on the track just for safety purposes.

--Ian
codrus is offline   Reply With Quote
Old 11-03-2015, 02:03 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Ian, what's your spark table look like?
sixshooter is offline   Reply With Quote
Old 11-03-2015, 02:39 PM   #9
Elite Member
Thread Starter

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by sixshooter View Post

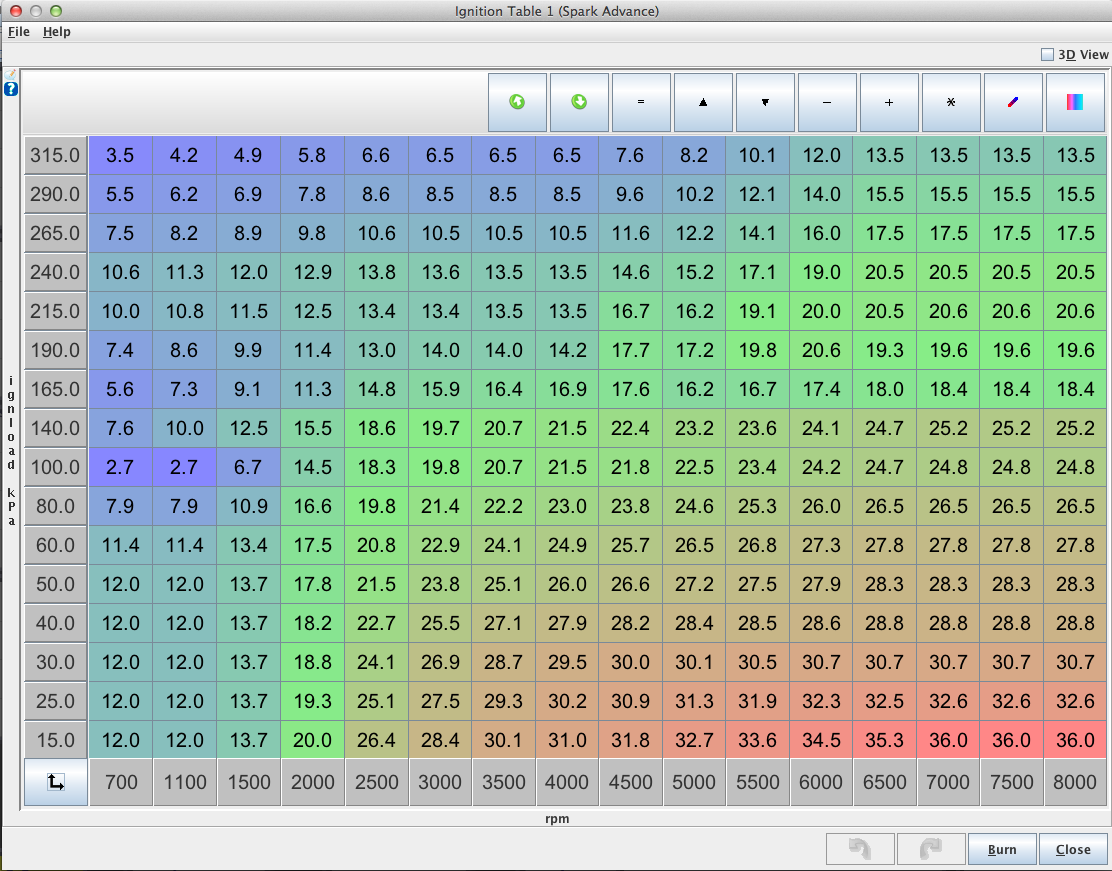

Ian, what's your spark table look like?


--Ian
Attached Thumbnails
codrus is offline   Reply With Quote
Old 11-03-2015, 02:46 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Do you use this car with pump gas at all? If so, do you use a different spark map?
sixshooter is offline   Reply With Quote
Old 11-03-2015, 02:59 PM   #11
Elite Member
Thread Starter

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by sixshooter View Post
Do you use this car with pump gas at all? If so, do you use a different spark map?
Well, I get 100 octane out of a gas pump, but no. It runs exclusively on 100 octane. California 91 gas isn't worth the effort.

(edit: ) My original intention was to run it on 95 (by blending 91 and 100 50/50), but it tops out at 250 at the wheels on that due to ping. Running straight 100 is sort of a band-aid until I get the time/energy/whatever to pull the head off and figure out WTF is up with the compression ratio.

--Ian

Last edited by codrus; 11-03-2015 at 03:11 PM.
