Old 09-06-2016, 10:20 AM   #41
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,759
Total Cats: 123
Default

Quote:
Originally Posted by LownSlow616 View Post
Still puzzling tho. Im still thinking this is the turbo for my goals but if i struggle to hit even 300whp ill be mad asf
Don't give up on the GTX lineup just because one setup doesn't post dyno numbers you're looking for. People have hit 300whp on a GT2560, no reason at all that you shouldn't expect a GTX2867 to do it. As much as these turbos seem to like high boost sixshooter would be +300whp with a few more psi, it's not like he couldn't get there if he wanted to.

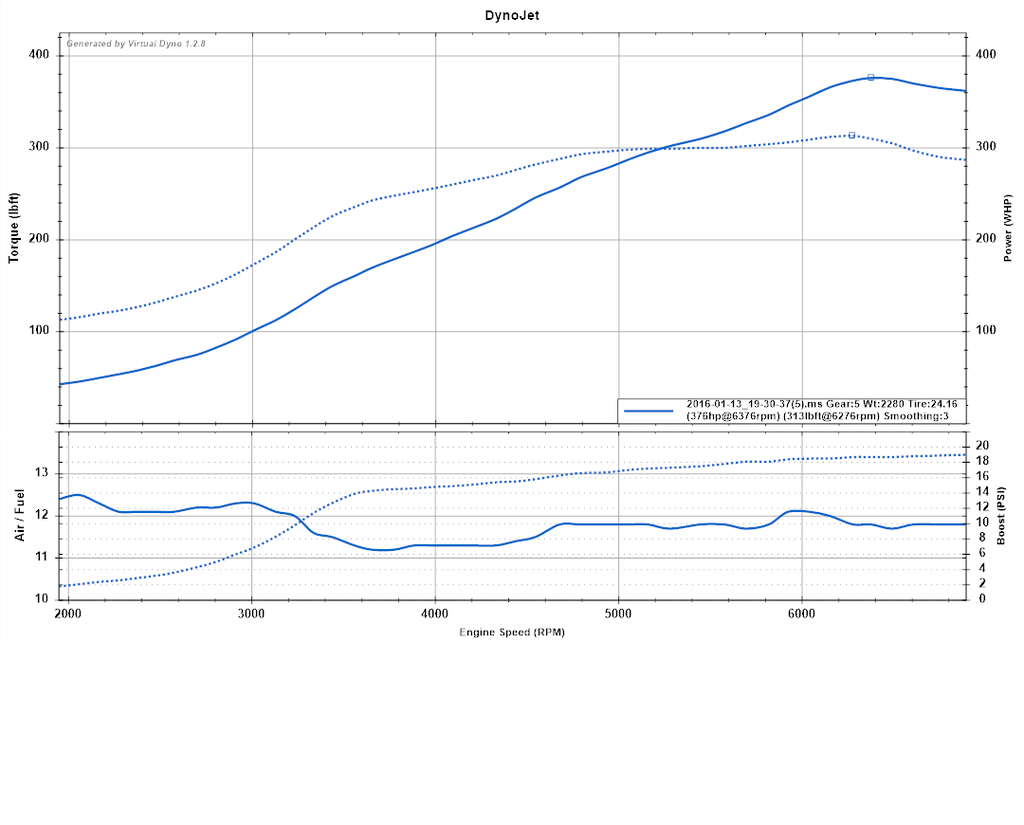

Virtual Dyno results of my last car:

GTX2860, E85, begi cast manifold, stock '99 pistons, forged rods

Name:  11.13.15.pull.png
Views: 11
Size:  130.4 KB
pdexta is offline   Reply With Quote
Old 09-06-2016, 10:32 AM   #42
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Quote:
Originally Posted by pdexta View Post
Don't give up on the GTX lineup just because one setup doesn't post dyno numbers you're looking for. People have hit 300whp on a GT2560, no reason at all that you shouldn't expect a GTX2867 to do it. As much as these turbos seem to like high boost sixshooter would be +300whp with a few more psi, it's not like he couldn't get there if he wanted to.

Virtual Dyno results of my last car:

GTX2860, E85, begi cast manifold, stock '99 pistons, forged rods

lol ive been watching your utube videos over and over!! i believe these VD results with the 11 second passes on there. what size turbine housing are you using?

Ive been reading compressor maps a little and i think im going with the gtx2871. Wont even be breaking a sweat at 320whp and I could probably see 400whp someday if i get an allofit engine.

my next goal is 340whp on a stock 99 engine with manley rods and e85
LownSlow616 is offline   Reply With Quote
Old 09-06-2016, 11:49 AM   #43
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,759
Total Cats: 123
Default

Quote:
Originally Posted by LownSlow616 View Post
i believe these VD results with the 11 second passes on there. what size turbine housing are you using?
Haha, thanks.

It's .72 a/r. Special Turbine Housing T25 Inlet, Cast 44mm EWG Port : atpturbo.com
pdexta is offline   Reply With Quote
Old 09-06-2016, 12:08 PM   #44
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Quote:
Originally Posted by pdexta View Post
Haha, thanks.

It's .72 a/r.
dammit. my only choices are .63 or .86 (tial v band)
LownSlow616 is offline   Reply With Quote
Old 09-06-2016, 12:36 PM   #45
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

I think the oddly low peak power in the RPM range is a clue as to where to look for the problem.
miata2fast is offline   Reply With Quote
Old 09-06-2016, 05:58 PM   #46
Moderator
Thread Starter
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,237
Total Cats: 1,481
Default

Quote:
Originally Posted by miata2fast View Post
I think the oddly low peak power in the RPM range is a clue as to where to look for the problem.
Yes, I'm going to double check cam timing per our conversation. It would explain a lot.
sixshooter is offline   Reply With Quote
Old 09-06-2016, 08:41 PM   #47
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

it is my understanding that it would shift the power curve one way or the other depending on whether advanced/retarded, and it looks like you have neither the low end grunt nor the top end power.

I'm thinking restriction
18psi is offline   Reply With Quote
Old 09-06-2016, 09:28 PM   #48
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by pdexta View Post
Don't give up on the GTX lineup just because one setup doesn't post dyno numbers you're looking for. People have hit 300whp on a GT2560, no reason at all that you shouldn't expect a GTX2867 to do it
I made 340 rwhp on a GTX2863, a 2867 is capable of more. Lots of boost and enough octane to run decent amounts of timing. This was with 24 psi of boost, and there's a lot more power there if I had more octane:



--Ian
codrus is offline   Reply With Quote
Old 09-06-2016, 09:33 PM   #49
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Quote:
Originally Posted by codrus View Post
I made 340 rwhp on a GTX2863, a 2867 is capable of more. Lots of boost and enough octane to run decent amounts of timing. This was with 24 psi of boost, and there's a lot more power there if I had more octane:



--Ian
Ill be using e85. I want 330-maybe350whp. I know the gtx2867 can do it, I just don't want to run crazy high boost. I want to be at 330whp around 20psi.

Its tough bc im pretty sure the 67 can do it but i feel like the 71 will be able to do it easier with less tuning and have way more headroom. Plus its only 4mm bigger..which will be like 2 or 300 rpm less spool. Not even a big deal
LownSlow616 is offline   Reply With Quote
Old 09-06-2016, 10:02 PM   #50
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by LownSlow616 View Post
Ill be using e85. I want 330-maybe350whp. I know the gtx2867 can do it, I just don't want to run crazy high boost. I want to be at 330whp around 20psi.
Why do you care what the boost number is? From a reliability standpoint, the motor cares about revs and torque, not about manifold pressure.

330-350 should be quite doable on E85, though.

--Ian
codrus is offline   Reply With Quote
Old 09-06-2016, 10:07 PM   #51
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Ill be on stock pistons. I don't care about the actual boost number. I just assumed more boost would add more chance for det, wear the rings more, make the turbo less efficient, etc. I think the power would be more reliable at a little less boost pressure? Or am i retarded?
LownSlow616 is offline   Reply With Quote
Old 09-06-2016, 10:19 PM   #52
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

you need to read moar young grasshopper
18psi is offline   Reply With Quote
Old 09-06-2016, 10:54 PM   #53
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,539
Total Cats: 151
Default

Quote:
Originally Posted by 18psi View Post
it is my understanding that it would shift the power curve one way or the other depending on whether advanced/retarded, and it looks like you have neither the low end grunt nor the top end power.

I'm thinking restriction
I think it's restriction too. But nobody seems to agree with me that it's that awful downpipe. Could be the cast mani too but I think it is at a minimum a combination of the two.
Ryan_G is offline   Reply With Quote
Old 09-06-2016, 11:00 PM   #54
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,752
Total Cats: 2,491
Default

oh the downpipe is junk. but while the shape is terrible, it seems to still have at least 2.5" worth of girth so I dunno if it's choking at only 250
18psi is offline   Reply With Quote
Old 09-07-2016, 12:58 AM   #55
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by LownSlow616 View Post
Ill be on stock pistons. I don't care about the actual boost number. I just assumed more boost would add more chance for det, wear the rings more, make the turbo less efficient, etc. I think the power would be more reliable at a little less boost pressure? Or am i retarded?
Yes, more boost will add greater likelihood for detonation, which is why I specified adequate octane. E85 will make it a non-issue, though. Rings don't wear from boost pressure, and the turbo efficiency is an attribute of the turbo itself. One of the things that makes the GTX turbos special is a redesigned compressor section that retains efficiency at much higher pressure ratios than the equivalent GT turbos, which means you can run them at higher boost without getting sky-high intake temperatures.

Generally speaking, torque is proportional to MAP times displacement. Engine breathing mods will move the torque peak further up or down the RPM band, but they won't really change the peak value by all that much. Since power == torque * RPM, this means that you get more power either by adding more torque (and with fixed displacement this means more boost) or with more revs. More revs means cams, head work, better-flowing manifolds, etc. The parts and knowledge for building a Miata motor to take boost are generally cheaper, more available, and easier to DIY than for revs.

From what I've read (never tried it myself), stock pistons can be used for higher boost better than stock rods can, but will reduce your margin for safety in detonation.

--Ian
codrus is offline   Reply With Quote
Old 09-07-2016, 01:00 AM   #56
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by 18psi View Post
oh the downpipe is junk. but while the shape is terrible, it seems to still have at least 2.5" worth of girth so I dunno if it's choking at only 250
Catalytic converter?

--Ian
codrus is offline   Reply With Quote
Old 09-07-2016, 07:41 AM   #57
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Check to make sure the throttle body is opening up all the way when mashing the pedal before doing anything else.
miata2fast is offline   Reply With Quote
Old 09-07-2016, 09:35 AM   #58
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Quote:
Originally Posted by 18psi View Post
you need to read moar young grasshopper
Can you help me with compressor maps? Does the map tell me how the pressure ratio effects the airflow? If I need 40 lb/min for 340whp, how do I know what pressure ratio that will be at?

If i was at 22psi (2.5 pressure ratio) flowing the 40 lb/min, this turbo would be most efficient and have plenty of headroom


LownSlow616 is offline   Reply With Quote
Old 09-07-2016, 09:48 AM   #59
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Please start your own thread, and let us talk about how to help Sixshooter.
miata2fast is offline   Reply With Quote
Old 09-07-2016, 10:12 AM   #60
40 roll

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 310
Total Cats: -34
Default

Quote:
Originally Posted by miata2fast View Post
Please start your own thread, and let us talk about how to help Sixshooter.
this thread was dead. i revived it to try to pick my next turbo. you couldve been helping him for the past year..but okay
LownSlow616 is offline   Reply With Quote
