Default Homebrew KIT - 270rwhp/214tq

Here is my 90 turbo miata... which has been in various states of progression over the past 8 years. When I first started (2000) I couldnít afford a KIT, or didnít like what was available. Iíve done things right, done a lot wrong Ė but here is my experience

270.7 rwhp / 214.8 tq 15psi

Stock 1.6

BEGI cast manifold ( circa 2000 )

Ford SVO Mustang T3

3Ē DP/ Exhaust

RC 550ís, Vishnu Rail, Vortec FPR, Walboro pump

TEC II ECU, Blitz SBC, Tial 38mm Wastgate, HKS pro BOV

Custom IC.


Should have done from Day 1:

Started with a 1.8L miata
Bought a dual feed rail
Stand alone ECU
Tuned on the Dyno!

Since the stock 1.6L threw a rod, Iím in the process of building a complete bottom end and will be targeting much higher power levels.
Attached Thumbnails

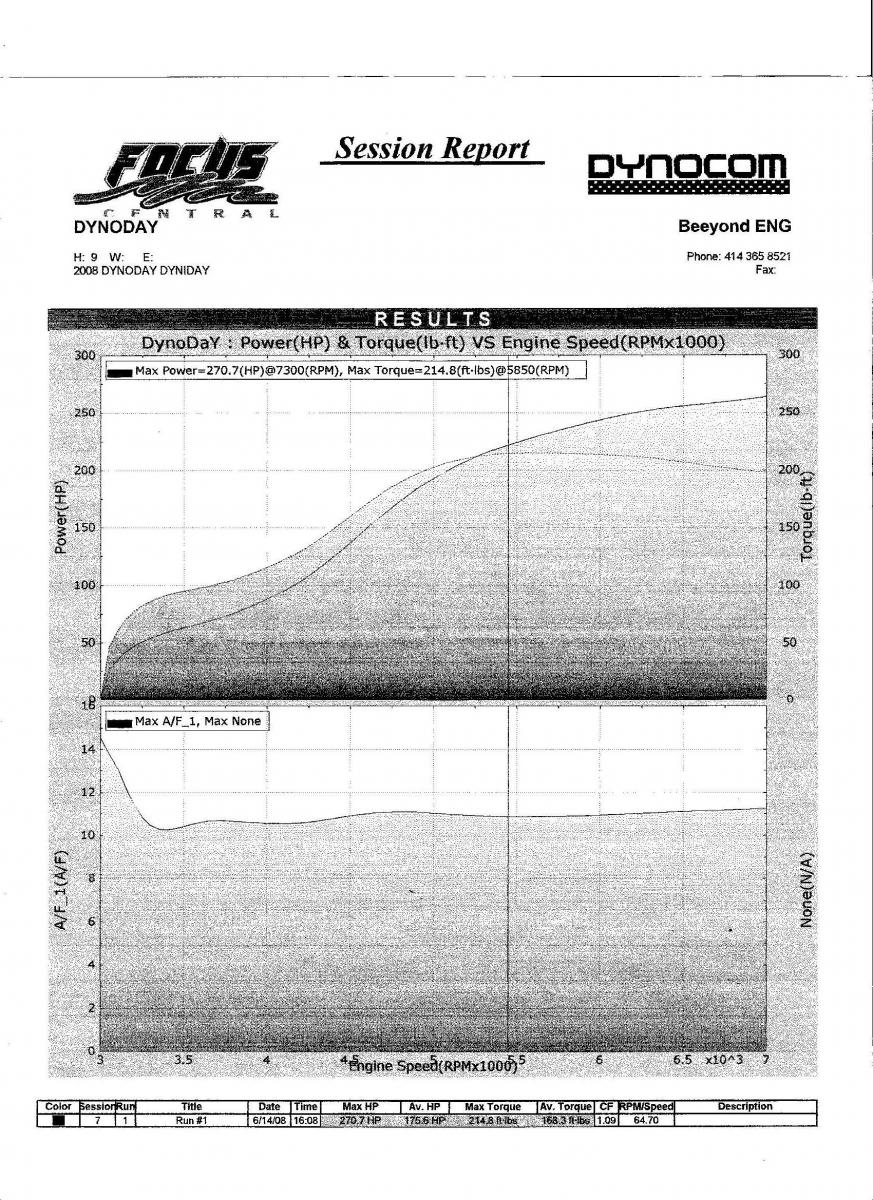

Homebrew KIT - 270rwhp/214tq-90miata15psi.jpg

Last edited by iluvspd; 08-21-2008 at 08:39 PM.
iluvspd is offline   Reply With Quote
Old 08-21-2008, 07:48 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

why is it so god damn difficult to put your ******* location in your profile?


nice #'s btw.
hustler is offline   Reply With Quote
Old 08-21-2008, 07:56 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

didnt know it mattered :P

about 600 ft above sea level.
iluvspd is offline   Reply With Quote
Old 08-21-2008, 07:57 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by iluvspd View Post
didnt know it mattered :P

about 600 ft above sea level.
cool. I watched ALMS at RA a couple weeks ago.
hustler is offline   Reply With Quote
Old 08-21-2008, 08:21 PM   #5
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Got a dyno plot? When does that thing spool and what boost did you run?
Bryce is offline   Reply With Quote
Old 08-21-2008, 08:46 PM   #6
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

posted Dyno run...

Still needed some love in the tuning dept... but it threw a rod a few months later LOL

Spool, less then stellar. I was given the turbo free 8 years ago. The exhaust housing has an internal crack radially that probally didnt help. Also, flanged leaked on the turbo inlet. So ... it can only get better.

I'm giving the chinacharger a shot first before I rebuild this unit. stay tuned....
iluvspd is offline   Reply With Quote
Old 08-22-2008, 11:39 PM   #7
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

Thats kinda risky. I had one but not for very long.

My Garrett seems to take a lot more abuse.More money but I think a good name brand is the way to go.

My Mitsubishi was pretty good too,till I blew my motor and starved it of oil. I wouldn't get a no-name turbo.
lordrigamus is offline   Reply With Quote
Old 08-25-2008, 04:54 AM   #8
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Was it the .48 or .63 turbine housing?
zoom2zoom is offline   Reply With Quote
Old 10-08-2008, 01:11 AM   #9
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

it was a .63 - stock ford svo Garrett.

Dyno'ed the chincharger - have boost creep. Its probally the outlet on the exhaust turbine housing - will open it up this weekend.

But, it did do 320 rwhp @ 22psi (7000 rpm)

stay tuned.
iluvspd is offline   Reply With Quote
Old 10-08-2008, 01:19 AM   #10
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

did it throw a rod just becuase of power? At least that supports our assumption that stock internals don't like above 230 hp.
cardriverx is offline   Reply With Quote
Old 10-08-2008, 02:26 PM   #11
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

I believe the tec2 wiring faulted out, leaning out that cylinder. Detonation = extreme cylinder pressure = compromised rod.

IMO, the stock rods are good for over 250 IF it never detonates OR it is never stretched due to over revving. In the past 8 years I have been through 3 1.6L, and all rod failures were cylinder #4 and had signs of extreme detonation ( broken ring lands, cracked rings ). This past motor was pushing 270 for the last 3 years, until the ECU wiring fault.

That being said, with the price of good aftermarket rods/piston combos in the $700 range its almost a wash to build a bottom end instead of running a junkyard special - which is what the last one was

for those on a time budget, I really think the combination of dual feed rail / and reverse coolant routing can help a motor survive past the 250+ mark.
iluvspd is offline   Reply With Quote
Old 10-08-2008, 02:31 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Is that with a .63 A/R exhaust housing? spool up looks nothing like mine. I expect to see the exact same numbers on Friday at 15 pounds.
Braineack is offline   Reply With Quote
Old 10-08-2008, 03:18 PM   #13
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

The dyno plot from the 8-21 post should be ignored. Manifold to turbo inlet was leaking, Exhaust turbine housing also had an internal radial crack at the casting parting line.

The latest post ( 10-8 ) was a chinacharger, supposedly a T3/T4 TO4E 50 trim.

Upon further verification, it turned out to be this:

Compressor A/R .50
Inducer 47.5
Exducer 76.2
which works out to a .39 trim ???

Turbine A/R .63
Inducer 55.88
Exducer 65.5
which works out to a .73 trim ???

I may have the Turbine #'s mislabeled depending on how you interpret the Garret turbo tech site.... but mathematically it was a .73

I have no idea were this falls in the line of true Garretts - but I will run it until winter, and decide to upgrade based on future dyno results. This weekend we will dyno again, so Ill start a new thread with full details.
iluvspd is offline   Reply With Quote
Old 10-08-2008, 03:46 PM   #14
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by iluvspd View Post
it was a .63 - stock ford svo Garrett.

Dyno'ed the chincharger - have boost creep. Its probally the outlet on the exhaust turbine housing - will open it up this weekend.

But, it did do 320 rwhp @ 22psi (7000 rpm)

stay tuned.
Stock internals?

Good numbers.
Fireindc is offline   Reply With Quote
Old 10-08-2008, 03:56 PM   #15
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

Current shortblock is...

GTX rods / Wiseco - balanced. Thats it.

Still waiting on the GB Oil Pump Gears to come in....
iluvspd is offline   Reply With Quote
Old 10-31-2008, 01:52 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by iluvspd View Post
it was a .63 - stock ford svo Garrett.

Dyno'ed the chincharger - have boost creep. Its probally the outlet on the exhaust turbine housing - will open it up this weekend.

But, it did do 320 rwhp @ 22psi (7000 rpm)

stay tuned.
Ok, Chincharger wastegate outlet was 2 mm smaller than the Garret. Opened it up to Garrett + dimensions, radiused direction of flow and boost creep is gone.

finally I can get back to the dyno.
iluvspd is offline   Reply With Quote
Old 10-31-2008, 04:36 PM   #17
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

That's some pretty sweet numbers, especially for a 1.6. Good job. Need pics of engine bay, etc. Like you did, I want to push the stock engine and see how much it will take.
patsmx5 is offline   Reply With Quote
