View Poll Results: How much Wheel Power on a Stock Engine? Are you over?
250Hp on a stock B6 (1600cc Engine) 17 13.08%
300Hp on a stock B6 (1600cc Engine) 0 0%
250hp on a stock 94-97 BP Engine (1800cc Engine) 17 13.08%
300hp on a stock 94-97 BP Engine (1800cc Engine) 1 0.77%
250hp on a stock 99-00/Mazdaspeed BP Engine (1800cc Engine) 8 6.15%
300hp on a stock 99-00/Mazdaspeed BP Engine (1800cc Engine) 5 3.85%
250hp on a stock 01-05 BP/vvt Engine (1800cc Engine) 6 4.62%
300hp on a stock 01-05 BP/vvt Engine (1800cc Engine) 2 1.54%
Make over 350Hp on my Stock Engine! 1 0.77%
I make less than 250hp on my stock engine. WIMP! 73 56.15%
Voters: 130. You may not vote on this poll

Reply



LinkBack Thread Tools Search this Thread
Old 11-21-2008, 06:46 PM   #41
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

I always thought you were built. How much boost?
ApexOnYou is offline   Reply With Quote
Old 11-21-2008, 07:58 PM   #42
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

17. made 300 with 14 so its def out of its efficiency range
paul is offline   Reply With Quote
Old 11-25-2008, 03:35 PM   #43
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

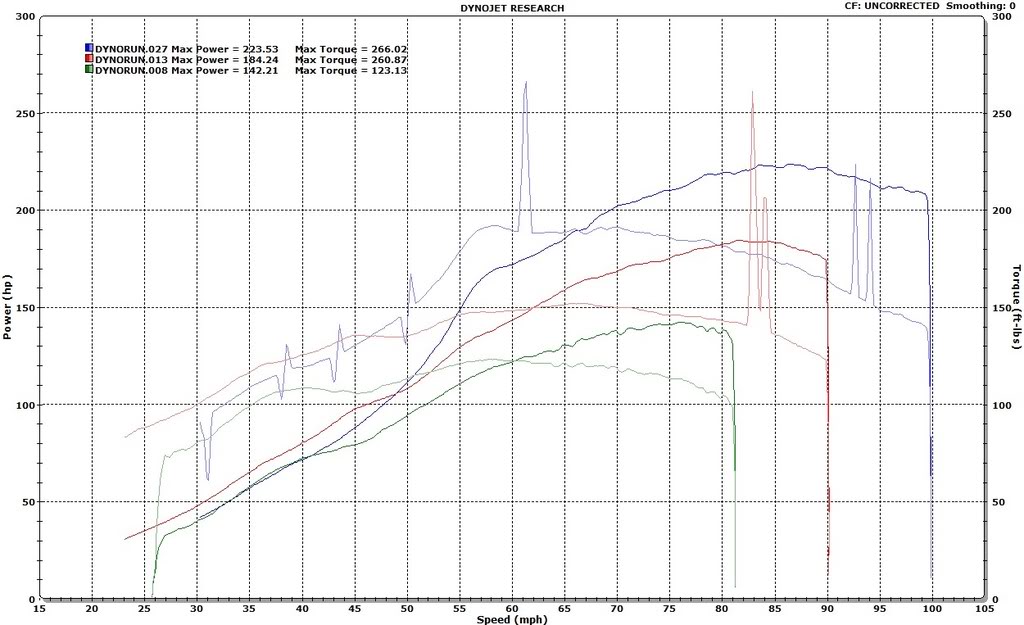

Name:  MiataDyno3Stg.jpg
Views: 17
Size:  112.2 KB

10psi and adjusted the cam timing
ray_sir_6 is offline   Reply With Quote
Old 12-06-2008, 01:20 AM   #44
Newb

Join Date: Apr 2008
Location: Houston, Texas
Posts: 42
Total Cats: 1
Default

2003 VVT
GT2860RS (Disco Potato) 13psi
XEDE
7000rpm........272.46rwhp 235ft. lbs.


My dyno chart is already on here somewhere, Stef posted it.
Engine is completely stock but not for much longer, I bent a rod. My fault!
I can't believe how long it lasted because I am anything but easy on it. Ask anybody.
mattkock is offline   Reply With Quote
Old 01-08-2009, 05:11 PM   #45
Junior Member

Join Date: Feb 2008
Posts: 62
Total Cats: 0
Default

Haltech E6k ECu
Aftermarket ignition coils using OEM crank angle sensor
T3 .42 ar .48 turbo 16 Psi
stock engine
Greddy type s BOV
550 cc rx7 fuel injectors
255 lph walbro fuel pump
Tial wastegate (40? Mm)
Custom downpipe/midpipe, Flyin miata high flow catalytic converter, 3 inch cat back to magnaflow muffler.
Greddy profec spec b boost controller.
OEM radiator with aftermarket fans(spal?)
Innovate LC1 wideband wired into the Megasquirt
Front mount intercooler


dyno'd 250 hp, 240 tq. the fuel map was pig rich. i ran the car for about a year with this configuration. i had a bout with bad gas, and melted a dime sized hole in the #4 cyl. i later rebuilt the engine with the wiseco 8.5 pistons, and a Ms1extra. im shooting for same power but safer.
jamiemiller is offline   Reply With Quote
Old 01-08-2009, 07:39 PM   #46
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by [email protected] View Post
I made 360hp on a stock 95 BP and ran it for 8 months like that.

Was using a custom Turbo setup with a T3/T4 50 Trim. 18-19psi.
3" Exhaust
FJO 341B ECU (Also did the same on a TECII)
Max RPM was 7650. More and I would blow Oil pumps.

Trying to decide how much I want to push my 2000 Engine with the Megasquirt. I don't like swapping motors when I have a car with A/C, PS, ABS etc..
Was this 360 wheel hp? 360whp corrected and if so what correction factor? 360 whp on FM's dyno? Sincerely curious though. Got a GT3271 at 11 PSI right now and I'm afraid to turn it up.
patsmx5 is offline   Reply With Quote
Old 01-08-2009, 07:43 PM   #47
Junior Member

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

-1992 Eunos Roadster NA6CE
-Mitsubishi TD04
-2.5" Exhaust
-GReddy Emanage Blue

170Bhp
jim-NA is offline   Reply With Quote
Old 01-08-2009, 07:57 PM   #48
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Stuff is in sig. 250hp/230tq. 14.5ish psi. Pretty rich. In the process of leaning it out.
johndoe is offline   Reply With Quote
Old 01-08-2009, 09:31 PM   #49
Guest
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Was this 360 wheel hp? 360whp corrected and if so what correction factor? 360 whp on FM's dyno? Sincerely curious though. Got a GT3271 at 11 PSI right now and I'm afraid to turn it up.
It was 360 at the wheel on a Dynojet Un-Corrected in Oakville, Ontario CANADA
M-Tuned is offline   Reply With Quote
Old 01-08-2009, 09:43 PM   #50
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by [email protected] View Post
It was 360 at the wheel on a Dynojet Un-Corrected in Oakville, Ontario CANADA
Well, that's impressive. I hate seeing all these people that break/bend rods at 250 and 300 whp, but then some don't... And you did 360 on stock ones.

I'm torn.
patsmx5 is offline   Reply With Quote
Old 01-08-2009, 09:48 PM   #51
Guest
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Tuning, and fuel quality. That was on Sunoco 94 or Pioneer 93.
M-Tuned is offline   Reply With Quote
Old 01-08-2009, 09:51 PM   #52
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

How long has it been running at that horsepower level?


Tony
mrtonyg is offline   Reply With Quote
Old 01-08-2009, 10:02 PM   #53
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by [email protected] View Post
Tuning, and fuel quality. That was on Sunoco 94 or Pioneer 93.
Still a 100+whp discrepancy is a lot. Granted, I just wonder if some/most/all engine failures at 250-300whp are from poor tuning/hint of knock/etc. Recently someone broke a rod that was around the 250whp level and said there wasn't any knock.
patsmx5 is offline   Reply With Quote
Old 01-08-2009, 10:12 PM   #54
Guest
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by mrtonyg View Post
How long has it been running at that horsepower level?
I ran it for 8 months... I think Paul has been just over 300hp on a stock 99 for quite a while also.

Last edited by M-Tuned; 01-08-2009 at 10:42 PM.
M-Tuned is offline   Reply With Quote
Old 01-08-2009, 10:19 PM   #55
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

I think you mean 300hp.
johndoe is offline   Reply With Quote
Old 01-08-2009, 10:26 PM   #56
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,339
Default

155k on my motor, I figure it's at a solid 230whp after the testpipe + retune. It's been over 200whp since 130k.
Savington is offline   Reply With Quote
Old 01-08-2009, 11:13 PM   #57
Junior Member

Join Date: Oct 2007
Location: Rancho Santa Fe, CA
Posts: 115
Total Cats: 0
Default TRULY STOCK motor

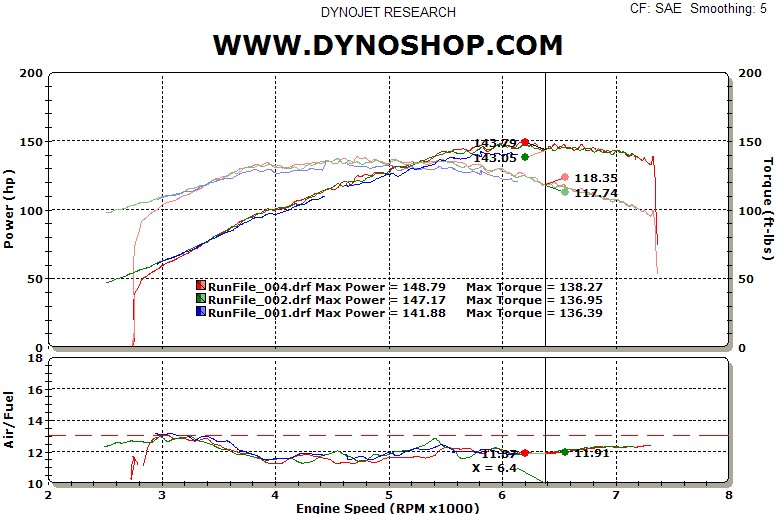

1.6 with the Stock injectors , Stock fuel pump, Stock fuel pressure regulator, a Greddy turbo and manifold with no boost control, 91 octane fuel, we are making 148RWHP at 6.8 PSI at the manifold. AFR's are low 12's.

The ECU is NOT stock, but the motor sure is....
Attached Thumbnails

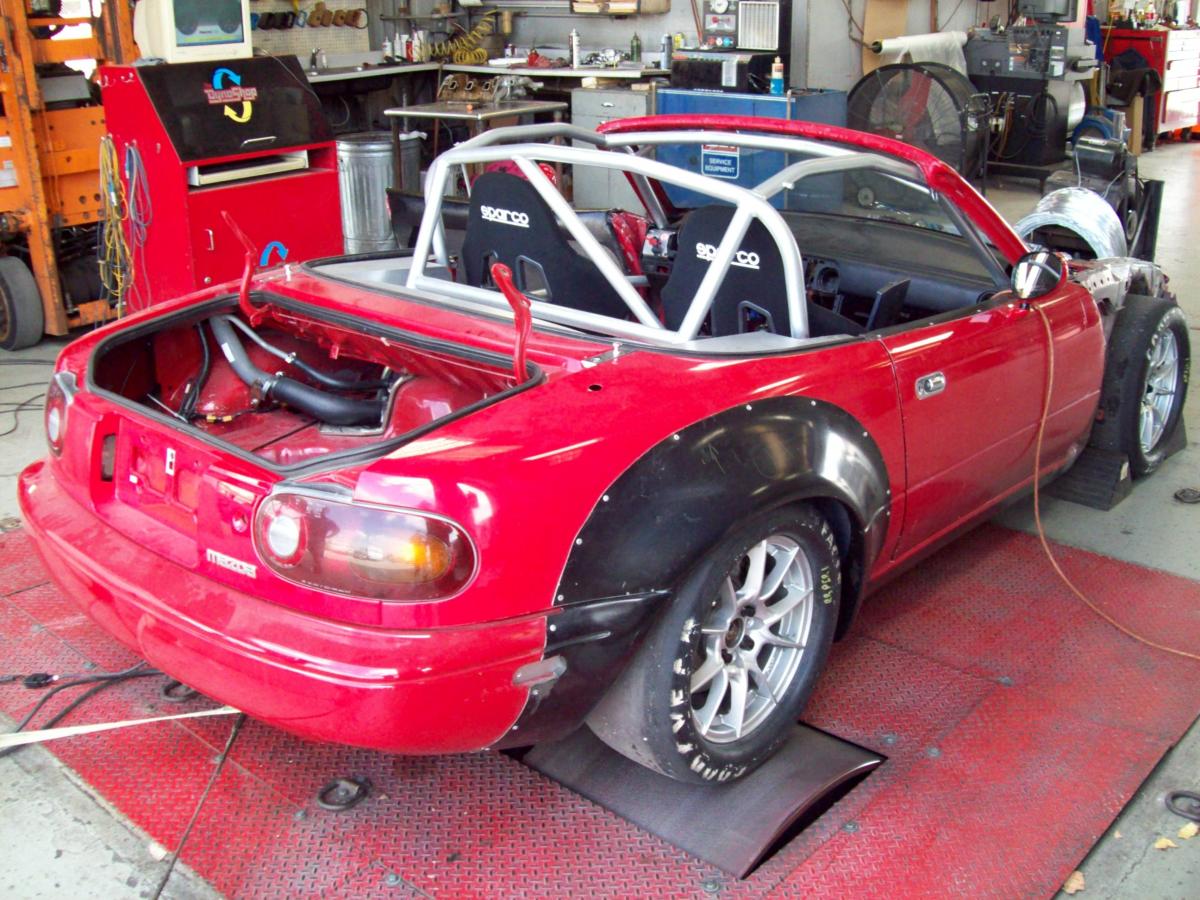

How much are you making on a 100% STOCK MOTOR?-specturbo.jpg   How much are you making on a 100% STOCK MOTOR?-turbo-dyno-019.jpg
drgoodwrench is offline   Reply With Quote
Old 01-08-2009, 11:36 PM   #58
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

^^drgoodwrench where did you source those flares?
mrtonyg is offline   Reply With Quote
Old 01-08-2009, 11:45 PM   #59
Junior Member

Join Date: Dec 2008
Location: San Antonio, TX
Posts: 74
Total Cats: 0
Default

1993 stock 1.6, everything is stock except the radiator (PWR), the exhaust (Racing Beat) and the ECU (megasquirt pnp) . The car has 180,000 on it, so I'm only running 6psi on this daily driver. BEGi-SSM and no intercooler.

156.17 rwhp and 131.10 torque

Wardsweb is offline   Reply With Quote
Old 01-09-2009, 12:58 AM   #60
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by mrtonyg View Post
^^drgoodwrench where did you source those flares?
They kinda look homemade?
samnavy is offline   Reply With Quote
